Earth-moving machinery — Pipelayers — Terminology and commercial specifications

ISO 7136:2006 establishes a terminology for, and the content of, commercial literature specifications for self-propelled pipelayers and their equipment.

Engins de terrassement — Tracteurs poseurs de canalisations — Terminologie et spécifications commerciales

L'ISO 7136:2006 établit la terminologie et le contenu des spécifications de la documentation commerciale pour les tracteurs poseurs de canalisations automoteurs et leur équipement.

General Information

Status
Published
Publication Date
01-May-2006
Current Stage
9093 - International Standard confirmed
Completion Date
14-Apr-2020
Ref Project

Relations

Buy Standard

Standard
ISO 7136:2006 - Earth-moving machinery -- Pipelayers -- Terminology and commercial specifications
English language
17 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
ISO 7136:2006 - Engins de terrassement -- Tracteurs poseurs de canalisations -- Terminologie et spécifications commerciales
French language
17 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 7136
Third edition
2006-05-01

Earth-moving machinery — Pipelayers —
Terminology and commercial
specifications
Engins de terrassement — Tracteurs poseurs de canalisations —
Terminologie et spécifications commerciales




Reference number
ISO 7136:2006(E)
©
ISO 2006

---------------------- Page: 1 ----------------------
ISO 7136:2006(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.


©  ISO 2006
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO 2006 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 7136:2006(E)

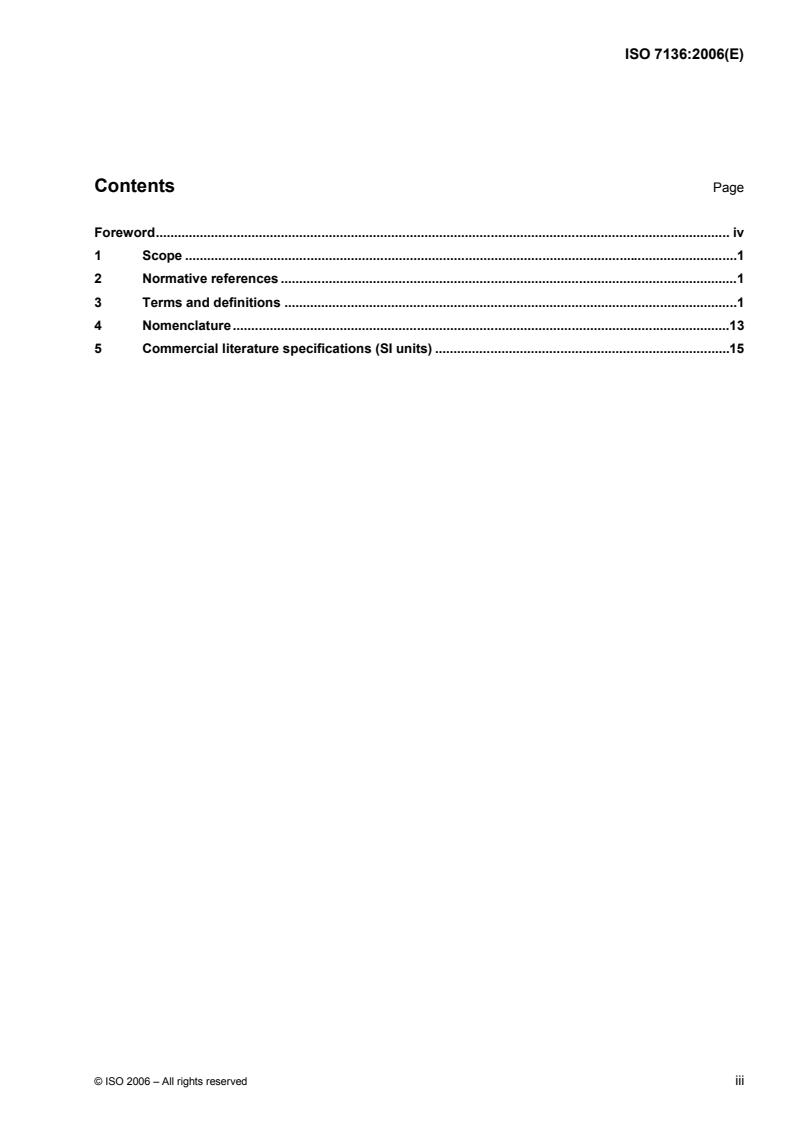

Contents Page
Foreword. iv
1 Scope .1
2 Normative references .1
3 Terms and definitions .1
4 Nomenclature.13
5 Commercial literature specifications (SI units) .15

© ISO 2006 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 7136:2006(E)

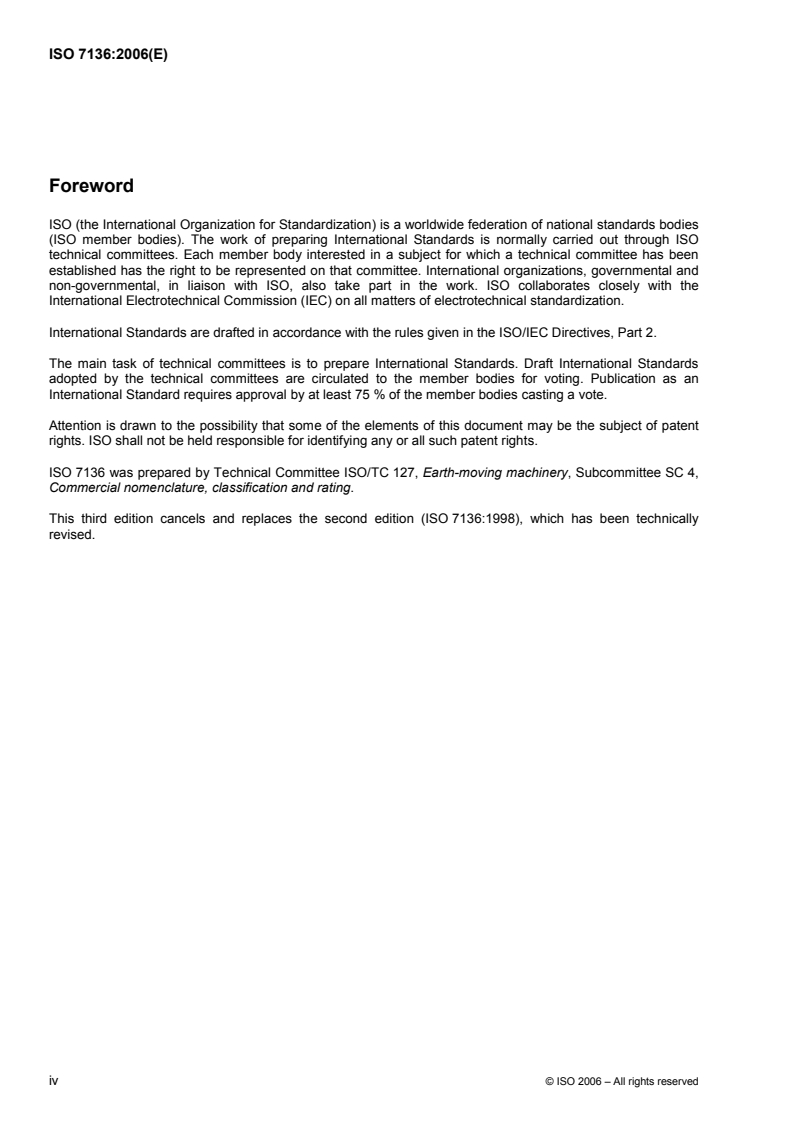

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 7136 was prepared by Technical Committee ISO/TC 127, Earth-moving machinery, Subcommittee SC 4,
Commercial nomenclature, classification and rating.
This third edition cancels and replaces the second edition (ISO 7136:1998), which has been technically
revised.

iv © ISO 2006 – All rights reserved

---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 7136:2006(E)

Earth-moving machinery — Pipelayers — Terminology and
commercial specifications
1 Scope
This International Standard establishes terminology and the content of commercial literature specifications for
self-propelled pipelayers and their equipment. It is applicable to pipelayers as defined in ISO 6165.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 6014, Earth-moving machinery — Determination of ground speed
ISO 6016:1998, Earth-moving machinery — Methods of measuring the masses of whole machines, their
equipment and components
ISO 6165:2006, Earth-moving machinery — Basic types — Identification and terms and definitions
ISO 6746 (all parts), Earth-moving machinery — Definitions of dimensions and codes
ISO 9249, Earth-moving machinery — Engine test code — Net power
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 6165 and the following apply.
3.1 General
3.1.1
pipelayer
〈pipelayers with rigid upper structure〉 self-propelled crawler or wheeled machine, having pipe-laying
equipment with main frame, load-hoist mechanism, vertically pivotable side boom and counterweight, primarily
designed to handle and lay pipes
[ISO 6165:2006, definition 4.11]
© ISO 2006 – All rights reserved 1

---------------------- Page: 5 ----------------------
ISO 7136:2006(E)
3.1.2
rotating pipelayer
self-propelled crawler or wheeled machine, having pipe-laying equipment with main frame, load hoist
mechanism with either a load hoist drum or a winch, vertically pivotable boom, fitted on a rotating upper
structure, and counterweight, primarily designed to handle and lay pipes
[ISO 6165:2006, definition 4.12]
3.1.3
side boom
equipment added to a tractor or a loader (wheel or crawler type machine), which is designed to handle and lay
pipes and carry pipe-laying equipment
NOTE The equipment includes boom and load hoist mechanisms and a vertically pivotable side boom. It can be with
or without counterweights.
3.1.4
rotating upper structure
upper portion of the machine, capable of at least 90° rotation around a vertical axis passing through the
longitudinal axis of the machine
NOTE It includes machine cab, boom and counterweight(s).
3.1.5
base machine
machine with a cab or canopy and operator-protective structures if required, without equipment and
attachments but possessing the necessary mountings for such equipment and attachments
See Figure 1.
3.1.6
equipment
set of components (boom and counterweights) mounted onto the base machine to fulfil the primary design
function of a pipelayer
NOTE Equipment for pipelayers includes load hoist mechanisms with either a load hoist drum or a winch and a
vertically pivotable side boom.
3.1.7
boom
fixed length structural member that supports the load
3.1.8
counterweight
any additional removable weight and its removable (or fixed) support added to increase tipping load
NOTE There are two types of counterweights, defined in 3.1.8.1 and 3.1.8.2.
3.1.8.1
adjustable counterweight
that portion of the counterweight that is movable
3.1.8.2
nonadjustable counterweight
counterweight fixed in one location on the machine
3.1.9
attachment
assembly of components that can be mounted on the base machine, or equipment, for a specific use
2 © ISO 2006 – All rights reserved

---------------------- Page: 6 ----------------------
ISO 7136:2006(E)
3.1.10
component
part or an assembly of parts of a base machine, equipment or attachment
3.2 Masses
3.2.1
operating mass
mass of the base machine with equipment and empty attachment as specified by the manufacturer, and with
the operator (75 kg), full fuel tank and all fluid systems at the levels specified by the manufacturer
[ISO 6016:1998, definition 3.2.1]
3.2.2
shipping mass
mass of the base machine without an operator, and with fuel level at 10 % of tank capacity, all fluid systems at
their levels specified by the manufacturer and with or without equipment, attachment, cab, canopy, ROPS
and/or FOPS, wheels and counterweights as stated by the manufacturer
[ISO 6016:1998, definition 3.2.5]
3.3 Dimensions
For definitions and codes of dimensions strictly related to pipelayers, the following apply. See also ISO 6746-1
and ISO 6746-2 for definitions of dimensions and codes.
3.3.1
overall width without counterweight
W1
overall width of the machine with the boom, counterwei
...

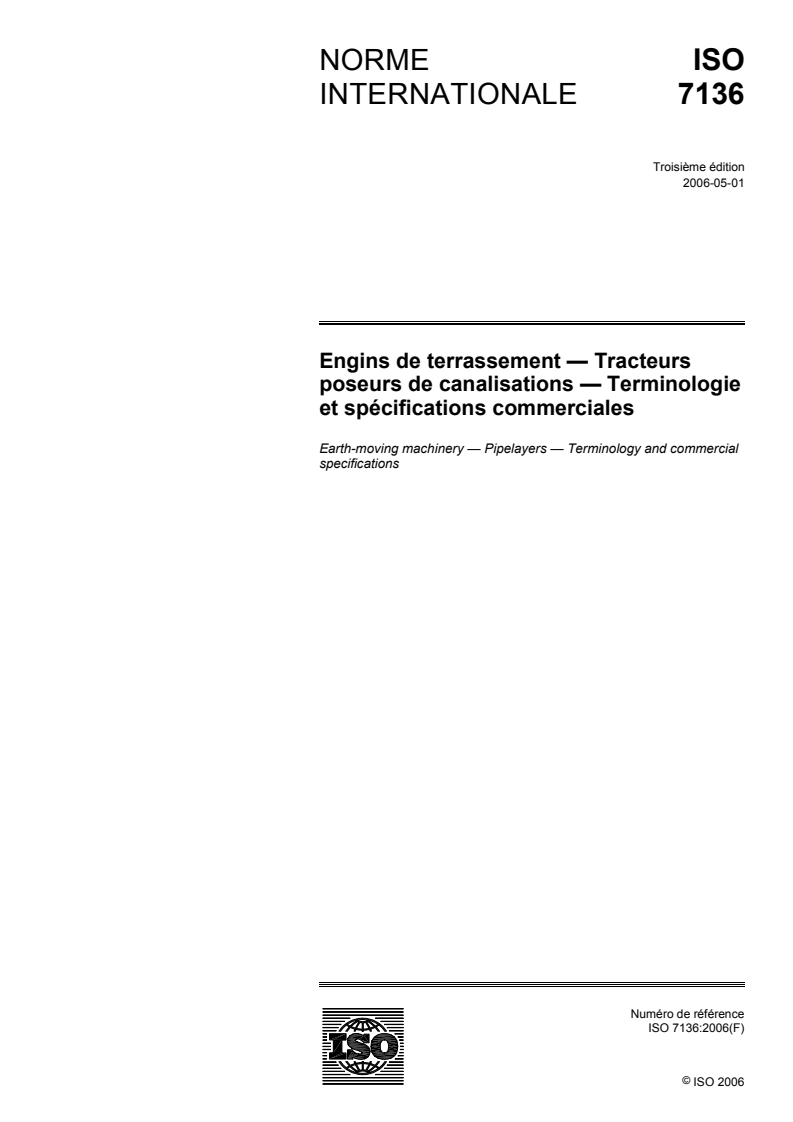

NORME ISO
INTERNATIONALE 7136
Troisième édition
2006-05-01

Engins de terrassement — Tracteurs
poseurs de canalisations — Terminologie
et spécifications commerciales
Earth-moving machinery — Pipelayers — Terminology and commercial
specifications




Numéro de référence
ISO 7136:2006(F)
©
ISO 2006

---------------------- Page: 1 ----------------------
ISO 7136:2006(F)
PDF – Exonération de responsabilité
Le présent fichier PDF peut contenir des polices de caractères intégrées. Conformément aux conditions de licence d'Adobe, ce fichier
peut être imprimé ou visualisé, mais ne doit pas être modifié à moins que l'ordinateur employé à cet effet ne bénéficie d'une licence
autorisant l'utilisation de ces polices et que celles-ci y soient installées. Lors du téléchargement de ce fichier, les parties concernées
acceptent de fait la responsabilité de ne pas enfreindre les conditions de licence d'Adobe. Le Secrétariat central de l'ISO décline toute
responsabilité en la matière.
Adobe est une marque déposée d'Adobe Systems Incorporated.
Les détails relatifs aux produits logiciels utilisés pour la création du présent fichier PDF sont disponibles dans la rubrique General Info
du fichier; les paramètres de création PDF ont été optimisés pour l'impression. Toutes les mesures ont été prises pour garantir
l'exploitation de ce fichier par les comités membres de l'ISO. Dans le cas peu probable où surviendrait un problème d'utilisation,
veuillez en informer le Secrétariat central à l'adresse donnée ci-dessous.


©  ISO 2006
Droits de reproduction réservés. Sauf prescription différente, aucune partie de cette publication ne peut être reproduite ni utilisée sous
quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les microfilms, sans l'accord écrit
de l'ISO à l'adresse ci-après ou du comité membre de l'ISO dans le pays du demandeur.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax. + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Publié en Suisse

ii © ISO 2006 – Tous droits réservés

---------------------- Page: 2 ----------------------
ISO 7136:2006(F)

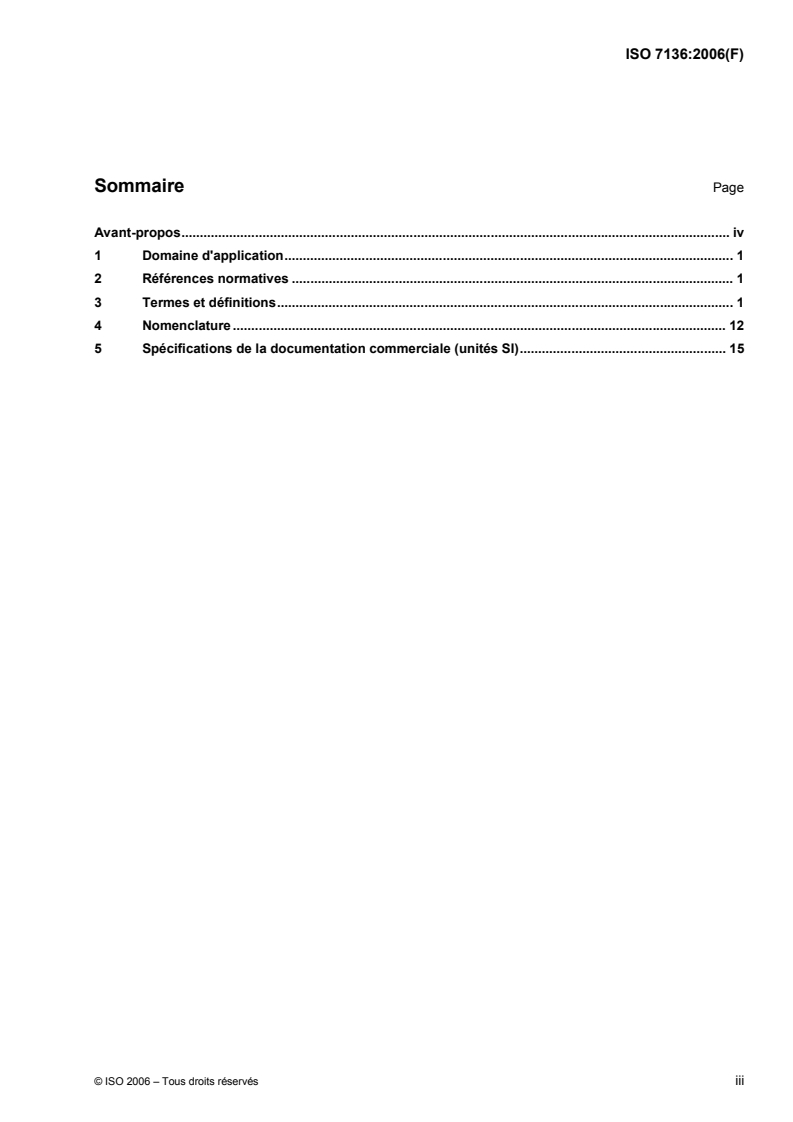

Sommaire Page
Avant-propos. iv
1 Domaine d'application. 1
2 Références normatives . 1
3 Termes et définitions. 1
4 Nomenclature . 12
5 Spécifications de la documentation commerciale (unités SI). 15

© ISO 2006 – Tous droits réservés iii

---------------------- Page: 3 ----------------------
ISO 7136:2006(F)

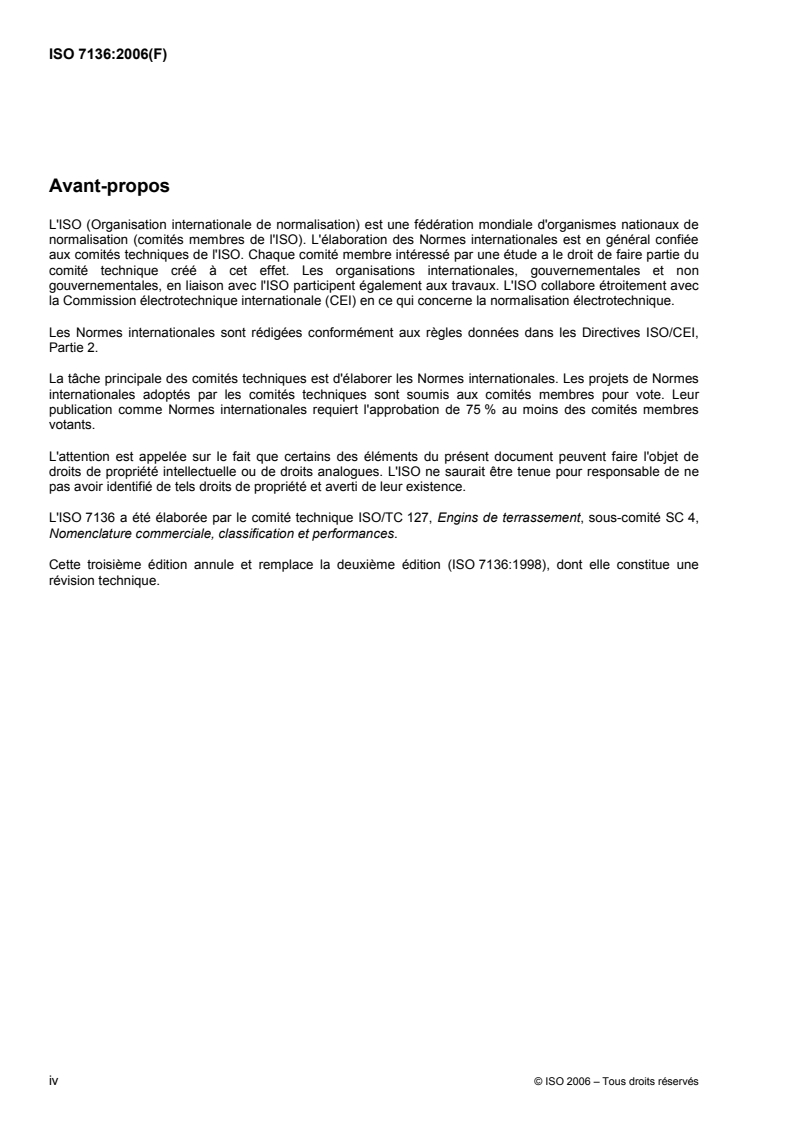

Avant-propos
L'ISO (Organisation internationale de normalisation) est une fédération mondiale d'organismes nationaux de
normalisation (comités membres de l'ISO). L'élaboration des Normes internationales est en général confiée
aux comités techniques de l'ISO. Chaque comité membre intéressé par une étude a le droit de faire partie du
comité technique créé à cet effet. Les organisations internationales, gouvernementales et non
gouvernementales, en liaison avec l'ISO participent également aux travaux. L'ISO collabore étroitement avec
la Commission électrotechnique internationale (CEI) en ce qui concerne la normalisation électrotechnique.
Les Normes internationales sont rédigées conformément aux règles données dans les Directives ISO/CEI,
Partie 2.
La tâche principale des comités techniques est d'élaborer les Normes internationales. Les projets de Normes
internationales adoptés par les comités techniques sont soumis aux comités membres pour vote. Leur
publication comme Normes internationales requiert l'approbation de 75 % au moins des comités membres
votants.
L'attention est appelée sur le fait que certains des éléments du présent document peuvent faire l'objet de
droits de propriété intellectuelle ou de droits analogues. L'ISO ne saurait être tenue pour responsable de ne
pas avoir identifié de tels droits de propriété et averti de leur existence.
L'ISO 7136 a été élaborée par le comité technique ISO/TC 127, Engins de terrassement, sous-comité SC 4,
Nomenclature commerciale, classification et performances.
Cette troisième édition annule et remplace la deuxième édition (ISO 7136:1998), dont elle constitue une
révision technique.

iv © ISO 2006 – Tous droits réservés

---------------------- Page: 4 ----------------------
NORME INTERNATIONALE ISO 7136:2006(F)

Engins de terrassement — Tracteurs poseurs de
canalisations — Terminologie et spécifications commerciales
1 Domaine d'application
La présente Norme internationale établit la terminologie et le contenu des spécifications de la documentation
commerciale pour les tracteurs poseurs de canalisations automoteurs, et leur équipement. Elle est applicable
aux tracteurs poseurs de canalisations tels que définis dans l'ISO 6165.
2 Références normatives
Les documents de référence suivants sont indispensables pour l'application du présent document. Pour les
références datées, seule l'édition citée s'applique. Pour les références non datées, la dernière édition du
document de référence s'applique (y compris les éventuels amendements).
ISO 6014, Engins de terrassement — Détermination de la vitesse au sol
ISO 6016:1998, Engins de terrassement — Méthodes de mesure des masses des engins complets, de leurs
équipements et de leurs organes constitutifs
ISO 6165:2006, Engins de terrassement — Principaux types — Identification et termes et définitions
ISO 6746 (toutes les parties), Engins de terrassement — Définitions des dimensions et des codes
ISO 9249, Engins de terrassement — Code d'essai des moteurs — Puissance nette
3 Termes et définitions
Pour les besoins du présent document, les termes et définitions donnés dans l’ISO 6165 et les suivants
s'appliquent.
3.1 Généralités
3.1.1
poseur de canalisations
〈poseur de canalisations à superstructure rigide〉 engin automoteur à chenilles ou sur roues ayant un
équipement de pose de canalisations avec une structure principale, un mécanisme de levage, une flèche
latérale pivotant verticalement montée latéralement ou sur une superstructure pivotante (tourelle) et un
contrepoids, d’abord conçu pour déplacer et poser des canalisations
[ISO 6165:2006, définition 4.11]
3.1.2
poseur de canalisations rotatif
engin automoteur à chenilles ou sur roues ayant un équipement de pose de canalisations avec une structure
principale, un mécanisme de levage de type palan ou treuil, une flèche pivotant verticalement, montée sur une
superstructure pivotante (tourelle) et un contrepoids, d’abord conçu pour déplacer et poser des canalisations
[ISO 6165:2006, définition 4.12]
© ISO 2006 – Tous droits réservés 1

---------------------- Page: 5 ----------------------
ISO 7136:2006(F)
3.1.3
flèche latérale
équipement ajouté à un tracteur ou à une chargeuse (engin sur roues ou à chenilles) conçu pour déplacer et
poser des canalisations et pour porter un équipement de pose de canalisations
NOTE L’équipement inclut des mécanismes de levage de la flèche et des charges et une flèche latérale pivotant
verticalement. Il peut inclure ou non des contrepoids.
3.1.4
tourelle
partie supérieure de l’engin, capable de pivoter d’au moins 90° autour d’un axe vertical passant par l’axe
longitudinal de l’engin
NOTE Elle inclut la cabine de l’engin, la flèche et le ou les contrepoids.
3.1.5
engin de base
engin, si nécessaire avec cabine ou canopy et les structures de protection de l'opérateur, sans équipements
ni accessoires mais pourvu des dispositifs nécessaires à un montage de ces équipements et accessoires
Voir Figure 1.
3.1.6
équipement
ensemble d’éléments (flèche et contrepoids) montés sur l’engin de base pour remplir la fonction principale
d’un poseur de canalisations
NOTE Les équipements d’un poseur de canalisations incluent des mécanismes de levage de charges avec soit un
palan, soit un treuil de levage et une flèche latérale pivotant verticalement.
3.1.7
flèche
élément structurel de longueur fixe qui supporte la charge
3.1.8
contrepoids
toute masse supplémentaire amovible ainsi que son support amovible (ou fixe) ajoutée afin d’augmenter la
charge de basculement
NOTE Il existe deux types de contrepoids, définis en 3.1.8.1 et en 3.1.8.2.
3.1.8.1
contrepoids réglable
partie mobile du contrepoids
3.1.8.2
contrepoids non réglable
contrepoids fixé en un point précis de l’engin
3.1.9
accessoire
assemblage d’éléments pouvant être montés sur l’engin de base ou sur l’équipement pour une utilisation
particulière
3.1.10
composant
partie ou ensemble de parties d’un engin de base, d’un équipement ou d’un accessoire
2 © ISO 2006 – Tous droits réservés

---------------------- Page: 6 ----------------------
ISO 7136:2006(F)
3.2 Masses
3.2.1
masse en service
masse de l’engin de base avec équipement et accessoire vide telle que spécifiée par le constructeur,
l’opérateur (75 kg), le réservoir de carburant et tous les systèmes de lubrification, hydrauliques et de
refroidissement aux niveaux spécifiés par le constructeur
[ISO 6016:1998, définition 3.2.1]
3.2.2
masse de transport
masse de l’engin de base sans opérateur, le réservoir de carburant rempli à 10 % de sa capacité, tous les
systèmes de lubrification, hydrauliques et de refroidissement aux niveaux spécifiés par le constructeur et avec
ou sans équipement, accessoire, cabine, toit, ROPS et/ou FOPS, roues et contrepoids suivant les
recommandations du constructeur
[ISO 6016:1998, définition 3.2.5]
3.3 Dimensions
Pour les définitions et les codes des dimensions s’appliquant spécifiquement aux poseurs de canalisations,
les définitions et codes suivants s’appliquent. Voir aussi l’ISO 6746-1 et l’ISO 6746-2 pour les définitions des
dimensions et des codes.
3.3.1
largeur hors tout sans contrepoids
W1
largeur hors tout de l'engin après démontage de la flèche, du contrepoids et des supports de contrepoids (s'ils
sont amovibles)
Voir Figure 1.

Figure 1 — Dimension W1

© ISO 2006 – Tous droits réservés 3

--------------------
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
