ISO 14385-2:2014

Stationary source emissions — Greenhouse gases — Part 2: Ongoing quality control of automated measuring systems

ISO 14385:2014 specifies procedures for establishing quality assurance for automated measuring systems (AMS) installed on industrial plants for the determination of the concentration of greenhouse gases in flue and waste gas and other flue gas parameters. ISO 14385:2014 specifies the following: ? a procedure to maintain and demonstrate the required quality of the measurement results during the normal operation of an AMS, by checking that the zero and span characteristics are consistent with those determined using the relevant procedure in ISO 14956; ? a procedure for the annual surveillance tests (AST) of the AMS in order to evaluate a) that it functions correctly and its performance remains valid and b) that its calibration function and variability remain as previously determined. ISO 14385:2014 is designed to be used after the AMS has been accepted according to the procedures specified in ISO 14956. ISO 14385:2014 is restricted to quality assurance (QA) of the AMS and does not include QA of the data collection and recording system of the plant.

Émissions de sources fixes — Gaz à effet de serre — Partie 2: Contrôle qualité continu des systèmes de mesurage automatiques

Emisije nepremičnih virov - Toplogredni plini - 2. del: Zagotavljanje kakovosti avtomatskih merilnih sistemov

Ta dokument določa postopke za vzpostavitev ravni zagotavljanja kakovosti avtomatskih merilnih sistemov (AMS) v industrijskih obratih za določanje koncentracije toplogrednih plinov v dimovodih ter odpadnih plinov in drugih parametrov dimnega plina. Ta del standarda ISO 14385 vključuje: – postopek za vzdrževanje in dokazovanje zahtevane kakovosti rezultatov meritev med normalnim obratovanjem avtomatskega merilnega sistema s preverjanjem, ali so ničelne in razponske značilnosti skladne s tistimi, določenimi z ustreznim postopkom v standardu ISO 14956; – postopek za letne nadzorne preskuse (AST) avtomatskega merilnega sistema, s katerimi se oceni, a) ali pravilno deluje in podaja veljavne rezultate ter b) ali sta njegova funkcija kalibracije in variabilnost še vedno v stanju, kot je bilo predhodno ugotovljeno. Ta del standarda ISO 14385 je zasnovan tako, da se uporablja po tem, ko je avtomatski merilni sistem potrjen in sprejet v skladu s postopki, določenimi v standardu ISO 14956. Ta del standarda ISO 14385 je omejen na zagotavljanje kakovosti avtomatskih merilnih sistemov in ne vključuje zagotavljanja kakovosti zbirke podatkov in sistema za beleženje v obratu.

General Information

• Status: Published
• Publication Date: 24-Jul-2014
• ICS: 13.040.40 - Stationary source emissions
• Technical Committee: ISO/TC 146/SC 1 - Stationary source emissions
• Drafting Committee: ISO/TC 146/SC 1 - Stationary source emissions
• Current Stage: 9520 - Withdrawal ballot initiated
• Start Date: 19-Sep-2024
• Completion Date: 19-Sep-2024
• Ref Project: SIST ISO 14385-2:2019 - Stationary source emissions - Greenhouse gases - Part 2: Ongoing quality control of automated measuring systems

Standards Content (Sample)

SLOVENSKI STANDARD
01-december-2019
Emisije nepremičnih virov - Toplogredni plini - 2. del: Zagotavljanje kakovosti
avtomatskih merilnih sistemov
Stationary source emissions - Greenhouse gases - Part 2: Ongoing quality control of
automated measuring systems
Émissions de sources fixes - Gaz à effet de serre - Partie 2: Contrôle qualité continu des
systèmes de mesurage automatiques
Ta slovenski standard je istoveten z: ISO 14385-2:2014
ICS:
13.020.40 Onesnaževanje, nadzor nad Pollution, pollution control
onesnaževanjem in and conservation
ohranjanje
13.040.40 Emisije nepremičnih virov Stationary source emissions
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

INTERNATIONAL ISO
STANDARD 14385-2
First edition
2014-08-01
Stationary source emissions —
Greenhouse gases —
Part 2:
Ongoing quality control of automated
measuring systems
Émissions de sources fixes — Gaz à effet de serre —
Partie 2: Contrôle qualité continu des systèmes de mesurage
automatiques
Reference number
©
ISO 2014
© ISO 2014
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2014 – All rights reserved

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols and abbreviations . 2
4.1 Symbols . 2
4.2 Abbreviations . 2
5 Principle . 3
5.1 General . 3
5.2 Limitations . 3
5.3 Measurement site and installation . 4
5.4 Testing laboratories performing SRM measurements . 4
6 Ongoing quality assurance during operation . 4
6.1 General . 4
6.2 Procedures to maintain ongoing quality . 5
6.3 Choosing control charts . 6
6.4 Setting parameters for control charts . 6
6.5 Zero and span measurements . 8
6.6 Documentation of control charts . 9
6.7 Check on validity of measured values .10
7 Annual surveillance test (AST) .10
7.1 Functional test .10
7.2 Parallel measurements with an SRM .10
7.3 Data evaluation .12
7.4 Calculation of variability .13
7.5 Test of variability and validity of the calibration function .13
7.6 AST report .14
8 Documentation .14
Annex A (normative) AST functional test of AMS .15
Annex B (normative) Test of linearity .19
Annex C (informative) Documentation .21
Annex D (informative) Shewhart control charts .23
Annex E (informative) Exponentially weighted moving average (EWMA) charts .26
Annex F (informative) Example of calculation of the standard deviation σ of the AMS at zero
AMS
and span level .29
Bibliography .32
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical Barriers
to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 146, Air quality, Subcommittee SC 1, Stationary
source emissions.
ISO 14385 consists of the following parts, under the general title Stationary source emissions —
Greenhouse gases:
— Part 1: Calibration of automated measuring systems
— Part 2: Ongoing quality control of automated measuring systems
iv © ISO 2014 – All rights reserved

Introduction
The measurement of greenhouse gas emissions (carbon dioxide, nitrous oxide, methane) in a framework
of emission trading requires an equal and known quality of data.
This part of ISO 14385 describes the quality assurance procedures for calibration and ongoing quality
control needed to ensure that automated measuring systems (AMS) installed to measure emissions
of greenhouse gases to air are capable of meeting the uncertainty requirements on measured values
specified by legislation, competent authorities, or in an emission trade scheme.
INTERNATIONAL STANDARD ISO 14385-2:2014(E)
Stationary source emissions — Greenhouse gases —
Part 2:
Ongoing quality control of automated measuring systems
1 Scope
This part of ISO 14385 specifies procedures for establishing quality assurance for automated measuring
systems (AMS) installed on industrial plants for the determination of the concentration of greenhouse
gases in flue and waste gas and other flue gas parameters.
This part of ISO 14385 specifies the following:
— a procedure to maintain and demonstrate the required quality of the measurement results during
the normal operation of an AMS, by checking that the zero and span characteristics are consistent
with those determined using the relevant procedure in ISO 14956;
— a procedure for the annual surveillance tests (AST) of the AMS in order to evaluate a) that it functions
correctly and its performance remains valid and b) that its calibration function and variability
remain as previously determined.
This part of ISO 14385 is designed to be used after the AMS has been accepted according to the procedures
specified in ISO 14956.
This part of ISO 14385 is restricted to quality assurance (QA) of the AMS and does not include QA of the
data collection and recording system of the plant.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 14385-1, Stationary source emissions — Greenhouse gases — Part 1: Calibration of automated
measuring systems
ISO 14956, Air quality — Evaluation of the suitability of a measurement procedure by comparison with a
required measurement uncertainty
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 14385-1 and the following
apply.
3.1
control chart
graphical presentation of the regular recording of the difference of the reading of an instrument or
measuring system, when measuring the pollutant concentration in a gas with known concentration, and
the nominal value of the pollutant concentration in that gas
4 Symbols and abbreviations
4.1 Symbols
D difference between SRM value y and calibrated AM
...

INTERNATIONAL ISO
STANDARD 14385-2
First edition
2014-08-01
Stationary source emissions —
Greenhouse gases —
Part 2:
Ongoing quality control of automated
measuring systems
Émissions de sources fixes — Gaz à effet de serre —
Partie 2: Contrôle qualité continu des systèmes de mesurage
automatiques
Reference number
©
ISO 2014
© ISO 2014
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2014 – All rights reserved

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols and abbreviations . 2
4.1 Symbols . 2
4.2 Abbreviations . 2
5 Principle . 3
5.1 General . 3
5.2 Limitations . 3
5.3 Measurement site and installation . 4
5.4 Testing laboratories performing SRM measurements . 4
6 Ongoing quality assurance during operation . 4
6.1 General . 4
6.2 Procedures to maintain ongoing quality . 5
6.3 Choosing control charts . 6
6.4 Setting parameters for control charts . 6
6.5 Zero and span measurements . 8
6.6 Documentation of control charts . 9
6.7 Check on validity of measured values .10
7 Annual surveillance test (AST) .10
7.1 Functional test .10
7.2 Parallel measurements with an SRM .10
7.3 Data evaluation .12
7.4 Calculation of variability .13
7.5 Test of variability and validity of the calibration function .13
7.6 AST report .14
8 Documentation .14
Annex A (normative) AST functional test of AMS .15
Annex B (normative) Test of linearity .19
Annex C (informative) Documentation .21
Annex D (informative) Shewhart control charts .23
Annex E (informative) Exponentially weighted moving average (EWMA) charts .26
Annex F (informative) Example of calculation of the standard deviation σ of the AMS at zero
AMS
and span level .29
Bibliography .32

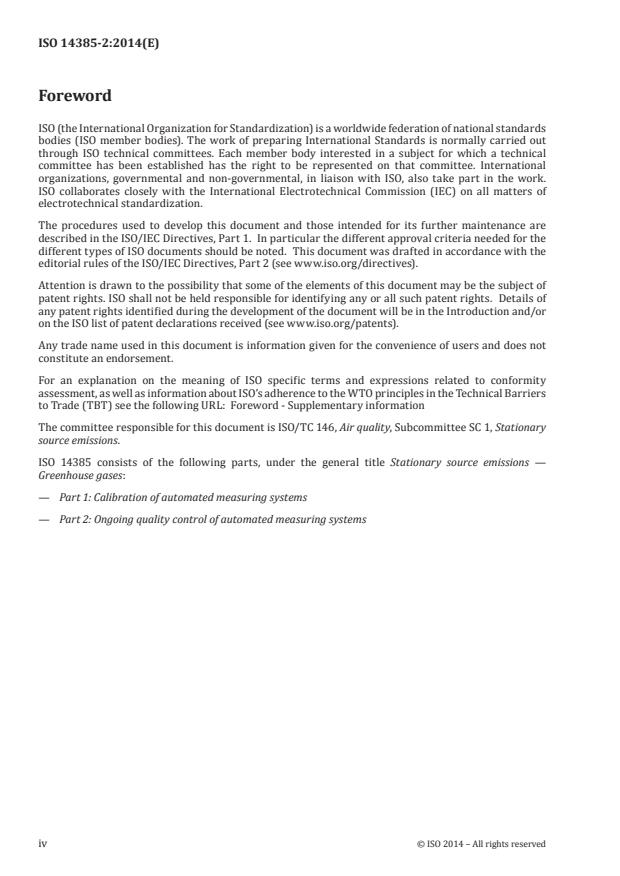

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical Barriers
to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 146, Air quality, Subcommittee SC 1, Stationary
source emissions.
ISO 14385 consists of the following parts, under the general title Stationary source emissions —
Greenhouse gases:
— Part 1: Calibration of automated measuring systems
— Part 2: Ongoing quality control of automated measuring systems
iv © ISO 2014 – All rights reserved

Introduction
The measurement of greenhouse gas emissions (carbon dioxide, nitrous oxide, methane) in a framework
of emission trading requires an equal and known quality of data.
This part of ISO 14385 describes the quality assurance procedures for calibration and ongoing quality
control needed to ensure that automated measuring systems (AMS) installed to measure emissions
of greenhouse gases to air are capable of meeting the uncertainty requirements on measured values
specified by legislation, competent authorities, or in an emission trade scheme.
INTERNATIONAL STANDARD ISO 14385-2:2014(E)
Stationary source emissions — Greenhouse gases —
Part 2:
Ongoing quality control of automated measuring systems
1 Scope
This part of ISO 14385 specifies procedures for establishing quality assurance for automated measuring
systems (AMS) installed on industrial plants for the determination of the concentration of greenhouse
gases in flue and waste gas and other flue gas parameters.
This part of ISO 14385 specifies the following:
— a procedure to maintain and demonstrate the required quality of the measurement results during
the normal operation of an AMS, by checking that the zero and span characteristics are consistent
with those determined using the relevant procedure in ISO 14956;
— a procedure for the annual surveillance tests (AST) of the AMS in order to evaluate a) that it functions
correctly and its performance remains valid and b) that its calibration function and variability
remain as previously determined.
This part of ISO 14385 is designed to be used after the AMS has been accepted according to the procedures
specified in ISO 14956.
This part of ISO 14385 is restricted to quality assurance (QA) of the AMS and does not include QA of the
data collection and recording system of the plant.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 14385-1, Stationary source emissions — Greenhouse gases — Part 1: Calibration of automated
measuring systems
ISO 14956, Air quality — Evaluation of the suitability of a measurement procedure by comparison with a
required measurement uncertainty
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 14385-1 and the following
apply.
3.1
control chart
graphical presentation of the regular recording of the difference of the reading of an instrument or
measuring system, when measuring the pollutant concentration in a gas with known concentration, and
the nominal value of the pollutant concentration in that gas
4 Symbols and abbreviations
4.1 Symbols
D difference between SRM value y and calibrated AMS measured value ŷ
i i i
average of D
D i
k test value for variability (based on a χ -test, with a β-value of 50 %, for N numbers of paired meas-
v
urements)
N number of paired samples in parallel measurements
S standard deviation of the AMS used in ongoing quality control
AMS
S standard deviation of the differences D in parallel measurements
D i
t value of the t distribution for a significance level of 95 % and a number of degrees of freedom of
0,95; N–1
N – 1
u uncertainty due to instability (expressed as a standard deviation)
inst
u uncertainty due to influence of temperature (expressed as a standard deviation)
temp
u uncertainty due to influence of pressure (expressed as a standard deviation)
pres
u uncertainty due to influence of voltage (expressed as a standard deviation)
volt
u any other uncertainty that can influence the zero and span reading (expressed as a standard
others
deviation)
th
x i measured signal obtained with the AMS at AMS measuring conditions
i
average of AMS measured signals x
x i
th
y i measured value obtained with the SRM
i
average of the SRM measured values y
y
i
y SRM measured value y at standard cond
...
