Information technology — Radio frequency identification for item management — Part 6: Parameters for air interface communications at 860 MHz to 960 MHz General

ISO/IEC 18000-6:2013 defines the air interface for radio frequency identification (RFID) devices operating in the 860 MHz to 960 MHz Industrial, Scientific, and Medical (ISM) band used in item management applications. It provides a common technical specification for RFID devices that can be used by ISO committees developing RFID application standards. It is intended to allow for compatibility and to encourage inter-operability of products for the growing RFID market in the international marketplace. It defines the forward and return link parameters for technical attributes including, but not limited to, operating frequency, operating channel accuracy, occupied channel bandwidth, maximum effective isotropic radiated power (EIRP), spurious emissions, modulation, duty cycle, data coding, bit rate, bit rate accuracy, bit transmission order, and, where appropriate, operating channels, frequency hop rate, hop sequence, spreading sequence, and chip rate. It further defines the communications protocol used in the air interface. ISO/IEC 18000-6:2013 together with ISO/IEC 18000-61, ISO/IEC 18000-62, ISO/IEC 18000-63 and ISO/IEC 18000-64 specifies the physical and logical requirements for a passive-backscatter, Interrogator-Talks-First (ITF) or tag-only-talks-after-listening (TOTAL) RFID system. The system comprises Interrogators, also known as readers, and tags, also known as labels. An Interrogator receives information from a tag by transmitting a continuous-wave (CW) RF signal to the tag; the tag responds by modulating the reflection coefficient of its antenna, thereby backscattering an information signal to the Interrogator. The system is ITF, meaning that a tag modulates its antenna reflection coefficient with an information signal only after being directed to do so by an Interrogator, or TOTAL, meaning that a tag modulates its antenna reflection coefficient with an information signal upon entering an Interrogator's field after first listening for Interrogator modulation in order to determine if the system is ITF or not. ISO/IEC 18000-6:2013 contains one mode with four types. The detailed technical differences between the four types are shown in the associated parameter tables. Types A, B and C are ITF. Type A uses Pulse-Interval Encoding (PIE) in the forward link and an adaptive ALOHA collision-arbitration algorithm. Type B uses Manchester in the forward link and an adaptive binary-tree collision-arbitration algorithm. Type C uses PIE in the forward link and a random slotted collision-arbitration algorithm. Type D is TOTAL based on Pulse Position Encoding or Miller M=2 encoded subcarrier.

Technologies de l'information — Identification par radiofréquence (RFID) pour la gestion d'objets — Partie 6: Paramètres de communications d'une interface radio entre 860 MHz et 960 MHz, Général

General Information

Status
Published
Publication Date
15-Jan-2013
Current Stage
9092 - International Standard to be revised
Completion Date
28-Nov-2023
Ref Project

Relations

Buy Standard

Standard
ISO/IEC 18000-6:2013 - Information technology -- Radio frequency identification for item management
English language
9 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

INTERNATIONAL ISO/IEC
STANDARD 18000-6
Third edition
2013-01-15

Information technology — Radio
frequency identification for item
management —
Part 6:
Parameters for air interface
communications at 860 MHz to 960 MHz
General
Technologies de l'information — Identification par radiofréquence
(RFID) pour la gestion d'objets —
Partie 6: Paramètres de communications d'une interface radio entre
860 MHz et 960 MHz, Général




Reference number
ISO/IEC 18000-6:2013(E)
©
ISO/IEC 2013

---------------------- Page: 1 ----------------------
ISO/IEC 18000-6:2013(E)

COPYRIGHT PROTECTED DOCUMENT


©  ISO/IEC 2013
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56  CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO/IEC 2013 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/IEC 18000-6:2013(E)
Contents Page
Foreword . iv
Introduction . v
1 Scope . 1
2 Conformance . 2
2.1 Claiming conformance . 2
2.2 Interrogator conformance and obligations . 2
2.3 Tag conformance and obligations . 2
3 Normative references . 3
4 Terms, definitions, symbols and abbreviated terms . 3
4.1 Terms and definitions . 3
4.2 Symbols . 3
4.3 Abbreviated terms . 3
5 Overview . 4
5.1 General . 4
Bibliography . 9

© ISO/IEC 2013 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO/IEC 18000-6:2013(E)

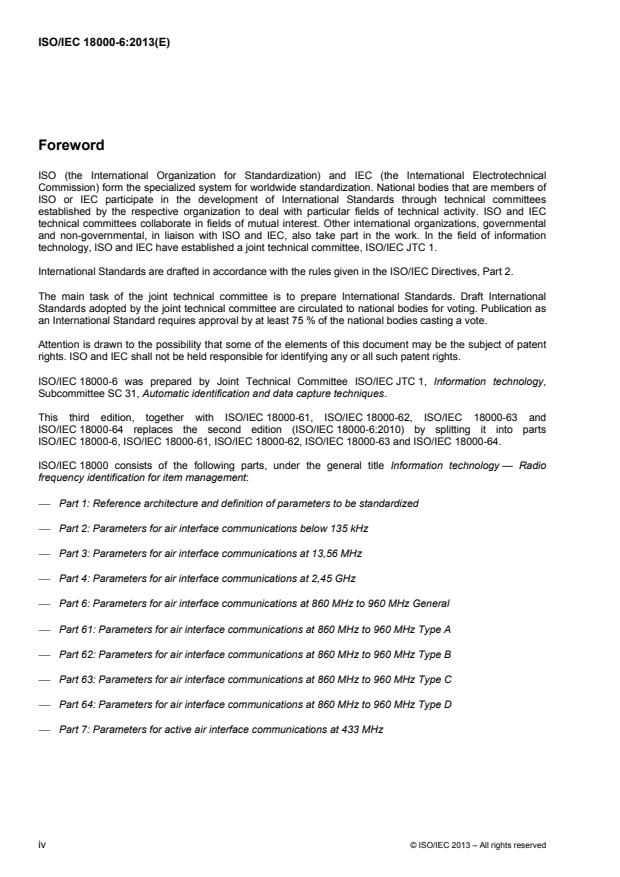

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
...
