ISO 7554-2:2026

• Abstract:

  This document specifies methods for the determination of basic measurements of surgical standard instruments. This document does not apply to instruments for use on the central nervous system and on the central cardiovascular system. NOTE Instruments for use on the central nervous system and on the central cardiovascular system are measured differently due to complex geometries which are adapted to the human anatomy.

• Status: Published
• Publication Date: 18-Jun-2026
• ICS: 11.040.30 - Surgical instruments and materials
• Technical Committee: ISO/TC 170 - Surgical instruments
• Drafting Committee: ISO/TC 170 - Surgical instruments
• Current Stage: 6060 - International Standard published
• Start Date: 19-Jun-2026
• Due Date: 14-Dec-2025
• Completion Date: 19-Jun-2026

ISO 7554-2:2026 is an ISO standard that specifies methods for determining the basic measures of surgical standard instruments. It is written for people who measure, inspect, specify, or compare instrument dimensions, so they can use the same rules for length, width, thickness, and penetration depth. It does not apply to instruments for use on the central nervous system or the central cardiovascular system, which are measured differently because of their complex anatomy-adapted geometry.

What does ISO 7554-2:2026 specify?

ISO 7554-2:2026 sets out how to measure basic dimensions of surgical standard instruments and how to handle a few common exceptions. The document is organized around general length measurement rules in Clause 4 and then special rules for particular dimensions and instrument types.

Part	What it covers
Clause 1	Scope
Clause 2	Normative references
Clause 3	Terms and definitions
Clause 4	Measuring methods
4.1	Fundamentals for measurement of lengths
4.2	Rules and exceptions
Annex A	Tools for converting customary units

The scope keeps the document focused on standard surgical instruments, and the annex gives conversion help for users who still work with customary units.

What are the key requirements of ISO 7554-2:2026?

ISO 7554-2:2026 is mainly about measuring dimensions in a repeatable way. The practical point is that the same instrument should give the same result regardless of who measures it, provided the same orientation and closed position are used.

Measuring length

• Clause 4.1 says length measurements are taken parallel to the reference axis. In practice, this means the instrument must be aligned the same way every time so length figures can be compared.
• Clause 4.1 also requires the working end to be completely closed during length measurement. For instruments with a lock, latch, or interlock/ratchet, that means fully locked; for instruments without locking devices, the jaw parts surfaces must be in contact according to ISO 7554-3, or the handle must be closed all the way to the stop.
• Clause 4.2.1 gives special rules for families of instruments and bent designs. For family instruments, length is measured in the unbent state; for bent devices, the total length is measured before the working end is bent; for instruments available with one bend only, the bend is included. This matters when comparing different versions of the same instrument type.
• Table 1 adds type-specific instructions for length measurement. For some forceps and retractors, the document specifies whether the forceps are closed, whether the working ends are in contact, or whether the measurement runs parallel to the working end. That helps avoid measuring different features on different product types.

Measuring joint, jaw and penetration dimensions

• Clause 4.2.2 says joint width is measured parallel to the joint. This gives a consistent way to check the width of the hinge area.
• Clause 4.2.3 says joint thickness is measured parallel to the rivet or screw, or next to a raised head screw. This matters when the fastening shape affects the reading.
• Clause 4.2.4 says jaw width is measured at a distance of 3 mm from the tip. That keeps the measurement point fixed and avoids variation from tip shape.
• Clause 4.2.5 says penetration depth for retractors, valves and hooks is measured from the inner surface. Table 2 adds instrument-specific guidance, including laminectomy punches, so users know how to treat the closed state when calculating shaft length.

What terms does ISO 7554-2:2026 define?

ISO 7554-2:2026 uses the terms and definitions from ISO 7554-1. The measuring clauses rely on a small set of recurring terms:

• Reference axis - the line used to align length measurements.
• Working end - the part that must be fully closed when measuring length.
• Lock, latch, interlock/ratchet - closing devices that determine when an instrument counts as fully closed.
• Joint width - the width measured at the joint area.
• Joint thickness - the thickness measured alongside the rivet or screw.
• Jaw width - the width measured at a fixed distance from the tip.
• Penetration depth - the depth measured from the inner surface for certain instrument types.

Who uses ISO 7554-2:2026?

ISO 7554-2:2026 is used by surgical instrument manufacturers, quality teams, inspection personnel, and test laboratories. They use it to measure products the same way across design checks, incoming inspection, product verification, and dimensional documentation.

Buyers and specifiers can also use it when they need to compare quoted dimensions against a consistent measuring method. That is especially useful when instruments have bends, locks, or shape-dependent features that can otherwise be measured in more than one way.

Which standards are used with ISO 7554-2:2026?

ISO 7554-2:2026 normatively refers to ISO 7554-1, which supplies the vocabulary used for the terms and definitions in this part. It also points to ISO 7554-3 when describing the closed condition for instruments without locking devices, because the jaw parts surfaces must meet the requirements in that part.

What does the ISO 7554-2:2026 document contain?

ISO 7554-2:2026 contains the general measuring rules, several figures, and two instruction tables that turn the methods into usable procedures. Figure 1 shows the reference axis for length measurement, while Figures 2 to 5 show how to measure joint width, joint thickness, jaw width, and penetration depth.

Table 1 gives instrument-specific length instructions, and Table 2 gives instrument-specific penetration-depth instructions. Annex A provides conversion tables for customary units, including charrière, gauge, and inches, so users can work between customary and metric dimensions without guessing.

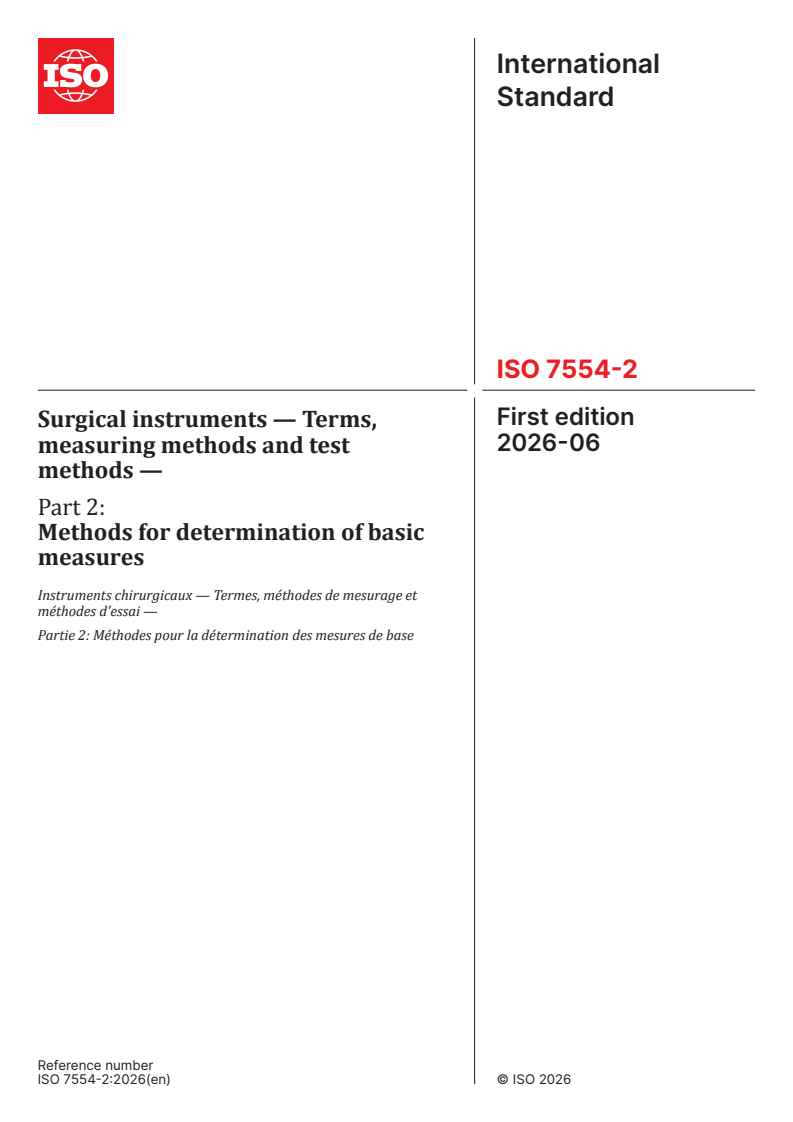

International
Standard
ISO 7554-2
First edition
Surgical instruments — Terms,
2026-06
measuring methods and test
methods —
Part 2:
Methods for determination of basic
measures
Instruments chirurgicaux — Termes, méthodes de mesurage et
méthodes d'essai —
Partie 2: Méthodes pour la détermination des mesures de base
Reference number
© ISO 2026
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii

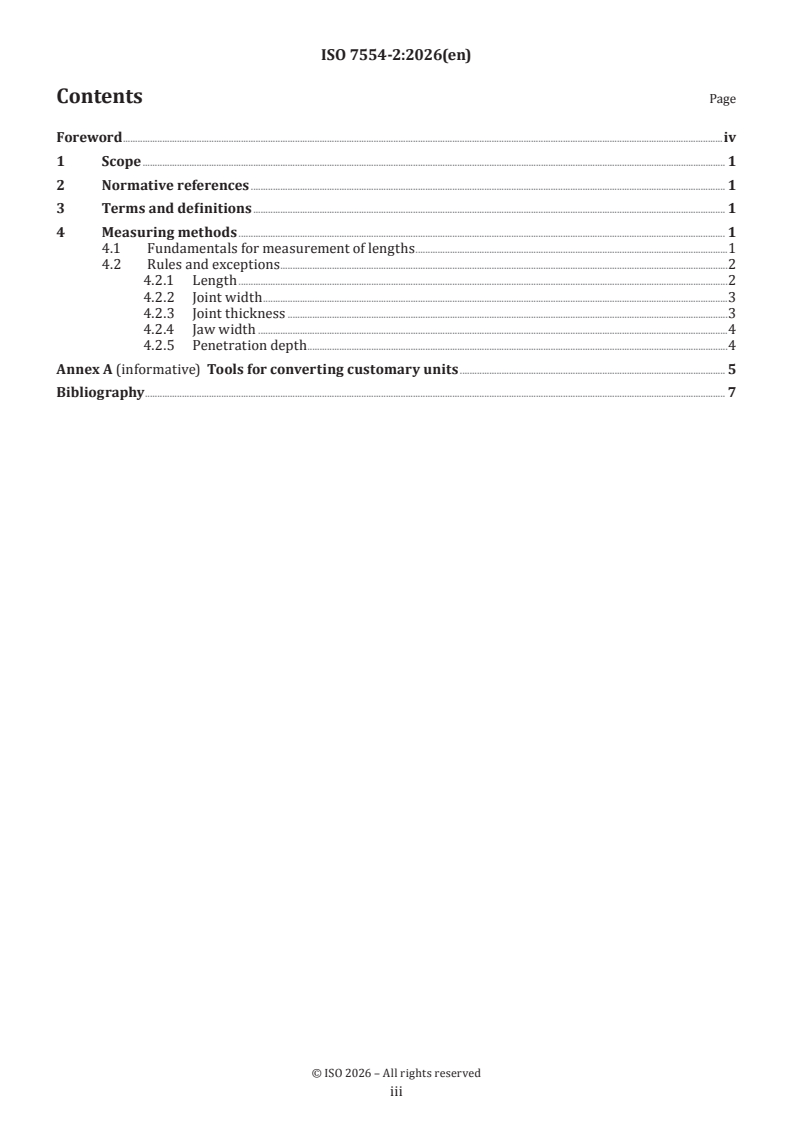

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Measuring methods . 1
4.1 Fundamentals for measurement of lengths .1
4.2 Rules and exceptions .2
4.2.1 Length .2
4.2.2 Joint width .3
4.2.3 Joint thickness .3
4.2.4 Jaw width .4
4.2.5 Penetration depth .4
Annex A (informative) Tools for converting customary units . 5
Bibliography . 7

iii

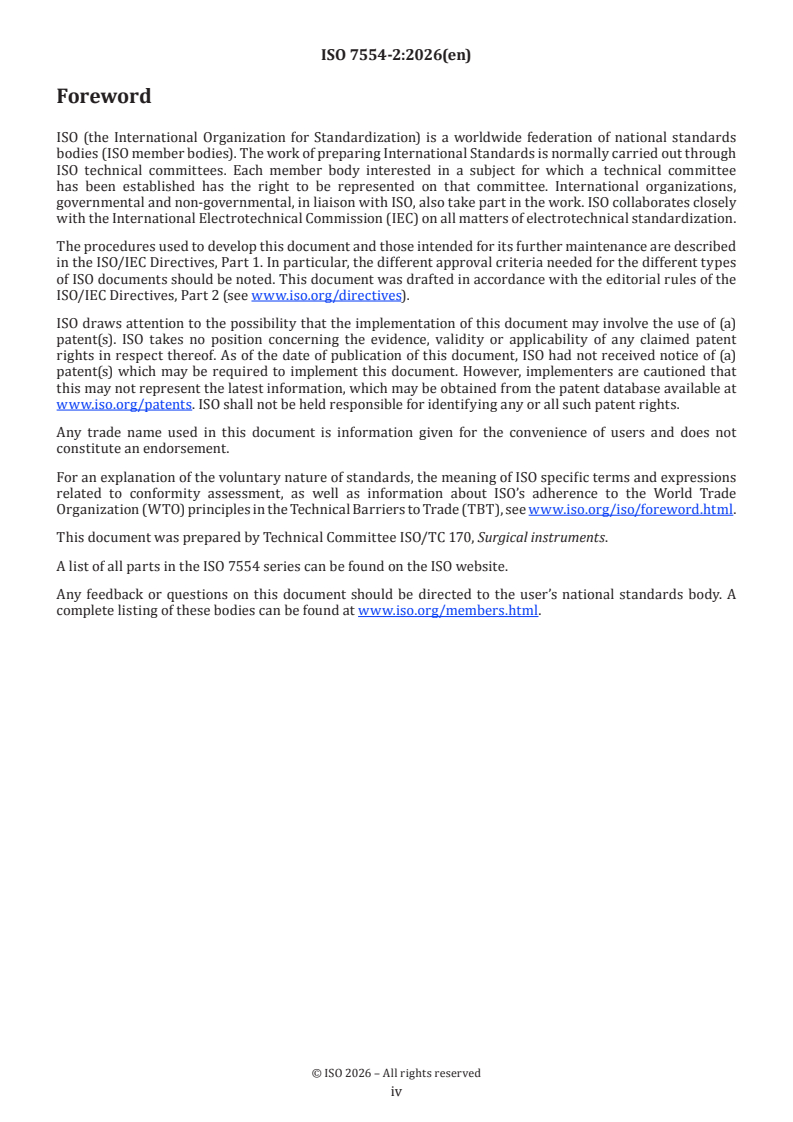

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO documents should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO’s adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 170, Surgical instruments.
A list of all parts in the ISO 7554 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iv
International Standard ISO 7554-2:2026(en)
Surgical instrum
...
