SIST EN 13484:2012
(Main)Helmets for users of luges
Helmets for users of luges
This European Standard specifies the minimum performance requirements and test methods for helmets for users of luges in competition in ice channels.
Requirements and the corresponding methods of test, where appropriate, are given for the following:
- construction including field of vision;
- shock absorbing properties;
- resistance to penetration;
- retention system properties;
- marking and information.
Helme für Benutzer von Rodelschlitten
Diese Europäische Norm legt Mindestanforderungen an die Funktionstauglichkeit und Prüfverfahren für Helme für Benutzer von Rodelschlitten beim Wettkampf in Eiskanälen fest.
Anforderungen und die entsprechenden Prüfverfahren, falls gegeben, betreffen:
- Konstruktion, einschließlich Sichtfeld;
- Stoßdämpfungseigenschaften;
- Durchdringungsfestigkeit;
- Eigenschaften der Trageeinrichtung;
- Kennzeichnung und Information.
Casques pour utilisateurs de luges
La présente Norme européenne spécifie les exigences minimales de performance et les méthodes d'essai
relatives aux casques pour utilisateurs de luges lors de compétition sur des pistes de glace.
Le cas échéant, les exigences et les méthodes d'essai correspondantes, couvrent les aspects suivants :
⎯ construction, y compris le champ de vision ;
⎯ propriétés en matière d'absorption des chocs ;
⎯ résistance à la pénétration ;
⎯ propriétés du système de rétention ;
⎯ marquage et information.
Čelade za uporabnike sani
Ta evropski standard določa najnižje zahteve glede zmogljivosti in preskusne metode za čelade za uporabnike sani na tekmovanjih v kanalih iz ledu. Podane so zahteve in, kjer je to potrebno, ustrezne preskusne metode za naslednja področja: – sestava, skupaj z vidnim poljem; – lastnosti absorpcije udarcev; – odpornost na penetracijo; – lastnosti zadrževalnega sistema; – označevanje in podatki.
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Helme für Benutzer von RodelschlittenCasques pour utilisateurs de lugesHelmets for users of luges97.220.20Oprema za zimske športeWinter sports equipment13.340.20Varovalna oprema za glavoHead protective equipmentICS:Ta slovenski standard je istoveten z:EN 13484:2012SIST EN 13484:2012en,fr,de01-julij-2012SIST EN 13484:2012SLOVENSKI
STANDARDSIST EN 13484:20021DGRPHãþD
SIST EN 13484:2012
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13484
February 2012 ICS 13.340.20 Supersedes EN 13484:2001English Version
Helmets for users of luges
Casques pour utilisateurs de luges
Helme für Benutzer von Rodelschlitten This European Standard was approved by CEN on 17 December 2011.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2012 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13484:2012: ESIST EN 13484:2012

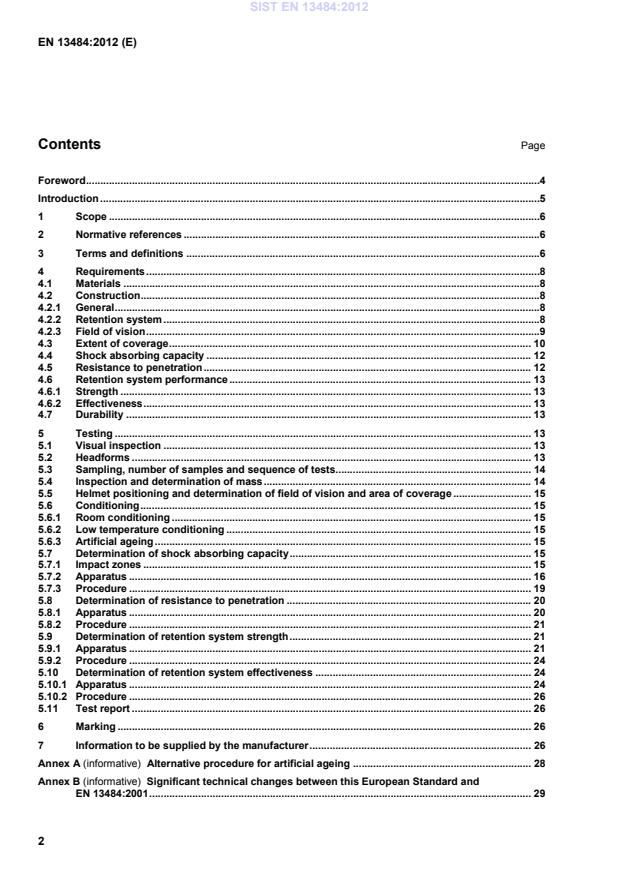

EN 13484:2012 (E) 2 Contents Page Foreword .4Introduction .51Scope .62Normative references .63Terms and definitions .64Requirements .84.1Materials .84.2Construction .84.2.1General .84.2.2Retention system .84.2.3Field of vision .94.3Extent of coverage . 104.4Shock absorbing capacity . 124.5Resistance to penetration . 124.6Retention system performance . 134.6.1Strength . 134.6.2Effectiveness . 134.7Durability . 135Testing . 135.1Visual inspection . 135.2Headforms . 135.3Sampling, number of samples and sequence of tests. 145.4Inspection and determination of mass . 145.5Helmet positioning and determination of field of vision and area of coverage . 155.6Conditioning . 155.6.1Room conditioning . 155.6.2Low temperature conditioning . 155.6.3Artificial ageing . 155.7Determination of shock absorbing capacity . 155.7.1Impact zones . 155.7.2Apparatus . 165.7.3Procedure . 195.8Determination of resistance to penetration . 205.8.1Apparatus . 205.8.2Procedure . 215.9Determination of retention system strength . 215.9.1Apparatus . 215.9.2Procedure . 245.10Determination of retention system effectiveness . 245.10.1Apparatus . 245.10.2Procedure . 265.11Test report . 266Marking . 267Information to be supplied by the manufacturer . 26Annex A (informative)
Alternative procedure for artificial ageing . 28Annex B (informative)
Significant technical changes between this European Standard and EN 13484:2001 . 29SIST EN 13484:2012
EN 13484:2012 (E) 3 Annex ZA (informative)
Relationship between this European Standard and the Essential Requirements of EU Directive 89/686/EEC Personal Protective Equipment . 31Bibliography . 32 SIST EN 13484:2012
EN 13484:2012 (E) 4 Foreword This document (EN 13484:2012) has been prepared by Technical Committee CEN/TC 158 “Head protection”, the secretariat of which is held by BSI. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by August 2012, and conflicting national standards shall be withdrawn at the latest by August 2012. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document supersedes EN 13484:2001. This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association, and supports essential requirements of EU Directive(s). For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this document. Annex B provides details of significant technical changes between this European Standard and the previous edition. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 13484:2012
EN 13484:2012 (E) 5 Introduction The intention of helmets is to reduce the risk of injury to the skull and part of the head surrounded by the helmet. The protection given by a helmet depends on the circumstances of the accident and wearing a helmet cannot always prevent death or long term disability. In this European Standard, the concept of optimum level of protection has been taken into account. This means that the protection efficiency is as high as possible, without decreasing the wearer’s acceptance to the extent that she/he will not wear it, because of discomfort caused by the increase of the mass and dimensions. A proportion of the energy of an impact is absorbed by the helmet, thereby reducing the force of the blow sustained by the head. The structure of the helmet can be damaged in absorbing this energy and any helmet that sustains a severe blow should be replaced even if damage is not apparent. To achieve the performance of which it is capable, and to ensure stability on the head, a helmet should be as closely fitting as possible consistent with comfort. In use it is essential that the helmet is securely fastened, with any chin strap under proper tension at all times. SIST EN 13484:2012
EN 13484:2012 (E) 6 1 Scope This European Standard specifies the minimum performance requirements and test methods for helmets for users of luges in competition in ice channels. Requirements and the corresponding methods of test, where appropriate, are given for the following: construction including field of vision; shock absorbing properties; resistance to penetration; retention system properties; marking and information. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 960:2006, Headforms for use in the testing of protective helmets ISO 6487, Road vehicles — Measurement techniques in impact tests — Instrumentation 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1 protective helmet item to be worn on the head, intended to absorb the energy of an impact, thus reducing the risk of injury to the head [based on EN 1077:2007] 3.2 shell outer layer which provides part of the whole general form of the helmet [based on EN 1077:2007] 3.3 helmet type category of helmets which does not differ in such essential respects as the materials or dimensions or construction of the helmet, of the retention system, or of the protective padding [based on EN 1077:2007] Note 1 to entry
Helmet type can include a range of helmet sizes, provided that the thickness of the protective padding in each size in the range is at least equal to that in the helmet which when subjected to the tests satisfies the requirements of this European Standard. SIST EN 13484:2012
EN 13484:2012 (E) 7 3.4 padding [according to EN 1077:2007] 3.5 retention system complete assembly by means of which the helmet is maintained in position on the head, including any devices for adjustment of the system or to enhance the wearer's comfort [based on EN 1077:2007] 3.6 chin-strap part of the retention system consisting of a strap that passes under the wearer's jaw to keep the helmet in position [based on EN 1077:2007] 3.7 basic plane of the human head longitudinal plane which passes through the lower level of the eye orbits and the upper level of the external opening of the ear canals
[EN 960:2006, 2.10] 3.8 basic plane of a headform plane relative to the headform that corresponds to the basic plane of the human head [based on EN 1077:2007, definition equivalent to that in EN 960:2006, 2.10] 3.9 reference plane construction plane parallel to the basic plane of the headform at a distance from it which is a function of the size of the headform [based on EN 1077:2007, definition equivalent to that in EN 960:2006, 2.5] 3.10 luge equipment guided by runners, without any inside or outside driving power, for using in ice channels and not in natural tracks or downhill gliding SIST EN 13484:2012
EN 13484:2012 (E) 8 4 Requirements 4.1 Materials For those parts of the helmet coming into contact with the skin the material used shall be known not to undergo appreciable alteration from contact with sweat or with substances likely to be found in cosmetic products. Materials shall not be used which are known to cause skin disorders. Testing according to 5.1. 4.2 Construction 4.2.1 General The helmet normally consists of means of absorbing impact energy and means of retaining the helmet on the head even in an accident. The helmet shall be so designed and shaped that parts of it (visor, rivets, ventilators, edges, fastening device and the like) are not likely to injure the user in normal use. NOTE Helmets should: have low weight; be easy to put on and take off; be usable with spectacles; not significantly interfere with the ability of the user to hear; have good durability and withstand normal handling; permit cleaning. Testing shall be in accordance with 5.1. 4.2.2 Retention system 4.2.2.1 General Means shall be provided for retaining the helmet on the wearer's head. All parts of the retention system shall be securely attached to the system or to the helmet. NOTE 1 It is recommended that the opening mechanism be marked with red or orange colour. NOTE 2 The colour of any part of the retention system should not be green, as green is used for helmets with an emergency release system. Testing shall be in accordance with 5.1. 4.2.2.2 Chin straps The chin strap shall not include a chin cup. Any chin strap shall be no less than 15 mm wide. Chin straps can be fitted with means of enhancing comfort for the wearer. SIST EN 13484:2012
EN 13484:2012 (E) 9 Testing shall be in accordance with 5.1. 4.2.2.3 Fastening devices Any chin strap shall be fitted with a device to adjust and maintain tension in the strap. Testing shall be in accordance with 5.1. 4.2.3
Field of vision When tested in accordance with 5.5 there shall be no occultation in the field of vision bounded by angles as follows (see Figure 1): horizontally 105° upwards
25° downwards
45° Dimensions in millimetres
Key 1 reference plane 2 basic plane 3 central vertical axis a) Section of headform in vertical longitudinal plane SIST EN 13484:2012
EN 13484:2012 (E) 10 Dimensions in millimetres
Key 1 vertical longitudinal plane
(defined in EN 960:2006, 2.8 as mid-way between the headform’s left- and right-hand extremities) 2 vertical transverse plane
(defined in EN 960:2006, 2.9 as mid-way between the headform’s front and rear extremities) b) Section of headform in reference plane Figure 1 — Field of vision 4.3 Extent of coverage When tested in accordance with 5.5 the helmet shall cover at least the area above the line BCDEA' in Figure 2. Measurements for different headform sizes are given in Table 1. NOTE Table 1 gives the EN 960:1994 equivalent letter codes to the EN 960:2006 size designations for headforms with similar nominal dimensions. These are as given in EN 960:2006, Annex C. The EN 960:2006 size designation approximates to the circumference of the headform at the reference plane, in mm. SIST EN 13484:2012
EN 13484:2012 (E) 11 Table 1 — Extent of coverage for different headform sizes Size designation (EN 960:1994 equivalent) Stated headform circumference at the reference plane, mm AC mm HD mm y mm x mm 495 (A) 535 (E) 575 (J) 605 (M) 625 (O) 495 535 575 605 625
84 88,5 93 97,5 100 89 92 95 98 100 89,7 96 102,4 107,2 110,2 23,5 25,5 27,5 29 30 NOTE The dimensions AC and HD correspond to the length of the chords measured with dividers.
SIST EN 13484:2012
EN 13484:2012 (E) 12 Dimensions in millimetres
Key 1 basic plane 2 reference plane 3 vertical transverse plane Figure 2 — Minimum extent of coverage: Measurements for different headform sizes 4.4 Shock absorbing capacity When tested in accordance with 5.7 the peak acceleration shall not, for any impact, exceed 250 g. 4.5 Resistance to penetration When tested in accordance with 5.8 the point of the punch shall not touch the headform. SIST EN 13484:2012
EN 13484:2012 (E) 13 4.6 Retention system performance 4.6.1 Strength When tested in accordance with 5.9, the dynamic extension shall not exceed 35 mm and the residual extension shall not exceed 25 mm. For this purpose, extension includes slippage of the fastening device. Following the test, the retention system shall still permit the helmet to be released from the headform by normal operation of the release system. Damage to the retention system shall be accepted provided that the above requirements are met. NOTE In this test, slippage of the fastening device may be measured and recorded separately from other contributions to the extension, but this is for information only and is not subject to separate requirement. 4.6.2 Effectiveness When tested in accordance with 5.10 the helmet, selected to be of appropriate size, shall not come off the headform. 4.7 Durability After being tested the helmet shall not show damage that would cause an additional injury to the wearer (sharp edges, points, etc.). Report such damage in accordance with 5.7.3.2. 5 Testing 5.1 Visual inspection Conformity of the requirements in 4.1, 4.2.1 and 4.2.2 shall be verified by the visual inspection of the samples, by measurement and by checking the information supplied by the manufacturer. 5.2 Headforms The headforms used shall comply with EN 960:2006. The sizes in Table 2 shall be used, except for the determination of shock absorbing capacity, for which only size designations 495, 535, 575, 605 and 625 shall be used. NOTE Table 2 gives the EN 960:1994 equivalent letter codes to the EN 960:2006 size designations for headforms with similar nominal dimensions. These are as given
...
