This International Standard specifies the safety requirements for discharge lamps (excluding
fluorescent lamps) for general lighting purposes.
This International Standard is applicable to low-pressure sodium vapour lamps and to highintensity
discharge (HID) lamps, i.e. high-pressure mercury vapour lamps (including blended
lamps), high-pressure sodium vapour lamps and metal halide lamps. It applies to single- and
double-capped lamps, having caps as listed in Annex A.
This standard only concerns safety criteria and does not take into account performance. The
performance standards IEC 60188, IEC 60192, IEC 60662, IEC 61167 and IEC 61549 should
be referred to for such characteristics.
It may be expected that lamps which comply with this standard will operate safely at supply
voltages between 90 % and 110 % of rated supply voltage and when operated with a ballast
complying with IEC 61347-2-9 and IEC 60923, with a starting device complying with
IEC 61347-2-1 and IEC 60927, and in a luminaire complying with IEC 60598-1.
Entladungslampen (ausgenommen Leuchtstofflampen) - Sicherheitsanforderungen
Lampes à décharge (à l'exclusion des lampes à fluorescence) - Prescriptions de sécurité
Not available.
Razelektrilne sijalke (razen fluorescenčnih sijalk) - Varnostne specifikacije (IEC 62035:2014, spremenjen)
Ta mednarodni standard določa varnostne zahteve za razelektrilne sijalke (razen fluorescenčnih sijalk) za splošno uporabo v razsvetljavi. Ta mednarodni standard se uporablja za nizkotlačne natrijeve sijalke in razelektrilne sijalke visoke intenzivnosti (HID), tj. visokotlačne sijalke iz živega srebra (vključno z mešanimi sijalkami), visokotlačne natrijeve sijalke in sijalke s kovinskim halidom. Uporablja se za sijalke z enim ali dvema vznožkoma, ki so navedeni v dodatku A. Ta standard navaja samo varnostna merila in ne upošteva zmogljivosti. Te značilnosti obravnavajo standardi za zmogljivost IEC 60188, IEC 60192, IEC 60662, IEC 61167 in IEC 61549. Pričakuje se lahko, da bodo sijalke, ki so v skladu s tem standardom, varno delovale pri napetostih od 90 % do 110 % nazivne napajalne napetosti in ko so opremljene z dušilko, ki je v skladu s standardoma IEC 61347-2-9 in IEC 60923, vklopno napravo, ki je v skladu s standardoma IEC 61347-2-1 in IEC 60927, ter v svetilki, ki je v skladu s standardom IEC 60598-1.
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
SIST EN 62035:2015
01-maj-2015
1DGRPHãþD
SIST EN 62035:2000
SIST EN 62035:2000/A1:2004
SIST EN 62035:2000/A2:2013
5D]HOHNWULOQHVLMDONH UD]HQIOXRUHVFHQþQLKVLMDON 9DUQRVWQHVSHFLILNDFLMH ,(&
VSUHPHQMHQ
Discharge lamps (excluding fluorescent lamps) - Safety specifications (IEC 62035:2014,
modified)
Entladungslampen (ausgenommen Leuchtstofflampen) - Sicherheitsanforderungen
Lampes à décharge (à l'exclusion des lampes à fluorescence) - Prescriptions de sécurité
Ta slovenski standard je istoveten z: EN 62035:2014
ICS:
29.140.30 )OXRUHVFHQþQHVLMDONH6LMDONH Fluorescent lamps.
Discharge lamps
SIST EN 62035:2015 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN 62035:2015
---------------------- Page: 2 ----------------------
SIST EN 62035:2015
EUROPEAN STANDARD EN 62035
NORME EUROPÉENNE
EUROPÄISCHE NORM
December 2014
ICS 29.140.30 Supersedes EN 62035:2000
English Version
Discharge lamps (excluding fluorescent lamps) - Safety
specifications
(IEC 62035:2014 , modified)
Lampes à décharge (à l'exclusion des lampes à Entladungslampen (ausgenommen Leuchtstofflampen) -
fluorescence) - Prescriptions de sécurité Sicherheitsanforderungen
(CEI 62035:2014 , modifiée) (IEC 62035:2014 , modifiziert)
This European Standard was approved by CENELEC on 2014-09-15. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2014 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 62035:2014 E
---------------------- Page: 3 ----------------------
SIST EN 62035:2015
EN 62035:2014 - 2 -

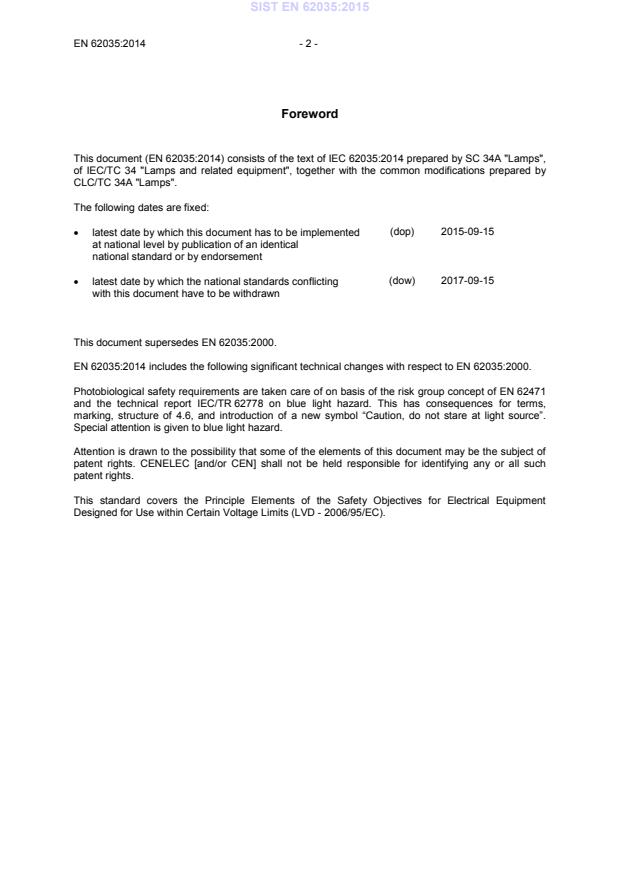

Foreword
