SIST EN 13892-3:2015
(Main)Methods of test for screed materials - Part 3: Determination of wear resistance - Böhme
Methods of test for screed materials - Part 3: Determination of wear resistance - Böhme
This document specifies a method for determining the wear resistance of moulded specimens made from cementitious screed material, primarily for hard aggregate wearing screed materials or optionally for other screed materials. The method is also suitable for specimens cut from floor screed. This method is unsuitable for synthetic resin screed materials.
Prüfverfahren für Estrichmörtel und Estrichmassen - Teil 3: Bestimmung des Verschleißwiderstandes nach Böhme
Diese Europäische Norm legt ein Verfahren zur Bestimmung der Verschleißfestigkeit von aus Zementestrichmörtel geformten Prüfkörpern, hauptsächlich für Estrichmassen für die Hartstoffschicht oder wahlfrei für andere Estrichmörtel/Estrichmassen, fest. Das Verfahren ist auch für Prüfkörper geeignet, die aus verlegtem Estrich geschnitten wurden. Das Verfahren ist für Kunstharzestrichmörtel nicht geeignet.
Méthodes d'essai des matériaux pour chapes - Partie 3: Détermination de la résistance à l'usure Böhme
Le présent document spécifie une méthode permettant de déterminer la résistance à l’usure sur des éprouvettes moulées composées de matériaux pour chapes à base de ciment, principalement pour des matériaux utilisés pour les couches d’usure incorporant des granulats durs ou éventuellement pour d’autres matériaux pour chapes. Cette méthode s’applique également aux éprouvettes prélevées d’une chape. Elle ne s’applique pas aux matériaux pour chapes en résine synthétique.
Metode preskušanja mešanice za estrih - 3. del: Ugotavljanje odpornosti proti obrabi po Böhmeju
Ta dokument določa metodo za ugotavljanje odpornosti proti obrabi oblikovanih preskušancev iz cementnih mešanic za estrihe, ki so namenjene predvsem za mešanice za estrihe iz trdih agregatov ali izbirno za druge mešanice za estrihe. Ta metoda je primerna tudi za preskušance, izrezane iz estrihov. Metoda ni primerna za estrihe iz sintetične smole.
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Metode preskušanja mešanice za estrih - 3. del: Ugotavljanje odpornosti proti obrabi po BöhmejuPrüfverfahren für Estrichmörtel und Estrichmassen - Teil 3: Bestimmung des Verschleißwiderstandes nach BöhmeMéthodes d'essai des matériaux pour chapes - Partie 3: Détermination de la résistance à l'usure BöhmeMethods of test for screed materials - Part 3: Determination of wear resistance - Böhme91.100.10Cement. Mavec. Apno. MaltaCement. Gypsum. Lime. MortarICS:Ta slovenski standard je istoveten z:EN 13892-3:2014SIST EN 13892-3:2015en,fr,de01-april-2015SIST EN 13892-3:2015SLOVENSKI
STANDARDSIST EN 13892-3:20041DGRPHãþD
SIST EN 13892-3:2015
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13892-3
December 2014 ICS 91.100.10 Supersedes EN 13892-3:2004English Version
Methods of test for screed materials - Part 3: Determination of wear resistance - Böhme
Méthodes d'essai des matériaux pour chapes - Partie 3: Détermination de la résistance à l'usure Böhme
Prüfverfahren für Estrichmörtel und Estrichmassen - Teil 3: Bestimmung des Verschleißwiderstandes nach Böhme This European Standard was approved by CEN on 16 November 2014.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2014 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13892-3:2014 ESIST EN 13892-3:2015

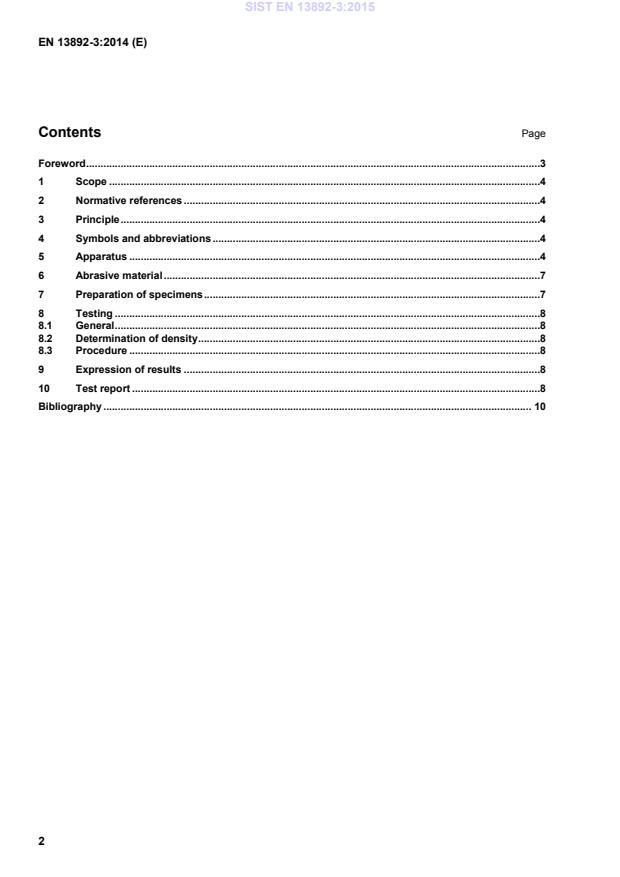

EN 13892-3:2014 (E) 2 Contents Page Foreword .3 1 Scope .4 2 Normative references .4 3 Principle .4 4 Symbols and abbreviations .4 5 Apparatus .4 6 Abrasive material .7 7 Preparation of specimens .7 8 Testing .8 8.1 General .8 8.2 Determination of density .8 8.3 Procedure .8 9 Expression of results .8 10 Test report .8 Bibliography . 10
SIST EN 13892-3:2015
EN 13892-3:2014 (E) 3 Foreword This document (EN 13892-3:2014) has been prepared by Technical Committee CEN/TC 303 “Floor screeds and screed materials”, the secretariat of which is held by UNI. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by June 2015 and conflicting national standards shall be withdrawn at the latest by June 2015. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document supersedes EN 13892-3:2004. In comparison with the previous edition, changes have been made in: — Clause 6, 2nd paragraph and Table 2;
— Clause 7, 2nd paragraph. EN 13892, Methods of test for screed materials, is divided in the following parts: —
Part 1: Sampling, making and curing specimens for test; —
Part 2: Determination of flexural and compressive strength; —
Part 3: Determination of wear resistance – Böhme [the present document]; —
Part 4: Determination of wear resistance-BCA; —
Part 5: Determination of wear resistance to rolling wheel of screed material for wearing layer; —
Part 6: Determination of surface hardness; —
Part 7: Determination of wear resistance to rolling wheel of screed material with floor coverings; — Part 8: Determination of bond strength. According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
SIST EN 13892-3:2015
EN 13892-3:2014 (E) 4 1 Scope This European Standard specifies a method for determining the wear resistance of moulded specimens made from cementitious screed material, primarily for hard aggregate wearing screed materials or optionally for other screed materials. The method is also suitable for specimens cut from floor screed. This method is unsuitable for synthetic resin screed materials. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 459-2, Building lime - Part 2: Test methods EN 13813, Screed material and floor screeds - Screed material - Properties and requirements EN 13892-1, Methods of test for screed materials - Part 1: Sampling, making and curing specimens for test ISO 565, Test sieves - Metal wire cloth, perforated metal plate and electroformed sheet - Nominal sizes of openings 3 Principle Cast specimens are placed on the Böhme abrader, on the test track of which standard abrasive is strewn, the disk then being rotated and the specimens subjected to an abrasive load of 294 N for a given number of cycles. 4 Symbols and abbreviations A
= ûV is the wear resistance-Böhme in cm3 per 50 cm2 and the loss in volume after 16 cycles ûl = l0 – l16m is the mean reduction in mm after 16 cycles l0 is the mean thickness of the specimen in mm from the measurements made at all nine measuring points prior to testing l16m is the mean thickness of the specimen in mm from the measurements made at all nine measuring points after completion of the test ûm is the reduction in mass in g after 16 cycles R is the density of the specimen in g/cm3 or, in the case of multi-layer specimens, the density of the wearing layer 5 Apparatus The Böhme abrader as shown in Figure 1 consists of a rotating table with a defined test track to receive the abrasive, a specimen holder and a loading device. The rotating table shall have a diameter of approximately 750 mm and be flat and positioned horizontally. When loaded, its speed shall be (30 ± 1) r/min. SIST EN 13892-3:2015
EN 13892-3:2014 (E) 5 The table sha
...
