SIST EN 14309:2016
(Main)Thermal insulation products for building equipment and industrial installations - Factory made products of expanded polystyrene (EPS) - Specification
Thermal insulation products for building equipment and industrial installations - Factory made products of expanded polystyrene (EPS) - Specification
This European Standard specifies the requirements for factory made products of expanded polystyrene which are used for the thermal insulation of building equipment and industrial installations with an operating temperature range of approximately - 180 °C to + 80 °C. Modified expanded polystyrene polymers with a higher temperature resistance are also covered by this standard.
NOTE Below an operating temperature of - 50 °C, special tests regarding the suitability of the product in the intended application are advised (e.g. liquefaction of oxygen). Manufacturers' advice should be heeded in all cases.
The products are manufactured in the form of faced or unfaced boards, rolls, lags, pipe sections or other prefabricated ware.
This standard describes product characteristics and includes procedures for testing, evaluation of conformity, marking and labelling.
Products covered by this standard are also used in prefabricated thermal insulation systems and composite panels; the performance of systems incorporating these products is not covered.
This standard does not specify the required level or class of a given property that shall be achieved by a product to demonstrate fitness for purpose in a particular application. The classes and levels required for a given application can be found in regulations and invitations to tender.
Products with a declared thermal conductivity greater than 0,060 W/(m·K) at 10 °C are not covered by this standard.
This standard does not cover products for in situ insulation (for loose fill or poured insulation) or products for the insulation of the building structure.
Wärmedämmstoffe für die technische Gebäudeausrüstung und für betriebstechnische Anlagen in der Industrie - Werkmäßig hergestellte Produkte aus expandiertem Polystyrol (EPS) - Spezifikation
Diese Europäische Norm legt die Anforderungen an werkmäßig hergestellte Produkte aus expandiertem Polystyrol fest, die als Wärmedämmstoffe für die technische Gebäudeausrüstung und betriebstechnische Anlagen in der Industrie in einem Betriebstemperaturbereich von etwa 180 °C bis + 80 °C benutzt werden. Diese Europäische Norm gilt auch für modifizierte expandierte Polystyrol-Polymere mit einem höheren Temperaturwiderstand.
Bei einer Betriebstemperatur unterhalb von 50 °C sind besondere Prüfungen bezüglich der Eignung der Produkte für den beabsichtigten Anwendungsfall ratsam (z. B. Sauerstoffverflüssigung). In jedem Fall sollten die Empfehlungen des Herstellers beachtet werden.
Die Produkte werden in Form von kaschierten oder unkaschierten Platten, Rohrschalen, Segmenten und anderen vorgeformten Dämmungen hergestellt.
Diese Europäische Norm beschreibt die Produkteigenschaften und enthält Verfahren zur Prüfung, Konformitätsbewertung, Kennzeichnung und Etikettierung.
Die von dieser Norm abgedeckten Produkte werden auch in vorgefertigten Wärmedämmsystemen und Mehr-schicht-Verbundplatten angewendet; die Eigenschaften von Systemen, in die diese Produkte integriert sind, werden nicht behandelt.
Diese Norm legt für die einzelnen Eigenschaften keine Leistungsstufen oder -klassen fest, die ein Produkt erreichen sollte, um für einen bestimmten Anwendungsfall tauglich zu sein. Die für bestimmte Anwendungen benötigten Stufen und Klassen können Regelwerken oder Ausschreibungen entnommen werden.
Diese Norm gilt nicht für Produkte mit einem Nennwert der Wärmeleitfähigkeit größer als 0,060 W/(m K) bei 10 °C.
Diese Norm gilt nicht für Produkte für an der Verwendungsstelle hergestellte Wärmedämmung (eingeblasen oder geschüttet) oder Produkte, die zur Dämmung des Bauwerks bestimmt sind.
Produits isolants thermiques pour l'équipement du bâtiment et les installations industrielles - Produits manufacturés en polystyrène expansé (PSE) - Spécification
La présente Norme européenne spécifie les exigences relatives aux produits manufacturés en polystyrène expansé, utilisés pour l’isolation thermique de l’équipement du bâtiment et des installations industrielles, dont la température de service est approximativement comprise entre - 180 °C et + 80 °C. Des polymères modifiés de polystyrène expansé ayant une résistance accrue à la température sont également couverts par la présente norme.
Pour une température de service inférieure à – 50 °C, des essais particuliers sont recommandés pour s'assurer de l'aptitude à l'emploi du produit dans l'application visée (par exemple, liquéfaction de l'oxygène). Il convient de se référer systématiquement aux conseils du fabricant.
Les produits sont fabriqués sous la forme de panneaux avec ou sans parements, de rouleaux, de segments, de coquilles et autres pièces préfabriquées.
La présente norme décrit les caractéristiques des produits et comporte des modes opératoires d'essai, d'évaluation de conformité, de marquage et d’étiquetage.
Les produits couverts par la présente norme sont également utilisés dans des systèmes préfabriqués d'isolation thermique et dans des panneaux composites ; les performances des systèmes incorporant ces produits ne sont pas traitées.
La présente norme ne spécifie pas le niveau ou la classe requis pour une propriété donnée qu'il convient qu'un produit possède pour démontrer son aptitude à une application particulière. Les classes ou niveaux requis pour une application particulière peuvent être trouvés dans les réglementations et les appels d'offres.
Les produits dont la conductivité thermique déclarée supérieure à 0,060 W/(m.K) à 10 °C ne sont pas couverts par la présente norme.
La présente norme ne couvre pas les produits pour isolation in situ (en vrac ou par déversement) ni ceux destinés à l’isolation de la structure du bâtiment.
Toplotnoizolacijski proizvodi za opremo stavb in industrijske inštalacije - Proizvodi iz ekspandiranega polistirena (EPS) - Specifikacija
Ta evropski standard določa zahteve za proizvode iz ekspandiranega polistirena, ki se uporabljajo za toplotno izolacijo opreme stavb in industrijskih inštalacij z razponom delovne temperature približno od –180 °C do 80 °C. Modificirani polimeri ekspandiranega polistirena z višjo temperaturno odpornostjo so prav tako zajeti v tem standardu. OPOMBA Pod delovno temperaturo –50 °C se priporočajo posebni preskusi glede primernosti proizvoda za predvideno vrsto uporabe (npr. utekočinjenje kisika). V vseh primerih naj bi upoštevali napotke proizvajalca. Proizvodi so izdelani v obliki prevlečenih ali neprevlečenih plošč, kolutov, oblog, vodovodnih odsekov ali druge montažne opreme. Ta standard opisuje lastnosti proizvodov ter zajema postopke za preskušanje, vrednotenje skladnosti, označevanje in etiketiranje. Proizvodi iz tega standarda se uporabljajo tudi v montažnih sistemih toplotne izolacije in vezanih ploščah; lastnosti sistemov iz teh proizvodov niso opisane. Ta standard ne določa zahtevane ravni ali razreda določene lastnosti, ki jo mora proizvod doseči, da se dokaže njegova primernost namenu za posamezno vrsto uporabe. Zahtevane razrede in ravni za posamezno uporabo je mogoče najti v uredbah in javnih razpisih. Proizvodi z deklarirano toplotno prevodnostjo, višjo od 0,060 W/mK pri 10 °C, v tem standardu niso zajeti. Ta standard ne zajema proizvodov za izolacijo na kraju samem (za izolacijo s prostim polnilom ali vlivano izolacijo) ali proizvodov za izolacijo stavbne strukture.
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Toplotnoizolacijski proizvodi za opremo stavb in industrijske inštalacije - Proizvodi iz ekspandiranega polistirena (EPS) - SpecifikacijaWärmedämmstoffe für die technische Gebäudeausrüstung und für betriebstechnische Anlagen in der Industrie - Werkmäßig hergestellte Produkte aus expandiertem Polystyrol (EPS) - SpezifikationProduits isolants thermiques pour l'équipement du bâtiment et les installations industrielles - Produits manufacturés en polystyrène expansé (PSE) - SpécificationThermal insulation products for building equipment and industrial installations - Factory made products of expanded polystyrene (EPS) - Specification91.100.60Thermal and sound insulating materialsICS:Ta slovenski standard je istoveten z:EN 14309:2015SIST EN 14309:2016en,fr,de01-februar-2016SIST EN 14309:2016SLOVENSKI
STANDARDSIST EN 14309:2010+A1:20131DGRPHãþD
SIST EN 14309:2016
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 14309
December
t r s w ICS
{ sä s r rä x r Supersedes EN
s v u r {ã t r r { ªA sã t r s uEnglish Version
Thermal insulation products for building equipment and industrial installations æ Factory made products of Produits isolants thermiques pour l 5équipement du bâtiment et les installations industrielles æ Produits Spécification
Wärmedämmstoffe für die technische Gebäudeausrüstung und für betriebstechnische Anlagen in der Industrie æ Werkmäßig hergestellte Spezifikation This European Standard was approved by CEN on
t v October
t r s wä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey andUnited Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
9
t r s w CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s v u r {ã t r s w ESIST EN 14309:2016

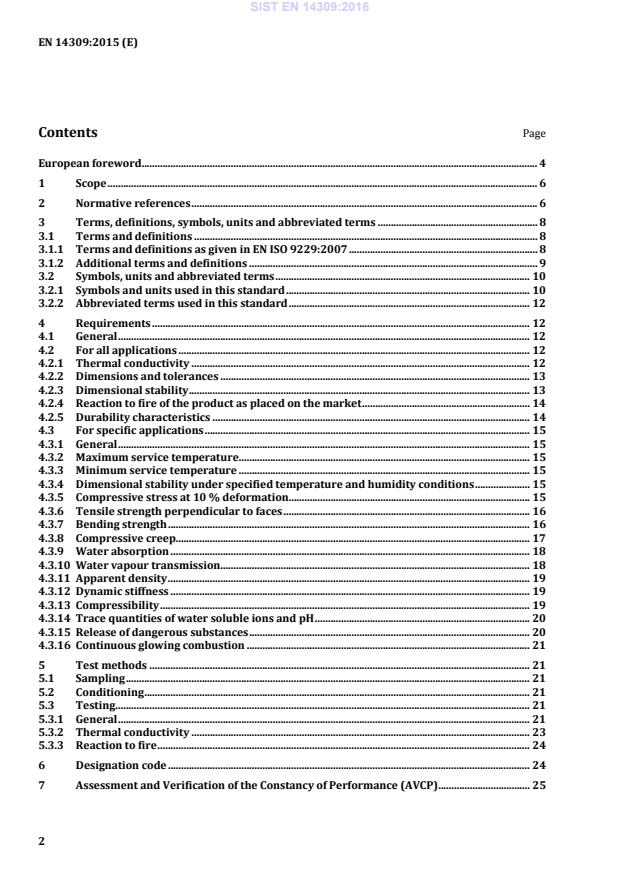

EN 14309:2015 (E) 2 Contents Page European foreword . 4 1 Scope . 6 2 Normative references . 6 3 Terms, definitions, symbols, units and abbreviated terms . 8 3.1 Terms and definitions . 8 3.1.1 Terms and definitions as given in EN ISO 9229:2007 . 8 3.1.2 Additional terms and definitions . 9 3.2 Symbols, units and abbreviated terms . 10 3.2.1 Symbols and units used in this standard . 10 3.2.2 Abbreviated terms used in this standard . 12 4 Requirements . 12 4.1 General . 12 4.2 For all applications . 12 4.2.1 Thermal conductivity . 12 4.2.2 Dimensions and tolerances . 13 4.2.3 Dimensional stability . 13 4.2.4 Reaction to fire of the product as placed on the market . 14 4.2.5 Durability characteristics . 14 4.3 For specific applications . 15 4.3.1 General . 15 4.3.2 Maximum service temperature . 15 4.3.3 Minimum service temperature . 15 4.3.4 Dimensional stability under specified temperature and humidity conditions . 15 4.3.5 Compressive stress at 10 % deformation . 15 4.3.6 Tensile strength perpendicular to faces . 16 4.3.7 Bending strength . 16 4.3.8 Compressive creep. 17 4.3.9 Water absorption . 18 4.3.10 Water vapour transmission. 18 4.3.11 Apparent density . 19 4.3.12 Dynamic stiffness . 19 4.3.13 Compressibility . 19 4.3.14 Trace quantities of water soluble ions and pH . 20 4.3.15 Release of dangerous substances . 20 4.3.16 Continuous glowing combustion . 21 5 Test methods . 21 5.1 Sampling . 21 5.2 Conditioning . 21 5.3 Testing . 21 5.3.1 General . 21 5.3.2 Thermal conductivity . 23 5.3.3 Reaction to fire . 24 6 Designation code . 24 7 Assessment and Verification of the Constancy of Performance (AVCP) . 25 SIST EN 14309:2016
EN 14309:2015 (E) 3 7.1 General . 25 7.2 Product Type Determination (PTD) . 25 7.3 Factory Production Control (FPC) . 25 8 Marking and labelling . 26 Annex A (normative)
Factory production control . 27 A.1 Indirect testing . 30 Annex B (normative)
Product classification . 34 Annex C (normative)
Determination of minimum service temperature . 35 C.1 Definitions . 35 C.2 Principle . 35 C.3 Apparatus . 35 C.4 Test specimens . 35 C.5 Procedure . 36 C.6 Calculation and expression of results . 36 C.7 Accuracy of measurements . 37 C.8 Test report . 37 Annex D (informative)
Additional properties . 39 D.1 General . 39 D.2 Long-term compressive behaviour . 39 D.3 Shear behaviour . 39 D.4 Water vapour diffusion resistance factor . 40 D.5 Coefficient of thermal expansion . 40 D.6 Behaviour under cyclic loading . 40 D.7 Test methods . 41 D.8 Additional information . 41 Annex ZA (informative)
Clauses of this European Standard addressing the provisions of the EU Construction Products Regulation . 42 ZA.1 Scope and relevant characteristics . 42 ZA.2 Procedures for AVCP of factory made products of expanded polystyrene (EPS) . 44 ZA.3 CE Marking and labelling . 51 Bibliography . 53 SIST EN 14309:2016
EN 14309:2015 (E) 4 European foreword This document (EN 14309:2015) has been prepared by Technical Committee CEN/TC 88 “Thermal insulating materials and products”, the secretariat of which is held by DIN. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by June 2016, and conflicting national standards shall be withdrawn at the latest by September 2017. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document supersedes EN 14309:2009+A1:2013. This document is identifying those clauses of the standard which are needed for the compliance of the European Standard with the Construction Products Regulation (CPR). The main technical changes that have been made in this new edition of EN 14309 are the following: a) an addition to the foreword; b) an addition in 3.2.2; c) a new 4.3.15; d) modification of 5.3.2; e) modification of Clause 7; f) modification of Clause 8; g) modification of Annex A; h) a new Annex ZA. This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association, and supports essential requirements of Regulation (EU) No. 305/2011. For relationship with Regulation (EU) No. 305/2011, see informative Annex ZA, which is an integral part of this document. Locally responsible authorities and contracting entities, who are bound by EU Directives to specify their requirements using European harmonized product standards, are allowed to demand additional properties outside the provisions of this standard if this is technically necessary because of prevailing operational conditions of the building equipment or the industrial installation projected or because of safety regulations. This European Standard contains five annexes: — Annex A (normative), Factory production control; — Annex B (normative), Product classification; — Annex C (normative), Determination of minimum service temperature; — Annex D (informative), Additional properties; SIST EN 14309:2016
EN 14309:2015 (E) 5 — Annex ZA (informative), Clauses of this European Standard addressing the provisions of the EU Construction Products Regulation. This document includes a bibliography. This European Standard is one of a series of standards for insulation products used in building equipment and industrial installations, but this standard can be used in other areas, where appropriate. In pursuance of Resolution BT 20/1993 revised, CEN/TC 88 have proposed defining the standards listed below as a European package of standards, setting 21 months after availability as the date of withdrawal (dow) of national standards which conflict with the European Standards of this package. The package of standards comprises the following group of interrelated standards for the specifications of factory made thermal insulation products, all of which come within the scope of CEN/TC 88: EN 14303, Thermal insulation products for building equipment and industrial installations — Factory made mineral wool (MW) products — Specification EN 14304, Thermal insulation products for building equipment and industrial installations — Factory made flexible elastomeric foam (FEF) products — Specification EN 14305, Thermal insulation products for building equipment and industrial installations — Factory made cellular glass (CG) products — Specification EN 14306, Thermal insulation products for building equipment and industrial installations — Factory made calcium silicate (CS) products — Specification EN 14307, Thermal insulation products for building equipment and industrial installations — Factory made extruded polystyrene foam (XPS) products — Specification EN 14308, Thermal insulation products for building equipment and industrial installations — Factory made rigid polyurethane foam (PUR) and polyisocyanurate foam (PIR) products — Specification EN 14309, Thermal insulation products for building equipment and industrial installations — Factory made products of expanded polystyrene (EPS) — Specification EN 14313, Thermal insulation products for building equipment and industrial installations — Factory made polyethylene foam (PEF) products — Specification EN 14314, Thermal insulation products for building equipment and industrial installations — Factory made phenolic foam (PF) products — Specification EN 15501, Thermal insulation products for building equipment and industrial installations — Factory made expanded perlite (EP) and exfoliated vermiculite (EV) products — Specification According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 14309:2016
EN 14309:2015 (E) 6 1 Scope This European Standard specifies the requirements for factory made products of expanded polystyrene which are used for the thermal insulation of building equipment and industrial installations with an operating temperature range of approximately - 180 °C to + 80 °C. Modified expanded polystyrene polymers with a higher temperature resistance are also covered by this standard. Below an operating temperature of - 50 °C, special tests regarding the suitability of the product in the intended application are advised (e.g. liquefaction of oxygen). Manufacturers’ advice should be heeded in all cases. The products are manufactured in the form of faced or unfaced boards, rolls, lags, pipe sections or other prefabricated ware. This standard describes product characteristics and includes procedures for testing, evaluation of conformity, marking and labelling. Products covered by this standard are also used in prefabricated thermal insulation systems and composite panels; the performance of systems incorporating these products is not covered. This standard does not specify the required level or class of a given property that should be achieved by a product to demonstrate fitness for purpose in a particular application. The classes and levels required for a given application can be found in regulations and invitations to tender. Products with a declared thermal conductivity greater than 0,060 W/(m·K) at 10 °C are not covered by this standard. This standard does not cover products for in situ insulation (for loose fill or poured insulation) or products for the insulation of the building structure. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 822, Thermal insulating products for building applications - Determination of length and width EN 823, Thermal insulating products for building applications - Determination of thickness EN 824, Thermal insulating products for building applications - Determination of squareness EN 825, Thermal insulating products for building applications - Determination of flatness EN 826, Thermal insulating products for building applications - Determination of compression behaviour EN 1602, Thermal insulating products for building applications - Determination of the apparent density EN 1603, Thermal insulating products for building applications - Determination of dimensional stability under constant normal laboratory conditions (23 °C/ 50 % relative humidity) EN 1604, Thermal insulating products for building applications - Determination of dimensional stability under specified temperature and humidity conditions EN 1606, Thermal insulating products for building applications - Determination of compressive creep EN 1607, Thermal insulating products for building applications - Determination of tensile strength perpendicular to faces SIST EN 14309:2016
EN 14309:2015 (E) 7 EN 12085, Thermal insulating products for building applications - Determination of linear dimensions of test specimens EN 12086, Thermal insulating products for building applications - Determination of water vapour transmission properties EN 12087, Thermal insulating products for building applications - Determination of long term water absorption by immersion EN 12088, Thermal insulating products for building applications - Determination of long term water absorption by diffusion EN 12089, Thermal insulating products for building applications - Determination of bending behaviour EN 12091, Thermal insulating products for building applications - Determination of freeze-thaw resistance EN 12431, Thermal insulating products for building applications - Determination of thickness for floating floor insulating products EN 12667, Thermal performance of building materials and products - Determination of thermal resistance by means of guarded hot plate and heat flow meter methods - Products of high and medium thermal resistance EN 12939, Thermal performance of building materials and products - Determination of thermal resistance by means of guarded hot plate and heat flow meter methods - Thick products of high and medium thermal resistance EN 13163, Thermal insulation products for buildings - Factory made expanded polystyrene (EPS) products - Specification EN 13172:2012, Thermal insulation products - Evaluation of conformity EN 13467, Thermal insulating products for building equipment and industrial installations - Determination of dimensions, squareness and linearity of preformed pipe insulation EN 13468, Thermal insulating products for building equipment and industrial installations - Determination of trace quantities of water soluble chloride, fluoride, silicate, sodium ions and pH EN 13469, Thermal insulating products for building equipment and industrial installations - Determination of water vapour transmission properties of preformed pipe insulation EN 13470, Thermal insulating products for building equipment and industrial installations - Determination of the apparent density of preformed pipe insulation EN 13501-1:2007+A1:2009, Fire classification of construction products and building elements - Part 1: Classification using data from reaction to fire tests EN 13823, Reaction to fire tests for building products — Building products excluding floorings exposed to the thermal attack by a single burning item EN 14706, Thermal insulating products for building equipment and industrial installations - Determination of maximum service temperature SIST EN 14309:2016
EN 14309:2015 (E) 8 EN 14707, Thermal insulating products for building equipment and industrial installations - Determination of maximum service temperature for preformed pipe insulation EN 14933, Thermal insulation and light weight fill products for civil engineering applications - Factory made products of expanded polystyrene (EPS) - Specification EN 15715:2009, Thermal insulation products - Instructions for mounting and fixing for reaction to fire testing - Factory made products EN 29052-1, Acoustics - Determination of dynamic stiffness - Part 1: Materials used under floating floors in dwellings EN ISO 1182, Reaction to fire tests for products - Non-combustibility test (ISO 1182:2010) EN ISO 1716, Reaction to fire tests for products - Determination of the gross heat of combustion (calorific value) (ISO 1716:2010) EN ISO 8497, Thermal insulation - Determination of steady-state thermal transmission properties of thermal insulation for circular pipes (ISO 8497:1994) EN ISO 9229:2007, Thermal insulation - Vocabulary (ISO 9229:2007) EN ISO 11925-2, Reaction to fire tests - Ignitability of products subjected to direct impingement of flame - Part 2: Single-flame source test (ISO 11925-2:2010) EN ISO 13787, Thermal insulation products for building equipment and industrial installations - Determination of declared thermal conductivity (ISO 13787:2003) 3 Terms, definitions, symbols, units and abbreviated terms 3.1 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1.1 Terms and definitions as given in EN ISO 9229:2007 3.1.1.1 pipe section (insulation) product in the shape of a cylindrical annulus which may be split to facilitate application 3.1.1.2 board slab (insulation) rigid or semi-rigid product of rectangular shape and cross-section in which the thickness is uniform and substantially smaller than the other dimensions Note 1 to entry: Boards are usually thinner than slabs. They may also be delivered in tapered form. 3.1.1.3 roll (insulation) product supplied in the form of a wound cylinder SIST EN 14309:2016
EN 14309:2015 (E) 9 3.1.1.4 lag segment rigid or semi-rigid insulation product for application on large diameter cylindrical or spherical equipment 3.1.2 Additional terms and definitions 3.1.2.1 expanded polystyrene (EPS) rigid cellular plastics insulation material, manufactured by moulding beads of expandable polystyrene or one of its copolymers and which has a closed cellular structure filled with air 3.1.2.2 expanded polystyrene block rigid insulation product or material generally of rectangular cross section and with a thickness not significantly smaller than the width. Blocks are supplied trimmed or untrimmed 3.1.2.3 expanded polystyrene board rigid insulation product (cut, moulded or continuously foamed) of rectangular shape and cross section in which the thickness is significantly smaller than the other dimensions Note 1 to entry: Boards can be of uniform thickness or tapered. The board edges can be of various sorts (e.g. square, half lapped, tongue and groove). 3.1.2.4 level given value, which is the upper or lower limit of a requirement Note 1 to entry: The level is given by the declared value of the characteristic concerned. 3.1.2.5 class combination of two levels of the same property between which the performance shall fall 3.1.2.6 production line assemblage of equipment that produces products using a continuous process 3.1.2.7 production unit assemblage of equipment that produces products using a discontinuous process Note 1 to entry: For PTD and FPC, units using the same process in one factory are considered together (as one production line). 3.1.2.8 prefabricated ware pieces cut, abraded or otherwise formed from a board or block of product e.g. elbows, T-pieces etc SIST EN 14309:2016
EN 14309:2015 (E) 10 3.1.2.9 product material, element or component about which information is required. Refers to a construction product, as defined in the Construction Products Regulation, from an individual producer 3.2 Symbols, units and abbreviated terms 3.2.1 Symbols and units used in this standard
is the confidence level — b is the width mm d is the thickness mm Di is the inside diameter mm D is the water vapour permeability mg/(m·h·Pa) dD is the declared thickness of a product mm b is the relative change in width % l is the relative change in length % d is the relative change in thickness % Edyn is the dynamic elasticity modulus MN/m2 k is a factor related to the number of test results available — l is the length mm L is the deviation from linearity mm
...
SLOVENSKI STANDARD
kSIST FprEN 14309:2015
01-julij-2015
Toplotnoizolacijski proizvodi za opremo stavb in industrijske inštalacije -
Proizvodi iz ekspandiranega polistirena (EPS) - Specifikacija
Thermal insulation products for building equipment and industrial installations - Factory
made products of expanded polystyrene (EPS) - Specification
Wärmedämmstoffe für die technische Gebäudeausrüstung und für betriebstechnische
Anlagen in der Industrie - Werkmäßig hergestellte Produkte aus expandiertem Polystyrol
(EPS) - Spezifikation
Produits isolants thermiques pour l'équipement du bâtiment et les installations
industrielles - Produits manufacturés en polystyrène expansé (PSE) - Spécification
Ta slovenski standard je istoveten z: FprEN 14309
ICS:
91.100.60 0DWHULDOL]DWRSORWQRLQ Thermal and sound insulating
]YRþQRL]RODFLMR materials
kSIST FprEN 14309:2015 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
kSIST FprEN 14309:2015
---------------------- Page: 2 ----------------------
kSIST FprEN 14309:2015
EUROPEAN STANDARD
FINAL DRAFT
FprEN 14309
NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2015
ICS 91.100.60 Will supersede EN 14309:2009+A1:2013
English Version
Thermal insulation products for building equipment and industrial
installations - Factory made products of expanded polystyrene
(EPS) - Specification
Produits isolants thermiques pour l'équipement du bâtiment Wärmedämmstoffe für die technische Gebäudeausrüstung
et les installations industrielles - Produits manufacturés en und für betriebstechnische Anlagen in der Industrie -
polystyrène expansé (PSE) - Spécification Werkmäßig hergestellte Produkte aus expandiertem
Polystyrol (EPS) - Spezifikation
This draft European Standard is submitted to CEN members for unique acceptance procedure. It has been drawn up by the Technical
Committee CEN/TC 88.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CEN All rights of exploitation in any form and by any means reserved Ref. No. FprEN 14309:2015 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
kSIST FprEN 14309:2015
FprEN 14309:2015 (E)
Contents Page
Foreword .5
1 Scope .7
2 Normative references .7
3 Terms, definitions, symbols, units and abbreviated terms .9
3.1 Terms and definitions .9
3.1.1 Terms and definitions as given in EN ISO 9229:2007 .9
3.1.2 Additional terms and definitions . 10
3.2 Symbols, units and abbreviated terms . 11
3.2.1 Symbols and units used in this standard . 11
3.2.2 Abbreviated terms used in this standard . 13
4 Requirements . 13
4.1 General . 13
4.2 For all applications . 13
4.2.1 Thermal conductivity . 13
4.2.2 Dimensions and tolerances . 14
4.2.3 Dimensional stability . 14
4.2.4 Reaction to fire of the product as placed on the market . 15
4.2.5 Durability characteristics . 15
4.3 For specific applications . 16
4.3.1 General . 16
4.3.2 Maximum service temperature . 16
4.3.3 Minimum service temperature . 16
4.3.4 Dimensional stability under specified temperature and humidity conditions . 16
4.3.5 Compressive stress at 10 % deformation . 16
4.3.6 Tensile strength perpendicular to faces . 17
4.3.7 Bending strength . 17
4.3.8 Compressive creep . 18
4.3.9 Water absorption . 19
4.3.10 Water vapour transmission . 19
4.3.11 Apparent density. 20
4.3.12 Dynamic stiffness . 20
4.3.13 Compressibility . 20
4.3.14 Trace quantities of water soluble ions and pH . 21
4.3.15 Release of dangerous substances . 21
4.3.16 Continuous glowing combustion . 22
5 Test methods . 22
5.1 Sampling . 22
5.2 Conditioning . 22
5.3 Testing . 22
5.3.1 General . 22
5.3.2 Thermal conductivity . 24
5.3.3 Reaction to fire . 25
6 Designation code . 25
7 Assessment and Verification of the Constancy of Performance (AVCP) . 26
7.1 General . 26
7.2 Product Type Determination (PTD) . 26
7.3 Factory Production Control (FPC) . 26
2
---------------------- Page: 4 ----------------------
kSIST FprEN 14309:2015
FprEN 14309:2015 (E)
8 Marking and labelling . 26
Annex A (normative) Factory production control . 28
A.1 Indirect testing . 32
A.1.1 General . 32
A.1.2 Compressive stress at 10 % deformation . 32
A.1.3 Thermal conductivity . 33
A.1.3.1 General . 33
A.1.3.2 Thickness effect . 34
Annex B (normative) Product classification . 36
Annex C (normative) Determination of minimum service temperature . 37
C.1 Definitions . 37
C.2 Principle. 37
C.3 Apparatus . 37
C.4 Test specimens . 37
C.4.1 Dimensions of test specimens . 37
C.4.2 Number of test specimens. 38
C.4.3 Conditioning of the test specimens . 38
C.5 Procedure . 38
C.5.1 Test conditions . 38
C.5.2 Test procedure . 38
C.6 Calculation and expression of results . 38
C.6.1 Dimensional changes . 38
C.6.2 Additional tests and/or observation . 39
C.7 Accuracy of measurements. 39
C.8 Test report . 39
Annex D (informative) Additional properties . 41
D.1 General . 41
D.2 Long-term compressive behaviour . 41
D.3 Shear behaviour . 42
D.4 Water vapour diffusion resistance factor . 43
D.5 Coefficient of thermal expansion . 43
D.6 Behaviour under cyclic loading . 43
D.7 Test methods . 44
D.8 Additional information . 44
Annex ZA (informative) Clauses of this European Standard addressing the provisions of the
EU Construction Products Regulation . 45
ZA.1 Scope and relevant characteristics . 45
ZA.2 Procedures for AVCP of factory made products of expanded polystyrene (EPS) . 47
3
---------------------- Page: 5 ----------------------
kSIST FprEN 14309:2015
FprEN 14309:2015 (E)
ZA.2.1 Systems of AVCP . 47
ZA.2.2 Declaration of Performance (DoP) . 50
ZA.2.2.1 General . 50
ZA.2.2.2 Content . 51
ZA.2.2.3 Example of DoP . 51
ZA.3 CE Marking and labelling . 54
Bibliography . 56
4
---------------------- Page: 6 ----------------------
kSIST FprEN 14309:2015
FprEN 14309:2015 (E)
Foreword
This document (FprEN 14309:2015) has been prepared by Technical Committee CEN/TC 88 “Thermal
insulating materials and products”, the secretariat of which is held by DIN.
This document is currently submitted to the Unique Acceptance Procedure.
This document will supersede EN 14309:2009+A1:2013.
This document is identifying those clauses of the standard which are needed for the compliance of the
European Standard with the Construction Products Regulation (CPR).
The main technical changes that have been made in this new edition of EN 14309 are the following:
a) an addition to the foreword;
b) an addition in 3.2.2;
c) a new 4.3.15;
d) modification of 5.3.2;
e) modification of Clause 7;
f) modification of Clause 8;
g) modification of Annex A;
h) a new Annex ZA.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of Regulation (EU) No. 305/2011.
For relationship with Regulation (EU) No. 305/2011, see informative Annex ZA, which is an integral part of this
document.
Locally responsible authorities and contracting entities, who are bound by EU Directives to specify their
requirements using European harmonized product standards, are allowed to demand additional properties
outside the provisions of this standard if this is technically necessary because of prevailing operational
conditions of the building equipment or the industrial installation projected or because of safety regulations.
This European Standard contains five annexes:
— Annex A (normative), Factory production control;
— Annex B (normative), Product classification;
— Annex C (normative), Determination of minimum service temperature;
— Annex D (informative), Additional properties;
— Annex ZA (informative), Clauses of this European Standard addressing the provisions of the EU
Construction Products Regulation.
This document includes a bibliography.
5
---------------------- Page: 7 ----------------------
kSIST FprEN 14309:2015
FprEN 14309:2015 (E)
This European Standard is one of a series of standards for insulation products used in building equipment and
industrial installations, but this standard can be used in other areas, where appropriate.
In pursuance of Resolution BT 20/1993 revised, CEN/TC 88 have proposed defining the standards listed
below as a European package of standards, setting 21 months after availability as the date of withdrawal
(dow) of national standards which conflict with the European Standards of this package.
The package of standards comprises the following group of interrelated standards for the specifications of
factory made thermal insulation products, all of which come within the scope of CEN/TC 88:
EN 14303, Thermal insulation products for building equipment and industrial installations — Factory made
mineral wool (MW) products — Specification
EN 14304, Thermal insulation products for building equipment and industrial installations — Factory made
flexible elastomeric foam (FEF) products — Specification
EN 14305, Thermal insulation products for building equipment and industrial installations — Factory made
cellular glass (CG) products — Specification
EN 14306, Thermal insulation products for building equipment and industrial installations — Factory made
calcium silicate (CS) products — Specification
EN 14307, Thermal insulation products for building equipment and industrial installations — Factory made
extruded polystyrene foam (XPS) products — Specification
EN 14308, Thermal insulation products for building equipment and industrial installations — Factory made
rigid polyurethane foam (PUR) and polyisocyanurate foam (PIR) products — Specification
EN 14309, Thermal insulation products for building equipment and industrial installations — Factory made
products of expanded polystyrene (EPS) — Specification
EN 14313, Thermal insulation products for building equipment and industrial installations — Factory made
polyethylene foam (PEF) products — Specification
EN 14314, Thermal insulation products for building equipment and industrial installations — Factory made
phenolic foam (PF) products — Specification
EN 15501, Thermal insulation products for building equipment and industrial installations — Factory made
expanded perlite (EP) and exfoliated vermiculite (EV) products — Specification
6
---------------------- Page: 8 ----------------------
kSIST FprEN 14309:2015
FprEN 14309:2015 (E)
1 Scope
This European Standard specifies the requirements for factory made products of expanded polystyrene which
are used for the thermal insulation of building equipment and industrial installations with an operating
temperature range of approximately - 180 °C to + 80 °C. Modified expanded polystyrene polymers with a
higher temperature resistance are also covered by this standard.
Below an operating temperature of - 50 °C, special tests regarding the suitability of the product in the intended
application are advised (e.g. liquefaction of oxygen). Manufacturers’ advice should be heeded in all cases.
The products are manufactured in the form of faced or unfaced boards, rolls, lags, pipe sections or other
prefabricated ware.
This standard describes product characteristics and includes procedures for testing, evaluation of conformity,
marking and labelling.
Products covered by this standard are also used in prefabricated thermal insulation systems and composite
panels; the performance of systems incorporating these products is not covered.
This standard does not specify the required level or class of a given property that should be achieved by a
product to demonstrate fitness for purpose in a particular application. The classes and levels required for a
given application can be found in regulations and invitations to tender.
Products with a declared thermal conductivity greater than 0,060 W/(m·K) at 10 °C are not covered by this
standard.
This standard does not cover products for in situ insulation (for loose fill or poured insulation) or products for
the insulation of the building structure.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
EN 822, Thermal insulating products for building applications - Determination of length and width
EN 823, Thermal insulating products for building applications - Determination of thickness
EN 824, Thermal insulating products for building applications - Determination of squareness
EN 825, Thermal insulating products for building applications - Determination of flatness
EN 826, Thermal insulating products for building applications - Determination of compression behaviour
EN 1602, Thermal insulating products for building applications - Determination of the apparent density
EN 1603, Thermal insulating products for building applications - Determination of dimensional stability under
constant normal laboratory conditions (23 °C/ 50 % relative humidity)
EN 1604, Thermal insulating products for building applications - Determination of dimensional stability under
specified temperature and humidity conditions
EN 1606, Thermal insulating products for building applications - Determination of compressive creep
7
---------------------- Page: 9 ----------------------
kSIST FprEN 14309:2015
FprEN 14309:2015 (E)
EN 1607, Thermal insulating products for building applications - Determination of tensile strength
perpendicular to faces
EN 12085, Thermal insulating products for building applications - Determination of linear dimensions of test
specimens
EN 12086, Thermal insulating products for building applications - Determination of water vapour transmission
properties
EN 12087, Thermal insulating products for building applications - Determination of long term water absorption
by immersion
EN 12088, Thermal insulating products for building applications - Determination of long term water absorption
by diffusion
EN 12089, Thermal insulating products for building applications - Determination of bending behaviour
EN 12091, Thermal insulating products for building applications - Determination of freeze-thaw resistance
EN 12431, Thermal insulating products for building applications - Determination of thickness for floating floor
insulating products
EN 12667, Thermal performance of building materials and products - Determination of thermal resistance by
means of guarded hot plate and heat flow meter methods - Products of high and medium thermal resistance
EN 12939, Thermal performance of building materials and products - Determination of thermal resistance by
means of guarded hot plate and heat flow meter methods - Thick products of high and medium thermal
resistance
EN 13163, Thermal insulation products for buildings - Factory made expanded polystyrene (EPS) products -
Specification
EN 13172:2012, Thermal insulation products - Evaluation of conformity
EN 13467, Thermal insulating products for building equipment and industrial installations - Determination of
dimensions, squareness and linearity of preformed pipe insulation
EN 13468, Thermal insulating products for building equipment and industrial installations - Determination of
trace quantities of water soluble chloride, fluoride, silicate, sodium ions and pH
EN 13469, Thermal insulating products for building equipment and industrial installations - Determination of
water vapour transmission properties of preformed pipe insulation
EN 13470, Thermal insulating products for building equipment and industrial installations - Determination of
the apparent density of preformed pipe insulation
EN 13501-1:2007+A1:2009, Fire classification of construction products and building elements - Part 1:
Classification using data from reaction to fire tests
EN 13823, Reaction to fire tests for building products — Building products excluding floorings exposed to the
thermal attack by a single burning item
EN 14706, Thermal insulating products for building equipment and industrial installations - Determination of
maximum service temperature
EN 14707, Thermal insulating products for building equipment and industrial installations - Determination of
maximum service temperature for preformed pipe insulation
8
---------------------- Page: 10 ----------------------
kSIST FprEN 14309:2015
FprEN 14309:2015 (E)
EN 14933, Thermal insulation and light weight fill products for civil engineering applications - Factory made
products of expanded polystyrene (EPS) - Specification
EN 15715:2009, Thermal insulation products - Instructions for mounting and fixing for reaction to fire testing -
Factory made products
EN 29052-1, Acoustics - Determination of dynamic stiffness - Part 1: Materials used under floating floors in
dwellings
EN ISO 1182, Reaction to fire tests for products - Non-combustibility test (ISO 1182:2010)
EN ISO 1716, Reaction to fire tests for products - Determination of the gross heat of combustion (calorific
value) (ISO 1716:2010)
EN ISO 8497, Thermal insulation - Determination of steady-state thermal transmission properties of thermal
insulation for circular pipes (ISO 8497:1994)
EN ISO 9229:2007, Thermal insulation - Vocabulary (ISO 9229:2007)
EN ISO 11925-2, Reaction to fire tests - Ignitability of products subjected to direct impingement of flame - Part
2: Single-flame source test (ISO 11925-2:2010)
EN ISO 13787, Thermal insulation products for building equipment and industrial installations - Determination
of declared thermal conductivity (ISO 13787:2003)
3 Terms, definitions, symbols, units and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1.1 Terms and definitions as given in EN ISO 9229:2007
3.1.1.1
pipe section
(insulation) product in the shape of a cylindrical annulus which may be split to facilitate application
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
