SIST EN 4836:2018, titled "Aerospace series - Adaptor, Pipe coupling 24° Cone up to 35 000 kPa (5 080 psi) Ring-locked fitting - Reducer - Flareless End - Inch Series - Extra Fine Thread Pitch," is a European standard developed by the Slovenian Institute for Standardization (SIST). This standard defines the dimensions, tolerances, essential characteristics, and mass for a flareless tube end reducer (EN 6123, ring-locked type) designed for use in high-pressure aerospace fluid systems operating up to 35 000 kPa (5 080 psi). The document supports interoperability and high performance in critical aerospace environments by ensuring reliable and standardized connections in pressurized hydraulic and fluid lines.

Key Topics

• Scope and Purpose: Specifies reducer fittings with extra fine thread pitch for aerospace applications, guaranteeing compatibility up to 35 000 kPa (5 080 psi).
• Design Specifications: Covers the configuration, dimensions, tolerances (linear, angular), surface finishes, and required markings for these fittings.
• Material and Treatment Requirements: References relevant material standards and surface treatments, including titanium and corrosion-resistant alloys, and applicable finishing and coating procedures.
• Marking and Packaging: Outlines durability and traceability requirements for manufacturer markings as per EN 2424, and suitable packaging for damage prevention.
• Quality Assurance: Requires manufacturers to have quality management systems in accordance with EN 9100 and provides for inspections and qualification testing.
• International Compatibility: Establishes equivalence with AS5865 and references cross-compatible standards, facilitating global procurement and application.

Applications

SIST EN 4836:2018 is widely utilized in aerospace and defense industries where high-pressure fluid systems demand secure, leak-proof, and standardized connections. Its practical value extends to:

• Aircraft Hydraulic Systems: Ensures reliable performance in landing gear, flight control, and brake systems where hydraulic lines operate under extreme pressures.
• Aerospace Fluid Handling: Suitable for fuel, coolant, and lubrication piping, ensuring consistent system integrity throughout the lifespan of the aircraft.
• Maintenance and Repair: Offers clear interchangeability with equivalent parts (e.g., AS5865) for efficient replacement and compatibility, reducing downtime and facilitating maintenance operations.
• Global Supply Chain Integration: Adherence to both European (EN) and international (AS/SAE) norms simplifies sourcing and promotes widespread industry acceptance.

Related Standards

SIST EN 4836:2018 is supported and complemented by several recognized aerospace and fluid system standards, including:

• EN 6123: Fitting end, 24° internal cone, external thread, flareless type - provides design standards for compatible tube ends.
• EN 4832: Technical specification for ring-locked fittings for 24° cone applications.
• EN 4835: Installation and removal procedures for ring-locked fittings in aerospace systems.
• EN 9100: Quality Management Systems for Aviation, Space, and Defence Organizations.
• AS5865: Functional equivalent standard for parts defined in EN 4836, ensuring interchangeability.
• AMS and ISO Standards: References to material, heat treatment, and surface finish procedures (e.g., AMS 2486, ISO 3161 for UNJ threads).

These related standards facilitate safe, standardized, and efficient practices across the aerospace sector, making SIST EN 4836:2018 a key reference for engineers, manufacturers, and maintenance teams working with high-pressure aerospace fluid systems.

---

Keywords: SIST EN 4836:2018, aerospace pipe coupling, 24° cone, high-pressure reducer fitting, ring-locked fitting, flareless tube end, extra fine thread, fluid system standard, inch series, aerospace hydraulic connections, standardization.

Standards Content (Sample)

SLOVENSKI STANDARD
01-oktober-2018
$HURQDYWLND$GDSWHU&HYQLSULNOMXþHNƒ.RQLFDGRN3DSVL
1DYRMQLSULNOMXþHN]]DSRUQLPREURþHPLQQMHJRYLPUHGXNWRUMHP%UH]
UD]ãLUMHQHJDNRQþQLND3DOþQHPHUH(NVWUDILQQDYRMQLNRUDN
Aerospace series - Adaptor, Pipe coupling 24° Cone up to 35 000 kPa (5 080 psi) Ring-
locked fitting - Reducer - Flareless End - Inch Series - Extra Fine Thread Pitch
Luft- und Raumfahrt - Adapter, Rohrverschraubung 24° Konus bis 35 000 kPa (5 080
psi) gerade Anschlussverschraubung, reduziertes Rohrende mit Sicherungsring - Inch
Reihe - extra feine Gewindesteigung
Série aérospatiale - Adapteur, Système de raccordement interface conique 24° jusqu'á
35 000 kPa (5 080 psi) Implantation pour raccord avec bague de sécurité - Séries inch -
Filetage à pas extra-fin
Ta slovenski standard je istoveten z: EN 4836:2018
ICS:
49.080 /HWDOVNLLQYHVROMVNL Aerospace fluid systems and
KLGUDYOLþQLVLVWHPLLQGHOL components
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 4836
EUROPEAN STANDARD
NORME EUROPÉENNE
August 2018
EUROPÄISCHE NORM
ICS 49.080
English Version
Aerospace series - Adaptor, Pipe coupling 24° Cone up to
35 000 kPa (5 080 psi) Ring-locked fitting - Reducer -
Flareless End - Inch Series - Extra Fine Thread Pitch
Série aérospatiale - Adapteur, Système de Luft- und Raumfahrt - Adapter, Rohrverschraubung
raccordement interface conique 24° jusqu'á 35 000 kPa 24° Konus bis 35 000 kPa (5 080 psi) gerade
(5 080 psi) Implantation pour raccord avec bague de Anschlussverschraubung, reduziertes Rohrende mit
sécurité - Séries inch - Filetage à pas extra-fin Sicherungsring - Inch-Reihe - extra feine
Gewindesteigung
This European Standard was approved by CEN on 6 December 2017.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2018 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 4836:2018 E
worldwide for CEN national Members.

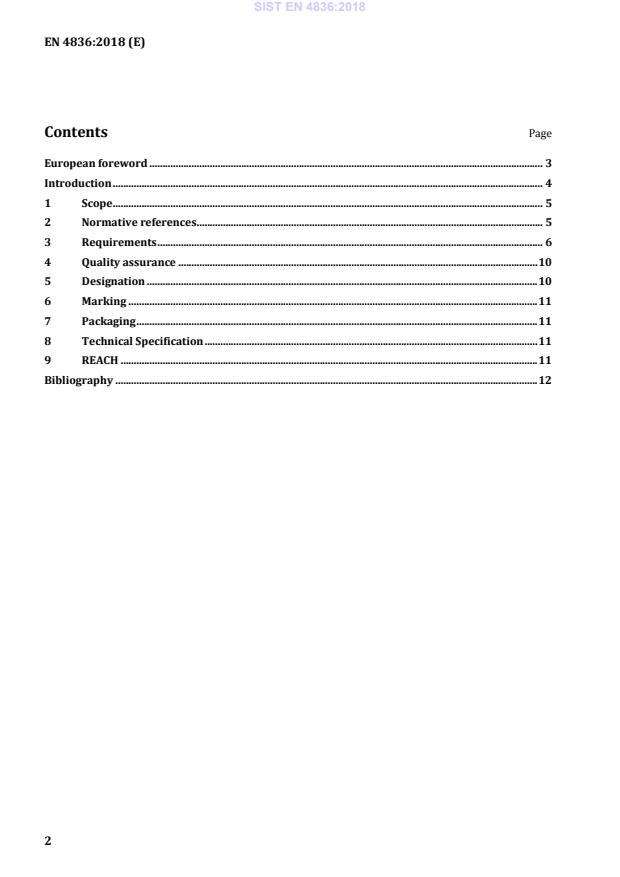

Contents Page
