SIST EN 1009-4:2020/oprA1:2024

Machines for mechanical processing of minerals and similar solid materials - Safety - Part 4: Specific requirements for screening machinery

This document, to be used together with EN 1009-1:2020, specifies the safety requirements and their verification for the design and construction of screening machinery for the mechanical processing in quarrying, recycling and processing mineral and by-products as defined in 3.1.
In addition, it specifies the type of information on safe working practices (including residual risks) to be provided by the manufacturer.
When requirements of this document are different from those which are stated in EN 1009-1:2020, the requirements of this document take precedence over the requirements of EN 1009-1:2020 for machines that have been designed and built according to the provisions of this document.
This document, together with EN 1009-1:2020, deals with all the significant hazards, hazardous situations and events relevant to screening machinery when they are used as intended and under the conditions foreseen by the manufacturer (see Annex C).
This document does not cover:
-   design relating to road traffic regulations;
-   hazards arising from the use of the machines in potentially explosive atmospheres as well as from processing of explosive materials and risks related to electromagnetic compatibility;
-   specific hazards related to mobile machinery;
-   fully or partially self-evolving behaviour or logic;
-   collaborative applications;
-   network connection communication.
NOTE 1   EN ISO 13766-1 and EN ISO 13766-2 specify test methods and acceptance criteria for evaluating the electromagnetic compatibility of all kinds of mobile construction machinery.
NOTE 2   EN 1009-6 "Specific requirements for mobile machinery: (under preparation) covers specific requirements (e.g. mobility, braking, access, frequent transportation), including exceptions and additional requirements for mobile equipment. This means that mobile machines are not covered as long as EN 1009-6 is not published by CEN.
This document is not applicable to screening machinery which are manufactured before the date of publication of this document by CEN.

Maschinen für die mechanische Aufbereitung von Mineralien und ähnlichen festen Stoffen - Sicherheit - Teil 4: Spezifische Anforderungen für Klassiermaschinen (Siebmaschinen)

Machines pour le traitement mécanique des minéraux et des matières solides similaires - Sécurité - Partie 4 : Prescriptions spécifiques pour machines de criblage

Stroji za mehansko obdelavo mineralov in podobnih trdnih snovi - Varnost - 4. del: Posebne zahteve za presejalne stroje

General Information

• Status: Not Published
• Public Enquiry End Date: 27-Feb-2024
• ICS: 13.110 - Safety of machinery
• ICS: 73.120 - Equipment for processing of minerals
• ICS: 91.220 - Construction equipment
• Technical Committee: I13 - Imaginarni 13
• Current Stage: 4020 - Public enquire (PE) (Adopted Project)
• Start Date: 03-Jan-2024
• Due Date: 22-May-2024
• Completion Date: 28-Feb-2024
• Directive: 2006/42/EC - Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast)
• Directive: 2023/1230 - Regulation (EU) 2023/1230 of the European Parliament and of the Council of 14 June 2023 on machinery and repealing Directive 2006/42/EC of the European Parliament and of the Council and Council Directive 73/361/EEC (Text with EEA relevance)
• Mandate: M/396 - Mandate to CEN and Cenelec for standardisation in the field of machinery
• Mandate: M/605 - COMMISSION IMPLEMENTING DECISION of 20.1.2025 on a standardisation request to the European Committee for Standardization and to the European Committee for Electrotechnical Standardization as regards machinery and related products in support of Regulation (EU) 2023/1230 of the European Parliament and of the Council
• Ref Project: EN 1009-4:2020/FprA1 - Machines for mechanical processing of minerals and similar solid materials - Safety - Part 4: Specific requirements for screening machinery

Relations

• Amends: SIST EN 1009-4:2020 - Machines for mechanical processing of minerals and similar solid materials - Safety - Part 4: Specific requirements for screening machinery
• Effective Date: 16-Jun-2021

Overview

EN 1009-4:2020/FprA1 - Part 4 of the CEN series on machines for mechanical processing of minerals - provides specific safety requirements for screening machinery (screening machines) used in quarrying, recycling and mineral/by‑product processing. It is intended to be used together with EN 1009-1:2020 (now referenced as EN 1009-1:2020+A1) and covers design, construction and verification of safety measures, plus the manufacturer’s information on safe working practices and residual risks. The amendment draft (prA1) updates access, inspection and maintenance provisions and adds pictorial and rotary‑screen requirements.

Key topics and requirements

• Scope and precedence: Where this Part differs from EN 1009-1, the specific requirements here take precedence for machines designed to this Part. The standard does not cover road traffic design, explosive atmospheres, EMC, specific mobile‑machine hazards (until EN 1009‑6 is published), or network communication features.
• Inspection and maintenance access: Detailed dimensions and ergonomics for access openings and reach distances are specified (examples from Annex C):
  • Horizontal two‑arm openings: minimum 645 mm × 221 mm; maximum H = 1 520 mm.
  • Single‑arm inspection reach: maximum 495 mm.
  • Typical maintenance reach (mid‑range grip): 506 mm.
  • Minimum deck clearance where entry is needed: normally 550 mm, with 450 mm as an absolute minimum for upgrades in existing plants (with alternative solutions recommended where 450 mm cannot be met).
• Design for safe replacement and service: Roof covers may need to be dismountable and operable within force limits specified in EN 1009‑1. Rotary screens requiring drum rotation for screen change must provide controlled movement (e.g., hold‑to‑run mode or manual auxiliary drive).
• Information and pictorials: Manufacturers must provide safe‑working information (including residual risks) and pictorial warnings for rotary drums to prevent entry.
• Annex C (informative): Provides calculation rationale and ergonomic considerations, referencing EN/ISO anthropometric and reach standards.

Applications and users

• Who uses it: OEMs and designers of screening machinery, safety and compliance engineers, maintenance planners, plant owners/operators in quarrying, recycling and mineral processing, and conformity assessment bodies.
• Practical value:
  • Ensures safer machine design and serviceability.
  • Guides specification and procurement to meet harmonized CEN safety expectations.
  • Supports risk assessments, CE technical documentation and maintenance procedures.
  • In retrofit scenarios, clarifies minimum exemptions and alternative safety solutions.

Related standards

• EN 1009-1:2020 / EN 1009-1:2020+A1 - General safety requirements for machines in this series.
• EN 547 and ISO 7250 series - anthropometric and reach data used for access calculations.
• EN ISO 13766 series (EMC testing) - referenced for mobile machinery electromagnetic compatibility (not covered here).
• EN 1009-6 (under preparation) - will cover specific mobile machinery requirements when published.

Keywords: EN 1009-4:2020, screening machinery safety, screening machines, maintenance access, inspection openings, quarrying safety standard, CEN standard, mineral processing safety.

Standards Content (Sample)

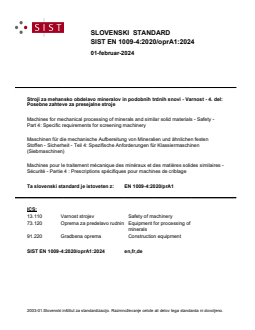

SLOVENSKI STANDARD
01-februar-2024
Stroji za mehansko obdelavo mineralov in podobnih trdnih snovi - Varnost - 4. del:
Posebne zahteve za presejalne stroje
Machines for mechanical processing of minerals and similar solid materials - Safety -
Part 4: Specific requirements for screening machinery
Maschinen für die mechanische Aufbereitung von Mineralien und ähnlichen festen
Stoffen - Sicherheit - Teil 4: Spezifische Anforderungen für Klassiermaschinen
(Siebmaschinen)
Machines pour le traitement mécanique des minéraux et des matières solides similaires -
Sécurité - Partie 4 : Prescriptions spécifiques pour machines de criblage
Ta slovenski standard je istoveten z: EN 1009-4:2020/prA1
ICS:
13.110 Varnost strojev Safety of machinery
73.120 Oprema za predelavo rudnin Equipment for processing of
minerals
91.220 Gradbena oprema Construction equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

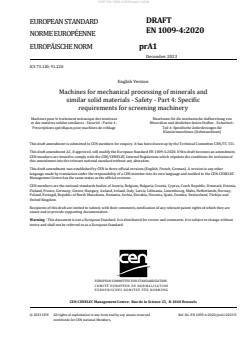

DRAFT
EUROPEAN STANDARD
EN 1009-4:2020
NORME EUROPÉENNE
EUROPÄISCHE NORM
prA1
December 2023
ICS 73.120; 91.220
English Version
Machines for mechanical processing of minerals and
similar solid materials - Safety - Part 4: Specific
requirements for screening machinery
Machines pour le traitement mécanique des minéraux Maschinen für die mechanische Aufbereitung von
et des matières solides similaires - Sécurité - Partie 4 : Mineralien und ähnlichen festen Stoffen - Sicherheit -
Prescriptions spécifiques pour machines de criblage Teil 4: Spezifische Anforderungen für
Klassiermaschinen (Siebmaschinen)
This draft amendment is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 151.

This draft amendment A1, if approved, will modify the European Standard EN 1009-4:2020. If this draft becomes an amendment,
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for inclusion of
this amendment into the relevant national standard without any alteration.

This draft amendment was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 1009-4:2020/prA1:2023 E
worldwide for CEN national Members.

EN 1009-4:2020/prA1:2023

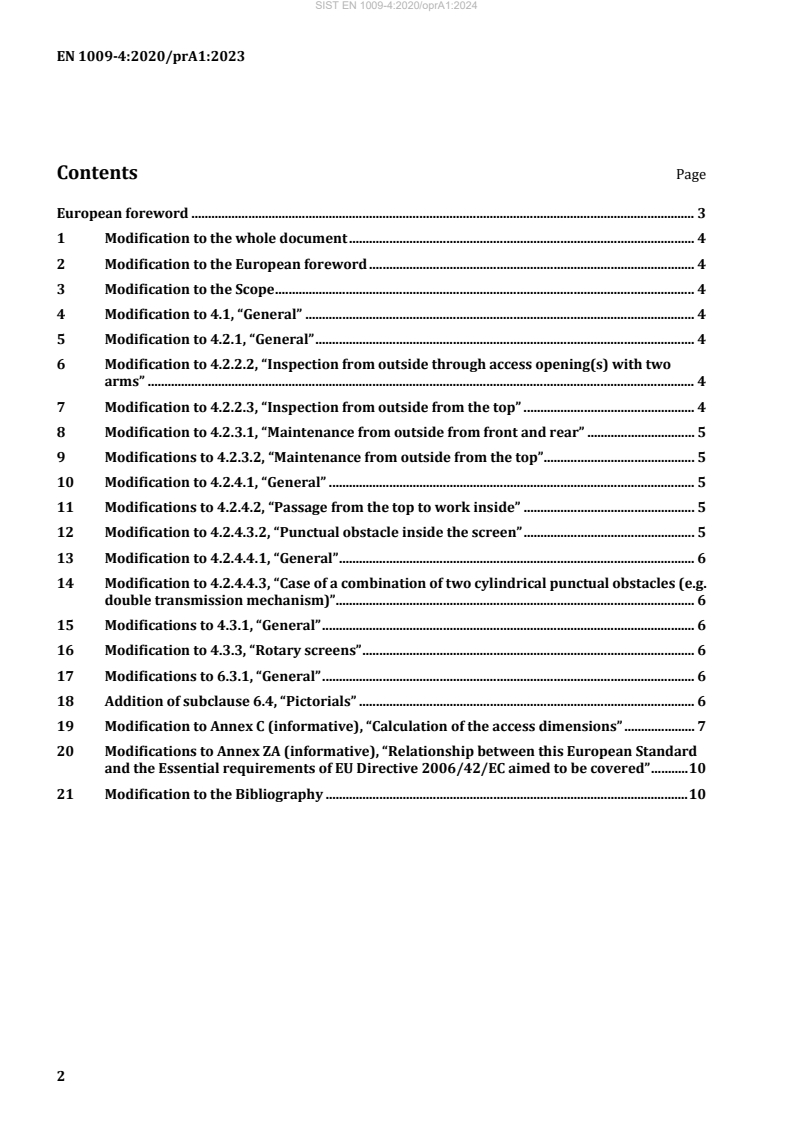

Contents Page
European foreword . 3
1 Modification to the whole document . 4
2 Modification to the European foreword . 4
3 Modification to the Scope . 4
4 Modification to 4.1, “General” . 4
5 Modification to 4.2.1, “General” . 4
6 Modification to 4.2.2.2, “Inspection from outside through access opening(s) with two
arms” . 4
7 Modification to 4.2.2.3, “Inspection from outside from the top” . 4
8 Modification to 4.2.3.1, “Maintenance from outside from front and rear” . 5
9 Modifications to 4.2.3.2, “Maintenance from outside from the top”. 5
10 Modification to 4.2.4.1, “General” . 5
11 Modifications to 4.2.4.2, “Passage from the top to work inside” . 5
12 Modification to 4.2.4.3.2, “Punctual obstacle inside the screen” . 5
13 Modification to 4.2.4.4.1, “General” . 6
14 Modification to 4.2.4.4.3, “Case of a combination of two cylindrical punctual obstacles (e.g.
double transmission mechanism)”. 6
15 Modifications to 4.3.1, “General” . 6
16 Modification to 4.3.3, “Rotary screens” . 6
17 Modifications to 6.3.1, “General” . 6
18 Addition of subclause 6.4, “Pictorials” . 6
19 Modification to Annex C (informative), “Calculation of the access dimensions” . 7
20 Modifications to Annex ZA (informative), “Relationship between this European Standard
and the Essential requirements of EU Directive 2006/42/EC aimed to be covered” . 10
21 Modification to the Bibliography . 10

EN 1009-4:2020/prA1:2023
European foreword
This document (EN 1009-4:2020/prA1:2023) has been prepared by Technical Committee CEN/TC 151
“Construction equipment and building material machines - Safety”, the secretariat of which is held by
DIN.
This document is currently submitted to the CEN Enquiry.
This document will amend EN 1009-4:2020.
This document has been prepared under a standardization request addressed to CEN by the European
Commission. The Standing Committee of the EFTA States subsequently approves these requests for its
Member States.
For the relationship with EU Legislation, see informative Annex ZA, which is an integral part of this
document.
This part of EN 1009 is intended to be used in conjunction with EN 1009-1:2020+A1—.
A list of all parts in a series can be found on the CEN website: www.cencenelec.eu.
EN 1009-4:2020/prA1:2023
1 Modification to the whole document
Throughout the whole text, replace: "EN 1009-1:2020” with “EN 1009-1:2020+A1:—".
2 Modification to the European foreword
Replace the list of parts in the series (paragraph 7) with the following sentence:
“A list of all parts in a series can be found on the CEN website: www.cencenelec.eu.".
3 Modification to the Scope
Replace NOTE 2 with the following:
"NOTE 2 EN 1009-6 “Specific requirements for mobile machinery” (under preparation) covers specific
requirements (e.g. mobility, braking, access, frequent transportation), including exceptions and additional
requirements for mobile equipment. This means that mobile machines are not covered as long as EN 1009-6 is not
published by CEN.".
4 Modification to 4.1, “General”
rd
Add after the 3 paragraph, the following:
"This requirement does not apply to the use of a visual inspection opening."
5 Modification to 4.2.1, “General”
Add after the 3rd paragraph:
"Access for inspection and maintenance from outside of the screen shall comply with 4.2.2 for inspection
and 4.2.3 for maintenance. If it is necessary to enter inside the screen for a specific inspection or
maintenance task, the respective access and working space shall comply with one of the possibilities
described in 4.2.4."
6 Modification to 4.2.2.2, “Inspection from outside through access opening(s)
with two arms”
Replace the first paragraph with the following:
“Horizontal access openings for two arms shall be, as illustrated in Figure 2, the following distances:
A = min. 645 mm
B = min. 221 mm
H = max. 1 520 mm”.
7 Modification to 4.2.2.3, “Inspection from outside from the top”
Last paragraph, replace "are" by "is" to read: “… if the access opening is larger than …”

Under preparation. Current stage of the amendment (to be consolidated with EN 1009-1:2020):
EN 1009-1:2020/prA1:2023.
EN 1009-4:2020/prA1:2023
8 Modification to 4.2.3.1, “Maintenance from outside from front and rear”
First paragraph, replace "followings" by "following" to read:
“The opening for one or both arms shall be the following minimum distances"
9 Modifications to 4.2.3.2, “Maintenance from outside from the top”
Indent a), replace "followings" by "following" to read:
“… shall comply with the following …”
Indent a), last paragraph, replace "It" by "it" to read:
“… Value H is a minimum value; it may be increased …”
Indent b), replace "followings" by "following" to read:
“… shall comply with the following …”
Indent c), 3) add a comma after "506 mm", to read:
“if the grip reach distance requirement is greater than 506 mm, the dimensions of the access opening…”
10 Modification to 4.2.4.1, “General”
Replace the paragraph and NOTE with the following:
"If it is necessary to enter inside the screen for inspection and maintenance between decks in lying or
crawling position, in exemption to EN 1009-1:2020+A1:—, 4.2.1, the following subclauses 4.2.4.2 and
4.2.4.3 apply.
NOTE If there are space constraints in an existing plant, replacement of a screen is consid
...
