SIST

SIST EN 303-3:1999

(Main)

Heating boilers - Part 3: Gas-fired central heating boilers - Assembly comprising a boiler body and a forced draught burner

Heating boilers - Part 3: Gas-fired central heating boilers - Assembly comprising a boiler body and a forced draught burner

This European Standard specifies the requirements and test methods for the construction, the safety and the rational energy usage of an assembly made up of a boiler body complying with EN 303- 11) and a forced draught gas burner complying with EN 676, using combustible gases, hereafter referred to as a "boiler".  This European Standard applies to a boiler:  - with a nominal output not exceeding 1 000 kW.  This European Standard does not contain all the necessary requirements for:  - assemblies designed as units;  - condensing boilers and low temperature boilers;  - boilers intended to be installed in the open;  - boilers permanently fitted with more than one flue outlet;  - boilers fitted with a draught diverter;  -  boilers intended to be connected to a common flue having mechanical    extraction.  This European Standard does not apply to living-space dedicated boilers   If the boiler body has already been tested with a liquid fuel burner, in accordance with EN 303-1, EN 303-2 and EN 304, only the tests described in annex G need to be performed.  In the case of a range of boilers, see annex F.  This European Standard does not contain all the necessary requirements for low temperature boilers. Nevertheless, the testing methods defined by this European Standard for the determination of useful efficiencies can be used for low temperature boilers, after being adapted in accordance with annex H.  This European Standard only covers type testing.

Heizkessel - Teil 3: Zentralheizkessel für gasförmige Brennstoffe - Zusammenbau aus Kessel und Gebläsebrenner

Diese Europäische Norm legt die Anforderungen und Prüfungen für die Sicherheit, die Gebrauchsgüte und den sparsamen Energieeinsatz von Zusammenbauten, bestehend aus einem Kesselkörper gemäß den Anforderungen von prEN 303-1 und einem Gasgebläsebrenner gemäß EN 676 - nachfolgend als Kessel bezeichnet - fest.

Chaudieres de chauffage - Partie 3: Chaudieres de chauffage central utilisant les combustibles gazeux - Assemblage d'un corps de chaudiere et d'un bruleur a air soufflé

La présente norme européenne spécifie les exigences et les méthodes d'essais relatives a la construction, la sécurité et l'utilisation rationnelle de l'énergie d'un assemblage constitué d'un corps de chaudiere conforme au projet de norme prEN 303-1 et d'un bruleur a air soufflé conforme a l'EN 676 utilisant les combustibles gazeux, appelé ci-apres "chaudiere".

Kotli za ogrevanje - 3. del: Plinski kotli za centralno ogrevanje – Sestava kotla in ventilatorskega gorilnika

General Information

Status
Published
Publication Date
30-Nov-1999
ICS
91.140.10 - Central heating systems
97.100.20 - Gas heaters
Technical Committee
PLN - Gas appliances for domestic use
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
01-Dec-1999
Due Date
01-Dec-1999
Completion Date
01-Dec-1999
Directive
2009/142/EC - DIRECTIVE 2009/142/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 30 November 2009 relating to appliances burning gaseous fuels
2016/426 - REGULATION (EU) 2016/426 OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 9 March 2016 on appliances burning gaseous fuels and repealing Directive 2009/142/EC
90/396/EEC - Appliances burning gaseous fuels
92/42/EEC - Efficiency requirements for new hot-water boilers fired with liquid or gaseous fuels
Mandate
M/066 - Standardization mandate to CEN concerning Efficiency requirements for boilers
M/BC/CEN/89/6 - Standardization request to CEN concerning appliances burning gaseous fuels
Ref Project
EN 303-3:1998 - Heating boilers - Part 3: Gas-fired central heating boilers - Assembly comprising a boiler body and a forced draught burner

Relations

Amended By
SIST EN 303-3:1999/A2:2004 - Heating Boilers - Part 3 : Gas-fired heating boilers - Assembly comprising a boiler body and a forced draught burner
Effective Date
01-Jun-2004
Corrected By
SIST EN 303-3:1999/AC:2006 - Heating boilers - Part 3: Gas-fired central heating boilers - Assembly comprising a boiler body and a forced draught burner
Effective Date
01-Sep-2006

Buy Standard

EN 303-3:1999EN 303-3:1999
PreviousNext
Standard
EN 303-3:1999
English language
47 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

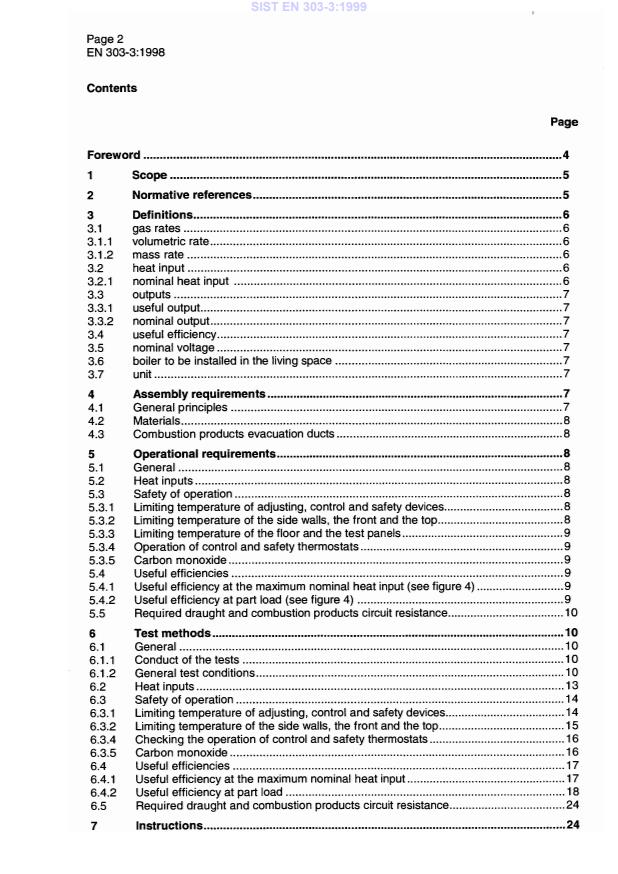

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Kotli za ogrevanje - 3. del: Plinski kotli za centralno ogrevanje – Sestava kotla in ventilatorskega gorilnikaHeizkessel - Teil 3: Zentralheizkessel für gasförmige Brennstoffe - Zusammenbau aus Kessel und GebläsebrennerChaudieres de chauffage - Partie 3: Chaudieres de chauffage central utilisant les combustibles gazeux - Assemblage d'un corps de chaudiere et d'un bruleur a air souffléHeating boilers - Part 3: Gas-fired central heating boilers - Assembly comprising a boiler body and a forced draught burner97.100.20Plinski grelnikiGas heaters91.140.10Sistemi centralnega ogrevanjaCentral heating systemsICS:Ta slovenski standard je istoveten z:EN 303-3:1998SIST EN 303-3:1999en01-december-1999SIST EN 303-3:1999SLOVENSKI
STANDARD



SIST EN 303-3:1999



SIST EN 303-3:1999



SIST EN 303-3:1999



SIST EN 303-3:1999



SIST EN 303-3:1
...
