(Main)Thermal insulation products for building equipment and industrial installations - Factory made calcium silicate (CS) products - Specification
Thermal insulation products for building equipment and industrial installations - Factory made calcium silicate (CS) products - Specification
This European Standard specifies the requirements for factory made calcium silicate products which are used for the thermal insulation of building equipment and industrial installations with an operating temperature range of approximately - 170 °C to + 1 100 °C.
NOTE Calcium silicate products can be used below - 50 °C. Below the operating temperature of - 50 °C, special tests, regarding the suitability of the product in the intended application are advised (e.g. liquefaction of oxygen). Manufacturer's advice should be heeded in all cases.
The products are manufactured in the form of boards, pipe sections, segments and prefabricated ware.
This standard describes product characteristics and includes procedures for testing, evaluation of conformity, marking and labelling.
Products covered by this standard are also used in prefabricated thermal insulation systems and composite panels; the structural performance of systems incorporating these products is not covered.
This standard does not specify the required level or class of a given property that shall be achieved by a product to demonstrate fitness for purpose in a particular application. The levels required for a given application can be found in regulations and invitations to tender.
Products with a declared thermal conductivity greater than 0,6 W/(mK) at 10 °C are not covered by this standard.
This standard does not cover products intended to be used for the insulation of the building structure.
This standard does not cover the following acoustical aspects: direct airborne sound insulation and impact noise transmission index.
Wärmedämmstoffe für die technische Gebäudeausrüstung und für betriebstechnische Anlagen in der Industrie - Werkmäßig hergestellte Produkte aus Calciumsilikat (CS) - Spezifikation
Diese Europäische Norm legt die Anforderungen an werkmäßig hergestellte Produkte aus Calciumsilikat fest, die als Wärmedämmstoffe für die technische Gebäudeausrüstung und für betriebstechnische Anlagen in der Industrie in einem Betriebstemperaturbereich von etwa 170 °C bis 1 100 °C benutzt werden.
Produkte aus Calciumsilikat können unterhalb von 50 °C verwendet werden. Bei einer Betriebstemperatur unterhalb von 50 °C sind besondere Prüfungen bezüglich der Eignung der Produkte für den beabsichtigten Anwendungsfall ratsam (z. B. Sauerstoffverflüssigung). In jedem Fall sollten die Empfehlungen des Herstellers beachtet werden.
Die Produkte werden in Form von Platten, Rohrschalen, Segmenten und vorgeformter Dämmung her¬gestellt.
Diese Europäische Norm beschreibt die Produkteigenschaften und enthält Verfahren zur Prüfung, Konformitätsbewertung, Kennzeichnung und Etikettierung.
Die von dieser Norm abgedeckten Produkte werden auch in vorgefertigten Wärmedämmsystemen und Mehr-schicht-Verbundplatten angewendet; die Eigenschaften von Systemen, in die diese Produkte integriert sind, werden nicht behandelt.
Diese Europäische Norm legt für die einzelnen Eigenschaften keine Leistungsstufen oder -klassen fest, die ein Produkt erreichen sollte, um für einen bestimmten Anwendungsfall tauglich zu sein. Die für bestimmte Anwendungen benötigten Stufen können Regelwerken oder Ausschreibungen entnommen werden.
Diese Norm gilt nicht für Produkte mit einem Nennwert der Wärmeleitfähigkeit größer als 0,6 W/(mK) bei 10 °C.
Diese Europäische Norm gilt nicht für Produkte, die zur Dämmung des Bauwerks bestimmt sind.
Diese Europäische Norm gilt nicht für die folgenden akustischen Zwecke: Luftschalldämmung und Trittschallübertragung.
Produits isolants thermiques pour l'équipement du bâtiment et les installations industrielles - Produits manufacturés en silicate de calcium (CS) - Spécification
La présente Norme européenne spécifie les exigences relatives aux produits manufacturés en silicate de calcium, utilisés pour l’isolation thermique de l’équipement du bâtiment et des installations industrielles, dont la plage de températures de service est approximativement comprise entre - 170 °C et + 1 100 °C.
Les produits en silicate de calcium peuvent être utilisés à des températures inférieures à - 50 °C. Pour une température de service inférieure à - 50 °C, des essais particuliers sont recommandés pour s'assurer de l'aptitude à l'emploi du produit dans l'application visée (liquéfaction de l'oxygène, par exemple). Il convient de se référer systématiquement aux conseils du fabricant.
Les produits sont manufacturés sous la forme de panneaux, de coquilles, de segments et de pièces préfabriquées.
La présente Norme européenne décrit les caractéristiques de ces produits et comprend des modes opératoires d’essai, d’évaluation de la conformité, de marquage et d’étiquetage.
Les produits couverts par la présente norme sont également utilisés dans les systèmes d’isolation thermique préfabriqués et les panneaux composites ; les performances structurelles des systèmes incorporant ces produits ne sont pas traitées.
La présente Norme européenne ne spécifie pas la classe ou le niveau requis d'une propriété donnée qu'il convient qu'un produit atteigne pour démontrer son aptitude à l'emploi dans une application particulière. Les niveaux requis pour une application donnée peuvent être trouvés dans les réglementations et les appels d’offre.
La présente norme ne traite pas des produits dont la conductivité thermique déclarée est supérieure à 0,6 W/(m·K) à 10 °C.
La présente Norme européenne ne couvre pas les produits destinés à être utilisés pour l’isolation des structures de bâtiments.
La présente Norme européenne ne couvre pas les critères acoustiques suivants : isolation contre le bruit aérien direct et indice de transmission du bruit d’impact.
Toplotnoizolacijski proizvodi za opremo stavb in industrijske inštalacije - Proizvodi iz kalcijevih silikatov (CS) - Specifikacija
Ta evropski standard določa zahteve za proizvode iz kalcijevih silikatov, ki se uporabljajo za toplotno izolacijo opreme stavb in industrijskih inštalacij z razponom delovne temperature približno od –170 °C do 1100 °C. OPOMBA Proizvode iz kalcijevih silikatov je mogoče uporabljati pod delovno temperaturo –50 °C. Pod delovno temperaturo –50 °C se priporočajo posebni preskusi glede primernosti proizvodov za predvideno vrsto uporabe (npr. utekočinjenje kisika). V vseh primerih naj bi upoštevali napotke proizvajalca. Proizvodi so izdelani v obliki plošč, vodovodnih odsekov, segmentov in montažne opreme. Ta standard opisuje lastnosti proizvodov ter zajema postopke za preskušanje, vrednotenje skladnosti, označevanje in etiketiranje. Proizvodi iz tega standarda se uporabljajo tudi v montažnih sistemih toplotne izolacije in vezanih ploščah; strukturne lastnosti sistemov iz teh proizvodov niso opisane. Ta standard ne določa zahtevane ravni ali razreda določene lastnosti, ki jo mora proizvod doseči, da se dokaže njegova primernost namenu za posamezno vrsto uporabe. Zahtevane ravni za posamezno uporabo je mogoče najti v uredbah in javnih razpisih. Proizvodi z deklarirano toplotno prevodnostjo, višjo od 0,6 W/mK pri 10 °C, v tem standardu niso zajeti. Ta standard ne zajema proizvodov za izolacijo stavbne strukture. Ta standard ne zajema naslednjih akustičnih vidikov: neposredne izolirnosti pred zvokom v zraku in indeksa prenosa udarnega zvoka.
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Toplotnoizolacijski proizvodi za opremo stavb in industrijske inštalacije - Proizvodi iz kalcijevih silikatov (CS) - SpecifikacijaWärmedämmstoffe für die technische Gebäudeausrüstung und für betriebstechnische Anlagen in der Industrie - Werkmäßig hergestellte Produkte aus Calciumsilikat (CS) - SpezifikationProduits isolants thermiques pour l'équipement du bâtiment et les installations industrielles - Produits manufacturés en silicate de calcium (CS) - SpécificationThermal insulation products for building equipment and industrial installations - Factory made calcium silicate (CS) products - Specification91.100.60Thermal and sound insulating materialsICS:Ta slovenski standard je istoveten z:EN 14306:2015SIST EN 14306:2016en,fr,de01-februar-2016SIST EN 14306:2016SLOVENSKI
STANDARDSIST EN 14306:2010+A1:20131DGRPHãþD
SIST EN 14306:2016
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 14306
December
t r s w ICS
{ sä s r rä x r Supersedes EN
s v u r xã t r r { ªA sã t r s uEnglish Version
Thermal insulation products for building equipment and products æ Specification Produits isolants thermiques pour l 5ßquipement du bâtiment et les installations industrielles æ Produits
Wärmedämmstoffe für die technische Gebäudeausrüstung und für betriebstechnische Anlagen in der Industrie æ Werkmäßig hergestellte This European Standard was approved by CEN on
t v October
t r s wä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey andUnited Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
9
t r s w CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s v u r xã t r s w ESIST EN 14306:2016

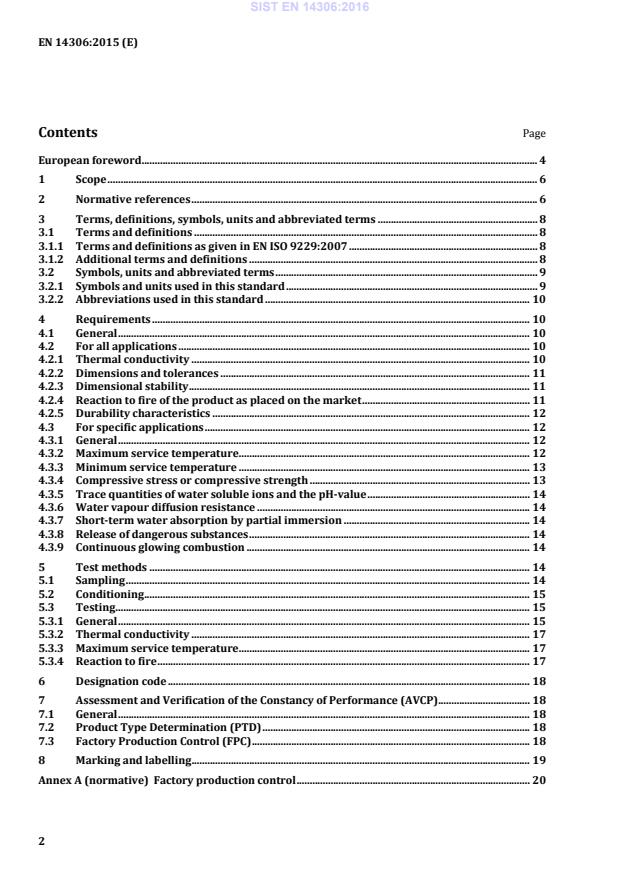

EN 14306:2015 (E) 2 Contents Page European foreword . 4 1 Scope . 6 2 Normative references . 6 3 Terms, definitions, symbols, units and abbreviated terms . 8 3.1 Terms and definitions . 8 3.1.1 Terms and definitions as given in EN ISO 9229:2007 . 8 3.1.2 Additional terms and definitions . 8 3.2 Symbols, units and abbreviated terms . 9 3.2.1 Symbols and units used in this standard . 9 3.2.2 Abbreviations used in this standard . 10 4 Requirements . 10 4.1 General . 10 4.2 For all applications . 10 4.2.1 Thermal conductivity . 10 4.2.2 Dimensions and tolerances . 11 4.2.3 Dimensional stability . 11 4.2.4 Reaction to fire of the product as placed on the market . 11 4.2.5 Durability characteristics . 12 4.3 For specific applications . 12 4.3.1 General . 12 4.3.2 Maximum service temperature . 12 4.3.3 Minimum service temperature . 13 4.3.4 Compressive stress or compressive strength . 13 4.3.5 Trace quantities of water soluble ions and the pH-value . 14 4.3.6 Water vapour diffusion resistance . 14 4.3.7 Short-term water absorption by partial immersion . 14 4.3.8 Release of dangerous substances . 14 4.3.9 Continuous glowing combustion . 14 5 Test methods . 14 5.1 Sampling . 14 5.2 Conditioning . 15 5.3 Testing . 15 5.3.1 General . 15 5.3.2 Thermal conductivity . 17 5.3.3 Maximum service temperature . 17 5.3.4 Reaction to fire . 17 6 Designation code . 18 7 Assessment and Verification of the Constancy of Performance (AVCP) . 18 7.1 General . 18 7.2 Product Type Determination (PTD) . 18 7.3 Factory Production Control (FPC) . 18 8 Marking and labelling . 19 Annex A (normative)
