Welded steel tubes for pressure purposes - Technical delivery conditions - Part 3: Electric welded and submerged arc welded alloy fine grain steel tubes with specified room, elevated and low temperature properties

This Part of EN 10217 specifies the technical delivery condition in two test categories for welded tubes of circular cross section, made of weldable alloy fine grain steel.

Geschweißte Stahlrohre für Druckbeanspruchungen - Technische Lieferbedingungen - Teil 3: Elektrisch geschweißte und unterpulvergeschweißte Rohre aus legierten Feinkornbaustählen mit festgelegten Eigenschaften bei Raum-, erhöhten und tiefen Temperaturen

Dieses Dokument legt die technischen Lieferbedingungen für elektrisch geschweißte und unterpulvergeschweißte Rohre mit Längsnaht (SAWL) und Spiralnaht (SAWH) mit kreisförmigem Querschnitt aus schweißbaren legierten Feinkornbaustählen in zwei Prüfkategorien fest.
ANMERKUNG 1 Die Rohrgüten sind vorgesehen zur Unterstützung der grundlegenden Anforderungen der EU-Richtlinie 2014/68/EU bezüglich Druckgeräten und sie decken alle festgelegten Kategorien nach Artikel 13 der Richtlinie ab.
ANMERKUNG 2 Nach Veröffentlichung dieser Norm im EU-Amtsblatt (ABl.) ist die Annahme ihrer Konformität mit den grundlegenden Sicherheitsanforderungen (ESR) der Richtlinie 2014/68/EU auf die technischen Daten von Werkstoffen in dieser Norm beschränkt, und es darf nicht angenommen werden, dass damit die Eignung des Werkstoffs für ein bestimmtes Ausrüstungsteil festgestellt ist. Folglich müssen die in dieser Werkstoffnorm angegebenen technischen Parameter im Hinblick auf die konstruktiven Anforderungen dieses bestimmten Ausrüstungsteils ermittelt werden, um damit zu verifizieren, dass den ESR der Druckgeräterichtlinie entsprochen wird. Dies muss durch den Ausleger oder den Hersteller der Druckgeräte geschehen, der auch den nachfolgenden Herstellungsprozess berücksichtigen muss, der die Eigenschaften des Grundmaterials verändern kann.

Tubes soudés en acier pour service sous pression - Conditions techniques de livraison - Partie 3 : Tubes en acier en acier allié à grains fins, soudés électriquement et soudés à l'arc immergé avec caractéristiques spécifiées à basse température et température élevée

Le présent document spécifie les conditions techniques de livraison de deux catégories d’essai de tubes soudés électriquement, et soudés à l’arc immergé longitudinal (SAWL) ou hélicoïdal (SAWH), à section circulaire, fabriqués en aciers alliés à grains fins.
NOTE 1    Ces nuances sont destinées à remplir les exigences essentielles de la directive 2014/68/UE sur les équipements sous pression, concernant toutes les catégories pertinentes comme exposé dans l’Article 13 de cette directive.
NOTE 2   Dès lors que la présente Norme européenne est publiée dans le Journal Officiel de l’Union européenne (JOUE) en lien avec la Directive 2014/68/UE, la présomption de conformité avec les exigences essentielles de sécurité de la Directive 2014/68/UE se limite aux données techniques des matériaux spécifiées dans la présente Norme européenne et ne suppose pas l’adéquation des matériaux avec un appareil en particulier. Par conséquent, il doit être procédé à l’évaluation des données techniques spécifiées dans la présente norme de matériaux par rapport aux exigences concernant la conception de cet équipement spécifique, afin de vérifier que les exigences essentielles de sécurité de la Directive Equipements sous Pression soient satisfaites en tenant en compte des opérations ultérieures de production qui peuvent affecter les propriétés des matériaux de base.

Varjene jeklene cevi za tlačne posode - Tehnični dobavni pogoji - 3. del: Električno varjene in obločno pod praškom varjene legirane jeklene cevi z drobnozrnato mikrostrukturo s specificiranimi lastnostmi za delo pri sobni, povišani in nizki temperaturi

Ta del standarda EN 10217 določa tehnične dobavne pogoje v dveh preskusnih kategorijah za varjene cevi s krožnim prerezom iz varivega legiranega jekla z drobnozrnato mikrostrukturo.

General Information

Status
Published
Public Enquiry End Date
14-Jan-2010
Publication Date
13-May-2019
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
25-Apr-2019
Due Date
30-Jun-2019
Completion Date
14-May-2019

Relations

Buy Standard

Standard
EN 10217-3:2019
English language
53 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 10217-3:2019
01-julij-2019
Nadomešča:
SIST EN 10217-3:2003
SIST EN 10217-3:2003/A1:2005
Varjene jeklene cevi za tlačne posode - Tehnični dobavni pogoji - 3. del: Električno
varjene in obločno pod praškom varjene legirane jeklene cevi z drobnozrnato
mikrostrukturo s specificiranimi lastnostmi za delo pri sobni, povišani in nizki
temperaturi
Welded steel tubes for pressure purposes - Technical delivery conditions - Part 3:
Electric welded and submerged arc welded alloy fine grain steel tubes with specified
room, elevated and low temperature properties
Geschweißte Stahlrohre für Druckbeanspruchungen - Technische Lieferbedingungen -
Teil 3: Elektrisch geschweißte und unterpulvergeschweißte Rohre aus legierten
Feinkornbaustählen mit festgelegten Eigenschaften bei Raum-, erhöhten und tiefen
Temperaturen
Tubes soudés en acier pour service sous pression - Conditions techniques de livraison -
Partie 3 : Tubes en acier en acier allié à grains fins, soudés électriquement et soudés à
l'arc immergé avec caractéristiques spécifiées à basse température et température
élevée
Ta slovenski standard je istoveten z: EN 10217-3:2019
ICS:
23.020.32 Tlačne posode Pressure vessels
77.140.75 Jeklene cevi in cevni profili Steel pipes and tubes for
za posebne namene specific use
SIST EN 10217-3:2019 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 10217-3:2019

---------------------- Page: 2 ----------------------

SIST EN 10217-3:2019


EN 10217-3
EUROPEAN STANDARD

NORME EUROPÉENNE

April 2019
EUROPÄISCHE NORM
ICS 23.040.10; 77.140.75 Supersedes EN 10217-3:2002
English Version

Welded steel tubes for pressure purposes - Technical
delivery conditions - Part 3: Electric welded and
submerged arc welded alloy fine grain steel tubes with
specified room, elevated and low temperature properties
Tubes soudés en acier pour service sous pression - Geschweißte Stahlrohre für Druckbeanspruchungen -
Conditions techniques de livraison - Partie 3: Tubes en Technische Lieferbedingungen - Teil 3: Elektrisch
acier en acier allié à grains fins, soudés électriquement geschweißte und unterpulvergeschweißte Rohre aus
et soudés à l'arc immergé avec caractéristiques legierten Feinkornbaustählen mit festgelegten
spécifiées à basse température et température élevée Eigenschaften bei Raum-, erhöhten und tiefen
Temperaturen
This European Standard was approved by CEN on 25 February 2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.





EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 10217-3:2019 E
worldwide for CEN national Members.

---------------------- Page: 3 ----------------------

SIST EN 10217-3:2019
EN 10217-3:2019 (E)

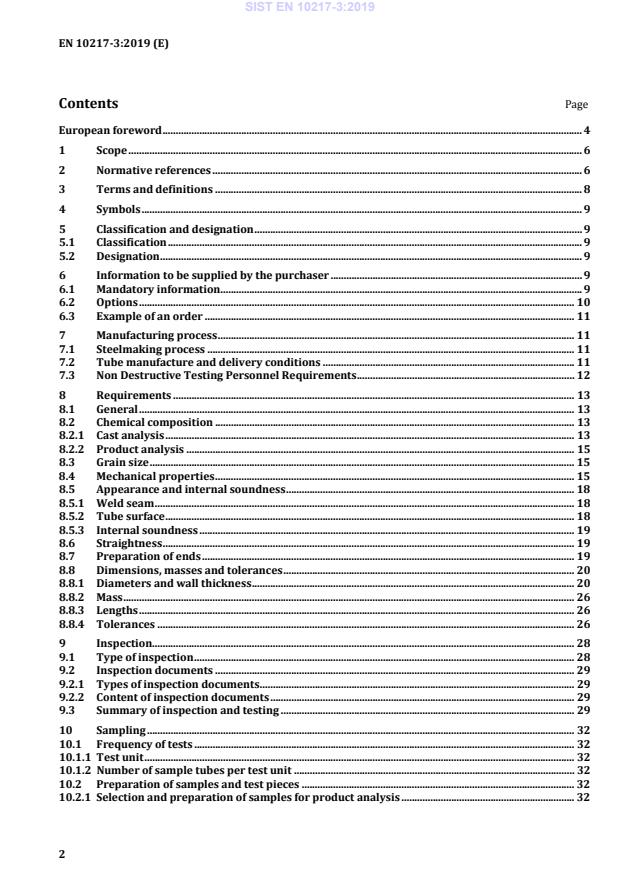

Contents Page
European foreword . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 8
4 Symbols . 9
5 Classification and designation . 9
5.1 Classification . 9
5.2 Designation . 9
6 Information to be supplied by the purchaser . 9
6.1 Mandatory information. 9
6.2 Options . 10
6.3 Example of an order . 11
7 Manufacturing process . 11
7.1 Steelmaking process . 11
7.2 Tube manufacture and delivery conditions . 11
7.3 Non Destructive Testing Personnel Requirements . 12
8 Requirements . 13
8.1 General . 13
8.2 Chemical composition . 13
8.2.1 Cast analysis . 13
8.2.2 Product analysis . 15
8.3 Grain size . 15
8.4 Mechanical properties . 15
8.5 Appearance and internal soundness . 18
8.5.1 Weld seam . 18
8.5.2 Tube surface . 18
8.5.3 Internal soundness . 19
8.6 Straightness . 19
8.7 Preparation of ends . 19
8.8 Dimensions, masses and tolerances . 20
8.8.1 Diameters and wall thickness . 20
8.8.2 Mass . 26
8.8.3 Lengths . 26
8.8.4 Tolerances . 26
9 Inspection. 28
9.1 Type of inspection . 28
9.2 Inspection documents . 29
9.2.1 Types of inspection documents . 29
9.2.2 Content of inspection documents . 29
9.3 Summary of inspection and testing . 29
10 Sampling . 32
10.1 Frequency of tests . 32
10.1.1 Test unit . 32
10.1.2 Number of sample tubes per test unit . 32
10.2 Preparation of samples and test pieces . 32
10.2.1 Selection and preparation of samples for product analysis . 32
2

---------------------- Page: 4 ----------------------

SIST EN 10217-3:2019
EN 10217-3:2019 (E)
10.2.2 Location, orientation and preparation of samples and test pieces for mechanical
tests . 32
11 Verification of test methods . 34
11.1 Chemical analysis . 34
11.2 Tensile test. 34
11.2.1 Tensile test on the tube body . 34
11.2.2 Transverse tensile test on the weld . 35
11.3 Flattening test . 35
11.4 Ring tensile test . 35
11.5 Drift expanding test . 35
11.6 Ring expanding test . 36
11.7 Weld bend test . 36
11.8 Impact test . 36
11.9 Leak tightness test . 37
11.9.1 Hydrostatic test . 37
11.9.2 Electromagnetic test. 37
11.10 Dimensional inspection . 37
11.11 Visual examination . 38
11.12 Non-Destructive Testing . 38
11.12.1 Non-Destructive Testing of HFW tubes . 38
11.12.2 Non-destructive testing of SAW tubes . 38
11.13 Material identification . 39
11.14 Retests, sorting and reprocessing . 39
12 Marking . 40
12.1 Marking to be applied . 40
12.2 Additional marking. 40
13 Protection. 40
Annex A (normative) Qualification of welding procedure for SAW tube production . 41
A.1 General . 41
A.2 Welding procedure specification . 41
A.3 Preparation of sample tube and sample assessment . 42
A.4 Inspection and testing of the weld . 44
A.5 Weld test pieces . 44
A.6 Test methods . 44
A.7 Test acceptance levels . 45
A.8 Range of use of qualified procedures . 47
A.9 Qualification record . 48
Annex B (normative) Elevated temperature properties for steel grades P275NL1 and NL2 . 49
Annex C (informative) Technical changes from the previous edition . 50
C.1 Introduction . 50
C.2 Technical changes . 50
Annex ZA (informative) Relationship between this European Standard and the Essential
Requirements of 2014/68/EU . 52
Bibliography . 53

3

---------------------- Page: 5 ----------------------

SIST EN 10217-3:2019
EN 10217-3:2019 (E)
European foreword
This document (EN 10217-3:2019) has been prepared by Technical Committee CEN/TC 459 “ECISS -
1
European Committee for Iron and Steel Standardization” , the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by October 2019, and conflicting national standards
shall be withdrawn at the latest by October 2019.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 10217-3:2002.
This document has been prepared under a mandate given to CEN by the European Commission and
the European Free Trade Association, and supports essential requirements of EU Directive
2014/68/EU.
For relationship with EU Directive 2014/68/EU (formerly 97/23/EC), see informative Annex ZA,
which is an integral part of this document.
This European Standard consists of the following parts, under the general title Welded steel tubes for
pressure purposes – Technical delivery conditions:
Part 1: Electric welded and submerged arc welded non-alloy steel tubes with specified room
temperature properties
Part 2: Electric welded non-alloy and alloy steel tubes with specified elevated temperature properties
Part 3: Electric welded and submerged arc welded alloy fine grain steel tubes with specified room,
elevated and low temperature properties
Part 4: Electric welded non-alloy steel tubes with specified low temperature properties
Part 5: Submerged arc welded non-alloy and alloy steel tubes with specified elevated temperature
properties
Part 6: Submerged arc welded non-alloy steel tubes with specified low temperature properties
Part 7: Stainless steel tubes
Another European Standard series covering tubes for pressure purposes is:
EN 10216, Seamless steel tubes for pressure purposes
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,


1
 Through its subcommittee SC 10 “Steel tubes, and iron and steel fittings” (secretariat: UNI)
4

---------------------- Page: 6 ----------------------

SIST EN 10217-3:2019
EN 10217-3:2019 (E)
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.
5

---------------------- Page: 7 ----------------------

SIST EN 10217-3:2019
EN 10217-3:2019 (E)
1 Scope
This document specifies the technical delivery conditions for two test categories of electric welded and
submerged arc longitudinally (SAWL) or helically (SAWH) welded tubes of circular cross section, made
from weldable fine grain steel.
NOTE 1 These tube grades are intended to support the essential requirements of EU Directive 2014/68/EU in
respect of pressure equipment covered under all relevant Categories as set out in Article 13 of that Directive.
NOTE 2 Once this standard is published in the Official Journal of the European Union (OJEU), presumption of
conformity to the Essential Safety Requirements (ESR) of Directive 2014/68/EU is limited to the technical data
for the materials in this standard and does not presume adequacy of the material for a specific item of pressure
equipment. Consequently, the assessment of the technical data stated in this material standard against the design
requirements of a specific item of equipment to verify that the ESRs of the Pressure Equipment Directive are
satisfied, needs to be done by the designer or manufacturer of the pressure equipment, taking also into account
any subsequent processing procedures which may affect properties of the base materials.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
EN 10020, Definition and classification of grades of steel
EN 10021:2006, General technical delivery conditions for steel products
EN 10027-1, Designation systems for steels — Part 1: Steel names
EN 10027-2, Designation systems for steels — Part 2: Numerical system
EN 10168:2004, Steel products — Inspection documents — List of information and description
EN 10204:2004, Metallic products — Types of inspection documents
EN 10220, Seamless and welded steel tubes — Dimensions and masses per unit length
CEN/TR 10261, Iron and steel — European standards for the determination of chemical composition
EN 10266, Steel tubes, fittings and structural hollow sections — Symbols and definitions of terms for use
in product standards
EN ISO 148-1:2016, Metallic materials — Charpy pendulum impact test — Part 1: Test method (ISO 148-
1:2016)
EN ISO 377:2017, Steel and steel products — Location and preparation of samples and test pieces for
mechanical testing (ISO 377:2017)
EN ISO 643:2012, Steels — Micrographic determination of the apparent grain size (ISO 643:2012)
EN ISO 2566-1:1999, Steel — Conversion of elongation values — Part 1: Carbon and low alloy steels (ISO
2566-1:1984)
EN ISO 4885, Ferrous materials — Heat treatments — Vocabulary (ISO 4885)
EN ISO 5173:2010, Destructive tests on welds in metallic materials — Bend tests (ISO 5173:2009)
6

---------------------- Page: 8 ----------------------

SIST EN 10217-3:2019
EN 10217-3:2019 (E)
EN ISO 6892-1:2016, Metallic materials — Tensile testing — Part 1: Method of test at room temperature
(ISO 6892-1:2016)
EN ISO 6892-2:2018, Metallic materials — Tensile testing — Part 2: Method of test at elevated
temperature (ISO 6892-2:2018)
EN ISO 8492:2013, Metallic materials — Tube — Flattening test (ISO 8492:2013)
EN ISO 8493:2004, Metallic materials — Tube — Drift-expanding test (ISO 8493:1998)
EN ISO 8495:2013, Metallic materials — Tube — Ring-expanding test (ISO 8495:2013)
EN ISO 8496:2013, Metallic materials — Tube — Ring tensile test (ISO 8496:2013)
EN ISO 10893-1:2011, Non-destructive testing of steel tubes — Part 1: Automated electromagnetic
testing of seamless and welded (except submerged arc-welded) steel tubes for the verification of hydraulic
leaktightness (ISO 10893-1:2011)
EN ISO 10893-2:2011, Non-destructive testing of steel tubes — Part 2: Automated eddy current testing of
seamless and welded (except submerged arc-welded) steel tubes for the detection of imperfections (ISO
10893-2:2011)
EN ISO 10893-3:2011, Non-destructive testing of steel tubes — Part 3: Automated full peripheral flux
leakage testing of seamless and welded (except submerged arc-welded) ferromagnetic steel tubes for the
detection of longitudinal and/or transverse imperfections (ISO 10893-3:2011)
EN ISO 10893-6:2011, Non-destructive testing of steel tubes — Part 6: Radiographic testing of the weld
seam of welded steel tubes for the detection of imperfections (ISO 10893-6:2011)
EN ISO 10893-7:2011, Non-destructive testing of steel tubes — Part 7: Digital radiographic testing of the
weld seam of welded steel tubes for the detection of imperfections (ISO 10893-7:2011)
EN ISO 10893-8:2011, Non-destructive testing of steel tubes — Part 8: Automated ultrasonic testing of
seamless and welded steel tubes for the detection of laminar imperfections (ISO 10893-8:2011)
EN ISO 10893-9:2011, Non-destructive testing of steel tubes — Part 9: Automated ultrasonic testing for
the detection of laminar imperfections in strip/plate used for the manufacture of welded steel tubes (ISO
10893-9:2011)
EN ISO 10893-10:2011, Non-destructive testing of steel tubes — Part 10: Automated full peripheral
ultrasonic testing of seamless and welded (except submerged arc-welded) steel tubes for the detection of
longitudinal and/or transverse imperfections (ISO 10893-10:2011)
EN ISO 10893-11:2011, Non-destructive testing of steel tubes — Part 11: Automated ultrasonic testing of
the weld seam of welded steel tubes for the detection of longitudinal and/or transverse imperfections (ISO
10893-11:2011)
EN ISO 14174:2012, Welding consumables — Fluxes for submerged arc welding and electroslag welding
— Classification (ISO 14174:2012)
EN ISO 14284, Steel and iron — Sampling and preparation of samples for the determination of chemical
composition (ISO 14284)
EN ISO 17639:2013, Destructive tests on welds in metallic materials — Macroscopic and microscopic
examination of welds (ISO 17639:2003)
7

---------------------- Page: 9 ----------------------

SIST EN 10217-3:2019
EN 10217-3:2019 (E)
ISO 11484:2009, Steel products — Employer’s qualification system for non-destructive testing (NDT)
personnel
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 10020, EN 10021, EN 10266,
EN ISO 4885 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
3.1
test category
classification that indicates the extent and level of inspection and testing
3.2
employer
organisation for which a person works on a regular basis
Note 1 to entry: The employer may be either the tube manufacturer or a third party organization providing
services, such as Non-Destructive Testing (NDT).
3.3
EW
electric welded tube
tubular product having one longitudinal seam weld produced by electric (resistance) welding where
the strip edges to be welded are mechanically pressed together and the heat for the welding process is
generated by the resistance to flow of low or high frequency electric current applied by either a
conduction or induction process
3.4
HFW
high frequency welded tube
EW tube produced specifically using a welding current frequency equal to or greater than 100kHz
3.5
SAW
submerged-arc welded tube
tubular product having one or two longitudinal seams, or one helical seam, produced using the
submerged-arc welding process
3.6
SAWH
submerged-arc helical welded tube
tubular product having one helical weld seam produced using the su
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
