SLOVENSKI STANDARD
SIST EN 10217-5:2019
01-julij-2019
Nadomešča:
SIST EN 10217-5:2003
SIST EN 10217-5:2003/A1:2005
Varjene jeklene cevi za tlačne posode - Tehnični dobavni pogoji - 5. del: Obločno
pod praškom varjene nelegirane in legirane jeklene cevi s specificiranimi
lastnostmi za delo pri povišanih temperaturah
Welded steel tubes for pressure purposes - Technical delivery conditions - Part 5:
Submerged arc welded non-alloy and alloy steel tubes with specified elevated
temperature properties
Geschweißte Stahlrohre für Druckbeanspruchungen - Technische Lieferbedingungen -
Teil 5: Unterpulvergeschweißte Rohre aus unlegierten und legierten Stählen mit
festgelegtnen Eigenschaften bei erhöhten Temperaturen
Tubes soudés en acier pour service sous pression - Conditions techniques de livraison -
Partie 5: Tubes soude à l'arc immergé en acier non allié et allié avec caractéristiques
spécifiées à température élevée
Ta slovenski standard je istoveten z: EN 10217-5:2019
ICS:
23.020.32 Tlačne posode Pressure vessels
77.140.75 Jeklene cevi in cevni profili Steel pipes and tubes for
za posebne namene specific use
SIST EN 10217-5:2019 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 10217-5:2019

---------------------- Page: 2 ----------------------

SIST EN 10217-5:2019


EN 10217-5
EUROPEAN STANDARD

NORME EUROPÉENNE

April 2019
EUROPÄISCHE NORM
ICS 23.040.10; 77.140.75 Supersedes EN 10217-5:2002
English Version

Welded steel tubes for pressure purposes - Technical
delivery conditions - Part 5: Submerged arc welded non-
alloy and alloy steel tubes with specified elevated
temperature properties
Tubes soudés en acier pour service sous pression - Geschweißte Stahlrohre für Druckbeanspruchungen -
Conditions techniques de livraison - Partie 5: Tubes Technische Lieferbedingungen - Teil 5:
soudés à l'arc immergé en aciers non allié et allié avec Unterpulvergeschweißte Rohre aus unlegierten und
caractéristiques spécifiées à température élevée legierten Stählen mit festgelegten Eigenschaften bei
erhöhten Temperaturen
This European Standard was approved by CEN on 25 February 2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.





EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 10217-5:2019 E
worldwide for CEN national Members.

---------------------- Page: 3 ----------------------

SIST EN 10217-5:2019
EN 10217-5:2019 (E)

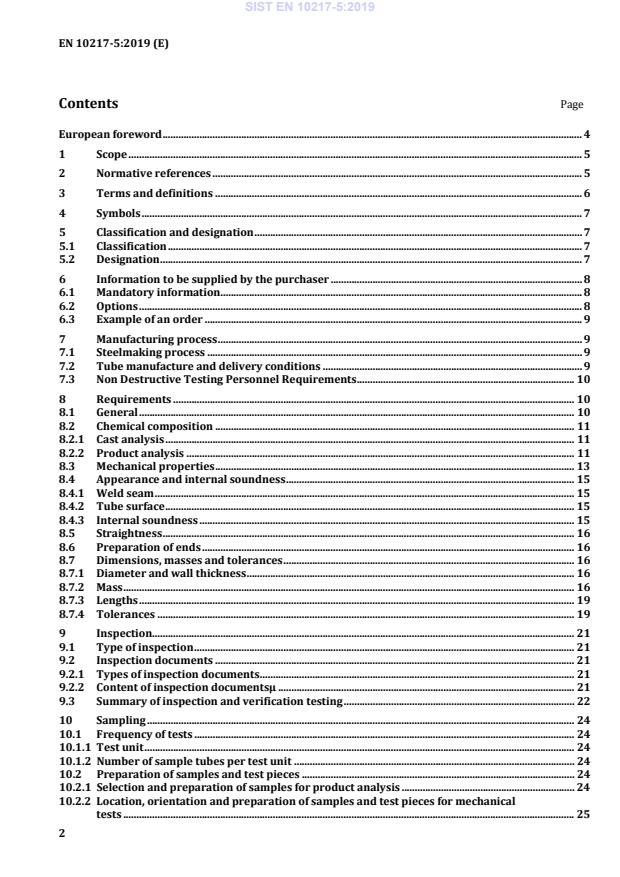

Contents Page
European foreword . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 6
4 Symbols . 7
5 Classification and designation . 7
5.1 Classification . 7
5.2 Designation . 7
6 Information to be supplied by the purchaser . 8
6.1 Mandatory information. 8
6.2 Options . 8
6.3 Example of an order . 9
7 Manufacturing process . 9
7.1 Steelmaking process . 9
7.2 Tube manufacture and delivery conditions . 9
7.3 Non Destructive Testing Personnel Requirements . 10
8 Requirements . 10
8.1 General . 10
8.2 Chemical composition . 11
8.2.1 Cast analysis . 11
8.2.2 Product analysis . 11
8.3 Mechanical properties . 13
8.4 Appearance and internal soundness . 15
8.4.1 Weld seam . 15
8.4.2 Tube surface . 15
8.4.3 Internal soundness . 15
8.5 Straightness . 16
8.6 Preparation of ends . 16
8.7 Dimensions, masses and tolerances . 16
8.7.1 Diameter and wall thickness . 16
8.7.2 Mass . 16
8.7.3 Lengths . 19
8.7.4 Tolerances . 19
9 Inspection. 21
9.1 Type of inspection . 21
9.2 Inspection documents . 21
9.2.1 Types of inspection documents . 21
9.2.2 Content of inspection documentsµ . 21
9.3 Summary of inspection and verification testing . 22
10 Sampling . 24
10.1 Frequency of tests . 24
10.1.1 Test unit . 24
10.1.2 Number of sample tubes per test unit . 24
10.2 Preparation of samples and test pieces . 24
10.2.1 Selection and preparation of samples for product analysis . 24
10.2.2 Location, orientation and preparation of samples and test pieces for mechanical
tests . 25
2

---------------------- Page: 4 ----------------------

SIST EN 10217-5:2019
EN 10217-5:2019 (E)
11 Verification of test methods . 26
11.1 Chemical analysis . 26
11.2 Tensile test on the tube body . 27
11.2.1 At room temperature . 27
11.2.2 At elevated temperature . 27
11.3 Traverse tensile test on the weld . 27
11.4 Weld bend test . 27
11.5 Impact test . 27
11.6 Hydrostatic leak tightness test . 28
11.7 Dimensional inspection . 28
11.8 Visual examination . 29
11.9 Non-Destructive Testing . 29
11.9.1 Non-Destructive Testing of the weld seam . 29
11.9.2 Non-Destructive Testing for the detection of laminations for tubes of test category
2 . 29
11.9.3 Supply of strip end welds in SAWH tubes . 30
11.10 Material identification . 30
11.11 Retests, sorting and reprocessing . 30
12 Marking . 30
12.1 Marking to be applied . 30
12.2 Additional marking. 31
13 Protection. 31
Annex A (normative) Qualification of welding procedure . 32
A.1 General . 32
A.2 Welding procedure specification . 32
A.3 Preparation of sample tube and sample assessment . 34
A.4 Inspection and testing of the weld . 35
A.5 Weld test pieces . 35
A.6 Test methods . 35
A.7 Test acceptance levels . 36
A.8 Range of use of qualified procedures . 38
A.9 Qualification record . 39
Annex B (informative) Technical changes from the previous edition . 40
B.1 Introduction . 40
B.2 Technical changes . 40
Annex ZA (informative) Relationship between this European Standard and the Essential
Requirements of EU Directive 2014/68/EU . 42
Bibliography . 43

3

---------------------- Page: 5 ----------------------

SIST EN 10217-5:2019
EN 10217-5:2019 (E)
European foreword
This document (EN 10217-5:2019) has been prepared by Technical Committee CEN/TC 459 “ECISS -
1
European Committee for Iron and Steel Standardization” , the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by October 2019, and conflicting national standards
shall be withdrawn at the latest by October 2019.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 10217-5:2002.
This document has been prepared under a mandate given to CEN by the European Commission and
the European Free Trade Association, and supports essential requirements of 2014/68/EU.
For relationship with EU Directive 2014/68/EU (formerly 97/23/EC), see informative Annex ZA,
which is an integral part of this document.
This European Standard consists of the following parts, under the general title Welded steel tubes for
pressure purposes – Technical delivery conditions:
Part 1: Electric welded and submerged arc welded non-alloy steel tubes with specified room
temperature properties
Part 2: Electric welded non-alloy and alloy steel tubes with specified elevated temperature properties
Part 3: Electric welded and submerged arc welded alloy fine grain steel tubes with specified room,
elevated and low temperature properties
Part 4: Electric welded non-alloy steel tubes with specified low temperature properties
Part 5: Submerged arc welded non-alloy and alloy steel tubes with specified elevated temperature
properties
Part 6: Submerged arc welded non-alloy steel tubes with specified low temperature properties
Part 7: Stainless steel tubes
Another European Standard series covering tubes for pressure purposes is:
EN 10216, Seamless steel tubes for pressure purposes.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.

1
 Through its subcommittee SC 10 “Steel tubes, and iron and steel fittings” (secretariat: UNI)
4

---------------------- Page: 6 ----------------------

SIST EN 10217-5:2019
EN 10217-5:2019 (E)
1 Scope
This document specifies technical delivery conditions for two test categories of submerged arc
longitudinally (SAWL) or helically (SAWH) welded tubes of circular cross section, with specified
elevated temperature properties, made from non-alloy quality steel or alloy special steel.
NOTE 1 These tube grades are intended to support the essential requirements of EU Directive 2014/68/EU in
respect of pressure equipment covered under all relevant Categories as set out in Article 13 of that Directive.
NOTE 2 Once this standard is published in the Official Journal of the European Union (OJEU), presumption of
conformity to the Essential Safety Requirements (ESR) of Directive 2014/68/EU is limited to the technical data
for the materials in this standard and does not presume adequacy of the material for a specific item of pressure
equipment. Consequently, the assessment of the technical data stated in this material standard against the design
requirements of this specific item of equipment to verify that the ESRs of the Pressure Equipment Directive are
satisfied, needs to be done by the designer or manufacturer of the pressure equipment, taking also into account
the subsequent manufacturing processes which may affect properties of the base materials.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
EN 10020, Definition and classification of grades of steel
EN 10021:2006, General technical delivery conditions for steel products
EN 10027-1, Designation systems for steels — Part 1: Steel names
EN 10027-2, Designation systems for steels — Part 2: Numerical system
EN 10168:2004, Steel products — Inspection documents — List of information and description
EN 10204:2004, Metallic products — Types of inspection documents
EN 10220, Seamless and welded steel tubes — Dimensions and masses per unit length
CEN/TR 10261, Iron and steel — European standards for the determination of chemical composition
EN 10266, Steel tubes, fittings and structural hollow sections — Symbols and definitions of terms for use
in product standards
EN ISO 148-1:2016, Metallic materials — Charpy pendulum impact test — Part 1: Test method (ISO 148-
1:2016)
EN ISO 377:2017, Steel and steel products — Location and preparation of samples and test pieces for
mechanical testing (ISO 377:2017)
EN ISO 2566-1:1999, Steel — Conversion of elongation values — Part 1: Carbon and low alloy steels (ISO
2566-1:1984)
EN ISO 4885, Ferrous materials - Heat treatments - Vocabulary (ISO 4885)
EN ISO 5173:2010, Destructive tests on welds in metallic materials — Bend tests (ISO 5173:2009)
5

---------------------- Page: 7 ----------------------

SIST EN 10217-5:2019
EN 10217-5:2019 (E)
EN ISO 6892-1:2016, Metallic materials — Tensile testing — Part 1: Method of test at room temperature
(ISO 6892-1:2016)
EN ISO 6892-2:2018, Metallic materials — Tensile testing — Part 2: Method of test at elevated
temperature (ISO 6892-2:2018)
EN ISO 10893-6:2011, Non-destructive testing of steel tubes — Part 6: Radiographic testing of the weld
seam of welded steel tubes for the detection of imperfections (ISO 10893-6:2011)
EN ISO 10893-7:2011, Non-destructive testing of steel tubes — Part 7: Digital radiographic testing of the
weld seam of welded steel tubes for the detection of imperfections (ISO 10893-7:2011)
EN ISO 10893-8:2011, Non-destructive testing of steel tubes — Part 8: Automated ultrasonic testing of
seamless and welded steel tubes for the detection of laminar imperfections (ISO 10893-8:2011)
EN ISO 10893-9:2011, Non-destructive testing of steel tubes — Part 9: Automated ultrasonic testing for
the detection of laminar imperfections in strip/plate used for the manufacture of welded steel tubes (ISO
10893-9:2011)
EN ISO 10893-11:2011, Non-destructive testing of steel tubes — Part 11: Automated ultrasonic testing of
the weld seam of welded steel tubes for the detection of longitudinal and/or transverse imperfections (ISO
10893-11:2011)
EN ISO 14174:2012, Welding consumables — Fluxes for submerged arc welding and electroslag welding
— Classification (ISO 14174:2012)
EN ISO 14284, Steel and iron — Sampling and preparation of samples for the determination of chemical
composition (ISO 14284)
EN ISO 17639:2013, Destructive tests on welds in metallic materials — Macroscopic and microscopic
examination of welds (ISO 17639:2003)
ISO 11484:2009, Steel products — Employer’s qualification system for non-destructive testing (NDT)
personnel
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 10020, EN 10021, EN 10266,
EN ISO 4885 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
3.1
test category
classification that indicates the extent and level of inspection and testing
3.2
employer
organisation for which a person works on a regular basis
Note 1 to entry: The employer may be either the tube manufacturer or a third party organization providing
services, such as Non-Destructive Testing (NDT).
6

---------------------- Page: 8 ----------------------

SIST EN 10217-5:2019
EN 10217-5:2019 (E)
3.3
SAW
submerged-arc welded tube
tubular product having one or two longitudinal seams, or one helical seam, produced using the
submerged-arc welding process
3.4
SAWH
submerged-arc helical welded tube
tubular product having one helical weld seam produced using the submerged-arc welding process
3.5
SAWL
submerged-arc longitudinal welded tube
tubular product having one or two longitudinal weld seams produced using the submerged-arc
welding process
4 Symbols
For the purposes of this document, the symbols given in EN 10266 apply.
5 Classification and designation
5.1 Classification
In accordance with the classification system in EN 10020, the steel grades P235GH and P265GH are
classified as non-alloy quality steels and steel grade 16Mo3 is classified as an alloy special steel.
5.2 Designation
5.2.1 For the tubes covered by this document, the steel designation consists of:
— the number of this European Standard, e.g. EN 10217-5;
plus either:
— the steel name in accordance with EN 10027-1;
or:
— the steel number allocated in accordance with EN 10027-2.
5.2.2 The steel name of non-alloy steel grades is designated by:
— the capital letter P for pressure purposes;
— the indication of the specified minimum yield strength at room temperature for thickness T less
than or equal to 16 mm, expressed in MPa (see Table 4):
— the symbols GH for elevated temperature.
5.2.3 The steel name of alloy steel grade 16Mo3 is designated by the chemical composition (see
Table 2).
7

---------------------- Page: 9 ----------------------

SIST EN 10217-5:2019
EN 10217-5:2019 (E)
6 Information to be supplied by the purchaser
6.1 Mandatory information
The following information shall be supplied by, or agreed with, the purchaser at the time of enquiry
and order:
a) the quantity (mass, total length or number of tubes of set length);
b) the term ‘tube’ and tube type, SAWL or SAWH;
c) the dimensions (outside diameter D, wall thickness T) (see Table 6);
d) the random length range (see 8.7.3);
e) for tubes with a D/T > 100, out of roundness limits (see 8.7.4.6).
f) the designation of the steel grade in accordance with this document (see 5.2);
g) the test category for non-alloy steel (see 9.3);
6.2 Options
A number of options are specified in this document and these are listed below. In the event that the
purchaser does not indicate a wish to implement any of these options at the time of enquiry and order,
the tubes shall be supplied in accordance with the basic specification (see 6.1).
1) Tube manufacturing route (see 7.2.1).
2) Restriction on copper and tin content (see Table 2).
3) Product analysis (see 8.2.2).
4) Verification of impact energy of the base material (see Table 4).
5) Additional longitudinal impact test at –10 C for non-alloy steel grade (see Table 4);
6) Verification of proof strength R at elevated temperature (see Table 5).
p0,2
7) Special end preparation (see 8.6).
8) Exact lengths (see 8.7.3).
9) Inspection document 3.2 in place of the standard 3.1 Inspection Certificate (see 9.2.1).
10) Verification of tensile strength of the weld in the transverse direction for tubes with D ≤ 508 mm
(see Table 11).
11) Verification of impact energy of the weld at 20 °C or 0 °C (see Table 11 and 10.2.2.5).
12) Agreement of a different test pressure for hydrostatic leak-tightness test (see 11.6).
13) Wall thickness measurement away from the ends (see 11.7).
14) Selection of Non-Destructive Testing method for t
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
