Postal services - Hybrid mail - XML definition of encapsulation of letters for automated postal handling

The purpose of this Technical Specification is to define the syntax rules for a data stream for the submission of printing data to a Hybrid Mail operator or between Hybrid Mail operators. The Technical Specification defines a XML Schema Definition (XSD) describing the data stream.
The description is based upon the XML (eXtended Mark-up Language) definition of rules and semantics for defining an XSD. The purpose of this is to offer a generalised syntax description that can provide seamless integration with a number of existing applications generating data that is liable to be forwarded to or from a Hybrid Mail operator.
The use of an XSD will ensure that the documents confirm to the standard defined and that the output has the correct syntax. Software manufacturers can use an XSD to program applications that will produce correct outputs.
This Technical Specification defines the syntax for creating a data stream that will eventually be converted into a deliverable. The overall object (a batch) can be divided into one or more objects that again can be divided into objects. The hierarchy includes bundles that contain a common part and letters. Each object has a number of characteristics attached to it.
This diagram shows the structure of a HML (Hybrid Mail Language) document: each letter is self-contained (contains all the necessary information to be delivered on a certain destination).
Each letter can have one contact. Each contact can have multiple alternatives for delivery.
This Technical Specification does not define the specific services offered by local operators (Hybrid Mail operators).
This Technical Specification does not define the communication method used. It does only define the format of Hybrid Mail as such.

Postalische Dienstleistungen - Hybrid mail - XML Definition für die Verkapselung von Briefen zur automatischen Postbearbeitung

Services postaux - Courrier hybride - Définition XML de l’encapsulation des lettres pour un traitement postal automatique

Poštne storitve - Hibridna pošta - Definicija oblike dokumenta XML za stranke/uporabnike pri ponudniku: skupno uporabni seznam označb

General Information

Status
Published
Public Enquiry End Date
04-Feb-2015
Publication Date
16-Jun-2015
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
15-May-2015
Due Date
20-Jul-2015
Completion Date
17-Jun-2015

RELATIONS

Buy Standard

Technical specification
SIST-TS CEN/TS 14014:2015
English language
58 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST-TS CEN/TS 14014:2015
01-julij-2015
1DGRPHãþD
SIST-TS CEN/TS 14014:2007
3RãWQHVWRULWYH+LEULGQDSRãWD'HILQLFLMDREOLNHGRNXPHQWD;0/]D
VWUDQNHXSRUDEQLNHSULSRQXGQLNXVNXSQRXSRUDEQLVH]QDPR]QDþE

Postal services - Hybrid mail - XML definition of encapsulation of letters for automated

postal handling

Postalische Dienstleistungen - Hybrid mail - XML Definition für die Verkapselung von

Briefen zur automatischen Postbearbeitung

Services postaux - Courrier hybride - Définition XML de l’encapsulation des lettres pour

un traitement postal automatique
Ta slovenski standard je istoveten z: CEN/TS 14014:2015
ICS:
03.240 Poštne storitve Postal services
35.240.99 8SRUDEQLãNHUHãLWYH,7QD IT applications in other fields
GUXJLKSRGURþMLK
SIST-TS CEN/TS 14014:2015 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST-TS CEN/TS 14014:2015
---------------------- Page: 2 ----------------------
SIST-TS CEN/TS 14014:2015
TECHNICAL SPECIFICATION
CEN/TS 14014
SPÉCIFICATION TECHNIQUE
TECHNISCHE SPEZIFIKATION
May 2015
ICS 35.240.99; 03.240 Supersedes CEN/TS 14014:2006
English Version
Postal services - Hybrid mail - XML definition of encapsulation of
letters for automated postal handling
Services postaux - Courrier hybride - Définition XML de
l'encapsulation des lettres pour un traitement postal
automatisé

This Technical Specification (CEN/TS) was approved by CEN on 14 March 2015 for provisional application.

The period of validity of this CEN/TS is limited initially to three years. After two years the members of CEN will be requested to submit their

comments, particularly on the question whether the CEN/TS can be converted into a European Standard.

CEN members are required to announce the existence of this CEN/TS in the same way as for an EN and to make the CEN/TS available

promptly at national level in an appropriate form. It is permissible to keep conflicting national standards in force (in parallel to the CEN/TS)

until the final decision about the possible conversion of the CEN/TS into an EN is reached.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,

Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United

Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels

© 2015 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TS 14014:2015 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST-TS CEN/TS 14014:2015
CEN/TS 14014:2015 (E)

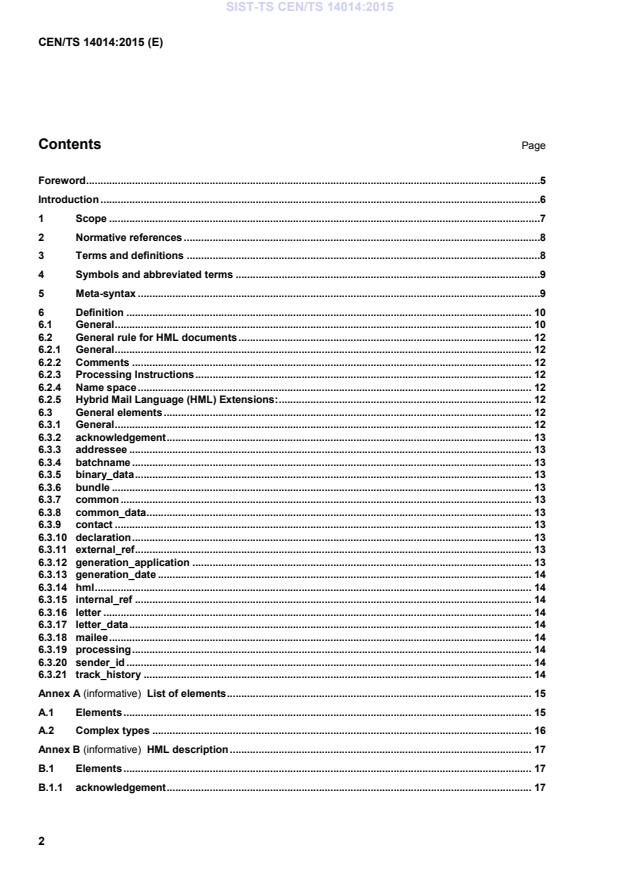

Contents Page

Foreword ..............................................................................................................................................................5

Introduction .........................................................................................................................................................6

1 Scope ......................................................................................................................................................7

2 Normative references ............................................................................................................................8

3 Terms and definitions ...........................................................................................................................8

4 Symbols and abbreviated terms ..........................................................................................................9

5 Meta-syntax ............................................................................................................................................9

6 Definition ............................................................................................................................................. 10

6.1 General ................................................................................................................................................. 10

6.2 General rule for HML documents ...................................................................................................... 12

6.2.1 General ................................................................................................................................................. 12

6.2.2 Comments ........................................................................................................................................... 12

6.2.3 Processing Instructions ..................................................................................................................... 12

6.2.4 Name space ......................................................................................................................................... 12

6.2.5 Hybrid Mail Language (HML) Extensions: ........................................................................................ 12

6.3 General elements ................................................................................................................................ 12

6.3.1 General ................................................................................................................................................. 12

6.3.2 acknowledgement ............................................................................................................................... 13

6.3.3 addressee ............................................................................................................................................ 13

6.3.4 batchname ........................................................................................................................................... 13

6.3.5 binary_data .......................................................................................................................................... 13

6.3.6 bundle .................................................................................................................................................. 13

6.3.7 common ............................................................................................................................................... 13

6.3.8 common_data ...................................................................................................................................... 13

6.3.9 contact ................................................................................................................................................. 13

6.3.10 declaration ........................................................................................................................................... 13

6.3.11 external_ref .......................................................................................................................................... 13

6.3.12 generation_application ...................................................................................................................... 13

6.3.13 generation_date .................................................................................................................................. 14

6.3.14 hml ........................................................................................................................................................ 14

6.3.15 internal_ref .......................................................................................................................................... 14

6.3.16 letter ..................................................................................................................................................... 14

6.3.17 letter_data ............................................................................................................................................ 14

6.3.18 mailee ................................................................................................................................................... 14

6.3.19 processing ........................................................................................................................................... 14

6.3.20 sender_id ............................................................................................................................................. 14

6.3.21 track_history ....................................................................................................................................... 14

Annex A (informative) List of elements .......................................................................................................... 15

A.1 Elements .............................................................................................................................................. 15

A.2 Complex types .................................................................................................................................... 16

Annex B (informative) HML description ......................................................................................................... 17

B.1 Elements .............................................................................................................................................. 17

B.1.1 acknowledgement ............................................................................................................................... 17

---------------------- Page: 4 ----------------------
SIST-TS CEN/TS 14014:2015
CEN/TS 14014:2015 (E)

B.1.2 addressee ............................................................................................................................................. 18

B.1.3 batchname ............................................................................................................................................ 18

B.1.4 binary_data .......................................................................................................................................... 19

B.1.5 bundle ................................................................................................................................................... 20

B.1.6 common ................................................................................................................................................ 21

B.1.7 common_data ...................................................................................................................................... 22

B.1.8 contact .................................................................................................................................................. 23

B.1.9 declaration ........................................................................................................................................... 24

B.1.10 external_ref .......................................................................................................................................... 24

B.1.11 generation_application ....................................................................................................................... 25

B.1.12 generation_date ................................................................................................................................... 26

B.1.13 hml ........................................................................................................................................................ 26

B.1.14 internal_ref ........................................................................................................................................... 27

B.1.15 letter ...................................................................................................................................................... 28

B.1.16 letter_data............................................................................................................................................. 29

B.1.17 mailee .................................................................................................................................................... 30

B.1.18 processing ........................................................................................................................................... 31

B.1.19 sender_id .............................................................................................................................................. 32

B.1.20 track_history ........................................................................................................................................ 32

B.2 Complex types ..................................................................................................................................... 33

B.2.1 acknowledgementType ....................................................................................................................... 33

B.2.2 addresseeType .................................................................................................................................... 34

B.2.3 binary_dataType .................................................................................................................................. 35

B.2.4 bundleType .......................................................................................................................................... 35

B.2.5 common_dataType .............................................................................................................................. 36

B.2.6 commonType ....................................................................................................................................... 37

B.2.7 contactType ......................................................................................................................................... 38

B.2.8 data_type .............................................................................................................................................. 39

B.2.9 declarationType ................................................................................................................................... 40

B.2.10 external_refType .................................................................................................................................. 41

B.2.11 hmlType ................................................................................................................................................ 41

B.2.12 internal_refType ................................................................................................................................... 42

B.2.13 letterType.............................................................................................................................................. 43

B.2.14 maileeType ........................................................................................................................................... 44

B.2.15 processingType ................................................................................................................................... 45

B.2.16 restricted_dataType ............................................................................................................................ 45

B.2.17 track_historyType ................................................................................................................................ 46

Annex C (informative) Differences between this document and CEN/TS 14014:2006 ............................... 47

---------------------- Page: 5 ----------------------
SIST-TS CEN/TS 14014:2015
CEN/TS 14014:2015 (E)

Annex D (informative) HML definition, copy of the HML XSD...................................................................... 48

Bibliography ..................................................................................................................................................... 58

---------------------- Page: 6 ----------------------
SIST-TS CEN/TS 14014:2015
CEN/TS 14014:2015 (E)
Foreword

This document (CEN/TS 14014:2015) has been prepared by Technical Committee CEN/TC 331 “Postal

services”, the secretariat of which is held by NEN.

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent

rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.

This document supersedes CEN/TS 14014:2006. An explanation of the differences between this Technical

Specification and CEN/TS 14014:2006 is given in Annex C.

According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following

countries are bound to announce this Technical Specification: Austria, Belgium, Bulgaria, Croatia, Cyprus,

Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,

Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,

Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

---------------------- Page: 7 ----------------------
SIST-TS CEN/TS 14014:2015
CEN/TS 14014:2015 (E)
Introduction

Hybrid Mail is the technology whereby input in one communication medium is converted for delivery on

another communication medium according to the sender’s instructions and/or the recipient’s capabilities. The

typical application of Hybrid Mail is to provide a Hybrid Mail operator with printing data as well as processing

and delivery instructions, and request the operator to secure the print, enveloping and delivery of the physical

letters. Hybrid Mail operators may also exchange data.

The transfer of data to a Hybrid Mail operator or between Hybrid Mail operators requires that the printing data

be linked to a number of data items related to the management, production, finishing, etc. of the data to be

printed. Such data items secure that all relevant information is accompanying the printing data. Also it will

enable the Hybrid Mail operator to automate his processes with customers and other Hybrid Mail operators.

There is a need for a standardised yet flexible way to present the data to the Hybrid Mail operator or to

exchange data between Hybrid Mail operators. This will enable customers and Hybrid Mail operators to have

a seamless exchange of information. It will allow makers of applications for document creation (letters,

marketing mailing, etc.) and output management from other applications (accounting systems, production

management, etc.), to add here to the same data presentment and to offer the seamless data interchange.

---------------------- Page: 8 ----------------------
SIST-TS CEN/TS 14014:2015
CEN/TS 14014:2015 (E)
1 Scope

The purpose of this Technical Specification is to define the syntax rules for a data stream for the submission

of printing data to a Hybrid Mail operator or between Hybrid Mail operators. The Technical Specification

defines an XML Schema Definition (XSD) describing the data stream.

The description is based upon the XML (eXtended Mark-up Language) definition of rules and semantics for

defining an XSD. The purpose of this is to offer a generalised syntax description that can provide seamless

integration with a number of existing applications generating data that is liable to be forwarded to or from a

Hybrid Mail operator.

The use of an XSD will ensure that the documents confirm to the standard defined and that the output has the

correct syntax. Software manufacturers can use an XSD to program applications that will produce “correct”

outputs.

This Technical Specification defines the syntax for creating a data stream that will eventually be converted into

a deliverable. The overall object (a batch) can be divided into one or more objects that again can be divided

into objects. The hierarchy includes bundles that contain a common part and letters. Each object has a

number of characteristics attached to it.

This diagram shows the structure of a HML (Hybrid Mail Language) document: each letter is self-contained

(contains all the necessary information to be delivered on a certain destination).

Figure 1 — Structure of a HML (Hybrid Mail Language)
---------------------- Page: 9 ----------------------
SIST-TS CEN/TS 14014:2015
CEN/TS 14014:2015 (E)

Each letter can have one contact. Each contact can have multiple alternatives for delivery.

This Technical Specification does not define the specific services offered by local operators (Hybrid Mail

operators).

This Technical Specification does not define the communication method used. It does only define the format

of Hybrid Mail as such.
2 Normative references

The following documents, in whole or in part, are normatively referenced in this document and are

indispensable for its application. For dated references, only the edition cited applies. For undated references,

the latest edition of the referenced document (including any amendments) applies.

ISO/IEC 10646, Information technology — Universal Coded Character Set (UCS)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
mailbag

data structure that contains bundles as well as administrative and other data common to all bundles

Note 1 to entry: One HML document will contain one mailbag. A mailbag may contain one or several bundles.

3.2
bundle

data structure that contains letters that are processed as a group as well as administrative and other data

common to these letters. A bundle is equivalent with a batch. Usually a sender is sending a mailbag with only

one batch
Note 1 to entry: A bundle may contain one or more letters.
3.3
letter

data structure that contains the data to be rendered as one integral piece of information which is to be

delivered to one recipient in physical or electronic format
3.4
contact
data structure that contains delivery information for letters

Note 1 to entry: The contact may be relevant to only one letter or may be shared between several letters.

3.5
target language

language to be defined in this document and to be later used for writing documents, and the result of a

possible translation of existing data structure(s). In the present document the target language is HML

Note 1 to entry: Clause 4 gives further description of the syntax of the target language.

---------------------- Page: 10 ----------------------
SIST-TS CEN/TS 14014:2015
CEN/TS 14014:2015 (E)
4 Symbols and abbreviated terms

For the purposes of this Technical Specification, the following symbols and abbreviated terms apply.

AFP Advance Function Presentation – PDL defined by IBM
HML Hybrid Mail Language
IEC
International Electrotechnical Commission http://www.iec.ch
ISO International Organization for Standardization
PCL
Print Control Language – PDL defined by HP
PDF Portable Document Format – PDL defined by Adobe
PDL Print Description Language
PI Processing Instruction – part of the XML standard
SGML Standard Generalized Mark-up Language
UCS Universal Coded Character set
URL
Universal Resource Locator
W3C World Wide Web Consortium – see http://www.w3.org/
XML eXtensible Mark-up Language
XSD XML Schema Definition
XSL eXtensible Stylesheet Language
5 Meta-syntax

This clause introduces a syntactic notation, later used in this Technical Specification. The notation is adopted

to define the syntactic rules of the target language: in this sense, the notation is a meta-syntax for the syntax

of the target language.

HML is based on XML version 1.1 as described in [XML-2006]. This is a subset of Standard Generalized Mark

up Language (SGML) as defined in ISO 8879.

For the sake of generality, in the following the term target language will be used for specifying the language to

be defined and to be later used for writing documents.
In this Technical Specification the target language is HML.

Syntactic rules of the target language are defined by means of syntactic clauses, classified as either element

declarations, attribute list declarations or comments. In the following, the first two of these syntactic clauses

will be described in detail. Here, only their abstract characteristics are introduced.

Element declarations define elements, which are logical parts of the documents.

Elements may contain other elements, to be considered as sub-parts of the first ones. To describe this

relationship among elements, element declarations can define elements in terms of other elements.

The whole document itself is considered as an element, and is described by an element declaration: this

element is the unique root, which all the other elements start from.

On the other side, elements not further subdivided in parts are simply streams of characters allowed in the

documents. They are defined as well by element declarations.
---------------------- Page: 11 ----------------------
SIST-TS CEN/TS 14014:2015
CEN/TS 14014:2015 (E)

In this way, element declarations express the inner structure of documents: this structure can be easily

reconstructed by going through the chain of element declarations, starting from the one that declares the root

element.
An element declaration is defined by the following syntactical construction:





where element_name is the name of the element defined and contentspec is the list of elements which

constitute the set of elements which defines the named element.
Attribute list declarations define characteristics of elements.
In describing the notation, some rules will be followed.
In the syntactic clauses:

— syntactic items independent of the particular target language (i.e. keywords, symbols and so on) are

written in regular font (that is, without using bold or italic forms);

— identifiers used as placeholders for other things to be later made actual in the syntax of the target

language (as for example syntactic items dependent of the particular target language) are written in italic

font.
In the examples:

— syntactic items independent of the particular target language (i.e. keywords, symbols and so on) are

written in regular font (that is, without using bold or italic forms);

— syntactic items dependent of the particular target language (as for example constant names of the target

language) are written in italic font.
An attribute declaration is defined by the following syntactical construction:
default="default_decl"/>

where the element_name identifies which element the attributes belong to, attribute_name is the name of the

attribute, attribute_type is the type of the attribute and default_decl informs whether the attribute has a default

value that is used if the attribute is not present.
For a more detailed description of the syntax of XML please see [XML-2006]
6 Definition
6.1 General

In this clause, syntactic rules of HML are given in XML. They completely define the concrete syntax of HML.

The structure of the HML XSD is illustrated in Figure 2:
---------------------- Page: 12 ----------------------
SIST-TS CEN/TS 14014:2015
CEN/TS 14014:2015 (E)
Figure 2 — Illustration of the structure of the HML XSD
---------------------- Page: 13 ----------------------
SIST-TS CEN/TS 14014:2015
CEN/TS 14014:2015 (E)
6.2 General rule for HML documents
6.2.1 General

HML is based on eXtensible Markup Language (XML) version 1.1 as described in [XML-2006]. This is a

subset of Standard Generalized Markup Language (SGML) as defined in ISO 8879.

As HML is specified as an XSD, the general rules for XML compliant XSD’s apply to HML. However this

chapter specifies how a compliant HML document shall be processed when using the following components

from the XML standard, which are not unique to HML:
— Comments
— Processing Instructions
— Name Spaces
6.2.2 Comments
Comment ::= ''

A conforming HML system shall make the comments in a conforming HML document available to external

processors on request.
6.2.3 Processing Instructions
PI ::= '' Char*)))? '?>'
PITarget ::= Name - (('X' | 'x') ('M' | 'm') ('L' | 'l'))

A conforming HML system shall ensure that the processing instructions are presented to the relevant

processor if this is available. This can either be pre- or postprocessor. Otherwise the processing instructions

shall be ignored.
6.2.4 Name space

The use of name spaces in HML shall comply with the W3C recommendations – see [XML-names-2004]. The

processing of names from other name spaces than the HML name space shall be accepted and either be

handled by the HML system or alternatively by a pre- or postprocessor.
6.2.5 Hybrid Mail Language (HML) Extensions:

In the future new equipment shall be controllable in Hybrid Mail operations. To include new features to make

use of this equipment and to fulfil the Hybrid Mail Language it is allowed to include new elements.

The way of doing this is make use of the defined way as mentioned in Chapter 2.8 of the [XML-2004]: the

document type declaration can point to an external subset containing mark-up declarations.

6.3 General elements
6.3.1 Gen
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
