Pallet superstructures - Pallet collars - Test methods and performance requirements

This standard specifies test methods and performance requirements for reusable wooden and wood-based pallet collars. There are two categories of constructions:- Class 1 general purpose pallet collars; - Class 2 light duty pallet collars.

Palettenaufbauten - Palettenaufsetzrahmen - Prüfverfahren und Leistungsanforderungen

Diese Europäische Norm legt Prüfverfahren für und Leistungsanforderungen an wiederverwendbare Palettenaufsetzrahmen fest. Es gibt zwei Bauarten:
i) Klasse 1: Palettenaufsetzrahmen für allgemeine Zwecke;
ii) Klasse 2: Leicht-Palettenaufsetzrahmen.

Superstructures pour palettes - Rehausses pour palettes - Méthodes d'essai et exigences de performance

La présente Norme européenne spécifie les méthodes d'essai et les exigences de performance applicables aux rehausses réutilisables en bois et a base de bois. Il existe deux catégories de construction :
i) classe 1 : rehausses d'usage général ;
ii) classe 2 : rehausses légeres.

Vrhnja gradnja palete - Paletne prirobnice - Preskusne metode in zahteve kakovosti

General Information

Status
Published
Publication Date
31-Aug-2002
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
01-Sep-2002
Due Date
01-Sep-2002
Completion Date
01-Sep-2002

Buy Standard

Standard
SIST EN 13545:2002
English language
21 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Vrhnja gradnja palete - Paletne prirobnice - Preskusne metode in zahteve kakovostiPalettenaufbauten - Palettenaufsetzrahmen - Prüfverfahren und LeistungsanforderungenSuperstructures pour palettes - Rehausses pour palettes - Méthodes d'essai et exigences de performancePallet superstructures - Pallet collars - Test methods and performance requirements55.180.20General purpose palletsICS:Ta slovenski standard je istoveten z:EN 13545:2002SIST EN 13545:2002en01-september-2002SIST EN 13545:2002SLOVENSKI

STANDARD
SIST EN 13545:2002

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13545April 2002ICS 55.180.20English versionPallet superstructures - Pallet collars - Test methods andperformance requirementsSuperstructures pour palettes - Rehausses pour palettes -Méthodes d'essai et exigences de performancePalettenaufbauten - Palettenaufsetzrahmen - Prüfverfahrenund LeistungsanforderungenThis European Standard was approved by CEN on 30 December 2001.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36

B-1050 Brussels© 2002 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13545:2002 ESIST EN 13545:2002

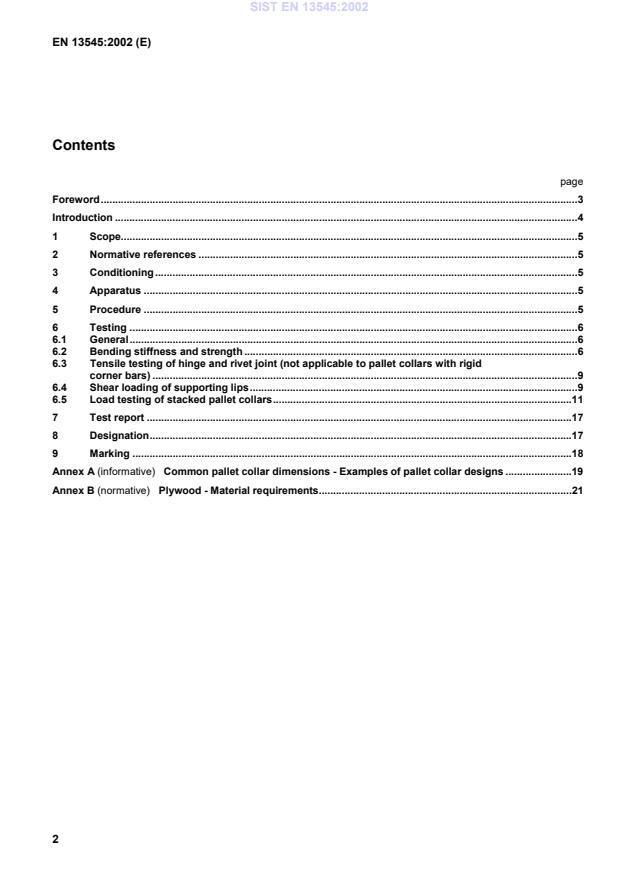

EN 13545:2002 (E)2ContentspageForeword......................................................................................................................................................................3Introduction.................................................................................................................................................................41Scope...............................................................................................................................................................52Normative references....................................................................................................................................53Conditioning...................................................................................................................................................54Apparatus.......................................................................................................................................................55Procedure.......................................................................................................................................................56Testing............................................................................................................................................................66.1General............................................................................................................................................................66.2Bending stiffness and strength....................................................................................................................66.3Tensile testing of hinge and rivet joint (not applicable to pallet collars with rigidcorner bars)....................................................................................................................................................96.4Shear loading of supporting lips..................................................................................................................96.5Load testing of stacked pallet collars........................................................................................................117Test report....................................................................................................................................................178Designation...................................................................................................................................................179Marking.........................................................................................................................................................18Annex A (informative)

Common pallet collar dimensions - Examples of pallet collar designs.......................19Annex B (normative)

Plywood - Material requirements........................................................................................21SIST EN 13545:2002

EN 13545:2002 (E)3ForewordThis document EN 13545:2002 has been prepared by Technical Committee CEN/TC 261 "Packaging",the secretariat of which is held by AFNOR.This European Standard shall be given the status of a national standard, either by publication of anidentical text or by endorsement, at the latest by October 2002, and conflicting national standards shallbe withdrawn at the latest by October 2002.Annex A is informative. Annex B is normative.According to the CEN/CENELEC Internal Regulations, the national standards organizations of thefollowing countries are bound to implement this European Standard: Austria, Belgium, Czech Republic,Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands,Norway, Portugal, Spain, Sweden, Switzerland and the United Kingdom.SIST EN 13545:2002

EN 13545:2002 (E)4IntroductionThis European Standard is intended for new and mainly reusable pallet collars, with a common standardheight of 200 mm and 400 mm. This European Standard is based on existing national standards forgeneral purpose pallet collars made of timber and primarily valid for such collars. Following requirementsby users, a new category for lighter loads has been introduced - Light duty pallet collars. These arerequired to pass a lower test requirement than the general purpose pallet collars.A large amount of knowledge exists from a long experience in the use of pallet collars. Where productstandards exist, it may not be necessary to have verification of performance by testing.Annex A shows commonly used dimensions for reusable general purpose pallet collars.Annex B shows the suitable plywood quality for pallet collars.For pallet collars in other materials, strength requirements according to this standard can be used but itshould be presupposed that such constructions can require special testing or conditioning.SIST EN 13545:2002

EN 13545:2002 (E)51 ScopeThis European Standard specifies test methods and performance requirements for reusable wooden andwoodbased pallet collars. There are two categories of construction:i) - class 1: general purpose pallet collars;ii) - class 2: light duty pallet collars.2 Normative referencesThis European Standard incorporates by dated or undated reference, provisions from other publications. Thesenormative references are cited at the appropriate places in the text, and the publications are listed hereafter. Fordated references, subsequent amendments to or revisions of any of these publications apply to this EuropeanStandard only when incorporated in it by amendment or revision. For undated references the latest edition of thepublication referred to applies (including amendments).EN 314-2, Plywood — Bonding quality — Part 2: Requirements.ISO 3130, Wood — Determination of moisture content for physical and mechanical tests.prEN 13183-1, Round and sawn timber — Method of measurement of moisture content — Part 1: Method fordetermining moisture content of a piece of sawn timber (Oven-dry method).prEN 13183-2, Round and sawn timber — Method of measurement of moisture content — Part 2: Method fordetermining moisture content of a piece of sawn timber (Electrical method).3 Conditioning3.1At manufacturing and testing of wooden pallet collars the moisture content shall be 14 % - 20 % of the weightof the timber in the anhydrous state. In connection with the test, the moisture content of the timber shall bedetermined before and after the test.3.2The testing shall be carried out at a temperature of 20 °C ± 5 °C. The pallet collars and the pallets shall bekept in the test atmosphere for at least 48 h before testing.4 Apparatus4.1Testing machine capable of applying load in vertical and/or horizontal direction and with a measuringaccuracy of ± 3 %.4.2The accuracy of positioning of components shall be within ± 2 mm.4.3Devices to have the pallets secured for test 6.3 and 6.5.4.4Instrument for measuring deformation with an accuracy of 0,2 mm.4.5Determination of moisture content in accordance with ISO 3130, prEN 13183-1 and prEN 13183-2.5 Procedure5.1Carry out the tests either at a constant rate of loading of (2 ± 0,2) kN/min, or constant speed of the testingmachine loading head of (30± 5) mm/min.5.2In connection with the tests, the moisture content of the timber shall be recorded.SIST EN 13545:2002

EN 13545:2002 (E)65.3The pallet collars tested shall be discarded after every test.6 Testing6.1 GeneralTests shall be conducted as follows:1. bending stiffness and strength;2. tensile testing of hinge and rivet joint (not applicable to pallet collars with rigid corner bars);3. shear loading of supporting lips;4. load testing of stacked pallet collars.6.2 Bending stiffness and strength6.2.1 Test selectionBending stiffness and strength tests shall be performed on the appropriate type of pallet collar:1. rigid side pallet collars;2. folding hinged pallet collars.6.2.2 Test 1a — Bending stiffness and strength — Rigid side pallet collarsThree tests shall be performed with test pieces taken from different collar sides.6.2.3 ApparatusTest arrangement according to Figure 1a6.2.4 Testing procedureA piece of a collar side about 600 mm long is placed flat and horizontal on supports movable in the long sidedirection of the test piece.With the supports parallel two forces acting across the whole width of the test piece are applied against the testpiece.The force is transferred to the test piece by the half round steel profiles of 20 mm diameter.The plane surface shall be turned against the test piece. The half round steel profiles shall be symmetricallyplaced with a relative position to each other of 150 mm.The force is increased continuously to:for sides of 200 mmGeneral purpose pallet collars3,22 kNLight duty pallet collars1,61 kNfor sides of 400 mmGeneral purpose pallet collars6,44 kNLight duty pallet collars3,22 kNAt this force the bend at the middle of the test piece is measured. The force is then increased until the test piecebreaks.SIST EN 13545:2002

EN 13545:2002 (E)7Dimensions in millimetres150 500 20F1234KeyF = Force1Movable bearing2Test piece3Load distribution plate4Half round steelFigure 1a — Testing of bending stiffness and strength – Rigid side6.2.5 Performances requirementsFor general purpose collars at a force of 3,22 kN respectively 6,44 kN the deflection at the centre shall not bemore than 8 mm. For light duty collars the deflection at the centre shall not be more than 8 mm at a force of1,61 kN respectively 3,22 kN.The breaking strength shall be for:General purpose pallet collarsminimum 6,44 kNrespectively 12,88 kNLight duty pallet collarsminimum 3,22 kNrespectively 6,44 kN6.2.6 Test 1b - Bending stiffness and strength test – Collar side with folding hingeThree tests shall be performed with test pieces taken from different collar sides.6.2.7 ApparatusTest arrangements according to Figure 1b.6.2.8 Testing procedureA piece of a collar side, about 600 mm long, is placed flat and horizontal with the hinge down on supports movablein the long side direction of the test piece.With the supports parallel two forces acting across the whole width of the test piece are applied against the testpiece.The force is transferred to the test piece by the half round steel profiles of 20 mm diameter. The plane surface shallbe symmetrically placed at a relative distance of 150 mm whatever is the most suitable for the design of the hinges.SIST EN 13545:2002

EN 13545:2002 (E)8The force is increased continuously to:for sides of 200 mmGeneral purpose pallet collars3,22 kNLight duty pallet collars1,61 kNfor sides of 400 mmGeneral purpose pallet collars6,44 kNLight duty pallet Collars3,22 kNAt this f

...
