Stationary source emissions - Demonstration of equivalence of an alternative method with a reference method

This European Standard specifies a procedure to demonstrate the equivalence of an alternative method (AM) with the reference method (RM) or the standard reference method (SRM), both implemented to determine the same measurand.
In particular, this European Standard provides the statistical tools and different criteria to evaluate the alternative method. This does not release the body performing the equivalence testing from bearing technical and analytical judgement on the evaluation of the different criteria.
Three steps are required for demonstration of equivalence:
   description of the alternative method and setting of the field of application (measurement range and type of gas matrix);
   determination of the performance characteristics of the alternative method and calculation of the expanded uncertainty where appropriate and check of compliance with the maximum expanded uncertainty allowed for the reference method;
   check of repeatability and lack of systematic deviation of the alternative method in the field or on a recognized test bench in comparison with the reference method for the type of matrix defined in the field of equivalence.
This European Standard requires that a reference method has been defined and validated.
This European Standard only considers the case of linear quantitative methods.
This European Standard has been drawn up for laboratories working in air quality measurements and consequently an example taken from this sector are presented in Annex A.

Emissionen aus stationären Quellen - Nachweis der Gleichwertigkeit eines Alternativverfahrens mit einem Referenzverfahren

Diese Europäische Norm legt ein Verfahren zum Nachweis der Gleichwertigkeit eines Alternativverfahrens (AM) mit dem Referenzverfahren (RM) oder dem Standardreferenzverfahren (SRM) fest, wobei beide zur Bestimmung derselben Messgröße eingesetzt werden.
Diese Europäische Norm enthält insbesondere die statistischen Methoden und verschiedene Kriterien zur Bewertung des Alternativverfahrens. Das entbindet aber nicht die für den Nachweis der Gleichwertigkeit zuständige Stelle von der Aufgabe, die Auswertung der verschiedenen Kriterien technisch und analytisch zu beurteilen.
Der Nachweis der Gleichwertigkeit beinhaltet drei Schritte:
   Beschreibung des Alternativverfahrens und Festlegung des Anwendungsbereichs (Messbereich und Art der Abgasmatrix);
   Bestimmung der Verfahrenskenngrößen des Alternativverfahrens und gegebenenfalls Berechnung der erweiterten Unsicherheit sowie Überprüfung der Einhaltung der maximal zulässigen erweiterten Unsicherheit für das Referenzverfahren;
   Überprüfung der Wiederholpräzision und des Fehlens systematischer Abweichungen des Alternativverfahrens beim Einsatz im Feld oder an einem anerkannten Prüfstand durch Vergleich mit dem Referenzverfahren für die Art der Abgasmatrix, die im Äquivalenzbereich festgelegt ist.
Diese Europäische Norm setzt voraus, dass das Referenzverfahren eindeutig festgelegt und validiert wurde.
Diese Europäische Norm ist nur bei linearen quantitativen Verfahren anwendbar.
Diese Europäische Norm ist auf manuelle und automatische Verfahren anwendbar.
Diese Europäische Norm wurde für Laboratorien erstellt, die Messungen im Bereich der Luftreinhaltung durchführen. Anhang A zeigt deshalb ein entsprechendes Beispiel aus diesem Bereich.

Émissions de sources fixes - Démonstration de l'équivalence d'une méthode 'alternative' avec une méthode de référence

Emisije nepremičnih virov - Dokazovanje enakovrednosti alternativne metode z referenčno metodo

Ta evropski standard določa postopek za dokazovanje enakovrednosti alternativne metode z referenčno metodo ali standardno referenčno metodo (SRM), pri čemer sta obe uporabljeni za določanje istih merjenih veličin.
Ta evropski standard podaja predvsem statistična orodja in različna merila za ovrednotenje alternativne metode. S tem organ za izvajanje enakovrednega preskušanja ni oproščen tehnične in analitične presoje pri ocenjevanju različnih meril.
Za prikaz enakovrednosti so zahtevani trije koraki:
opis alternativne metode in določitev področja uporabe (merilno območje in vrsta plinske matrike);
določitev lastnosti zmogljivosti alternativne metode in izračun razširjene negotovosti, kjer je to ustrezno, ter preverjanje skladnosti pri največji razširjeni negotovosti, ki je dovoljena za referenčno metodo;
preverjanje ponovljivosti in pomanjkanje sistematičnega odstopanja alternativne metode na terenu ali v priznanem preskusnem okolju v primerjavi z referenčno metodo za vrsto matrike, opredeljeno za enakovredno področje.
Ta evropski standard zahteva opredelitev in potrditev referenčne metode.
Ta evropski standard zajema samo linearne kvantitativne metode.
Ta evropski standard je bil pripravljen za laboratorije, ki izvajajo meritve kakovosti zraka, zato je primer za ta sektor na voljo v dodatku A.

General Information

Status
Published
Public Enquiry End Date
08-Feb-2015
Publication Date
11-Jun-2017
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
30-May-2017
Due Date
04-Aug-2017
Completion Date
12-Jun-2017

RELATIONS

Buy Standard

Standard
SIST EN 14793:2017
English language
34 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Emissionen aus stationären Quellen - Nachweis der Gleichwertigkeit eines Alternativverfahrens mit einem ReferenzverfahrenÉmissions de sources fixes - Démonstration de l'équivalence d'une méthode 'alternative' avec une méthode de référenceStationary source emissions - Demonstration of equivalence of an alternative method with a reference method13.040.40Stationary source emissionsICS:Ta slovenski standard je istoveten z:EN 14793:2017SIST EN 14793:2017en,fr,de01-julij-2017SIST EN 14793:2017SLOVENSKI

STANDARDSIST-TS CEN/TS 14793:20051DGRPHãþD
SIST EN 14793:2017
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 14793
January
t r s y English Version

Stationary source emissions æ Demonstration of equivalence of an alternative method with a reference method Émissions de sources fixes æ Démonstration de l 5équivalence d 5une méthode alternative avec une méthode de référence

Emissionen aus stationären Quellen æ Nachweis der Gleichwertigkeit eines Alternativverfahrens mit einem Referenzverfahren This European Standard was approved by CEN on

t x September
t r s xä

egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä

translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä

CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä

EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels

t r s y CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN

s v y { uã t r s y ESIST EN 14793:2017

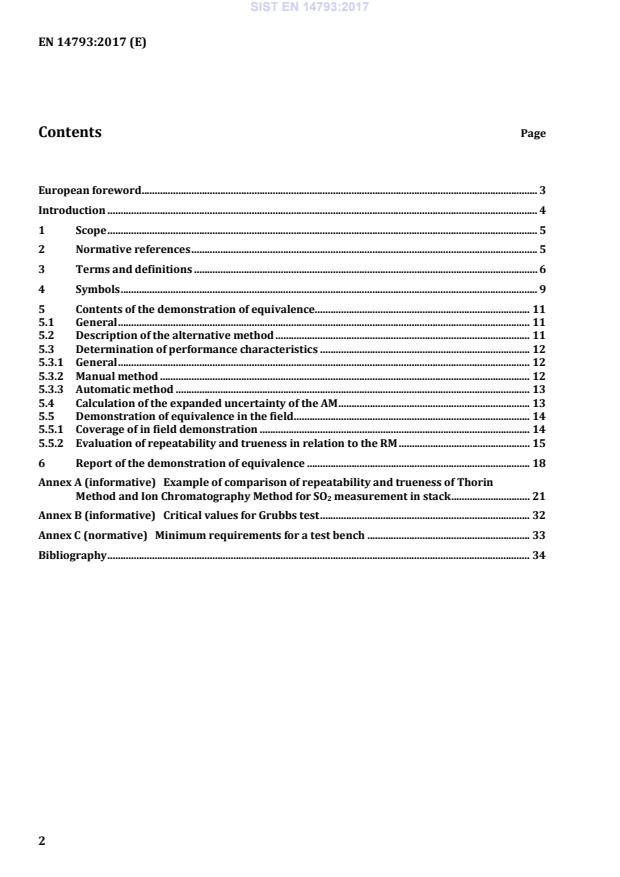

EN 14793:2017 (E) 2 Contents Page
