Flexible sheets for waterproofing - Bitumen damp proof sheets including bitumen basement tanking sheets - Definitions and characteristics

This document specifies definitions and characteristics of flexible reinforced bitumen sheets for which the intended use is as damp proofing for buildings, including basement tanking. It specifies the requirements and test methods and provides for the evaluation of conformity of the products with the requirements of this standard.

Abdichtungsbahnen - Bitumenbahnen für die Bauwerksabdichtung gegen Bodenfeuchte und Wasser - Definitionen und Eigenschaften

Diese Europäische Norm legt Definitionen und Eigenschaften von Abdichtungsbahnen aus Bitumen mit Feuchtigkeitssperre fest, die in erster Linie zur Abdichtung von Bauwerken und Bauwerksgründungen dienen. Sie enthält Festlegungen der Anforderungen und Prüfverfahren sowie der Bewertung der Konformität von Produkten nach den Anforderungen dieser Norm.

Feuilles souples d'étanchéité - Feuilles bitumineuses empechant les remontées d'humidité du sol - Définitions et caractéristiques

La présente norme européenne spécifie les définitions et les caractéristiques des feuilles bitumineuses souples renforcées destinées principalement a etre utilisées en tant que systemes d'étanchéité pour les bâtiments, y compris les feuilles de cuvelage. Elle spécifie le systeme relatif a l'attestation de conformité du produit avec cette norme européenne et inclut les conditions de marquage CE. Cette norme européenne traite également de caractéristiques supplémentaires qui ont une importance pour le commerce.

Hidroizolacijski trakovi - Bitumenski tesnilni trakovi za temelje - Definicije in lastnosti

General Information

Status
Published
Publication Date
30-Apr-2005
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
01-May-2005
Due Date
01-May-2005
Completion Date
01-May-2005

Relations

Buy Standard

Standard
EN 13969:2005
English language
23 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Flexible sheets for waterproofing - Bitumen damp proof sheets including bitumen basement tanking sheets - Definitions and characteristicsHidroizolacijski trakovi - Bitumenski tesnilni trakovi za temelje - Definicije in lastnostiFeuilles souples d'étanchéité - Feuilles bitumineuses empechant les remontées d'humidité du sol - Définitions et caractéristiquesAbdichtungsbahnen - Bitumenbahnen für die Bauwerksabdichtung gegen Bodenfeuchte und Wasser - Definitionen und Eigenschaften91.100.50Veziva. Tesnilni materialiBinders. Sealing materials01.040.91Gradbeni materiali in gradnja (Slovarji)Construction materials and building (Vocabularies)ICS:SIST EN 13969:2005enTa slovenski standard je istoveten z:EN 13969:200401-maj-2005SIST EN 13969:2005SLOVENSKI
STANDARD







EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13969December 2004ICS 01.040.91; 91.100.50English versionFlexible sheets for waterproofing - Bitumen damp proof sheetsincluding bitumen basement tanking sheets - Definitions andcharacteristicsFeuilles souples d'étanchéité - Feuilles bitumineusesempêchant les remontées d'humidité du sol - Définitions etcaractéristiquesAbdichtungsbahnen - Bitumenbahn-Feuchtigheitssprerren -Definitionen und EigenschaftenThis European Standard was approved by CEN on 20 October 2004.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2004 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13969:2004: E

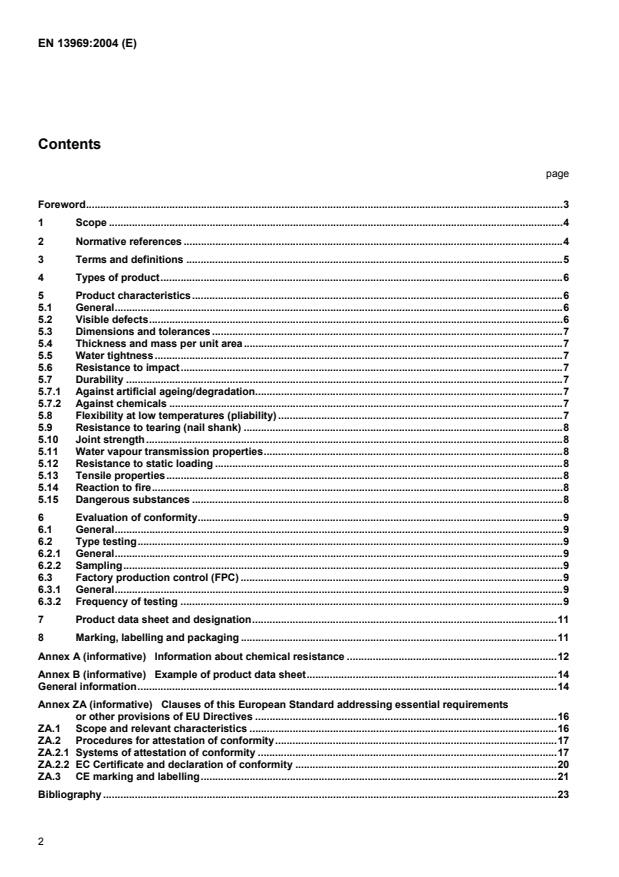

EN 13969:2004 (E) 2 Contents page Foreword.3 1 Scope.4 2 Normative references.4 3 Terms and definitions.5 4 Types of product.6 5 Product characteristics.6 5.1 General.6 5.2 Visible defects.6 5.3 Dimensions and tolerances.7 5.4 Thickness and mass per unit area.7 5.5 Water tightness.7 5.6 Resistance to impact.7 5.7 Durability.7 5.7.1 Against artificial ageing/degradation.7 5.7.2 Against chemicals.7 5.8 Flexibility at low temperatures (pliability).7 5.9 Resistance to tearing (nail shank).8 5.10 Joint strength.8 5.11 Water vapour transmission properties.8 5.12 Resistance to static loading.8 5.13 Tensile properties.8 5.14 Reaction to fire.8 5.15 Dangerous substances.8 6 Evaluation of conformity.9 6.1 General.9 6.2 Type testing.9 6.2.1 General.9 6.2.2 Sampling.9 6.3 Factory production control (FPC).9 6.3.1 General.9 6.3.2 Frequency of testing.9 7 Product data sheet and designation.11 8 Marking, labelling and packaging.11 Annex A (informative)
Information about chemical resistance.12 Annex B (informative)
Example of product data sheet.14 General information.14 Annex ZA (informative)
Clauses of this European Standard addressing essential requirements or other provisions of EU Directives.16 ZA.1 Scope and relevant characteristics.16 ZA.2 Procedures for attestation of conformity.17 ZA.2.1 Systems of attestation of conformity.17 ZA.2.2 EC Certificate and declaration of conformity.20 ZA.3 CE marking and labelling.21 Bibliography.23



EN 13969:2004 (E) 3 Foreword This document (EN 13969:2004) has been prepared by Technical Committee CEN/TC 254 “Flexible sheets for waterproofing”, the secretariat of which is held by BSI. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by June 2005, and conflicting national standards shall be withdrawn at the latest by September 2006. This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association, and supports essential requirements of EU Directive(s). For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this document. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.



EN 13969:2004 (E) 4 1 Scope This document specifies definitions and characteristics of flexible reinforced bitumen sheets for which the intended use is as damp proofing for buildings, including basement tanking. It specifies the requirements and test methods and provides for the evaluation of conformity of the products with the requirements of this standard. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 1109, Flexible sheets for waterproofing — Bitumen sheets for roof waterproofing — Determination of flexibility at low temperature EN 1296, Flexible sheets for waterproofing — Bitumen, plastic and rubber sheets for roofing — Method of artificial ageing by long term exposure to elevated temperature EN 1847, Flexible sheets for waterproofing — Bitumen, plastic and rubber sheets for roof waterproofing — Methods of exposure to liquid chemicals, including water EN 1848-1, Flexible sheets for waterproofing — Determination of length, width and straightness — Part 1: Bitumen sheets for roof waterproofing EN 1849-1, Flexible sheets for waterproofing — Determination of thickness and mass per unit area — Part 1: Bitumen sheets for roof waterproofing EN 1850-1, Flexible sheets for waterproofing — Determination of visible defects — Part 1: Bitumen sheets for roof waterproofing EN 1928:2000, Flexible sheets for waterproofing — Bitumen, plastic and rubber sheets for roof waterproofing — Determination of watertightness EN 1931, Flexible sheets for waterproofing — Bitumen, plastic and rubber sheets for roof waterproofing — Determination of water vapour transmission properties EN 12310-1, Flexible sheets for waterproofing — Part 1: Bitumen sheets for waterproofing — Determination of resistance to tearing (nail shank) EN 12311-1, Flexible sheets for waterproofing — Part 1: Bitumen sheets for roof waterproofing — Determination of tensile properties EN 12316-1, Flexible sheets for waterproofing — Part 1: Bitumen sheets for roof waterproofing — Determination of peel resistance of joints EN 12317-1, Flexible sheets for waterproofing — Part 1: Bitumen sheets for roof waterproofing - Determination of shear resistance of joints EN 12691, Flexible sheets for waterproofing — Bitumen, plastic and rubber sheets for roof waterproofing — Determination of resistance to impact EN 12730:2001, Flexible sheets for waterproofing — Bitumen, plastic and rubber sheets for roof waterproofing — Determination of resistance to static loading



EN 13969:2004 (E) 5 EN 13416, Flexible sheets for waterproofing — Bitumen, plastic and rubber sheets for roof waterproofing — Rules for sampling EN 13501-1:2002, Fire classification of construction products and building elements — Part 1: Classification using test data from reaction to fire tests EN ISO 9001, Quality management systems — Requirements (ISO 9001:2000) EN ISO 11925-2, Reaction to fire tests — Ignitability of building products subjected to direct impingement of flame — Part 2: Single-flame source test (ISO 11925-2:2002) 3 Terms and definitions For the purposes of this document, the terms and definitions given in EN 13416 and the following apply. 3.1 sheet for damp proofing factory made flexible sheet made of bitumen material or composites used on or under floors or ground slabs or in walls to prevent liquid water not under hydrostatic pressure passing from the ground into the internal environment 3.2 tanking sheet factory made flexible sheet made of bitumen material or composites used in wall construction, or on or under floors or ground slabs to prevent liquid water under hydrostatic pressure passing from the ground into the internal environment or from one section of the structure to another 3.3 carrier material incorporated into or onto the factory-made waterproofing sheet to ensure its stability and/or mechanical resistance 3.4 backing material incorporated onto the factory-made sheet without a permanent mechanical function 3.5 surfacing material applied to the surfaces of waterproofing sheets, either as a permanent protection against weathering on the upper surface or as an anti-sticking substance on one or both surfaces of the waterproofing sheets 3.6 manufacturer's limiting value MLV value stated by the manufacturer to be met during testing. The manufacturer's limiting value can be a minimum or a maximum value according to statements made under product characteristics of this document 3.7 manufacturer's declared value MDV value declared by the manufacturer accompanied by a declared tolerance 3.8 oxidized bitumen straight run petroleum bitumen or a fluxed bitumen which has been hardened and rendered less temperature susceptible by blowing with air at high temperature with or without the use of a catalyst



EN 13969:2004 (E) 6 3.9 elastomeric bitumen petroleum bitumen and/or oxidized bitumen modified by the addition of thermo-plastic rubbers 3.10 plastomeric bitumen petroleum bitumen and/or oxidized bitumen modified by the addition of polyolefin or polyolefin copolymer compound 3.11 reinforced bitumen sheet factory made flexible of bitumen with internal or external incorporation of one or more carriers, supplied in roll form ready to use 3.12 sampling procedure used to select or constitute a sample 3.13 sample sheet from which a test piece is taken 3.14 test piece part of the sample from which test specimens are taken 3.15 test specimen piece of precise dimensions taken from the test piece 4 Types of product The types of damp proof sheets covered by this document are designated as follows: Type A: Bitumen damp proof sheet; Type T: Bitumen tanking sheet. 5 Product characteristics 5.1 General 5.1.1 Where a tolerance is limited by this document it does not have to be declared by the manufacturer. 5.1.2 When tested for purposes other than initial type testing or factory production control, the tests to determine product characteristics indicated in this document shall be started within 1 month of delivery from the manufacturer. 5.2 Visible defects The product shall be free of visible defects as determined in accordance with EN 1850-1.



EN 13969:2004 (E) 7 5.3 Dimensions and tolerances The length, width and straightness shall be determined in accordance with EN 1848-1. The length and width shall be greater than or equal to the manufacturer's limiting value (MLV). The maximum deviation from straightness shall not exceed 20 mm per 10 m length, or in proportion for other lengths (e.g. 10 mm per 5 m length). 5.4 Thickness and mass per unit area The thickness and mass per unit area shall be determined in accordance with EN 1849-1. If a product is specified by mass per unit area no single measurement shall lie outside the tolerance declared by the manufacturer's declared value. If a product is specified by thickness, no single measurement value shall lie outside the tolerance declared by the manufacturer's declared value. 5.5 Water tightness Watertightness shall be determined by Method A or B of EN 1928:2000 using a pressure of 2 kPa for Type A bitumen damp proof sheets and a pressure of 60 kPa for Type T bitumen tanking sheets and shall give a pass result. 5.6 Resistance to impact Where required, the resistance to impact shall be determined in accordance with EN 12691 but with a drop height of 300 mm ± 5 mm. The smallest diameter it will resist shall be less than or equal to the manufacturer's limiting value. The expression of the manufacturer's limiting value in millimetres shall be accompanied by the drop height h = 300 mm. 5.7 Durability 5.7.1 Against artificial ageing/degradation In order to verify the artificial ageing behaviour of the product, watertightness shall be determined after exposure in accordance with EN 1296 for a period of 12 weeks. The watertightness shall be determined in accordance with EN 1928:2000 Method A or B. Type A bitumen damp proof sheets shall be tested at a pressure of 2 kPa and Type T bitumen tanking sheets at a pressure of 60 kPa and shall give a pass result. 5.7.2 Against chemicals Information about the chemical resistance of bitumen is given in Annex B. Where the product is likely to come into contact with a "not stable in all cases" substance the resistance shall be evaluated according to EN 1847, the test parameters being declared with the result, and subsequently tested to EN 1928, giving a pass result. NOTE Experience has shown that water has little or no effect upon the in-service performance of reinforced bitumen sheets. 5.8 Flexibility at low temperatures (pliability) Where required, the flexibility at low temperatures shall be determined in accordance with EN 1109 and shall be less than or equal to the manufacturer's limiting value. NOTE This test does not give results corresponding to the application conditions in practice. Results should be used only to compare products of similar thickness and construction.



EN 13969:2004 (E) 8 5.9 Resistance to tearing (nail shank) The tear resistance (nail shank) shall be determined in accordance with EN 12310-1 and shall lie within the declared tolerance of the manufacturer's declared value. 5.10 Joint strength Where required, the joint strength shall be determined in accordance with EN 12317-1 and shall lie within the declared tolerance of the manufacturer's declared value. 5.11 Water vapour transmission properties Where required, the water vapour resistance shall be determined in accordance with EN 1931 and shall lie within the declared tolerance of the manufacturer's declared value. 5.12 Resistance to static loading The resistance to static loading shall be determined in accordance with Method B of EN 12730:2001 and shall be greater than or equal to the manufacturer's limiting value. 5.13 Tensile properties The tensile properties shall be determined in accordance with EN 12311-1 and shall lie within the declared tolerance of the manufacturer's declared value for the longitudinal and transverse directions of the sheet. 5.14 Reaction to fire Where required, the product shall be tested and classified in accordance with EN 13501-1:2002, Table 1. When tested according to EN ISO 11925-2, the products shall be tested under conditions of surface flame attack. NOTE It is currently considered that the Euroclasses Classification system at Classes D and above requires investigation to determine its appropriateness to the products covered by this document (the SBI test may be inappropriate for products covered by the document). Pending results of such an investigation and discussions in the Fire Regulators Group, products covered by this document are tested to EN ISO 11925-2. If and when a new fire test scenario and test method are developed for the products, this document will be amended to refer to them. 5.15 Dangerous substances For products placed on the market within the European Economic Area see ZA.1. Outside the EEA products shall conform to any applicable provisions related to dangerous substances valid in the place of use. Bitumen sheets covered by this document shall not contain asbestos or coal tar constituents. The manufacturer shall disclose on the product wrapper and in the health and safety data sheets the use of any additive or constituent considered hazardous.



EN 13969:2004 (E) 9 6 Evaluation of conformity 6.1 General The compliance of a reinforced bitumen damp proof sheet with the requirements of this document and with the stated values (including classes) shall be demonstrated by:  initial type testing;  factory production control by the manufacturer, including product assessment. For the purposes of testing, products may be grouped into families, where it is considered that the selected property is common to all products within that family. 6.2 Type testing 6.2.1 General Initial type testing shall be performed to show conformity to this document. Tests previously performed in accordance with the provisions of this document (same product, same characteristic(s), test method, sampling procedure, system of attestation of conformity, etc.) may be taken into account. In addition, initial type testing shall be performed at the beginning of the production of a new product type (unless a member of the same family) or at the beginning of a new method of production (where this may affect the stated properties). All characteristics in Clause 5 shall be subject to initial type testing, where required. Whenever a change occurs in the product design, the raw material or supplier of the components, or the production process (subject to the definition of a family), which would change significantly one or more of the characteristics, the type tests shall be repeated for the appropriate characteristic(s). 6.2.2 Sampling Samples shall be taken according to EN 13416. The minimum number of tests to show compliance for initial and further type testing shall be one for all characteristics. 6.3 Factory production control (FPC) 6.3.1 General The manufacturer shall establish, document and maintain an FPC system to ensure that the products placed on the market conform with the stated performance characteristics. The FPC system shall consist of procedures, regular inspections and tests and/or assessments and the use of the results to control raw and other incoming materials or components, equipment, the production process and the product. If a manufacturer claims compliance with FPC requirements by operating an EN ISO 9001 system, EN ISO 9001 shall be applied in full and shall be made specific to the requirements of this document. The results of inspections, tests or assessments requiring action shall be recorded, as shall any action taken. The action to be taken when control values or criteria are not met shall be recorded. 6.3.2 Frequency of testing The characteristics to be controlled within the framework of factory production control are those for which the manufacturer claims a performance. Control of the product is required, either by direct testing or by indirect control. The frequency of testing shall be given in the manufacturer's FPC system.



EN 13969:2004 (E) 10 Table 1 — Compliance criteria for initial type testing Product type Property A T Parameter Method Clause in this document Compliance criteria (where required) Water tightness to liquid water
*
* Watertight at 2 kPa or at 60 kPa EN 1928 5.5 Pass Resistance to static loading
* * MLV EN 12730 5.10 Greater than or equal to MLV Tensile properties
* * MDV EN 12311-1 5.13 Within the declared tolerance of the MDV
Durability of watertightness against artificial ageing
*
* Watertight at 2 kPa or at 60 kPa EN 1296 test afterwards to EN 1928 5.7.1 Pass Durability of watertightness against chemicals
*
* Watertight at 2 kPa or at 60 kPa EN 1847 test afterwards to EN 1928 5.7.2 Pass Resistance to tear (nail shank) * * MDV EN 12310-1 5.9 Within the declared tolerance of the MDV
Impact resistance * * MLV EN 12691 (but with h =300 mm) 5.6 Greater than or equal to MLV Low temperature flexibility
* * MLV EN 1109 5.8 Less than or equal to MLV Joint strength
+ + MDV EN 12317-1 5.10 Within the declared tolerance of the MDV
Water vapour transmission
* * MDV EN 1931 5.11 Within the declared tolerance of the MDV
Reaction to fire * * Euroclass EN 13501-1 (see NOTE in 5.14) 5.14 Classification Length * * MLV EN 1848-1 5.3 Greater than or equal to MLV Width * * MLV EN 1848-1 5.3 Greater than or equal to MLV Thickness * * MDV EN 1849-1 5.4 Within the declared tolerance of the MDV Mass * * MDV EN 1849-1 5.4 Within the declared tolerance of the MDV
Straightness * * 20 mm/10 m EN 1848-1 5.3 Pass Dangerous substances * * As relevant As relevant 5.14 As relevant Visible defects * * Visible defects EN 1850-1 5.2 No visible defects + Test for single layer system products only.



EN 13969:2004 (E) 11 7 Product data sheet and designation The characteristics of the product, determined in accordance with the test methods specified in this document, shall be listed in a technical data sheet, an example of which is shown in Annex B. The technical data sheet shall give at least the following information: a) product trade name and manufacturer's name; b) origin/source of manufacture or traceable code; c) method of application; d) results from the tests in Table 1, as appropriate for the intended end use; e) certification mark, if any; f) consumer information, e.g. restrictions concerning use and storage and safety precautions during installation and disposal; g) description of the product (e.g. type and number of carriers, type of coating, mass or thickness, type of surfacing). 8 Marking, labelling and packaging The following information shall be indicated on each roll or at least on each consignment: a) production date or identification number; b) product trade name; c) length and width; d) thickness or mass; e) labelling according to national regulations related to dangerous substances and/or health and safety; f) product type (Type A or Type T). Where ZA.3 covers the same information as required by this Clause, the requirements of this Clause are met.



EN 13969:2004 (E) 12 Annex A
(informative)
Information about chemical resistance Table A.1 describes the chemical resistance of bitumen in contact with commonly occurring substances. Table A.1 — Chemical resistance of bitumen Substance Concentration % Temperature ≤ 30 °C Temperature ≤ 65 °C Inorganic acids Sulphuric acid < 25 + +
≥ 25 and ≤ 95 + º
> 95 - - Oleum
- - Nitric acid < 10 + º
≥ 10 and ≤ 65 º º
> 65 - º Hydrochloric acid < 25 + +
≥ 25 and ≤ 36 + º
> 36 º - Organic acids Formic acid 40 + º Benzoic acid
+
Butyric acid
- - Acetic acid 25 +
Oleic acid
- - Oxalic acid
+ + Phenols
- - Phthalic acid
+
Tataric acid < 25 + +
≥ 25 +
Citric acid
+ + Inorganic bases Ammonium hydroxide
+ + Potassium hydroxide
+ º Sodium hydroxide
+ º Organic bases Pyridine and derivates
- - Triethanolamin
+
Salt solutions Chlorides
+ + Nitrates
+ + Sulphates
+ + Different substances Drinking water
+ + Beer
+
Glycol
+ + Molasses
+ + Sugar
+ +



EN 13969:2004 (E) 13 Table A.1 (continued) Substance Concentration % Temperature ≤ 30 °C Temperature ≤ 65 °C Soap solution
+ + Liquid manure
+
Sewage
º º Reaction period 30 days; Designation: + stable; 0 not stable in all cases – to be checked; - unstable
Table A.2 — Chemical resistance of bitumen depending on concentration, reaction period and room temperature Substance Concentration% Solid bitumen for traffic area building Types 20/30 and 35/50 Oxidised bitumen
6 months 1 year 1,5 year 2 years 5 years Inorganic acids Up to 10 + º
- + Hydrochloric acid 10 to 30 º º
- + Sulphuric acid Up to 50 +
º - + Up to 10 º -
+ 10 to 25 - -
º Nitric acid 25 to 50 - -
- Organic acids Lactic acid
- + Butyric acid
- + Designation: + no attack; º low attack; - strong attack.



EN 13969:2004 (E) 14 Annex B
(informative)
Example of product data sheet General information Date and reference of this technical data sheet Product trade name Manufacturer/supplier Origin /source of manufacturing Type of application
Method of application Product information1 Certification mark if relevant Consumer information2
Description of the
...
