SIST EN 301 489-2 V1.3.1:2003

• Abstract:

  This standard has one common requirements part plus specific parts for each of the radio equipment and services. This harmonised standard under the EMC Directive and article 3.1b of the R&TTE Dirctive. This does not include EMC requirements for equipment covered by the Marine Equipment Directive.

• Status: Published
• Publication Date: 28-Feb-2003
• ICS: 33.060.20 - Receiving and transmitting equipment
• ICS: 33.100.01 - Electromagnetic compatibility in general
• Technical Committee: RES - Radio equipment and systems
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Mar-2003
• Due Date: 01-Mar-2003
• Completion Date: 01-Mar-2003
• Directive: 1999/5/EC - Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity
  Conflicting Date: 30-Nov-2005
• Directive:

  ---

  TRRTP124 - Splošni akt o načrtu uporabe radijskih frekvenc (NURF-4)
• Mandate: M/284
• Mandate: T-353
• Ref Project: ETSI EN 301 489-2 V1.3.1 (2002-08) - Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 2: Specific conditions for radio paging equipment

• Official Journal Project Relation: SIST EN 301 489-2:2001 - Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 2: Specific conditions for radio paging equipment
• Effective Date: 01-Dec-2009

SIST EN 301 489-2 V1.3.1:2003 is the Slovenian adoption of ETSI EN 301 489-2 V1.3.1, a harmonised EMC standard for radio paging equipment and associated ancillary equipment. It specifies how to test and judge paging receivers, transmitters and combined equipment for Electromagnetic Compatibility (EMC), using EN 301 489-1 as the common base and adding paging-specific conditions. The standard is used in conformity work under the EMC Directive and the R&TTE Directive.

What does SIST EN 301 489-2 V1.3.1:2003 specify?

SIST EN 301 489-2 V1.3.1:2003 specifies the assessment of paging equipment and associated ancillary equipment for EMC. It focuses on test conditions, performance assessment and performance criteria for radio paging receivers, transmitters and combined equipment.

The scope works together with EN 301 489-1. That common part supplies the general EMC framework, while this part adds the special conditions for paging equipment. The document also leaves antenna port specifications and enclosure port emission requirements to the relevant product standards for radio spectrum use.

Annex	What it covers
Annex A	Informative examples and definitions of paging equipment in scope
Annex B	Informative bibliography

Equipment covered in the scope includes ERMES paging equipment, on-site paging equipment and wide-area paging equipment. Equipment covered by the Marine Equipment Directive is outside the scope.

What are the key requirements of SIST EN 301 489-2 V1.3.1:2003?

The main technical content is in Clauses 4 to 7. SIST EN 301 489-2 V1.3.1:2003 sets the special test setup, the way performance is checked during immunity testing, and the criteria the equipment must meet before, during and after exposure.

Test conditions and signal arrangements

Clause 4 requires the EN 301 489-1 test conditions to be applied as appropriate, with paging-specific modifications. For receivers, tests are done in standby mode, and mobile or pocket receivers are checked with recognizable messages stored where applicable. For base receivers, the wanted RF input signal remains applied during the tests.

For transmitters, mobile or pocket transmitters operate with an unmodulated carrier at maximum rated output power if possible. Base transmitters normally stay in standby mode, except for the spot frequency test, where they are also operated at maximum rated output power with normal test modulation.

The document also specifies how test signals are coupled to the equipment. This matters because the lab must use the correct antenna, cable or test fixture arrangement so the EMC test reflects normal use.

Exclusion bands and normal test modulation

Clause 4 defines exclusion bands for receivers and transmitters. For receivers, the exclusion band is based on the manufacturer’s alignment range and is extended according to the operating frequency band. For transmitters in channelized bands, the exclusion band is five times the channel spacing around the operating frequency.

Clause 4.5 defines normal test modulation. For mobile and pocket receivers, the wanted RF input signal represents selective recognizable messages. For base receivers, it is an unmodulated carrier. For transmitters, the normal test modulation represents the calling function. In practice, this tells the test house what signal pattern to use so the equipment is exercised in a realistic way.

Performance assessment and criteria

Clause 5 explains how performance is judged, and Clause 6 gives the criteria. The assessments look for maintained communications links, correct message transfer or call detection, and absence of false calls or unintentional transmission.

For mobile or pocket receivers, the document uses recognizable messages and call received signals to verify operation. For base receivers, performance is checked by audio breakthrough measurements. For transmitters, the assessment is based on maintaining the communication link and, for some tests, call acceptance or successful transfer of paging calls.

Clause 6 sets the detailed criteria for continuous and transient phenomena on transmitters and receivers, including limits on audio or modulation breakthrough and the requirement that equipment finishes the test with no loss of function. For spot frequency testing, the document uses a 4/5 call acceptance ratio criterion.

Applicability overview and special immunity test

Clause 7 links the paging-specific conditions to the EN 301 489-1 emission and immunity tables. It states that there are no special emission conditions for paging equipment in this part, but there is a special immunity condition: an additional spot frequency test at 80, 104, 136, 165, 200, 260, 330, 430, 560, 715 and 920 MHz ± 1 MHz, excluding frequencies inside the exclusion band and including the edge frequencies of that band. Mobile or pocket transmitters and base receivers are exempted from that spot frequency test.

What terms does SIST EN 301 489-2 V1.3.1:2003 define?

SIST EN 301 489-2 V1.3.1:2003 uses several paging-specific terms in Clause 3.

• Alignment range - the frequency range over which the receiver or transmitter can be programmed or re-aligned without physical component changes other than programmable and frequency controlling devices.
• Calling function - the transmission of a message from the base transmitter to the paging receiver to alert or inform the user.
• Talk-back function - the message path from a pocket transmitter to a central receiver for further processing.
• Base receiver - a receiver at a fixed location.
• Pocket receiver - a stand-alone pocket paging receiver, or one in a pocket paging transceiver, intended for portable use.
• Standby mode - for a receiver, a mode ready to receive calls; for a base transmitter, a mode waiting for a start control signal; for a pocket transmitter, a mode waiting for a control signal to start transmission.
• Equipment Under Test (EUT) - the equipment being tested for EMC performance.
• Enhanced Radio MEssage System (ERMES) - one of the paging system types named in the abbreviations.

Who uses SIST EN 301 489-2 V1.3.1:2003?

SIST EN 301 489-2 V1.3.1:2003 is used by paging equipment manufacturers, EMC test laboratories, conformity assessment bodies, quality managers and buyers who need paging equipment to be tested against a defined EMC framework. It is relevant for ERMES, on-site paging and wide-area paging systems, including receivers, transmitters, transceivers and associated ancillary equipment.

What changed in SIST EN 301 489-2 V1.3.1:2003 from the previous edition?

SIST EN 301 489-2 V1.3.1:2003 replaces ETSI EN 301 489-2 V1.2.1 (August 2000).

Which standards are used with SIST EN 301 489-2 V1.3.1:2003?

SIST EN 301 489-2 V1.3.1:2003 is used with ETSI EN 301 489-1, which provides the common technical requirements, general EMC framework, and the baseline emission and immunity tables that this part modifies for paging equipment.

What does the SIST EN 301 489-2 V1.3.1:2003 document contain?

The document contains the paging-specific EMC test conditions in Clause 4, performance assessment methods in Clause 5, performance criteria in Clause 6, and an applicability overview in Clause 7. It also includes a special immunity test table in Clause 7.2.2 that identifies the spot frequencies used for additional testing.

Annex A gives informative examples of the paging equipment covered, grouped into ERMES paging equipment, on-site paging equipment and wide-area paging equipment. Annex B lists background references for related paging system specifications.

The structure is practical for testing work: it tells a laboratory how to set up the equipment, what signal conditions to use, what to watch for during exposure, and how to decide whether the equipment remains operational after the test.

SLOVENSKI STANDARD
01-marec-2003
Elektromagnetna združljivost (EMC) in zadeve v zvezi z radijskim spektrom (ERM) -
Standard elektromagnetne združljivosti (EMC) za radijsko opremo in storitve - 2.
del: Posebni pogoji za opremo radijskega osebnega klica
Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic
Compatibility (EMC) standard for radio equipment and services; Part 2: Specific
conditions for radio paging equipment
Ta slovenski standard je istoveten z: EN 301 489-2 Version 1.3.1
ICS:
33.060.20 Sprejemna in oddajna Receiving and transmitting
oprema equipment
33.100.01 Elektromagnetna združljivost Electromagnetic compatibility
na splošno in general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

Candidate Harmonized European Standard (Telecommunications series)

Electromagnetic compatibility
and Radio spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC)
standard for radio equipment and services;
Part 2: Specific conditions for radio paging equipment

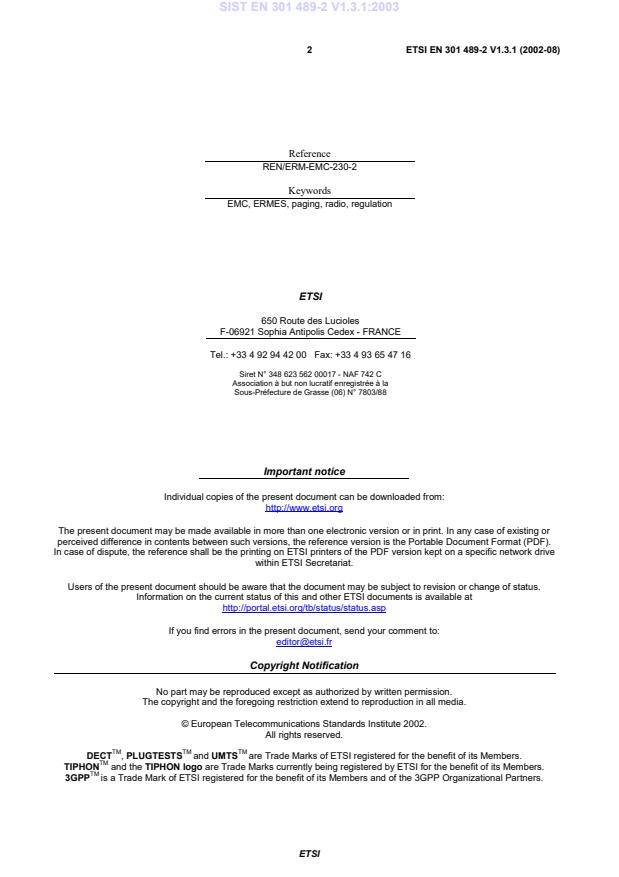

2 ETSI EN 301 489-2 V1.3.1 (2002-08)

Reference
REN/ERM-EMC-230-2
Keywords
EMC, ERMES, paging, radio, regulation
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, send your comment to:
[e-mail]
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2002.
All rights reserved.
TM TM TM
DECT , PLUGTESTS and UMTS are Trade Marks of ETSI registered for the benefit of its Members.
TM
TIPHON and the TIPHON logo are Trade Marks currently being registered by ETSI for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
ETSI
3 ETSI EN 301 489-2 V1.3.1 (2002-08)
Contents
Intellectual Property Rights.4
Foreword.4
1 Scope.5
2 References.5
3 Definitions and abbreviations.6
3.1 Definitions.6
3.2 Abbreviations.6
4 Test conditions.7
4.1 General.7
4.1.1 Receivers.7
4.1.2 Transmitters.7
4.2 Arrangements for test signals .8
4.2.1 Arrangements for test signals at the input of transmitters.8
4.2.2 Arrangements for test signals at the output of transmitters.8
4.2.3 Arrangements for test signals at the input of receivers .8
4.2.4 Arrangements for test signals at the output of receivers .9
4.3 Exclusion bands.9
4.3.1 Exclusion bands for receivers .9
4.3.2 Exclusion band for transmitters .9
4.4 Narrow band responses of receivers.9
4.5 Normal test modulation.10
5 Performance assessment.10
5.1 General.10
5.2 Standard paging equipment .10
5.3 Ancillary equipment.11
5.4 Equipment classification.11
6 Performance criteria.11
6.1 Performance criteria for Continuous phenomena applied to Transmitters (CT) .11
6.2 Performance criteria for Transient phenomena applied to Transmitters (TT).12
6.3 Performance criteria for Continuous phenomena applied to Receivers (CR).12
6.4 Performance criteria for Transient phenomena applied to Receivers (TR) .13
6.5 Performance criteria for ancillary equipment tested on a stand alone basis .13
7 Applicability overview.13
7.1 Emission.13
7.1.1 General.13
7.1.2 Special conditions.13
7.2 Immunity.13
7.2.1 General.13
7.2.2 Special conditions.14
Annex A (informative): Definitions of the paging equipment in the scope of the present
document .15
A.1 ERMES paging equipment.15
A.2 On-site paging equipment .15
A.3 Wide-area paging equipment.15
Annex B (informative): Bibliography.16
History .17

ETSI
4 ETSI EN 301 489-2 V1.3.1 (2002-08)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Candidate Harmonized European Standard (Telecommunications series) has been produced by ETSI Technical
Committee Electromagnetic compatibility and Radio spectrum Matters (ERM).
The present document has been produced by ETSI in response to a mandate from the European Commission issued
under Council Directive 98/34/EC [4] (as amended) laying down a procedure for the provision of information in the
field of technical standards and regulations.
The present document is intended to become a Harmonized Standard, the reference of which will be published in the
Official Journal of the European Communities referencing the Council Directive on the approximation of the laws of
the Member States relating to electromagnetic compatibility ("the EMC Directive") (89/336/EEC [2] as amended) and
Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and
telecommunications terminal equipment and the mutual recognition of their conformity ("the R&TTE Directive" [3]).
The present document is part 2 of a multi-part deliverable. Full details of the entire series can be found in part 1 [1].

National transposition dates
Date of adoption of this EN: 9 August 2002
Date of latest announcement of this EN (doa): 30 November 2002
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 31 May 2003
Date of withdrawal of any conflicting National Standard (dow): 31 May 2004

ETSI
5 ETSI EN 301 489-2 V1.3.1 (2002-08)
1 Scope
The present document, together with the EN 301 489-1 [1], covers the assessment of paging equipment (receivers,
transmitters and combined equipment) and associated ancillary equipment, in respect of ElectroMagnetic Compatibility
(EMC).
Technical specifications related to the antenna port and emissions from the enclosure port of paging equipment are not
included in the present document. Such technical specifications are found in the relevant product standards for the
effective use of the radio spectrum.
The present document specifies the applicable test conditions, performance assessment and performance criteria for
paging equipment and associated ancillary equipment.
Examples of paging equipment are given in annex A.
In case of differences (for instance concerning special conditions, definitions, abbreviations) between the present
document and the EN 301 489-1 [1], the provisions of the present document take precedence.
The environmental classification and the emission and immunity requirements used in the present document are as
stated in the EN 301 489-1 [1], except for any special conditions included in the present document.
2 References
The following documents contain provisions which, through reference in this text, constitute provisions of the present
document.
• References are either specific (identified by date of publication and/or edition number or version number) or
non-specific.
• For a specific reference, subsequent revisions do not apply.
• For a non-specific reference, the latest version applies.
[1] ETSI EN 301 489-1: "Electromagnetic compatibility and Radio spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment and services;
Part 1: Common technical requirements".
[2] Council Directive 89/336/EEC of 3 May 1989 on the approximation of the laws of the Member
States relating to electromagnetic compatibility (EMC Directive).
[3] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio
equipment and telecommunications terminal equipment and the mutual recognition of their
conformity (R&TTE Directive).
[4] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a
procedure for the provision of information in the field of technical standards and regulations.
ETSI
6 ETSI EN 301 489-2 V1.3.1 (2002-08)
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the terms and definitions given in the EN 301 489-1 [1], clause 3 and the
following apply:
alignment range: frequency range over which the receiver or transmitter can be programmed and/or re-aligned to
operate without any physical change of components other than programmable and frequency controlling devices
calling function: transmission of a message via the base transmitter to the paging receiver in order to alert and/or
inform the carrier of the paging receiver
base receiver: receiver at a fixed location
pocket receiver: stand alone pocket paging receiver or a receiver being part of a pocket paging transceiver typically for
portable use (portable equipment)
base transmitter: transmitter at a fixed location
pocket transmitter: stand alone pocket paging transmitter using the return channel, or a transmitter being part of a
pocket paging transceiver typically for portable use (portable equipment)
standby mode (receiver): mode of operation in which the receiver is capable of receiving calls
standby mode (base transmitter): mode of operation in which the transmitter is ready to transmit, waiting for a start
control signal to actual start transmitting
standby mode (pocket transmitter): mode of operation in which the transmitter is ready to transmit, waiting for a
control signal to start the transmitting sequence
talk-back function: transmitting of a message from the pocket transmitter (normally combined in a transceiver) which
is sent to a central receiver (base receiver) and further processed by the central processing unit
3.2 Abbreviations
For the purposes of the present document, the following abbreviations apply:
CR Continuous phenomena applied to Receivers
CT Continuous phenomena applied to Transmitters
EMC ElectroMagnetic Compatibility
ERMES Enhanced Radio MEssage System
EUT Equipment Under Test
RF Radio Frequency
TR Transient phenomena applied to Receivers
TT Transient phenomena applied to Transmitters
ETSI
7 ETSI EN 301 489-2 V1.3.1 (2002-08)
4 Test conditions
For the purposes of the present document, the test conditions of the EN 301 489-1 [1], clause 4, shall apply as
appropriate. Further product related test conditions for paging equipment are specified in the present document.
4.1 General
For emission and immunity tests the test modulation, test arrangements, etc., as specified in the present document,
clauses 4.1.1 to 4.5, shall apply.
4.1.1 Receivers
Whenever a receiver is provided with a detachable antenna, the EUT shall be tested with the antenna fitted in a manner
typical of normal intended use.
The individual immunity tests shall be performed with the receiver in the standby mode.
Mobile or pocket receivers:
- before the individual tests the receiver shall be set into the standby mode, a communications link shall be
established and the message memory of the receiver shall be loaded with recognizable messages, if applicable
(performance check);
- during the individual tests the wanted RF input signal shall not be applied to the receiver, except for the spot
frequency test as part of the radio frequency electromagnetic field immunity test.
- after the individual tests and the termination of the required performance assessment (e.g. by means of the
stored messages in the message memory of the receiver, see clauses 6.3 and 6.4) the communications link shall
be re-established and another performance check shall be carried out to verify that the EUT is still operational.
Base receivers:
- base receivers are not subject to the spot frequency test as part of the radio frequency electromagnetic field
immunity test;
- before the individual tests the base receiver shall be set into the standby mode, a communications link shall be
established and the output of the receiver shall be monitored (performance check);
- during the individual tests the wanted RF input signal (the unmodulated carrier, see clause 4.2) remains
applied to the base receiver;
- after the individual tests of the base receiver (see clauses 6.3 and 6.4) and the termination of the required
performance assessment (e.g. by means of audio breakthrough measurements at the output of the base receiver,
see clauses 6.3 and 6.4) the maintained communications link is switched off and re-established to ensure that
the base receiver is still able to receive new incoming requests.
4.1.2 Transmitters
Mobile and pocket transmitters:
- the mobile or pocket transmitter is not subject to the spot frequency test as part of the radio frequency
electromagnetic field immunity test;
- the mobile or pocket transmitter shall operate in transmit mode with an unmodulated carr
...
