High visibility clothing - Test methods and requirements (ISO 20471:2013)

This International Standard specifies requirements for high-visibility clothing which is capable of signalling the user's presence visually, intended to provide conspicuity of the user in high-risk situations under any light conditions by day and under illumination by vehicle headlights in the dark. For further information concerning risk situations see Annex A. This standard does not apply to medium-risk and low-risk situations Performance requirements are included for colour and retroreflection as well as for the minimum areas and for the placement of the materials in protective clothing.

Warnkleidung - Prüfverfahren und Anforderungen (ISO 20471:2013)

Diese Internationale Norm legt die Anforderungen an Schutzkleidung fest, die die Anwesenheit des Trägers visuell signalisiert, mit der Absicht, ihn in gefährlichen Situationen bei allen möglichen Lichtverhältnissen am Tage sowie beim Anstrahlen mit Fahrzeugscheinwerfern in der Dunkelheit auffällig zu machen.
Es sind Leistungsanforderungen an die Farbe und die Retroreflexion festgelegt, wie auch an die Mindest-flächen und die Anordnung der Materialien in der Schutzkleidung.
Diese Norm gilt nicht für Warnkleidung aus dem Sport- und Freizeitbereich. Für diese existieren andere Normen (siehe EN 1150:1999 und EN 13356:2001).
Diese Norm gilt nicht für die klassische Arbeiterbekleidung, für die der Hersteller den Anspruch erhebt, dass sie keine Schutzkleidung ist und sie nicht in Übereinstimmung mit den wesentlichen Anforderungen ist, selbst wenn einige kleine auffälligkeitserhöhenden Materialien für einen anderen Zweck verwendet werden.

Vêtements à haute visibilité - Méthodes d'essai et exigences (ISO 20471:2013)

L'ISO 20471:2013 spécifie les exigences que doivent respecter les vêtements à haute visibilité afin de signaler visuellement la présence de l'utilisateur. Les vêtements à haute visibilité sont destinés à offrir une perceptibilité du porteur lorsqu'il est vu par les conducteurs de véhicules ou d'autres équipements mécaniques, dans toutes les conditions de luminosité, de jour et de nuit dans la lumière des phares d'un véhicule.
Les exigences de performance sont indiquées pour la couleur et la rétroréflexion ainsi que pour les surfaces minimales et le positionnement des matières utilisées sur le vêtement de protection.

Dobro vidna obleka - Preskusne metode in zahteve (ISO 20471:2013)

Ta mednarodni standard določa zahteve za dobro vidno obleko, s katero je vizualno signalizirana prisotnost uporabnika za zagotavljanje jasne vidnosti uporabnika v izredno tveganih situacijah pod katerimi koli svetlobnimi pogoji čez dan in pri osvetlitvi z žarometi vozila ponoči. Za dodatne informacije o tveganih situacijah glejte dodatek A. Ta standard ne velja za srednje in nizko tvegane situacije. Zahtevane lastnosti zajemajo barvo in retrorefleksijo ter minimalna območja in namestitev materialov v zaščitna oblačila.

General Information

Status
Published
Public Enquiry End Date
14-Nov-2010
Publication Date
13-Jun-2013
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
21-May-2013
Due Date
26-Jul-2013
Completion Date
14-Jun-2013

RELATIONS

Buy Standard

Standard
SIST EN ISO 20471:2013
English language
31 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN ISO 20471:2013
01-julij-2013
1DGRPHãþD
SIST EN 471:2003+A1:2008
Dobro vidna obleka - Preskusne metode in zahteve (ISO 20471:2013)
High visibility clothing - Test methods and requirements (ISO 20471:2013)
Warnkleidung - Prüfverfahren und Anforderungen (ISO 20471:2013)
Vêtements à haute visibilité - Méthodes d'essai et exigences (ISO 20471:2013)
Ta slovenski standard je istoveten z: EN ISO 20471:2013
ICS:
13.340.10 Varovalna obleka Protective clothing
SIST EN ISO 20471:2013 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN ISO 20471:2013
---------------------- Page: 2 ----------------------
SIST EN ISO 20471:2013
EUROPEAN STANDARD
EN ISO 20471
NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2013
ICS 13.340.10 Supersedes EN 471:2003+A1:2007
English Version
High visibility clothing - Test methods and requirements (ISO
20471:2013, Corrected version 2013-06-01)

Vêtements à haute visibilité - Méthodes d'essai et Hochsichtbare Warnkleidung - Prüfverfahren und

exigences (ISO 20471:2013, Version corrigée 2013-06-01) Anforderungen (ISO 20471:2013, korrigierte Fassung 2013-

06-01)
This European Standard was approved by CEN on 1 March 2013.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European

Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national

standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation

under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same

status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,

Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United

Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: Avenue Marnix 17, B-1000 Brussels

© 2013 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 20471:2013: E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN ISO 20471:2013
EN ISO 20471:2013 (E)

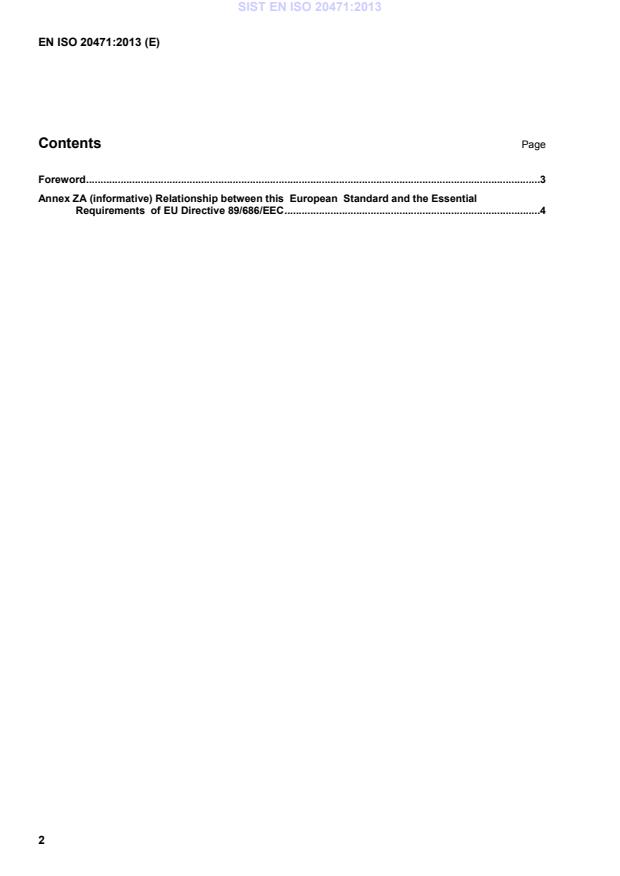

Contents Page

Foreword ..............................................................................................................................................................3

Annex ZA (informative) Relationship between this European Standard and the Essential

Requirements of EU Directive 89/686/EEC .........................................................................................4

---------------------- Page: 4 ----------------------
SIST EN ISO 20471:2013
EN ISO 20471:2013 (E)
Foreword

This document (EN ISO 20471:2013) has been prepared by Technical Committee ISO/TC 94 "Personal safety

- Protective clothing and equipment" in collaboration with Technical Committee CEN/TC 162 “Protective

clothing including hand and arm protection and lifejackets” the secretariat of which is held by DIN.

This European Standard shall be given the status of a national standard, either by publication of an identical

text or by endorsement, at the latest by September 2013, and conflicting national standards shall be

withdrawn at the latest by September 2013.

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent

rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.

This document supersedes EN 471:2003+A1:2007.

This document has been prepared under a mandate given to CEN by the European Commission and the

European Free Trade Association, and supports essential requirements of EU Directive.

For relationship with EU Directive, see informative Annex ZA, which is an integral part of this document.

According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following

countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech

Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece,

Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,

Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

Endorsement notice

The text of ISO 20471:2013, Corrected version 2013-06-01 has been approved by CEN as EN ISO

20471:2013 without any modification.
---------------------- Page: 5 ----------------------
SIST EN ISO 20471:2013
EN ISO 20471:2013 (E)
Annex ZA
(informative)
Relationship between this European Standard and the Essential
Requirements of EU Directive 89/686/EEC

This European Standard has been prepared under a mandate given to CEN by the European Commission

and the European Free Trade Association to provide one means of conforming to Essential Requirements of

the New Approach Directive 89/686/EEC on the approximation of the laws of the Member States relating to

personal protective equipment.

Once this standard is cited in the Official Journal of the European Union under that Directive and has been

implemented as a national standard in at least one Member State, compliance with the normative clauses of

this standard given in Table ZA.1 confers, within the limits of the scope of this standard, a presumption of

conformity with the corresponding Essential Requirements of that Directive and associated EFTA regulations.

Table ZA.1 — Correspondence between this European Standard and Directive 89/686/EEC

Clause(s)/subclause( s) of this Essential Requirements (ERs) Qualifying remarks/notes

EN of Directive 89/686/EEC
4.1 1.1.2.2 Classes of protection
appropriate to different levels of
risk
4.1; 4.2; 5.4 1.2.1 Absence of risks and
other ‘inherent' nuisance factors
5.2; 5.3; 5.5; 6.2 1.3.2 Lightness and design
strength
6.2 1.4 Information supplied by the
manufacturer
5.6 2.2 PPE “enclosing” the parts of
the body to be protected
7.5.1 2.4 PPE subject to ageing
8 2.12 PPE bearing one or more
identification or recognition marks
directly or indirectly relating to
health and safety
5.1, 6.1 2.13 PPE capable of signalling the
user's presence visually

WARNING — Other requirements and other EU Directives may be applicable to the product(s) falling within

the scope of this standard.
---------------------- Page: 6 ----------------------
SIST EN ISO 20471:2013
INTERNATIONAL ISO
STANDARD 20471
First edition
2013-03-15
Corrected version
2013-06-01
High visibility clothing — Test
methods and requirements
Vêtements à haute visibilité — Méthodes d’essai et exigences
Reference number
ISO 20471:2013(E)
ISO 2013
---------------------- Page: 7 ----------------------
SIST EN ISO 20471:2013
ISO 20471:2013(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2013

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form

or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior

written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of

the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2013 – All rights reserved
---------------------- Page: 8 ----------------------
SIST EN ISO 20471:2013
ISO 20471:2013(E)
Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 2

4 Design .............................................................................................................................................................................................................................. 3

4.1 Types and classes .................................................................................................................................................................................. 3

4.2 Specific design requirements ..................................................................................................................................................... 4

4.3 Size designation ..................................................................................................................................................................................... 9

5 Requirements for background material, non-fluorescent material and combined

performance material ..................................................................................................................................................................................10

5.1 Colour performance requirements of new material............................................................................................10

5.2 Colour after Xenon test .................................................................................................................................................................10

5.3 Colour fastness of background material and all non-fluorescent material layers after

test exposure ..........................................................................................................................................................................................11

5.4 Dimensional change of background material and non-fluorescent material.................................11

5.5 Mechanical properties for background material and non-fluorescent material .........................12

5.6 Physiological performance — Water vapour and thermal resistance .................................................12

6 Photometric performance requirements for retroreflective material and combined

performance material after physical exposure .................................................................................................................12

6.1 Retroreflective performance requirements of new material .......................................................................12

6.2 Retroreflective performance requirements after test exposure ...............................................................13

7 Test methods ..........................................................................................................................................................................................................14

7.1 Sampling and conditioning ........................................................................................................................................................14

7.2 Determination of colour ...............................................................................................................................................................14

7.3 Method of determination of retroreflective photometric performance .............................................14

7.4 Retroreflection after exposure ...............................................................................................................................................15

7.5 Ageing ..........................................................................................................................................................................................................15

8 Marking .......................................................................................................................................................................................................................16

9 Information supplied by the manufacturer ..........................................................................................................................16

Annex A (informative) Information concerning risk situations ...........................................................................................17

Annex B (normative) Positioning of bands of retroreflective material on jackets for industrial

wash test only .......................................................................................................................................................................................................18

Annex C (normative) Method of measuring wet retroreflective performance ......................................................19

Annex D (informative) Guidelines for the design of high visibility garments ........................................................21

Bibliography .............................................................................................................................................................................................................................22

© ISO 2013 – All rights reserved iii
---------------------- Page: 9 ----------------------
SIST EN ISO 20471:2013
ISO 20471:2013(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.

The main task of technical committees is to prepare International Standards. Draft International

Standards adopted by the technical committees are circulated to the member bodies for voting.

Publication as an International Standard requires approval by at least 75 % of the member bodies

casting a vote.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights.

ISO 20471 was prepared by Technical Committee ISO/TC 94, Personal safety — Protective clothing and

equipment, Subcommittee SC 13, Protective clothing.
This corrected version of ISO 20471:2013 incorporates the following correction:

— in the fourth paragraph of subclause 4.1 the requirement concerning the sleeves of a class 3 garment

has been corrected.
iv © ISO 2013 – All rights reserved
---------------------- Page: 10 ----------------------
SIST EN ISO 20471:2013
ISO 20471:2013(E)
Introduction

The performance of the conspicuity-enhancing materials to be used for high risk-related visibility clothing

is specified photometrically together with minimum areas and placement (design) requirements.

Conspicuity is the property that makes an object readily attract visual attention. This is a particularly

important feature in complex environments which have visually competing objects. Conspicuity

is determined by an object’s luminance contrast, colour contrast, pattern and design, and motion

characteristics relative to the ambient background against which it is seen.

Three classes of garment are defined based on three different minimum areas of retroreflective,

fluorescent and/or combined performance materials. Each of these classes will provide a different

level of conspicuity, class 3 being the class that provides the highest degree of conspicuity against most

backgrounds found in urban and rural situations in daylight and in night time. Users should select

the required class of performance based on a risk assessment of the location/situation in which the

protection afforded by clothing to this International Standard is required.

This International Standard contains requirements relating to risk assessment and risk analysis of

high visibility garments. Possible designs illustrating the placement of retroreflective materials are

included within the standard. Ergonomic factors such as fit/sizing, comfort, and range of motion of the

wearer should be considered when selecting the most appropriate configuration of retroreflective and

fluorescent materials within the garment.

Selection and use of high visibility clothing can vary among user countries and may be subject to local

regulations. This International Standard contains requirements relating to risk assessment of the

condition in which the high visibility clothing is to be used. This will involve consideration of the factors

which may affect an observer’s ability to detect that a person is present. The observer needs both to

perceive and to recognize the wearer and then needs to be able to take appropriate avoidance action.

The wearing of a conspicuity-enhancing high visibility garment does not guarantee that the wearer will

be visible under all conditions.

The minimum requirements given within this International Standard are determined by the specific

test methods and their assigned measuring values. The tests are partly performed on new materials

and partly on preconditioned materials. By preconditioning (e.g. folding of retroreflective material) a

load of the materials is simulated. However, it should be noted that laboratory testing may not represent

real life conditions. The conspicuity performance of a garment will depend on usage (e.g. dirt, solar

irradiation), care (e.g. cleaning agent, repair), storage (e.g. dust-free, lightproof), etc.

© ISO 2013 – All rights reserved v
---------------------- Page: 11 ----------------------
SIST EN ISO 20471:2013
---------------------- Page: 12 ----------------------
SIST EN ISO 20471:2013
INTERNATIONAL STANDARD ISO 20471:2013(E)
High visibility clothing — Test methods and requirements
1 Scope

This International Standard specifies requirements for high visibility clothing which is capable of

visually signalling the user’s presence. The high visibility clothing is intended to provide conspicuity of

the wearer in any light condition when viewed by operators of vehicles or other mechanized equipment

during daylight conditions and under illumination of headlights in the dark. For further information

concerning risk situations, see Annex A.

This International Standard is not applicable to medium-risk and low-risk situations.

Performance requirements are included for colour and retroreflection as well as for the minimum areas

and for the placement of the materials in protective clothing.
2 Normative references

The following referenced documents are indispensable for the application of this document. For dated

references, only the edition cited applies. For undated references, the latest edition of the referenced

document (including any amendments) applies.

ISO 105-A02, Textiles — Tests for colour fastness — Part A02: Grey scale for assessing change in colour

ISO 105-A03, Textiles — Tests for colour fastness — Part A03: Grey scale for assessing staining

ISO 105-B02:1994, Textiles — Tests for colour fastness — Part B02: Colour fastness to artificial light: Xenon

arc fading lamp test

ISO 105-C06, Textiles — Tests for colour fastness — Part C06: Colour fastness to domestic and

commercial laundering

ISO 105-D01, Textiles — Tests for colour fastness — Part D01: Colour fastness to drycleaning using

perchloroethylene solvent

ISO 105-E04, Textiles — Tests for colour fastness — Part E04: Colour fastness to perspiration — Part E04:

Colour fastness to perspiration

ISO 105-N01, Textiles — Tests for colour fastness — Part N01: Colour fastness to bleaching: Hypochlorite —

Tests for colour fastness — Part N01: Colour fastness to bleaching: Hypochlorite

ISO 105-X11, Textiles — Tests for colour fastness — Part X11: Colour fastness to hot pressing — Tests for

colour fastness — Part X11: Colour fastness to hot pressing

ISO 105-X12, Textiles — Tests for colour fastness — Part X12: Colour fastness to rubbing

ISO 1421:1998, Rubber- or plastics-coated fabrics — Determination of tensile strength and elongation at break

ISO 4674-1:2003, Rubber- or plastics-coated fabrics — Determination of tear resistance — Part 1: Constant

rate of tear methods
ISO 4675, Rubber- or plastics-coated fabrics — Low-temperature bend test

ISO 7854:1995, Rubber- or plastics-coated fabrics — Determination of resistance to damage by flexing

ISO 11092, Textiles — Physiological effects — Measurement of thermal and water-vapour resistance under

steady-state conditions (sweating guarded-hotplate test)
© ISO 2013 – All rights reserved 1
---------------------- Page: 13 ----------------------
SIST EN ISO 20471:2013
ISO 20471:2013(E)

ISO 12947-2, Textiles — Determination of the abrasion resistance of fabrics by the Martindale method —

Part 2: Determination of specimen breakdown
ISO 13688:1998, Protective clothing — General requirements

ISO 13934-1, Textiles — Tensile properties of fabrics — Part 1: Determination of maximum force and

elongation at maximum force using the strip method
ISO 13938 (all parts), Textiles — Bursting properties of fabrics
EN 343, Protective clothing — Protection against rain
CIE 15, Colorimetry
CIE 54.2, Retroreflection — Definition and measurement
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
high visibility clothing

warning clothing intended to provide improved conspicuity in situations where the risk of not being

seen is high
3.2
fluorescent material

material that emits electromagnetic radiation at visible wavelengths longer than those absorbed

3.3
background material

coloured fluorescent material intended to be highly conspicuous, but not intended to comply with the

requirements of this International Standard for retroreflective material
3.4
retroreflective material

material which is a retroreflector but which is not intended to comply with the requirements of this

International Standard for background material
3.5
separate-performance material

material intended to exhibit either background or retroreflective properties but not both

3.6
combined-performance material
material intended to exhibit both background and retroreflective properties
3.7
orientation-sensitive material

material having coefficients of retroreflection that differ by more than 15 % when measured at the two

rotation angles ε = 0° and ε = 90°
1 2
3.8
torso

thorax and abdomen or section of the body to which the limbs, head and neck are attached

3.9
long sleeve
(1/1 arm)
part of a garment that is completely covering the arm
2 © ISO 2013 – All rights reserved
---------------------- Page: 14 ----------------------
SIST EN ISO 20471:2013
ISO 20471:2013(E)
3.10
road
traffic-related area with moving vehicles
EXAMPLE Cycling path, harbour, airport, railway track and car park.
3.11
active road user

person on the road, participating in the traffic and with the attention on the traffic

Note 1 to entry: e.g. cyclist using the road and pedestrian using the road.
3.12
passive road user

person on the road, not participating in vehicular traffic and with attention focused on something

other than traffic
EXAMPLE Road worker, person in emergency situation.
3.13
outer shell
outermost material of which the warning clothing is made
4 Design
4.1 Types and classes

High visibility clothing is grouped into three classes related to risk assessment. Each class shall have

minimum areas of high visibility materials incorporated in the garment in accordance with Table 1. Garments

shall comprise the required areas of background material and retroreflective material or alternatively

shall comprise the required area of combined performance material. The area shall be measured on the

smallest garment size available with all fasteners adjusted to the smallest configuration possible.

The garment shall be made up of high visibility material on all sides. To ensure visibility from all sides

(360° visibility), it is important that horizontal retroreflective bands and fluorescent materials encircle

torso, trouser legs and sleeves.

The performance class can be obtained using a single garment or a clothing ensemble, e.g. jacket and

trousers. An assembly, e.g. a classified trouser and a classified jacket, can be classified as a higher class

if the assembly meets the minimum requirement achieved by the actually visible area when wearing

the garment. This higher class shall be additionally specified in both the information for use and on the

labels of both garments (see Clause 8).

Regardless of the area of materials used, a class 3 garment shall cover the torso and shall have as a

minimum either sleeves with retroreflective bands or full length trouser legs with retroreflective

bands, if not both.
Table 1 — Minimum required areas of visible material in m
Material Class 3 garments Class 2 garments Class 1 garments
Background material 0,80 0,50 0,14
Retroreflective material 0,20 0,13 0,10
Combined performance material n. a. n. a. 0,20
NOTE The clothing class is determined by the lowest area of visible material.

The minimum visible area requirements to achieve a garment classification in Table 1 are not to be

reduced or compromised due to the presence of any logos, lettering, labels etc.
© ISO 2013 – All rights reserved 3
---------------------- Page: 15 ----------------------
SIST EN ISO 20471:2013
ISO 20471:2013(E)

At least (50 ± 10) % of the minimum area of visible background material shall be on the front part of

the garment. Only those areas of retroreflective materials that comply with the design requirements of

4.2 shall be used in the assessment of the minimum required area of retroreflective areas. When using

two or more background materials, the total area usable regardless of colour shall be measured. The

garment is to be measured flat on the table including torso, arms and legs.
NOTE For additional information on high visibility garment design, see Annex D.
4.2 Specific design requirements
4.2.1 Garments covering only the torso

The background material shall encircle the torso and shall maintain a minimum width (height) of 50 mm.

Interruptions of background material by retroreflective stripes are not counted. Bands of retroreflective

material shall be at least 50 mm wide.

Garments only covering the torso shall have one or more bands of retroreflective material encircling

the torso with a maximum inclination of ± 20° to the horizontal and bands of retroreflective material

joining the torso band from the front to the back over each shoulder. The bottom of the lowest torso

band shall be at least 50 mm above the bottom edge. If more than one horizontal band is applied the

horizontal bands shall be at least 50 mm apart.

Alternatively, garments covering only the torso shall have two bands of retroreflective material at least

50 mm apart and encircling the torso with a maximum inclination of ± 20° to the horizontal. The bottom

of the lowest torso band shall be at least 50 mm above the bottom edge.

Tabards shall be constructed so that a person of the size for which they are designed can wear the

tabard so that any gaps at the sides shall not be greater than 50 mm horizontally.

Any gap (for fastening systems and seams) in the lengthwise continuity of each band of retroreflective or

combined performance material shall not be greater than 50 mm, measured parallel to the direction of

the band, and the total of such gaps shall not be greater than 100 mm in any one band around the torso.

Examples of garments covering only the torso are given in Figure 1.
4 © ISO 2013 – All rights reserved
---------------------- Page: 16 ----------------------
SIST EN ISO 20471:2013
ISO 20471:2013(E)
Dimensions in millimetres
Figure 1 — Examples of garments covering only the torso
NOTE Examples of garments covering only the torso are vests and tabards.
4.2.2 Garments covering torso and arms

The background material shall encircle the torso and the sleeves and shall maintain a minimum width

(height) of 50 mm. Interruptions by retroreflective stripes are not counted. Bands of retroreflective

material shall be at least 50 mm wide.

Garments covering the torso and arms shall have one or more bands of retroreflective ma

...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
