Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 20: Specific conditions for Mobile Earth Stations (MES) used in the Mobile Satellite Services (MSS)

Revision to EN 301 489-XX( All parts), in order to remove editorial inconsistencies between specific parts of the multi-part EMC standard and between the specific parts and the general part 1

Elektromagnetna združljivost (EMC) in zadeve v zvezi z radijskim spektrom (ERM) - Standard elektromagnetne združljivosti (EMC) za radijsko opremo in storitve - 20. del: Posebni pogoji za mobilne zemeljske postaje (MES) v okviru mobilnih satelitskih storitev (MSS)

General Information

Status
Published
Publication Date
28-Feb-2003
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
01-Mar-2003
Due Date
01-Mar-2003
Completion Date
01-Mar-2003
Mandate

Buy Standard

Standard
SIST EN 301 489-20 V1.2.1:2003
English language
16 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Elektromagnetna združljivost (EMC) in zadeve v zvezi z radijskim spektrom (ERM) - Standard elektromagnetne združljivosti (EMC) za radijsko opremo in storitve - 20. del: Posebni pogoji za mobilne zemeljske postaje (MES) v okviru mobilnih satelitskih storitev (MSS)Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 20: Specific conditions for Mobile Earth Stations (MES) used in the Mobile Satellite Services (MSS)33.100.01Elektromagnetna združljivost na splošnoElectromagnetic compatibility in general33.070.40SatelitSatellite33.060.01Radijske komunikacije na splošnoRadiocommunications in generalICS:Ta slovenski standard je istoveten z:EN 301 489-20 Version 1.2.1SIST EN 301 489-20 V1.2.1:2003en01-marec-2003SIST EN 301 489-20 V1.2.1:2003SLOVENSKI

STANDARD
SIST EN 301 489-20 V1.2.1:2003

ETSI EN 301 489-20 V1.2.1 (2002-11)Candidate Harmonized European Standard (Telecommunications series) Electromagnetic compatibilityand Radio spectrum Matters (ERM);ElectroMagnetic Compatibility (EMC) standardfor radio equipment and services;Part 20: Specific conditions for Mobile Earth Stations (MES)used in the Mobile Satellite Services (MSS)

SIST EN 301 489-20 V1.2.1:2003

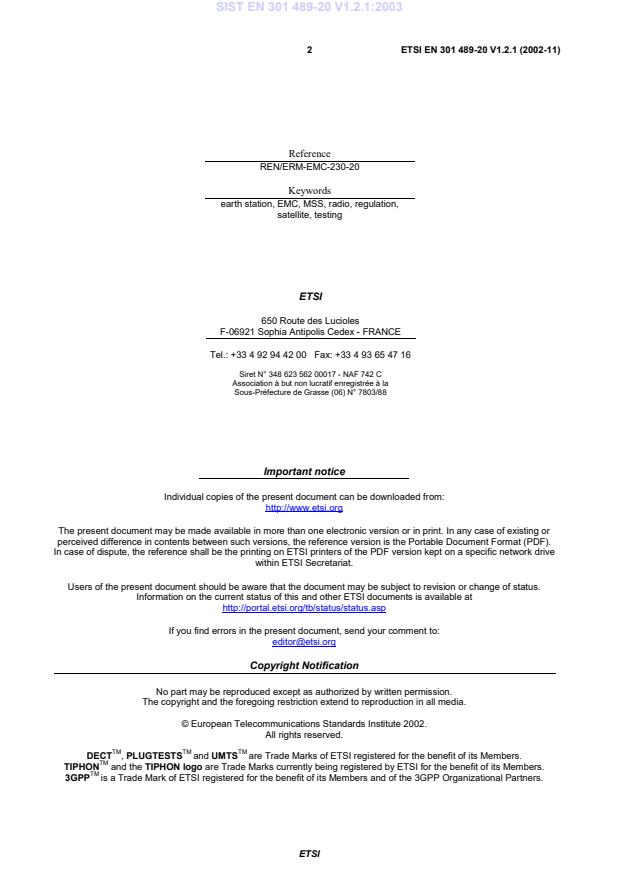

ETSI ETSI EN 301 489-20 V1.2.1 (2002-11) 2

Reference REN/ERM-EMC-230-20 Keywords earth station, EMC, MSS, radio, regulation, satellite, testing ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16

Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88

Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, send your comment to: editor@etsi.org Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2002. All rights reserved.

DECTTM, PLUGTESTSTM and UMTSTM are Trade Marks of ETSI registered for the benefit of its Members. TIPHONTM and the TIPHON logo are Trade Marks currently being registered by ETSI for the benefit of its Members. 3GPPTM is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. SIST EN 301 489-20 V1.2.1:2003

ETSI ETSI EN 301 489-20 V1.2.1 (2002-11) 3

Contents Intellectual Property Rights................................................................................................................................4 Foreword.............................................................................................................................................................4 1 Scope........................................................................................................................................................5 2 References................................................................................................................................................5 3 Definitions and abbreviations...................................................................................................................6 3.1 Definitions..........................................................................................................................................................6 3.2 Abbreviations.....................................................................................................................................................6 4 Test conditions.........................................................................................................................................7 4.1 General...............................................................................................................................................................7 4.2 Arrangements for test signals.............................................................................................................................7 4.2.1 Arrangements for test signals at the input of transmitters.............................................................................8 4.2.2 Arrangements for test signals at the output of transmitters...........................................................................8 4.2.3 Arrangements for test signals at the input of receivers.................................................................................9 4.2.4 Arrangements for test signals at the output of receivers...............................................................................9 4.2.5 Arrangements for testing transmitter and receiver together (as a system)....................................................9 4.3 Exclusion bands..................................................................................................................................................9 4.3.1 Transmitter exclusion band...........................................................................................................................9 4.3.2 Receiver exclusion band...............................................................................................................................9 4.4 Narrow band responses of receivers...................................................................................................................9 5 Performance assessment.........................................................................................................................10 5.1 General.............................................................................................................................................................10 5.2 MES connected to host equipment...................................................................................................................10 5.2.1 Alternative A: combined equipment...........................................................................................................10 5.2.2 Alternative B: use of a test jig.....................................................................................................................10 5.3 Ancillary equipment.........................................................................................................................................10 5.4 Equipment classification..................................................................................................................................11 6 Performance criteria...............................................................................................................................11 6.1 General.............................................................................................................................................................11 6.2 Performance criteria for Continuous Phenomena (CP)....................................................................................11 6.3 Performance criteria for Transient Phenomena (TP)........................................................................................12 7 Applicability overview...........................................................................................................................12 7.1 Emission...........................................................................................................................................................12 7.1.1 General........................................................................................................................................................12 7.1.2 Special conditions.......................................................................................................................................12 7.2 Immunity..........................................................................................................................................................12 7.2.1 General........................................................................................................................................................12 7.2.2 Special conditions.......................................................................................................................................12 Annex A (normative): Definitions of MESs within the scope of the present document.................13 A.1 MESs operating within 1,6 GHz/2,4 GHz band.....................................................................................13 A.2 MESs operating within the 1,5 GHz/1,6 GHz........................................................................................13 A.3 MESs operating within 2,0 GHz band....................................................................................................13 A.4 MESs operating below 1 GHz................................................................................................................14 A.5 MESs operating in the 11 GHz/12 GHz/14 GHz frequency bands........................................................14 Annex B (informative): Bibliography...................................................................................................15 History..............................................................................................................................................................16

SIST EN 301 489-20 V1.2.1:2003
ETSI ETSI EN 301 489-20 V1.2.1 (2002-11) 4

Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://webapp.etsi.org/IPR/home.asp). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This Candidate Harmonized European Standard (Telecommunications series) has been produced by ETSI Technical Committee Electromagnetic compatibility and Radio spectrum Matters (ERM). The present document has been produced by ETSI in response to a mandate from the European Commission issued under Council Directive 98/34/EC (as amended) laying down a procedure for the provision of information in the field of technical standards and regulations. The present document is intended to become a Harmonized Standard, the reference of which will be published in the Official Journal of the European Communities referencing the Council Directive on the approximation of the laws of the Member States relating to electromagnetic compatibility ("the EMC Directive") (89/336/EEC [3] as amended) and Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity ("the R&TTE Directive" [2]). The present document is part 20 of a multi-part deliverable. Full details of the entire series can be found in part 1 [1].

National transposition dates Date of adoption of this EN: 8 November 2002 Date of latest announcement of this EN (doa): 28 February 2003 Date of latest publication of new National Standard or endorsement of this EN (dop/e):

31 August 2003 Date of withdrawal of any conflicting National Standard (dow): 28 February 2006

SIST EN 301 489-20 V1.2.1:2003
ETSI ETSI EN 301 489-20 V1.2.1 (2002-11) 5

1 Scope The present document, together with EN 301 489-1 [1], covers the assessment of Mobile Earth Stations (MES) as defined in annex A used within Satellite radio services, and ancillary equipment in respect of ElectroMagnetic Compatibility (EMC). Technical specifications related to the antenna port and emissions from the enclosure port of the equipment are not included in the present document. Such technical specifications are found in the relevant product standards for the effective use of the radio spectrum. The present document specifies the applicable test conditions, performance assessment and performance criteria for MESs and for the associated ancillary equipment. In case of differences (for instance concerning special conditions, definitions, abbreviations) between the present document and EN 301 489-1 [1], the provisions of the present document take precedence. The environmental classification and the emission and immunity requirements used in the present document are as stated in EN 301 489-1 [1], except for any special conditions included in the present document. The applicable environment(s) referred to in EN 301 489-1 [1] where the MES may be used, shall be declared by the manufacturer. For a multimode radio station, the present document only applies to the radio station when operated in the Mobile Satellite Service mode. 2 References The following documents contain provisions which, through reference in this text, constitute provisions of the present document. • References are either specific (identified by date of publication and/or edition number or version number) or non-specific. • For a specific reference, subsequent revisions do not apply. • For a non-specific reference, the latest version applies. [1] ETSI EN 301 489-1: "Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements". [2] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity (R&TTE Directive). [3] Council Directive 89/336/EEC of 3 May 1989 on the approximation of the laws of the Member States relating to electromagnetic compatibility (EMC Directive). [4] ITU-R Radio Regulations (1998). [5] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a procedure for the provision of information in the field of technical standards and regulations. SIST EN 301 489-20 V1.2.1:2003

ETSI ETSI EN 301 489-20 V1.2.1 (2002-11) 6

3 Definitions and abbreviations 3.1 Definitions For the purposes of the present document, the terms and definitions given in EN 301 489-1 [1], clause 3, and the following apply: carrier-on state (allocated a channel): state of an MES when it is transmitting a signal in a continuous or a non-continuous mode carrier-off state (idle mode): state of an MES when it is powered-on but not transmitting a signal, i.e. not in a carrier-on state host equipment: any equipment which has complete user functionality when not connected to the MES, and to which connection is necessary for the MES to offer additional functionality Installable Equipment (IE), Internally Mounted Equipment (IME) and Externally Mounted Equipment (EME): Installable Equipment (IE) is an equipment which is intended to be installed in a vehicle. An IE may consist of one or several modules. The IE is composed of modules intended to be externally mounted and declared by the manufacturer as Externally Mounted Equipment (EME). The remaining module(s) are defined as Internally Mounted Equipment (IME) multimode MES: equipment that accommodates radio stations of different radio systems occupied bandwidth: See ITU-R Radio Regulations [4], part A, chapter 1, Terminology RR 147. Portable Equipment (PE): is generally intended to be self-contained, free standing and portable NOTE 1: A PE would normally consist of a single module, but may consist of several interconnected modules. NOTE 2: More than one of the equipment classifications can apply to certain equipment, as described in clause 5.4, dependent upon the manufacturer's declaration of normal intended use. transmission disabled state: state of an MES when it is not authorized to transmit by the Network Control Facilities (NCF) 3.2 Abbreviations For the purposes of the present document, the following abbreviations apply: BER Bit Error Ratio CP performance criteria for Continuous Phenomena EMC ElectroMagnetic Compatibility EME Externally Mounted Equipment EUT Equipment Under Test F-MES Fixed MES IE Installable Equipment IME Internally Mounted Equipment LBRDC Low Bit Rate Data Communication LEO Low Earth Orbit MES Mobile Earth Station MSS Mobile Satellite Service NCF Network Control Facilities PE Portable Equipment PEP Peak Envelope Power P-MES Portable MES QTMA Quality of Transmission Measurement Apparatus RF Radio Frequency S-PCN Satellite Personal Communications Network STE Special Test Equipment SIST EN 301 489-20 V1.2.1:2003

ETSI ETSI EN 301 489-20 V1.2.1 (2002-11) 7

TP performance criteria for Transient Phenomena V-MES Vehicle mounted MES 4 Test conditions For the purposes of the present document, the test conditions of EN 301 489-1 [1], clause 4, shall apply as appropriate. Further product related test conditions for MES are specified in the present document. 4.1 General For MESs with ancillary equipment and/or various ports, the number of test configurations shall be determined. The assessment shall include sufficient representative configurations of the MES to adequately exercise the equipment. These configurations shall be re

...
