SIST EN 12375:2009

Packaging - Flexible aluminium tubes - Wall thickness determination method

This standard specifies a method of determination of the thickness of the tube body material of aluminium tubes. It is applicable to tubes used for packing pharmaceutical, cosmetic, hygiene, food and other domestic and industrial products.

Packmittel - Aluminiumtuben - Bestimmung der Manteldicke

Diese Norm legt ein Verfahren zur Bestimmung der Manteldicke von Aluminiumtuben fest. Sie gilt für Tuben
zum Verpacken von Produkten der Pharmazie, der Kosmetik, der Hygiene sowie von Lebensmitteln und
anderen Haushalts- und Industrieprodukten.

Emballage - Tubes souples en aluminium - Méthode de détermination de l'épaisseur de paroi

La présente norme spécifie une méthode de détermination de l’épaisseur du matériau dans lequel est fabriqué le corps du tube en aluminium. Elle s’applique aux tubes utilisés pour le conditionnement de produits pharmaceutiques, produits cosmétiques, produits d’hygiène, ainsi que de produits alimentaires et d’autres produits domestiques et industriels.

Embalaža - Prožne aluminijaste tube - Metoda za določevanje debeline stene

General Information

• Status: Published
• Public Enquiry End Date: 14-Aug-2007
• Publication Date: 12-Oct-2009
• ICS: 55.120 - Cans. Tins. Tubes
• ICS: 77.150.10 - Aluminium products
• Technical Committee: EPO - Packaging - sales and grouped
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 12-Oct-2009
• Due Date: 17-Dec-2009
• Completion Date: 13-Oct-2009
• Directive: 2008/68/EC - Directve 2008/68/EC of the European Parliament and of the council of 24 September 2008 on the inland transport of the dangerous goods
• Directive: 94/55/EC - Transport of dangerous goods by road
• Directive: 96/49/EC - Transport of dangerous goods by rail
• Mandate: M/086 - Mandate to CEN for standardization in the field of transport of dangerous goods
• Ref Project: EN 12375:2009 - Packaging - Flexible aluminium tubes - Wall thickness determination method

Relations

• Replaces: SIST EN 12375:2000 - Packaging - Flexible aluminium tubes - Wall thickness determination method
• Effective Date: 01-Nov-2009

Overview

EN 12375:2009 - Packaging: Flexible aluminium tubes - Wall thickness determination method - is a CEN standard that specifies a repeatable laboratory procedure to determine the wall thickness of the tube body material of flexible aluminium tubes. It applies to tubes used for packaging pharmaceutical, cosmetic, hygiene, food and other domestic and industrial products. The method is intended for quality control, compliance verification and batch acceptance testing.

Key Topics and Requirements

• Principle: Thickness measurement on prepared, flattened samples using a micrometer or comparable measuring device.
• Required apparatus:
  • Micrometer (e.g., one flat and one spherical face) with accuracy to 0.001 mm.
  • Scissors for cutting tube bodies.
  • Smooth plastic cylinder for flattening.
  • Solvent capable of removing external enamel (internal lacquer is ignored).
• Sample preparation:
  • Cut the tube body lengthwise and remove shoulders.
  • Dissolve and remove any external enamel; internal lacquer may remain.
  • Flatten the cleaned tube body against a flat hard surface using the plastic cylinder.
• Measurement procedure:
  • Measure wall thickness approximately 10 mm from the tube end.
  • Take measurements at three points evenly distributed around the circumference.
  • Establish the reported thickness as the mean of at least three measurement points per sample.
  • Report thickness with an accuracy of 0.01 mm.
• Test report content (minimum):
  • Reference to EN 12375:2009 and any sampling/acceptance specification.
  • Batch/tube identification and material type.
  • Test temperature and instrument identification.
  • Measurement results, positions and number of measurements.
  • Number of results outside limits defined in EN 13046 / EN 13047.
  • Acceptance/refusal decision, influencing factors, date, place and tester name.

Applications

• Quality assurance and incoming inspection for aluminium tube manufacturers.
• Batch acceptance testing for converters and fillers in pharmaceutical, cosmetic and food industries.
• Regulatory and conformity checks where wall thickness affects performance (e.g., barrier properties, filling and sealing).
• R&D and process control when validating tube drawing, lacquering and finishing processes.

Who should use this standard

• Packaging engineers and designers
• Quality control and laboratory technicians in tube manufacturing
• Regulatory compliance and procurement teams in pharma, cosmetics, food and hygiene sectors
• Test laboratories performing material and dimensional verification

Related Standards

• EN 13046 - Flexible cylindrical metallic tubes - Dimensions and tolerances
• EN 13047 - Flexible conical metallic tubes - Dimensions and tolerances
• Note: EN 12375:2009 supersedes EN 12375:1998 and is based on ETMA (European Tube Manufacturers Association) recommendations.

Keywords: EN 12375:2009, flexible aluminium tubes, wall thickness determination, aluminium tube wall thickness, micrometer measurement, packaging standard, pharmaceutical packaging, cosmetic tubes, EN 13046, EN 13047.

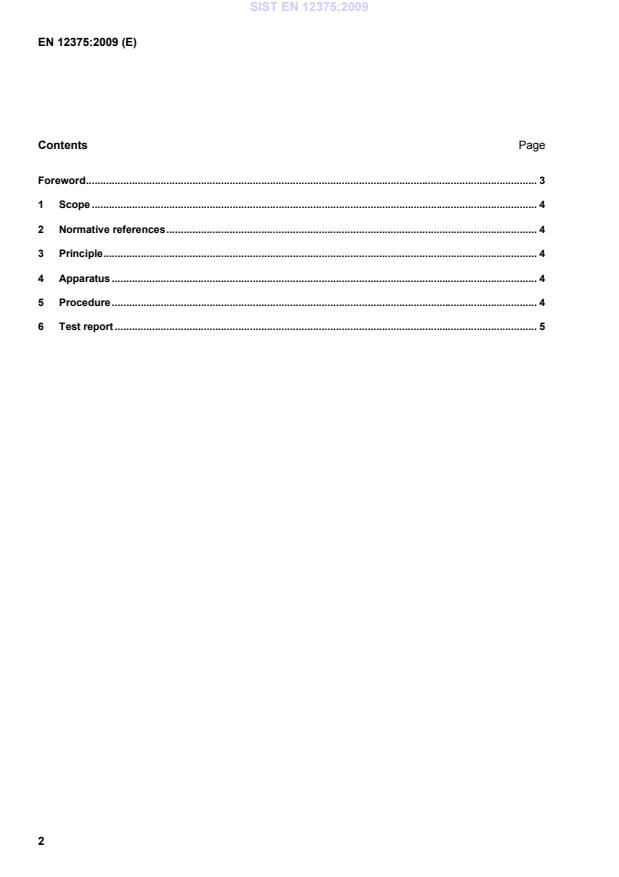

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Packmittel - Aluminiumtuben - Bestimmung der ManteldickeEmballage - Tubes souples en aluminium - Méthode de détermination de l'épaisseur de paroiPackaging - Flexible aluminium tubes - Wall thickness determination method77.150.10Aluminijski izdelkiAluminium products55.120Cans. Tins. TubesICS:Ta slovenski standard je istoveten z:EN 12375:2009SIST EN 12375:2009en,fr,de01-november-2009SIST EN 12375:2009SLOVENSKI
STANDARDSIST EN 12375:20001DGRPHãþD

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 12375April 2009ICS 55.120Supersedes EN 12375:1998
English VersionPackaging - Flexible aluminium tubes - Wall thicknessdetermination methodEmballage - Tubes souples en aluminium - Méthode dedétermination de l'épaisseur de paroiPackmittel - Aluminiumtuben - Bestimmung derManteldickeThis European Standard was approved by CEN on 19 March 2009.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre:
Avenue Marnix 17,
B-1000 Brussels© 2009 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 12375:2009: ESIST EN 12375:2009
...
