SIST EN 1533:2011

Wood and parquet flooring - Determination of bending strength under static load - Test methods

This European Standard specifies methods of determining the bending strength of wood and parquet flooring under static loads: a method with a static line load and a method with a static point load.
The methods apply to wood and parquet flooring installed on a non-continuous support and thus assuming static load-bearing conditions.

Parkett und Holzfußböden - Bestimmung der Biegefestigkeit unter statischer Beanspruchung - Prüfmethoden

Diese Europäische Norm legt Verfahren fest, mit denen die Biegefestigkeit von Holzfußböden unter statischen Belastungen bestimmt wird: ein Verfahren mit einer statischen linearen Kraft und ein Verfahren mit einer statischen Einzelkraft.
Die Verfahren werden bei Holzfußböden angewendet, die auf einer nicht durchgehenden Unterlage an-gebracht sind und folglich tragende Funktion haben.

Parquets et planchers en bois - Détermination de la flexion sous charges statiques - Méthodes d'essais

La présente norme européenne définit des méthodes de détermination des propriétés de flexion des parquets et planchers en bois : une méthode avec une charge linéaire statique et une méthode avec une charge ponctuelle statique.
Les méthodes s’appliquent aux planchers en bois mis en oeuvre sur un support discontinu et par conséquent travaillant sous charge statique.

Lesene in parketne talne obloge - Ugotavljanje upogibnih lastnosti pri statičnih obremenitvah - Preskusne metode

Ta mednarodni standard določa metodi ugotavljanja upogibnih lastnosti lesenih talnih oblog pri statičnih obremenitvah: metodo s statično linijsko obremenitvijo in metodo s statično točkovno obremenitvijo. Metodi veljata za lesene talne obloge, nameščene na prekinjeno podporo, s čimer se predvidijo pogoji statične nosilnosti.

General Information

• Status: Published
• Public Enquiry End Date: 29-Jan-2009
• Publication Date: 15-Dec-2010
• ICS: 79.080 - Semi-manufactures of timber
• ICS: 97.150 - Floor coverings
• Technical Committee: LLZ - Les, lesni izdelki in zaščita lesa
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 16-Sep-2010
• Due Date: 21-Nov-2010
• Completion Date: 16-Dec-2010
• Ref Project: EN 1533:2010 - Wood flooring - Determination of bending strength under static load - Test methods

Relations

• Replaces: SIST EN 1533:2003 - Wood and parquet flooring - Determination of bending properties - Test methods
• Effective Date: 01-Jan-2011

Overview

EN 1533:2010 (CEN) defines standardized test methods for determining bending strength of wood and parquet flooring under static loads. It covers two laboratory procedures - a static line load and a static point load - applied to floor assemblies installed on a non‑continuous support (battens or joists) and assuming static load‑bearing conditions. The standard is intended for reproducible measurement of maximum load leading to failure and for reporting bending strength results.

Key topics and technical requirements

• Test scope: Applies to wood and parquet flooring assembled into test assemblies (typically four elements) fixed to battens or joists.
• Loading methods:
  • Static line load: steel loading head with a rounded contact radius of (15 ± 0.05) mm; axis parallel to support.
  • Static point load: steel loading head with (50 × 50) mm square contact face, edges rounded/bevelled; axis perpendicular to specimen.
• Measurement accuracy:
  • Dimensional instruments: ±1 mm for lengths/spans; ±0.5 mm for widths/thicknesses.
  • Load measurement: accuracy of ±1 %.
• Support and assembly:
  • Rigid support table with adjustable span; support deflection under test < 0.1 mm.
  • Battens: timber density ≥ 400 kg/m³, width (45 ± 1) mm, depth ≥ 45 mm.
  • Assemblies may have ends supported or unsupported by battens, per clause details.
• Conditioning: Two climate options - Climate A (65 ± 5 % RH, 20 ± 2 °C) or Climate B (50 ± 5 % RH, 23 ± 2 °C).
• Test procedure:
  • Alignment tolerances: loading head positioned within ±1 mm of mid‑span/mid‑width as required.
  • Loading rate chosen so failure occurs in (300 ± 120) s.
  • Record Fmax (maximum load) to 1 % accuracy and describe failure mode.
• Results & statistics:
  • Compute mean, standard deviation and characteristic values (5th or 95th percentile) using Student t coefficients.
  • Express results to three significant figures.
• Test report: Specifies required report items (laboratory, sample ID, conditioning, assembly description, dates, results, failure mode, etc.).

Applications and users

• Flooring manufacturers validating product bending strength and durability.
• Independent testing laboratories performing conformity or performance tests.
• Product engineers and R&D teams developing parquet and engineered wood flooring.
• Specifiers, architects and structural engineers requiring verified strength data for design decisions.
• Quality assurance and compliance professionals preparing technical documentation for markets that adopt CEN standards.

Related standards

• EN 13756:2002 - terminology for wood flooring (normative reference).
• EN 1991‑1‑1 - referenced for loading head definition (informative note).
• EN 1533:2010 supersedes EN 1533:2000 (updated apparatus, procedures and reporting).

Keywords: EN 1533:2010, wood flooring bending strength test, static line load, static point load, parquet flooring test methods, CEN standard, flooring test assembly.

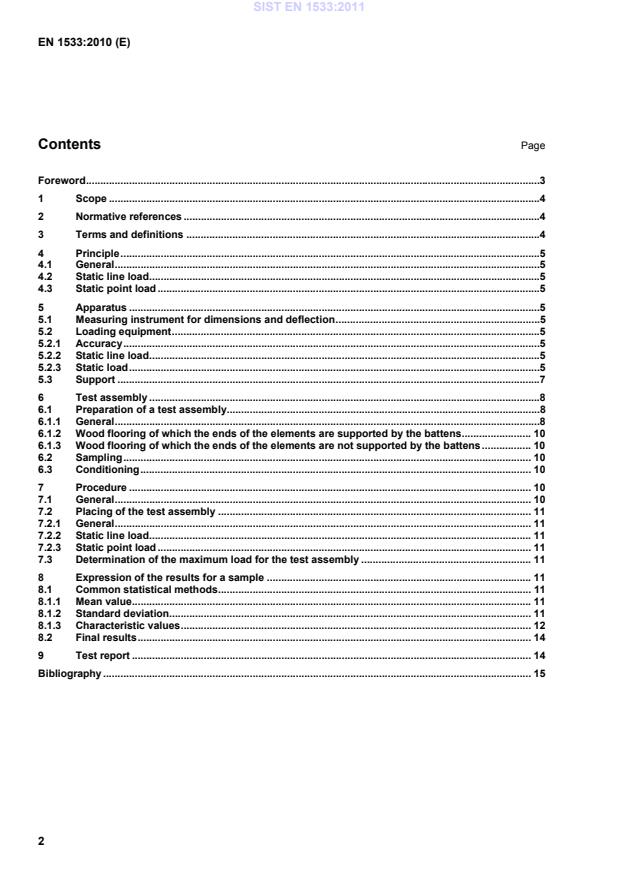

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Parkett und Holzfußböden - Bestimmung der Biegefestigkeit unter statischer Beanspruchung - PrüfmethodenParquets et planchers en bois - Détermination de la flexion sous charges statiques - Méthodes d'essaisWood and parquet flooring - Determination of bending strength under static load - Test methods97.150Netekstilne talne oblogeNon-textile floor coverings79.080Polizdelki iz lesaSemi-manufactures of timberICS:Ta slovenski standard je istoveten z:EN 1533:2010SIST EN 1533:2011en,fr,de01-februar-2011SIST EN 1533:2011SLOVENSKI
STANDARDSIST EN 1533:20031DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 1533
August 2010 ICS 79.080 English Version
Wood flooring - Determination of bending strength under static load - Test methods
Planchers en bois - Détermination de la flexion sous charge statique - Méthodes d'essai
Holzfußböden - Bestimmung der Biegefestigkeit unter statischer Beanspruchung - Prüfmethoden This European Standard was approved by CEN on 26 June 2010.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2010 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 1533:2010: ESIST EN 1533:2011
...
