SIST EN 13226:2025
(Main)Wood flooring - Solid parquet elements with grooves and/or tongues
Wood flooring - Solid parquet elements with grooves and/or tongues
This document specifies the characteristics of solid parquet elements with grooves and/or tongues for internal use as flooring. This document is not applicable to panels made from elements for which a separate standard is in course of preparation.
This document covers elements with or without surface treatment.
Holzfußböden - Massivholz-Parkettstäbe mit Nut und/oder Feder
Dieses Dokument legt die Merkmale von Massivholz-Elementen mit Nut und/oder Feder für die Verwendung als Fußbodenbelag in Innenräumen fest. Dieses Dokument betrifft nicht aus Elementen zusammengesetzte Parketttafeln; hierfür ist eine separate Norm in Vorbereitung.
Dieses Dokument gilt für Elemente mit oder ohne Oberflächenbehandlung.
Planchers en bois - Éléments de parquet massif avec rainures et/ou languettes
Le présent document définit les caractéristiques des éléments de parquet massif avec rainures et/ou languettes utilisés en intérieur comme plancher. Le présent document ne s’applique pas aux panneaux constitués d’éléments pour lesquels une norme spécifique est en cours de préparation.
Le présent document couvre les éléments avec ou sans traitement de surface.
Lesene talne obloge - Masivne parketne deščice s peresi in/ali utori
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-februar-2025
Lesene talne obloge - Masivne parketne deščice s peresi in/ali utori
Wood flooring - Solid parquet elements with grooves and/or tongues
Holzfußböden - Massivholz-Parkettstäbe mit Nut und/oder Feder
Planchers en bois - Éléments de parquet massif avec rainures et/ou languettes
Ta slovenski standard je istoveten z: EN 13226:2024
ICS:
79.080 Polizdelki iz lesa Semi-manufactures of timber
97.150 Talne obloge Floor coverings
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

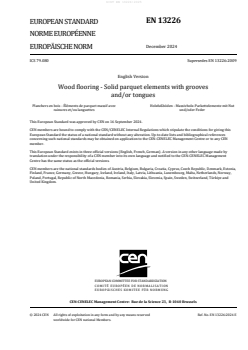

EN 13226
EUROPEAN STANDARD
NORME EUROPÉENNE
December 2024
EUROPÄISCHE NORM
ICS 79.080 Supersedes EN 13226:2009
English Version
Wood flooring - Solid parquet elements with grooves
and/or tongues
Planchers en bois - Éléments de parquet massif avec Holzfußböden - Massivholz-Parkettelemente mit Nut
rainures et/ou languettes und/oder Feder
This European Standard was approved by CEN on 16 September 2024.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13226:2024 E
worldwide for CEN national Members.

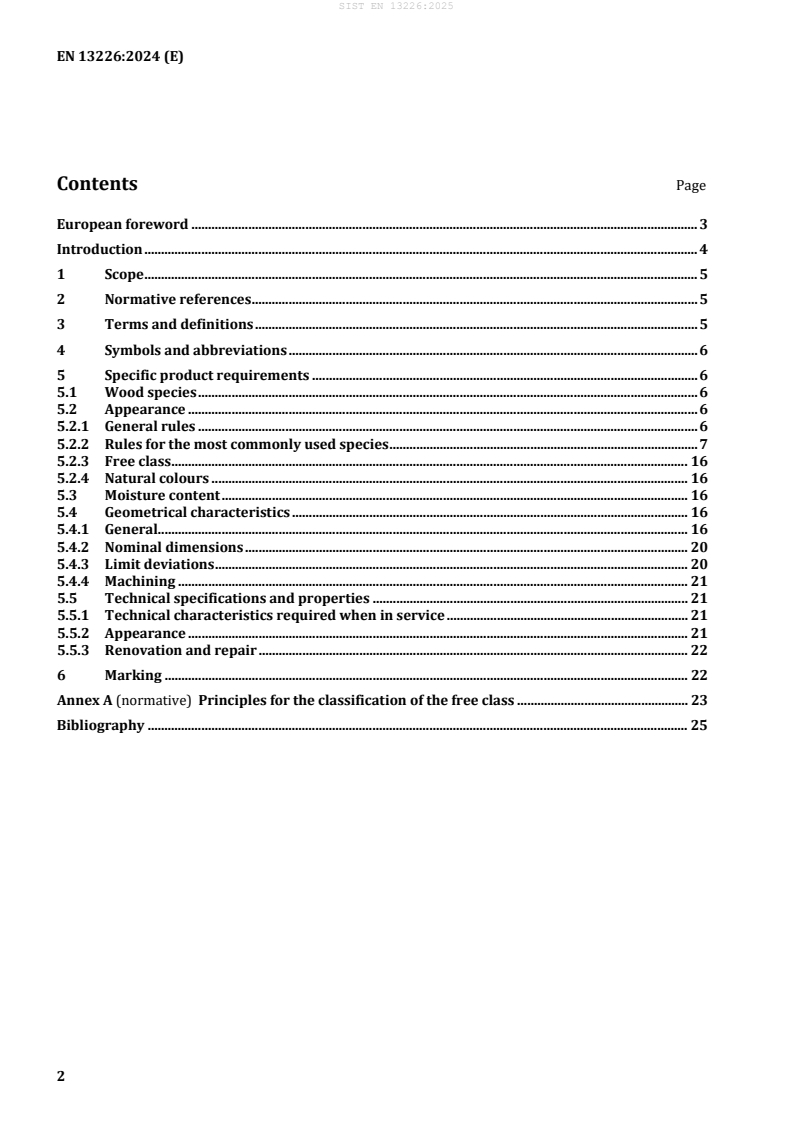

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Symbols and abbreviations . 6
5 Specific product requirements . 6
5.1 Wood species . 6
5.2 Appearance . 6
5.2.1 General rules . 6
5.2.2 Rules for the most commonly used species . 7
5.2.3 Free class . 16
5.2.4 Natural colours . 16
5.3 Moisture content . 16
5.4 Geometrical characteristics . 16
5.4.1 General. 16
5.4.2 Nominal dimensions . 20
5.4.3 Limit deviations . 20
5.4.4 Machining . 21
5.5 Technical specifications and properties . 21
5.5.1 Technical characteristics required when in service . 21
5.5.2 Appearance . 21
5.5.3 Renovation and repair . 22
6 Marking . 22
Annex A (normative) Principles for the classification of the free class . 23
Bibliography . 25
European foreword
This document (EN 13226:2024) has been prepared by Technical Committee CEN/TC 175 “Round and
sawn timber”, the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by June 2025, and conflicting national standards shall be
withdrawn at the latest by June 2025.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 13226:2009.
Compared to EN 13226:2009, the following changes have been made:
— normative references updated;
— replacement of the term “strip” by “element” in Clause 3 “Terms and definitions”;
— Annex A (informative) “Botanical and trade names of the most commonly used species for wood
flooring (hardwood and softwood species)” of wood is deleted and replaced by reference to the
nomenclature standard EN 13556 “Round and sawn timber - Nomenclature of timbers used in
Europe”;
— addition of a general rules appearance (5.2.1.);
— addition of keys for Figure 1;
— editorials modifications.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
Introduction
This document is one of a series of standards concerning wood flooring and wood panelling and cladding.
This document specifies the characteristics of solid parquet elements. It is based upon current
dimensional standards within the industry and other characteristics together with functions which have
been verified by test.
A large amount of knowledge exists about solid parquet elements and values for product characteristics
are attested by long use and experience. It is therefore not necessary to have test results. For new
products, technical data will have to be verified by testing.
The appearance of the parquet is mainly influenced by species, classification and the pattern.
1 Scope
This document specifies the characteristics of solid parquet elements with grooves and/or tongues for
internal use as flooring. This document is applicable to elements of parquet panels.
This document covers elements with or without surface treatment.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 844:2019, Round and sawn timber — Terminology
EN 1309-3:2018, Round and sawn timber — Methods of measurements — Part 3: Features and biological
degradations
EN 1534, Wood flooring and parquet — Determination of resistance to indentation — Test method
EN 13183-1, Moisture content of a piece of sawn timber — Part 1: Determination by oven dry method
EN 13183-2, Moisture content of a piece of sawn timber — Part 2: Estimation by electrical resistance
method
EN 13756:2018, Wood flooring and parquet — Terminology
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 844:2019 and EN 13756:2018
and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp/
— IEC Electropedia: available at https://www.electropedia.org/
3.1
left-handed element
element having the end tongue on the left side when viewed on the face with the side tongue directed
towards the observer
[SOURCE: EN 13756:2018, 4.2.1.7.11]
3.2
right-handed element
element having the end tongue on the right side when viewed on the face with the side tongue directed
towards the observer
[SOURCE: EN 13756:2018, 4.2.1.7.10]
3.3
thickness above the groove
thickness between the face and any discontinuity such as a change in the profile (excluding chamfering),
a groove/glue pocket or a glue line (excluding the glue line of finger-joints)
[SOURCE: EN 13756:2018, 7.17]
4 Symbols and abbreviations
l Length of the face of the element
b Width of the face of the element
b Depth of the groove
b Width of the tongue
b Undercut
t Thickness between the face and the back of the element
t Thickness above the groove
t Width of the groove
t Thickness of the tongue
t Thickness of the part below the tongue
t Depth of optional glue pocket
a Slope of the upper lip
α Arrow tail angle
ß Angle of the under lip
5 Specific product requirements
5.1 Wood species
A list of the most commonly used species for parquet elements are described in EN 13556. For
nomenclature of wood species used in Europe, see EN 13556.
5.2 Appearance
5.2.1 General rules
Tables 1 to 9 define the classification relating to appearance rules for the face and for the non-visible
parts (back and edges) of an element of the most commonly used species for solid wood flooring as
defined in this standard.
Features shall be measured according to EN 1309-3 (knots assessed according to the general method of
5.1 in EN 1309-3:2018) Biodeterioration is measured according to EN 1309-3.
A classification with three appearance classes is specified, designated ○, Δ and ◻.
A classification named “Free class” is based on the principles laid out in Annex A.
1)
The face shall include all the visible surface of the element. It shall therefore extend to the chamfering if
any.
The face shall be free from shake and the wood shall be sound.
1)
The chamfering is visible when elements are assembled.
Any continuous glue joint which allows renovation without significantly changing the appearance or the
functional characteristics is acceptable.
In order to allow unavoidable differences in the sorting classes, 3 % of the elements in adjacent areas
may come from other sorting classes. All additional elements from other sorting classes are permitted as
long as the overall appearance of the floor is not affected.
NOTE To obtain a homogenous appearance of the installed floor the elements are supposed to be sorted before
installation.
5.2.2 Rules for the most commonly used species
5.2.2.1 Quercus spp. (oak)
Rules for oak are given in Table 1.
Table 1 — Classification for Quercus spp. (oak)
Face of the element
Class
Features
○ Δ ◻
Sound sapwood Not permitted Permitted· Permitted
Knots Permitted if: Permitted if:
Sound and intergrown diameter ≤ 8 mm diameter ≤ 10 mm
All features
Unsound knots diameter ≤ 1 mm diameter ≤ 5 mm
permitted
without limit to
Permitted up to 15 mm
Checks Not permitted
size or quantity
in length
if these do not
Bark pockets Not permitted Not permitted
impair the
strength or the
Lightning shake Not permitted
...
