Detail Specification: Rectangular connectors - Flat contacts, 0,8 mm thickness, locking screw not detachable

This standard covers a range of rectangular with flat contacts, 0,8 mm thickness, locking screw not detachable, intended for use in industrial installations for connections or termination of sub-assemblies of components in electrical equipment in measuring, regulating and control circuits, in equipment for power supply, in fluid and air power and components and other electronic devices employing similar techniques.

Bauartspezifikation: Rechteckige Steckverbinder - Flachkontakte mit 0,8 mm Dicke, unverlierbare Verriegelungsschraube

Diese Norm beschreibt eine Reihe von rechteckigen Steckverbindern mit Flachkontakten 0,8 mm dick und unverlierbarer Verriegelungsschraube für die Anwendung in betriebstechnischen Anlagen zur Verbindung oder zum Anschluss von Baugruppen oder Bauelementen in elektrischen Einrichtungen, in Mess-, Regel- oder Steuerkreisen, in Einrichtungen für die Stromversorgung, in System der Luft- und Fluidtechnik sowie Bauteilen und anderen elektronischen Bauelementen, die bei ähnlichen Techniken eingesetzt werden.

Spécification particulière: Connecteurs rectangulaires - Contacts plats, épaisseur de 0,8 mm, vis d'arrêt non détachable

La présente norme couvre une gamme de connecteurs rectangulaires avec des contacts plats, d'une épaisseur de 0,8 mm, et une vis de verrouillage imperdable, destinés à être utilisés dans les installations industrielles pour la connexion ou pour équiper les sorties des sous-ensembles ou des composants des équipements électriques des circuits de mesure, de régulation et de commande, des équipements pour l'alimentation électrique, des systèmes hydrauliques et à air comprimé et des composants et autres dispositifs électroniques utilisant des techniques similaires.

Podrobna specifikacija: Tektakotni konektorji - Ploščati kontakti, debeli 0,8 mm, neodstranljivi zaskočni vijak

General Information

Status
Published
Publication Date
31-Dec-2006
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
01-Jan-2007
Due Date
01-Jan-2007
Completion Date
01-Jan-2007

Relations

Buy Standard

Standard
SIST EN 175301-803:2007
English language
28 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

6,67(16/29(16.,MDQXDU67$1'$5'LVWRYHWHQ(13RGUREQDVSHFLILNDFLMD7HNWDNRWQLNRQHNWRUML3ORãþDWLNRQWDNWLGHEHOLPPQHRGVWUDQOMLYL]DVNRþQLYLMDN'HWDLO6SHFLILFDWLRQ7HFWDQJXODUFRQQHFWRUV)ODWFRQWDFWVPPWKLFNQHVVORFNLQJVFUHZQRWGHWDFKDEOH !"#$%&'( )&!*- . 5HIHUHQþQDãWHYLOND6,67(1HQ,&6

EUROPEAN STANDARD EN 175301-803 NORME EUROPÉENNE
EUROPÄISCHE NORM August 2006

CENELEC European Committee for Electrotechnical Standardization Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels
© 2006 CENELEC -

All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 175301-803:2006 E
ICS 31.220.10 Supersedes EN 175301-803:1999
English version
Detail Specification: Rectangular connectors -
Flat contacts, 0,8 mm thickness, locking screw not detachable
Spécification particulière:
Connecteurs rectangulaires -
Contacts plats, épaisseur de 0,8 mm, vis d'arrêt non détachable
Bauartspezifikation:

Rechteckige Steckverbinder - Flachkontakte mit 0,8 mm Dicke, unverlierbare Verriegelungsschraube

This European Standard was approved by CENELEC on 2005-10-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom.

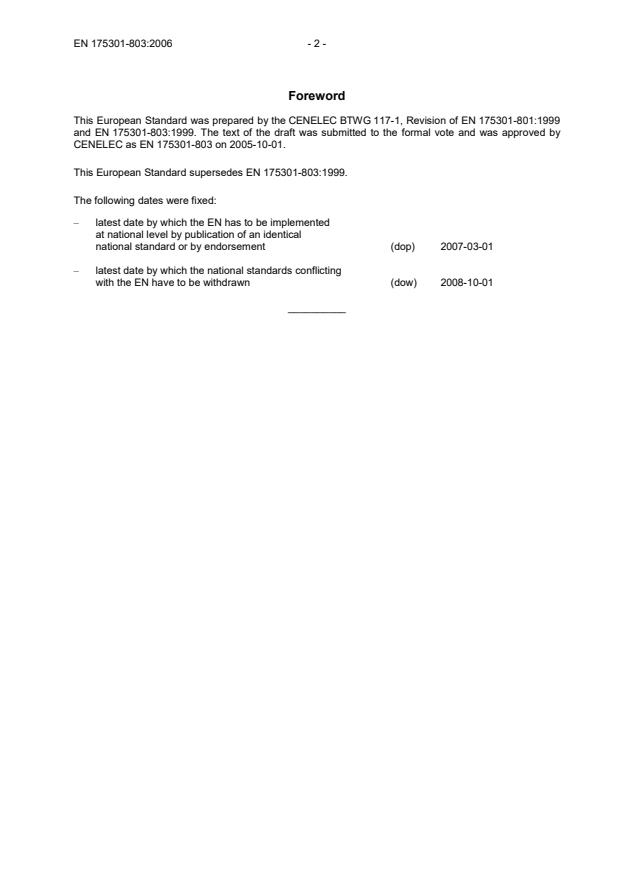

EN 175301-803:2006 - 2 - Foreword This European Standard was prepared by the CENELEC BTWG 117-1, Revision of EN 175301-801:1999 and EN 175301-803:1999. The text of the draft was submitted to the formal vote and was approved by CENELEC as EN 175301-803 on 2005-10-01. This European Standard supersedes EN 175301-803:1999. The following dates were fixed: – latest date by which the EN has to be implemented at national level by publication of an identical national standard or by endorsement

(dop)

2007-03-01 – latest date by which the national standards conflicting with the EN have to be withdrawn

(dow)
2008-10-01 __________

- 3 - EN 175301-803:2006 Contents Page 1 General information.............................................................................................................................4 2 Normative references..........................................................................................................................4 3 Style designation.................................................................................................................................6 4 Common features................................................................................................................................7 4.1 Isometric view.........................................................................................................................7 4.2 Mating information..................................................................................................................7 4.3 Survey of styles.......................................................................................................................8 5 Dimensions..........................................................................................................................................9 5.1 General...................................................................................................................................9 5.2 Fixed connector....................................................................................................................10 5.3 Free connector......................................................................................................................15 5.4 Marking.................................................................................................................................18 5.5 Contacts termination.............................................................................................................19 5.6 Mounting dimensions............................................................................................................20 6 Characteristics...................................................................................................................................22 6.1 Climatic category..................................................................................................................22 6.2 Electrical characteristics.......................................................................................................22 6.3 Mechanical characteristics....................................................................................................23 7 Test schedule....................................................................................................................................23 7.1 General.................................................................................................................................23 7.2 Group P (preliminary)............................................................................................................24 7.3 Groups AP, BP and CP.........................................................................................................25 8 Quality assessment procedures........................................................................................................26 8.1 Qualification approval testing................................................................................................26 8.2 Quality conformance inspection............................................................................................27 8.3 Delayed delivery, re-inspection.............................................................................................28 9 Ordering information..........................................................................................................................28

EN 175301-803:2006 - 4 -
ELECTRONIC COMPONENTS OF ASSESSED QUALITY – DETAIL SPECIFICATION IN
ACCORDANCE WITH
EN 61076-1:1995 EN 175301-803 issue 2

___________________________________________ Page 4 of 28 pages see Clause 5 for dimensions

Detail specification for rectangular connectors, flat con-tacts, 0,8 mm thickness, locking screw not detachable. 2 or 3 contacts + protective earth (PE) contact Termination: Screw, solder

Assessment levels: B and G (*) Climatic category:
see 6.1 Electrical characteristics:
see 6.2
Mechanical characteristics: see 6.3 Ordering information:

see clause 9 (*) see clauses 7 and 8 Information about manufacturer who have components qualified to this detail specification is available in the current CECC 00 200: (Register of Firms, Products and Services Approved under the CECC System).1 General information This standard covers a range of rectangular connectors with flat contacts, 0,8 mm thickness, locking screw not detachable, intended for use in industrial installations for connection or termination of sub-assemblies or components in electrical equipment in measuring, regulating and control circuits, in equipment for power supply, in fluid and air power system and components and other electronic devices employing similar techniques. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 2591 1992 Aerospace series – Elements of electrical and optical connection – Test methods – General EN 60068-1 1994 Environmental testing – Part 1: General and guidance

(IEC 60068-1:1988 + corrigendum October 1988 + A1:1992) EN 60512 Series Connectors for electronic equipment – Test and measurements

(IEC 60512 series)

- 5 - EN 175301-803:2006 EN 60529 1991 Degrees of protection provided by enclosures (IP Code)

(IEC 60529:1989) EN 60664-1 2003 Insulation co-ordination for equipment within low-voltage systems – Part 1: Principles, requirements and tests (IEC 60664-1:1992 + A1:2000 + A2:2002) EN 60999-1 2000 Connecting devices - Electrical copper conductors – Safety requirements for screw-type and screwless-type clamping units – Part 1: General requirements and particular requirements for clamping units for conductors from 0,2 mm² up to 35 mm² (included) (IEC 60999-1:1999) EN 61076-1 1995 Connectors with assessed quality, for use in d.c., low frequency analogue and in digital high-speed data applications – Part 1: Generic specification - Capability approval (IEC 61076-1:1995) EN 61076-3 2000 Connectors for use in d.c., low-frequency analogue and digital high-speed data applications – Part 3: Rectangular connectors with assessed quality - Sectional specification (IEC 61076-3:1999) EN 175300 1996 Sectional Specification: Rectangular connectors for frequencies below 3 MHzEN ISO 1043-1 2001 Plastics – Symbols and abbreviated terms – Part 1: Basic polymers and their special characteristics (ISO 1043-1:2001) EN ISO 1043-2 2001 Plastics – Symbols and abbreviated terms – Part 2: Fillers and reinforcing materials (ISO 1043-2:2000) EN ISO 6743-4 2001 Lubricants, industrial oils and related products (class L) – Classification – Part 4: Family H (Hydraulic systems) (ISO 6743-4:1999) IEC 60410 1973 Sampling plans and procedures for inspections by attributes IEC 60417 Database Graphical symbols for use on equipment IEC 60760 A1 1989 1993 Flat, quick-connect terminations

EN 175301-803:2006 - 6 - 3 Style designation Connectors with assessment level according to this specification shall be designated by the following system:

NOTE
“L” stands for letter

”N” stands for number EXAMPLES Fixed connector style A, having 3 male contacts with tin-alloy contact finish with solder

terminations.

Variant M assessment level G: EN 175301-803-A003MS-M3-G Free connector style , having 2 female contacts with silver-alloy contact finish with screw terminations. Variant H cable outlet on contact 3 (D) and cable outlet dia 6,5 and assessment level B: EN 175301-803-A002FA-H2D08-B

- 7 - EN 175301-803:2006 4 Common features 4.1 Isometric view
Figure 1 – Isometric view 4.2 Mating information
Arrow indicate mating direction
Figure 2 – Mating information

EN 175301-803:2006 - 8 - Table 1 – Mating dimensions of permissible styles Style Combination of variants a max. mm l1 max. mm l2 max. mm h1 max. mm h2 max. mm HF-KM 15 45 60 41,8 61,8 HF-LM 15 45 60 41,8 61,8 HF-MM 15 45 60 41,8 61,8 A HF-SM 15 45 60 41,8 a B HF-RM 14,75 45 60 42,3 62,3 HF-KM 8,5 34 44 27,7 47,7 C HF-SM 8,5 34 44 27,7 a a Upon agreement between manufacturer and user. 4.3 Survey of styles Number of contacts: 2 + PE; 3 + PE Connector shape: Style A: square 28 mm, Style B: rectangular, Style C: square: 16 mm 4.3.1 Survey of variants 4.3.1.1 Fixed connectors (male contacts) Variant K, square , 2 fixing holes, front mounting

Variant L, square, 4 fixing holes, front mounting
Variant M, square, 1 fixing screw, front mounting
Variant S, round, for potting, rear mounting (tube)
Variant P, rectangular, 1 fixing screw

- 9 - EN 175301-803:2006 4.3.1.2 Free connectors (female contacts) Variant H, free connector

Variant R, free connector, non-rewirable

5 Dimensions 5.1 General Dimensions in mm are original. Drawings are shown in the first angle projection. The shape of the connectors may deviate from those given in the following drawings as long as the specified dimensions are not influenced. Missing dimensions shall be chosen according to common characteristics and the intended use.

EN 175301-803:2006 - 10 - 5.2 Fixed connector 5.2.1 Connector style A, with male contacts

1) Version 2 contacts + protective earth without contact Nr. 3 2) Boundary step, optional Figure 3 – Mating dimensions, 2 and 3 contacts + protective earth; Variants K, L, M and S

- 11 - EN 175301-803:2006 5.2.1.1 Variant K, square, 2 fixing holes, front mounting

1) Upon agreement between manufacturer and user Figure 4 – Connector style A, variant K, square, 2 fixing holes

5.2.1.2 Variant L, square, 4 fixing holes, front mounting

1) Upon agreement between manufacturer and user Figure 5 – Connector style A, variant L, square, 4 fixing holes

EN 175301-803:2006 - 12 - 5.2.1.3 Variant M, square, valve-mounted, front mounting

1) Upon agreement between manufacturer and user Figure 6 – Connector style A, variant M, square, 1 fixing hole

5.2.1.4 Variant S, round for potting, rear mounting (tube) solder termination
Figure 7 – Connector style A, variant S
- 13 - EN 175301-803:2006 5.2.2 Conn
...
