SIST EN 62841-2-10:2017

Electric Motor-Operated Hand-Held Tools, Transportable Tools and Lawn and Garden Machinery - Safety - Part 2-10: Particular requirements for hand-held mixers (IEC 62841-2-10:2017)

IEC 62841-2-10:2017 applies to mixers the rated voltage is not more than 250 V for single-phase a.c. or d.c. tools, and 480 V for three-phase a.c. tools. The rated input is not more than 3 700 W. The limits for the applicability of this standard for battery tools are given in K.1 and L.1. This standard deals with the hazards presented by tools which are encountered by all persons in the normal use and reasonably foreseeable misuse of the tools. Hand-held electric tools, which can be mounted on a support or working stand for use as fixed tools without any alteration of the tool itself, are within the scope of this standard and such combination of a hand-held tool and a support is considered to be a transportable tool and thus covered by the relevant Part 3.
Mixers are not considered to be tools with a liquid system.
This standard does not apply to drills and impact drills, even if they can be used as a mixer
This Part 2-10 is to be used in conjunction with the first edition of IEC 62841-1:2014 .
The attention of National Committees is drawn to the fact that equipment manufacturers and testing organizations may need a transitional period following publication of a new, amended or revised IEC publication in which to make products in accordance with the new requirements and to equip themselves for conducting new or revised tests.
It is the recommendation of the committee that the content of this publication be adopted for implementation nationally not earlier than 36 months from the date of publication.
Key words: Mixer, Hand-held tool, Safety

Elektrische motorbetriebene handgeführte Werkzeuge, transportable Werkzeuge und Rasen- und Gartenmaschinen - Sicherheit - Teil 2-10: Besondere Anforderungen für handgeführte Rührwerke

Outils électroportatifs à moteur, outils portables et machines pour jardins et pelouses - Sécurité - Partie 2-10: Exigences particulières pour les mélangeurs manuels

IEC 62841-2-10: 2017 s'applique aux mélangeurs la tension assignée est inférieure à 250 V pour les outils à courant monophasé alternatif ou continu, et inférieure à 480 V pour les outils à courant alternatif triphasé. La tension assignée est inférieure à 3 700 W. Les limites d'application de la présente Norme aux outils fonctionnant sur batterie sont indiquées en K.1 et L.1. La présente Norme traite des dangers présentés par les outils, encourus par tous les individus dans l'utilisation normale et dans l'utilisation impropre raisonnablement prévisible de ces outils. Les outils électroportatifs, qui peuvent être montés sur un support de travail pour être utilisés comme outils installés à poste fixe sans aucune modification de l'outil lui-même, sont compris dans le domaine d'application de la présente Norme et la combinaison d'un outil portatif et d'un support est considérée comme un outil portable, donc couvert par la Partie 3 applicable.
Les mélangeurs ne sont pas considérés comme des outils à système liquide.
La présente norme ne s'applique pas aux perceuses ni aux perceuses à percussion, bien qu'elles puissent être utilisées comme mélangeurs.
La présente Partie 2-10 doit être utilisée conjointement avec la première édition de l'IEC 62841-1:2014.
L'attention des Comités Nationaux est attirée sur le fait que les fabricants d'appareils et les organismes d'essai peuvent avoir besoin d'une période transitoire après la publication d'une nouvelle publication IEC, ou d'une publication amendée ou révisée, pour fabriquer des produits conformes aux nouvelles exigences et pour adapter leurs équipements aux nouveaux essais ou aux essais révisés.
Le comité recommande que le contenu de cette publication soit entériné au niveau national au plus tôt 36 mois après la date de publication.
Mots clés: mélangeur, outil portable, sécurité

Elektromotorna ročna orodja, prenosna orodja ter stroji za trato in vrt - Varnost - 2-10. del: Posebne zahteve za ročne mešalnike (IEC 62841-2-10:2017)

Ta del standarda IEC 62841 se uporablja za mešalnike. Mešalniki se ne obravnavajo kot orodja s tekočinskim sistemom.
Ta standard se ne uporablja za vrtalnike in udarne vrtalnike, tudi če se ti lahko uporabljajo kot mešalnik.

General Information

• Status: Published
• Publication Date: 08-Aug-2017
• ICS: 25.140.20 - Electric tools
• ICS: 25.140.30 - Hand-operated tools
• Technical Committee: VGA - Safety of household and similar electrical appliances
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 10-Jul-2017
• Due Date: 14-Sep-2017
• Completion Date: 09-Aug-2017
• Directive: 2006/42/EC - Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast)
• Mandate: M/396 - Mandate to CEN and Cenelec for standardisation in the field of machinery
• Ref Project: EN 62841-2-10:2017 - Electric motor-operated hand-held tools, transportable tools and lawn and garden machinery - Safety - Part 2-10: Particular requirements for hand-held mixers

Relations

• Amended By: SIST EN 62841-2-10:2017/oprAB:2024 - Electric motor-operated hand-held tools, transportable tools and lawn and garden machinery - Safety - Part 2-10: Particular requirements for hand-held mixers
• Effective Date: 16-Jan-2024
• Amended By: SIST EN 62841-2-10:2017/oprA1:2024 - Amendment 1 - Electric motor-operated hand-held tools, transportable tools and lawn and garden machinery - Safety - Part 2-10: Particular requirements for hand-held mixers
• Effective Date: 12-Dec-2023

Overview

EN 62841-2-10:2017 (IEC 62841-2-10:2017) sets particular safety requirements for hand-held mixers - electric motor‑operated mixers with rated voltage up to 250 V (single‑phase a.c. or d.c.) or 480 V (three‑phase a.c.) and rated input up to 3 700 W. It is a Part 2 supplement to the general requirements in EN/IEC 62841-1 and addresses hazards from normal use and reasonably foreseeable misuse. Mixers are explicitly not treated as tools with a liquid system, and the standard excludes drills/impact drills even if used as mixers. Battery‑powered tool limits and requirements are covered in normative Annexes K and L.

Key Topics and Requirements

• Scope and limits: Voltage and power applicability, battery tool provisions (Annex K & L).
• Construction and controls: Requirements for power switches (e.g., momentary switches without locking or restart-prevention after mains interruption) and prevention of unwanted lock‑on.
• Battery safety: Tools with integral batteries must provide either an isolation device (disconnect all battery poles, clear indication, protection against accidental reconnection) or a disabling device (two dissimilar actions or removable device). Compliance is verified by inspection and manual test.
• Abnormal operation & performance levels: Defined performance levels for safety‑related control functions (e.g., switch-off, restart prevention).
• Mechanical safety: Protection against mechanical hazards, handle and spindle clearances, mechanical strength and endurance tests.
• Noise & vibration: Measurement methods are covered (Annex I - measurement of noise and vibration emissions).
• Documentation & marking: Instructions, safety markings and information required for safe use and servicing.
• Regulatory alignment: Relationship to EU Machinery Directive (Annex ZZ) - following the standard provides a route to presumption of conformity when cited in the Official Journal.

Applications and Practical Use

This standard is essential for:

• Manufacturers and product designers developing hand‑held or transportable mixers to meet safety and CE requirements.
• Test laboratories and certification bodies performing conformity and type testing (electrical, mechanical, noise/vibration).
• Compliance officers and procurement teams assessing product safety and regulatory compliance.
• Safety engineers performing risk assessments, writing user manuals, and specifying guard/interlock designs.

Practical uses include product design validation, preparing technical construction files for CE marking, establishing test protocols, and specifying battery isolation/disabling solutions.

Related Standards

• EN/IEC 62841-1 (General requirements for hand‑held electric motor‑operated tools) - use in conjunction with Part 2-10.
• Applicable national adoptions and harmonized standards for conformity to EU directives (see Annex ZZ for Machinery Directive alignment).

Keywords: EN 62841-2-10:2017, IEC 62841-2-10, hand-held mixers safety standard, mixer safety, portable mixers, battery tool safety, mixer noise and vibration.

Standards Content (Sample)

SLOVENSKI STANDARD
01-september-2017
(OHNWURPRWRUQDURþQDRURGMDSUHQRVQDRURGMDWHUVWURML]DWUDWRLQYUW9DUQRVW
GHO3RVHEQH]DKWHYH]DURþQHPHãDOQLNH,(&
Electric Motor-Operated Hand-Held Tools, Transportable Tools and Lawn and Garden
Machinery - Safety - Part 2-10: Particular requirements for hand-held mixers (IEC 62841-
2-10:2017)
Ta slovenski standard je istoveten z: EN 62841-2-10:2017
ICS:
25.140.20 (OHNWULþQDRURGMD Electric tools
25.140.30 2URGMD]DURþQRXSRUDER Hand-operated tools
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 62841-2-10

NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2017
ICS 25.140.20
English Version
Electric motor-operated hand-held tools, transportable tools and
lawn and garden machinery - Safety - Part 2-10: Particular
requirements for hand-held mixers
(IEC 62841-2-10:2017 , modified)
Outils électroportatifs à moteur, outils portables et machines Elektrische motorbetriebene handgeführte Werkzeuge,
pour jardins et pelouses - Sécurité - Partie 2-10: Exigences transportable Werkzeuge und Rasen- und
particulières pour les mélangeurs manuels Gartenmaschinen - Sicherheit - Teil 2-10: Besondere
(IEC 62841-2-10:2017 , modifiée) Anforderungen für handgeführte Rührwerke
(IEC 62841-2-10:2017 , modifiziert)
This European Standard was approved by CENELEC on 2017-01-09. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 62841-2-10:2017 E

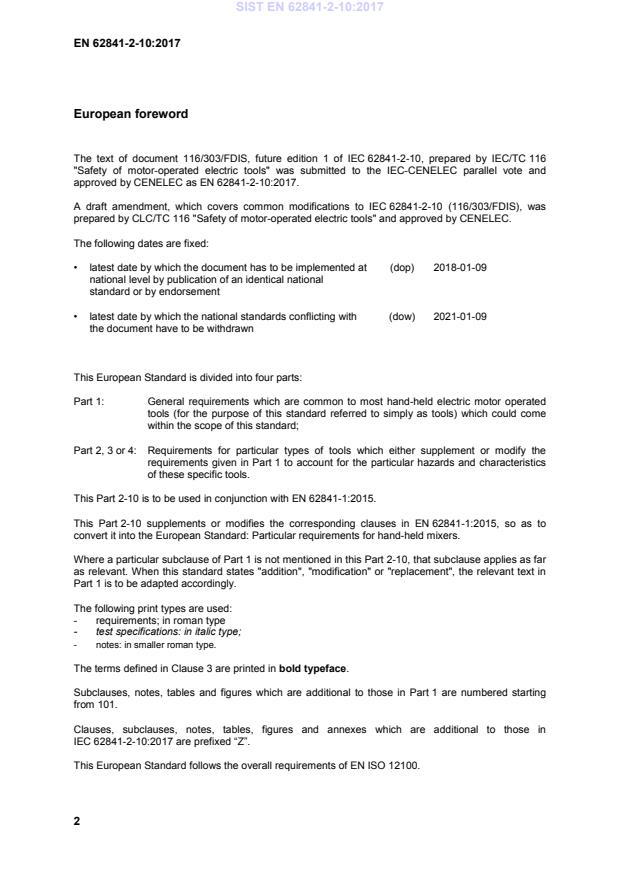

European foreword
The text of document 116/303/FDIS, future edition 1 of IEC 62841-2-10, prepared by IEC/TC 116
"Safety of motor-operated electric tools" was submitted to the IEC-CENELEC parallel vote and
approved by CENELEC as EN 62841-2-10:2017.
A draft amendment, which covers common modifications to IEC 62841-2-10 (116/303/FDIS), was
prepared by CLC/TC 116 "Safety of motor-operated electric tools" and approved by CENELEC.
The following dates are fixed:
• latest date by which the document has to be implemented at (dop) 2018-01-09
national level by publication of an identical national
standard or by endorsement
• latest date by which the national standards conflicting with (dow) 2021-01-09
the document have to be withdrawn

This European Standard is divided into four parts:
Part 1: General requirements which are common to most hand-held electric motor operated
tools (for the purpose of this standard referred to simply as tools) which could come
within the scope of this standard;
Part 2, 3 or 4: Requirements for particular types of tools which either supplement or modify the
requirements given in Part 1 to account for the particular hazards and characteristics
of these specific tools.
This Part 2-10 is to be used in conjunction with EN 62841-1:2015.
This Part 2-10 supplements or modifies the corresponding clauses in EN 62841-1:2015, so as to
convert it into the European Standard: Particular requirements for hand-held mixers.
Where a particular subclause of Part 1 is not mentioned in this Part 2-10, that subclause applies as far
as relevant. When this standard states "addition", "modification" or "replacement", the relevant text in
Part 1 is to be adapted accordingly.
The following print types are used:
- requirements; in roman type
- test specifications: in italic type;
- notes: in smaller roman type.
The terms defined in Clause 3 are printed in bold typeface.
Subclauses, notes, tables and figures which are additional to those in Part 1 are numbered starting
from 101.
Clauses, subclauses, notes, tables, figures and annexes which are additional to those in
IEC 62841-2-10:2017 are prefixed “Z”.
This European Standard follows the overall requirements of EN ISO 12100.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a mandate given to CENELEC by the European Commission
and the European Free Trade Association and supports essential requirements of EU Directive(s).
For the relationship with EU Directive(s), see informative Annex ZZ, which is an integral part of this
document.
Compliance with the clauses of Part 1 together with this Part 2-10 provides one means of conforming
with the essential health and safety requirements of the Directive concerned.
Endorsement notice
The text of the International Standard IEC 62841-2-10:2017 was approved by CENELEC as a
European Standard with agreed common modifications.
COMMON MODIFICATIONS
18 Abnormal operation
Replace the existing subclause 18.8 with the following:
18.8 Replacement of Table 4:
Table 4 – Required performance levels
Type and purpose of SCF Minimum Performance
Level (PL)
Power switch – prevent unwanted switch-on b
Power switch – provide desired switch-off a
Any electronic control to pass the test of 18.3 a
Any speed limiting device Not an SCF
Provide desired direction of rotation Not an SCF
Prevent exceeding thermal limits as in Clause 18 a
Prevent self-resetting as required in 23.3 b
Prevent unwanted lock-on of the power switch function a
Restart prevention as required by 21.18.1.1 b

21 Construction
Replace the note in 21.18.1.1 with the following:
For mixers, either
– the power switch shall be a momentary power switch without having a locking arrangement in
the “on” position
or
– the tool shall not restart after an interruption of the mains supply without releasing and re-actuating
the power switch.
Annex I
Replace the title of Annex I with the following:
Annex I
(normative)
Measurement of noise and vibration emissions

and delete the note.
Annex K
(normative)
Battery tools and battery packs

Replace the note with the following:
K.21.18.Z101 Isolation and disabling device
Tools with an integral battery shall either be equipped
– with an isolation device to prevent the risk of injury from mechanical hazards during servicing or
user maintenance; or
– with a disabling device that prevents unintentional starting of the tool.
An isolation device shall
– provide disconnection of all poles of the battery from the serviceable region of the tool;
– be equipped with an unambiguous indication of the state of the disconnection device which
corresponds to each position of its manual control (actuator);
– be provided with protection against accidental reconnection.
NOTE 1 Examples of methods to achieve this disconnection include removable jumpers, integral batteries that can be
disconnected for servicing or user maintenance, or an electromechanical power switch with a direct mechanical link between
the actuator and the contact.
NOTE 2 The risk of accidental reconnection for a power switch is addressed by the requirement of 21.18.1.2. The other
examples in NOTE 1 achieve this by the necessary actions for reconnection.
A disabling device may be achieved by any of the following:
– a self-restoring or non-self-restoring lock-off device where two separate and dissimilar actions are
necessary before the motor is switched on (e.g. a power switch which has to be pushed in before
it can be moved laterally to close the contacts to start the motor). It shall not be possible to achieve
these two actions with a single grasping motion or a straight line motion;
– a removable disabling device provided with the tool where it shall not be possible for the tool to be
operated when either applied or removed.
Compliance is checked by inspection and by manual test.

Annex L
(normative)
Battery tools and battery packs provided with
mains connection or non-isolated sources

Replace the note with the following:
L.21.18.Z101 Isolation and disabling device
Tools with an integral battery shall either be equipped
– with an isolation device to prevent the risk of injury from mechanical hazards during servicing or
user maintenance; or
– with a disabling device that prevents unintentional starting of the tool.
An isolation device shall
– provide disconnection of all poles of the battery from the serviceable region of the tool;
– be equipped with an unambiguous indication of the state of the disconnection device which
corresponds to each position of its manual control (actuator);
– be provided with protection against accidental reconnection.
NOTE 1 Examples of methods to achieve this disconnection include removable jumpers, integral batteries that can be
disconnected for servicing or user maintenance, or an electromechanical power switch with a direct mechanical link between
the actuator and the contact.
NOTE 2 The risk of accidental reconnection for a power switch is addressed by the requirement of 21.18.1.2. The other
examples in NOTE 1 achieve this by the necessary actions for reconnection.
A disabling device may be achieved by any of the following:
– a self-restoring or non-self-restoring lock-off device where two separate and dissimilar actions are
necessary before the motor is switched on (e.g. a power switch which has to be pushed in before
it can be moved laterally to close the contacts to start the motor). It shall not be possible to achieve
these two actions with a single grasping motion or a straight line motion;
– a removable disabling device provided with the tool where it shall not be possible for the tool to be
operated when either applied or removed.
Compliance is checked by inspection and by manual test.

Add the following annex:
Annex ZZ
(informative)
Relationship between this European Standard and the essential requirements
of Directive 2006/42/EC [2006 OJ L157] aimed to be covered
This European Standard has been prepared under a Commission’s standardization request M/396 to
provide one voluntary means of conforming to essential requirements of Directive 2006/42/EC of the
European Parliament and of the Council of 17 May 2006 on machinery, and amending
Directive 95/16/EC.
Once this standard is cited in the Official Journal of the European Union under that Directive,
compliance with the normative clauses of this standard given in Table ZZ.1 confers, within the limits of
the scope of this standard, a presumption of conformity with the corresponding essential requirements
of that Directive, and associated EFTA regulations.
Table ZZ.1 – Correspondence between this European Standard
and Annex I of Directive 2006/42/EC
Essential Requirements of Clause(s) / sub-clause(s)
Remarks / Notes
Directive 2006/42/EC of this EN
Annex I All clauses All corresponding requirements
are covered by complying with
all clauses.
WARNING 1: Presumption of conformity stays valid only as long as a reference to this European
standard is maintained in the list published in the Official Journal of the European Union. Users of this
standard should consult frequently the latest list published in the Official Journal of the European
Union.
WARNING 2: Other Union legislation may be applicable to the product(s) falling within the scope of
this standard.
Bibliography
Add the following note for the standard indicated:
1)
IEC 62841-2-1 NOTE
Harmonized as EN 62841-2-1 .
———————
1) At draft stage.
IEC 62841-2-10 ®
Edition 1.0 2017-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electric motor-operated hand-held tools, transportable tools and lawn and

garden machinery – Safety –
Part 2-10: Particular requirements for hand-held mixers

Outils électroportatifs à moteur, outils portables et machines pour jardins et

pelouses – Sécurité –
Partie 2-10: Exigences particulières pour les mélangeurs manuels

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 25.140.20 ISBN 978-2-8322-3811-0

– 2 – IEC 62841-2-10:2017 © IEC 2017
CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 General requirements . 6
5 General conditions for the tests . 7
6 Radiation, toxicity and similar hazards . 7
7 Classification . 7
8 Marking and instructions . 7
9 Protection against access to live parts . 8
10 Starting . 8
11 Input and current . 8
12 Heating . 8
13 Resistance to heat and fire . 8
14 Moisture resistance . 8
15 Resistance to rusting . 8
16 Overload protection of transformers and associated circuits . 8
17 Endurance . 9
18 Abnormal operation . 9
19 Mechanical hazards . 9
20 Mechanical strength . 10
21 Construction . 10
22 Internal wiring . 11
23 Components . 11
24 Supply connection and external flexible cords . 11
25 Terminals for external conductors . 11
26 Provision for earthing . 11
27 Screws and connections . 11
28 Creepage distances, clearances and distances through insulation . 11
Annexes . 15
Annex I (informative) Measurement of noise and vibration emissions . 16
Annex K (normative) Battery tools and battery packs . 20
Annex L (normative) Battery tools and battery packs provided with mains connection
or non-isolated sources . 21
Bibliography . 22

Figure 101 – Mixers with various handle and spindle configurations . 12
Figure 102 – Moment arm for various handle designs . 13
Figure 103 – Clearance between spindles . 14
Figure I.101 – Positions of transducers for mixers . 17
Figure I.102 – Simulated test mixer basket . 18

IEC 62841-2-10:2017 © IEC 2017 – 3 –
Figure I.103 – Wheel with unbalance . 19

Table 4 – Required performance levels . 9

– 4 – IEC 62841-2-10:2017 © IEC 2017
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ELECTRIC MOTOR-OPERATED HAND-HELD TOOLS,
TRANSPORTABLE TOOLS AND LAWN AND GARDEN MACHINERY –
SAFETY –
Part 2-10: Particular requirements for hand-held mixers

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirec
...
