SIST EN 17450-1:2021

Fixed firefighting systems - Water mist components - Part 1: Product characteristics and test methods for strainer and filter components

This document specifies product characteristics and test methods for strainer and filter components for water supply connections and pipe work in water mist systems. This document is applicable to strainers and filters with filtration grades up to 6 mm.

Ortsfeste Brandbekämpfungsanlagen - Bauteile für Feinsprüh-Löschanlagen - Teil 1: Anforderungen und Prüfverfahren für Siebe und Drahtgewebefilter

Dieses Dokument legt Produktmerkmale und Prüfverfahren für Siebe und Filterbauteile für Zuleitungen der Wasserversorgung und Rohrleitungen in Feinsprüh-Löschanlagen fest. Dieses Dokument ist anzuwenden für Siebe und Filter mit Filterfeinheiten bis zu 6 mm.

Installations fixes de lutte contre l'incendie - Systèmes à brouillard d'eau - Partie 1 : Caractéristiques de produit et méthodes d'essai pour les composants de crépines et de filtres

Le présent document spécifie les caractéristiques de produit et les méthodes d’essai pour les composants de crépines et de filtres utilisés pour les raccordements de l’alimentation en eau dans les systèmes à brouillard d’eau. Le présent document s'applique aux crépines et aux filtres avec des degrés de filtration jusqu’à 6 mm.

Vgrajeni gasilni sistemi - Sestavni deli sistemov s pršečo vodo - 1. del: Zahteve in preskusne metode za sita in sestavne dele filtrov

General Information

• Status: Published
• Public Enquiry End Date: 09-Feb-2019
• Publication Date: 13-May-2021
• ICS: 13.220.10 - Fire-fighting
• Technical Committee: POZ - Požarna varnost
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 10-Mar-2021
• Due Date: 15-May-2021
• Completion Date: 14-May-2021
• Ref Project: EN 17450-1:2021 - Fixed firefighting systems - Water mist components - Part 1: Product characteristics and test methods for strainer and filter components

Overview

SIST EN 17450-1:2021 is a European standard developed by CEN for fixed firefighting systems, specifically addressing the water mist components related to strainer and filter components. This part 1 of the series focuses on defining the product characteristics and test methods applicable to strainers and filters used in water supply connections and piping within water mist systems. The standard covers components with filtration grades up to 6 mm and establishes criteria that ensure their performance and reliability in fire suppression applications.

Key Topics

• Product Scope
  Applies to strainers and filters for water mist system piping that filter particles larger than 1 mm (strainers) and 1 mm or smaller (filters).

• Product Characteristics

  • Water Flow: Components must maintain functionality under specified flow conditions without deformation or leakage.
  • Filter Surface Area: The filter element’s surface area must be at least 1.5 times the nominal cross-sectional area of the connected pipe.
  • Design Pressure: Manufacturers specify the design pressure, which components must withstand.
  • Pressure Loss: Should not exceed 5% of published values at maximum system pressure and flow rate.
  • Component Strength: Components must resist deterioration, impact, and maintain mechanical integrity under pressure tests.

• Testing Methods
  Detailed testing protocols ensure compliance:

  • Water Flow Test: Simulates 1.5 times maximum flow velocity for 90 minutes at 1.5 times design pressure.
  • Filter Surface Area Verification: Confirms element surface based on technical documentation.
  • Pressure Loss Test: Measures pressure drop across clean filters under controlled flow conditions.
  • Body Strength Test: Applies pressure at three times design pressure for 10 minutes.
  • Impact Test: Cycles pressure 10 times at design pressure to test durability.
  • Filter Element Strength Test: Applies twice design pressure to check element integrity.

• Marking and Documentation
  Components must be clearly marked for flow direction and include identification codes. Documentation should provide design pressure, flow parameters, filtration grade, model numbers, and connection types to ensure traceability and correct installation.

Applications

SIST EN 17450-1:2021 serves critical functions in the design, manufacturing, testing, and certification of components used in water mist firefighting systems. These systems are widely deployed across multiple sectors due to their efficient fire suppression capabilities with minimal water damage:

• Industrial Fire Protection: Protecting factory machinery, warehouses, and production lines where sensitive equipment is present.
• Commercial Buildings: Used in offices, shopping centers, museums, and data centers requiring effective fire control without excessive water use.
• Marine and Offshore Platforms: Ensures reliable firefighting systems under demanding environmental conditions.
• Transportation Infrastructure: Airports, tunnels, and subways benefit from finely tuned water mist systems that use filter and strainer components compliant with this standard.

By adhering to SIST EN 17450-1:2021, manufacturers and installers ensure components function reliably within water mist systems-preventing clogging, maintaining consistent flow, and resisting pressure fluctuations-ultimately enhancing fire safety performance.

Related Standards

• EN 14972-1: Fixed firefighting systems - Water mist systems - Part 1: Design, installation, inspection, and maintenance. EN 17450-1 references this standard for terminology and complementary requirements.
• EN ISO/IEC 17025: General requirements for the competence of testing and calibration laboratories, relevant for test facilities conducting these component assessments.

Summary

SIST EN 17450-1:2021 defines essential requirements and testing protocols for strainers and filters used in water mist firefighting systems. It ensures that components perform under high pressure, sustain operational flow rates, and resist physical stress, thus guaranteeing system reliability and safety. Implementing this standard supports manufacturers and users in delivering compliant, high-quality water mist systems for robust fire protection across diverse industries.

Keywords: fixed firefighting systems, water mist components, strainer, filter component, product characteristics, test methods, filtration grade, pressure loss, fire suppression, SIST EN 17450-1:2021, water mist systems, fire safety standards, CEN standard.

Standards Content (Sample)

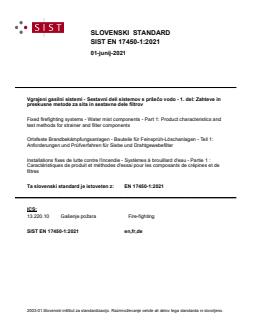

SLOVENSKI STANDARD
01-junij-2021
Vgrajeni gasilni sistemi - Sestavni deli sistemov s pršečo vodo - 1. del: Zahteve in
preskusne metode za sita in sestavne dele filtrov
Fixed firefighting systems - Water mist components - Part 1: Product characteristics and
test methods for strainer and filter components
Ortsfeste Brandbekämpfungsanlagen - Bauteile für Feinsprüh-Löschanlagen - Teil 1:
Anforderungen und Prüfverfahren für Siebe und Drahtgewebefilter
Installations fixes de lutte contre l'incendie - Systèmes à brouillard d'eau - Partie 1 :
Caractéristiques de produit et méthodes d'essai pour les composants de crépines et de
filtres
Ta slovenski standard je istoveten z: EN 17450-1:2021
ICS:
13.220.10 Gašenje požara Fire-fighting
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

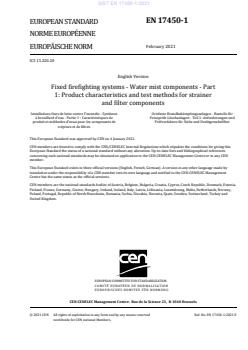

EN 17450-1
EUROPEAN STANDARD
NORME EUROPÉENNE
February 2021
EUROPÄISCHE NORM
ICS 13.220.20
English Version
Fixed firefighting systems - Water mist components - Part
1: Product characteristics and test methods for strainer
and filter components
Installations fixes de lutte contre l'incendie - Systèmes Ortsfeste Brandbekämpfungsanlagen - Bauteile für
à brouillard d'eau - Partie 1 : Caractéristiques de Feinsprüh-Löschanlagen - Teil 1: Anforderungen und
produit et méthodes d'essai pour les composants de Prüfverfahren für Siebe und Drahtgewebefilter
crépines et de filtres
This European Standard was approved by CEN on 4 January 2021.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 17450-1:2021 E
worldwide for CEN national Members.

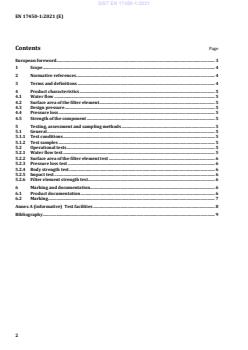

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Product characteristics . 5
4.1 Water flow . 5
4.2 Surface area of the filter element . 5
4.3 Design pressure . 5
4.4 Pressure loss . 5
4.5 Strength of the component . 5
5 Testing, assessment and sampling methods . 5
5.1 General . 5
5.1.1 Test conditions . 5
5.1.2 Test samples . 5
5.2 Operational tests . 5
5.2.1 Water flow test . 5
5.2.2 Surface area of the filter element test . 6
5.2.3 Pressure loss test . 6
5.2.4 Body strength test . 6
5.2.5 Impact test . 6
5.2.6 Filter element strength test . 6
6 Marking and documentation . 6
6.1 Product documentation . 6
6.2 Marking . 7
Annex A (informative) Test facilities . 8
Bibliography . 9

European foreword
This document (EN 17450-1:2021) has been prepared by Technical Committee CEN/TC 191 “Fixed
firefighting systems”, the secretariat of which is held by BSI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by August 2021, and conflicting national standards shall
be withdrawn at the latest by August 2021.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland
...
