SIST-TP CEN ISO/ASTM TR 52958:2026

• Abstract:

  This document provides a workflow comprising experimental procedures and flaw detection algorithms aimed at locating flaws in parts produced during the powder bed fusion-laser-based (PBF-LB) process of metals. It emphasizes the use of coaxial photodiode-based in-situ monitoring and statistical and clustering machine learning algorithms, particularly for detecting lack of fusion-induced flaws. The workflow delineates setting thresholds for statistical detection and determining the number of clusters for machine learning algorithms, utilizing intentional seeded flaws in parts. Validation procedures are provided through computed tomography scanner data. Hardware limitations and considerations for multi-laser processes are addressed, with attention to potential issues.

• Status: Published
• Public Enquiry End Date: 19-Apr-2026
• Publication Date: 22-Jul-2026
• ICS: 25.030 - Additive manufacturing
• Technical Committee: VAR - Welding
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 04-Jun-2026
• Due Date: 09-Aug-2026
• Completion Date: 23-Jul-2026
• Ref Project: CEN ISO/ASTM TR 52958:2026 - Additive manufacturing of metals - Powder bed fusion (PBF) - In-situ coaxial photodiode monitoring for lack of fusion flaw detection in PBF-LB (ISO/ASTM TR 52958:2026)

SIST-TP CEN ISO/ASTM TR 52958:2026 is a SIST technical report that adopts CEN ISO/ASTM TR 52958:2026 on additive manufacturing of metals. It specifies a workflow for detecting lack of fusion flaws in powder bed fusion-laser-based (PBF-LB) parts using coaxial photodiode in-situ monitoring, statistical threshold methods, and clustering machine-learning methods. The document is aimed at people who need to design, tune, compare, or validate flaw-detection workflows for metal additive manufacturing parts.

What does SIST-TP CEN ISO/ASTM TR 52958:2026 specify?

SIST-TP CEN ISO/ASTM TR 52958:2026 specifies a practical workflow for locating flaws in metal parts made by PBF-LB. The workflow combines coupon design, coaxial photodiode signal collection, algorithm tuning on intentionally seeded flaws, and validation against computed tomography (CT) data.

The document is organized into:

• Clause 1 Scope
• Clause 2 Normative references
• Clause 3 Terms and definitions
• Clause 4 Significance and use
• Clause 5 Design of coupons
• Clause 6 Sensor description
• Clause 7 Flaw detection algorithms
• Clause 8 Implementation of customized algorithms to components with randomized flaws and the associated voxelization thereof
• Clause 9 Case study: procedural implementation and validation results
• Bibliography

In practice, this structure takes the reader from test-piece design through signal analysis and then to CT-based validation.

What are the key requirements of SIST-TP CEN ISO/ASTM TR 52958:2026?

The main technical content is a workflow, not a product specification. SIST-TP CEN ISO/ASTM TR 52958:2026 tells users how to generate reference parts, process photodiode data, tune detection logic, and check the result against CT.

Coupon design for calibration and validation

Clause 5 says to use two coupon sets: one with intentionally seeded flaws and one with randomized or stochastic flaws. It also suggests adding reference datum features such as grooves or notches so CT data can be aligned with the designed geometry.

In practice, this means the user first builds parts that are suitable for algorithm tuning, then builds parts that challenge the tuned method under more realistic process variation.

Intentionally seeded flaws and stochastic flaws

Clause 5 describes intentionally seeded flaws as artificial voids created by design changes or process manipulation. It also describes randomized flaws as flaws generated by process anomalies, especially by reducing energy density during the build.

In practice, seeded flaws are used to teach the algorithm where flaws are and how they appear in the signal. Randomized flaws are then used to check whether the tuned method still detects process-induced porosity.

Sensor arrangement and recorded data

Clause 6 specifies a coaxial photodiode arrangement aligned with the laser beam path through a beam splitter, with a sampling frequency of at least 60 kHz. The clause also notes that laser modulation and XY scanner position are recorded with the light intensity data.

In practice, the reader needs synchronized signal and position data so signal perturbations can be mapped back to a location on the part.

Statistical flaw detection

Clause 7 recommends statistical algorithms based on moving averages and thresholding. Two approaches are described: absolute limits (AL) and short-term fluctuations (STF).

In practice, the user chooses thresholds and moving-average window length, screens them on seeded flaws, and then narrows the settings until flaw indicators line up with the intended locations.

Clustering-based machine learning

Clause 7 also describes clustering methods, especially self-organizing map (SOM) and K-means. These methods group the photodiode signal by similarity, and the number of clusters is tuned against seeded flaws and CT results.

In practice, the reader has to select a cluster count that separates perturbations from normal signal regions without over-splitting the data.

Voxelization and CT-based validation

Clause 8 describes how to apply the tuned algorithm to randomized-flaw parts, then compare the detected indicators with CT data using a volumetric voxel approach. It also explains how to label anomaly voxels, handle edge cases at voxel boundaries, and build a confusion matrix for true positive, false positive, false negative, and true negative counts.

In practice, this is the step that turns signal analysis into a measurable validation result that can be compared with CT ground truth.

What terms does SIST-TP CEN ISO/ASTM TR 52958:2026 define?

• clustering algorithm - An unsupervised machine-learning method that groups unlabeled input data by similarity.
• coaxial photodiode arrangement - A sensor arrangement on a PBF-LB machine that is aligned with the laser beam path.
• computed tomography (CT) - A non-destructive examination method that uses radiographic projections to reconstruct 3D volume data or cross-sectional images.
• data alignment - The process of transforming different geometrically or temporally related data sets into one global coordinate system.
• data registration - The process of aligning data and assigning a persistent identity to the aligned set.
• flaw indicator - An indicator that corresponds to the predicted location of a flaw.
• lack of fusion - A process-induced porosity condition where powder is not fully melted or fused to the previous layer.
• intentionally seeded flaw - A flaw deliberately created by CAD changes, process-parameter changes, or insertion of an artificial object.

Who uses SIST-TP CEN ISO/ASTM TR 52958:2026?

SIST-TP CEN ISO/ASTM TR 52958:2026 is used by additive manufacturing engineers, process developers, quality managers, and test laboratories working with metal PBF-LB parts. It is also relevant to people who develop monitoring software or machine-learning methods for melt-pool signals.

Typical tasks include:

• designing seeded-flaw coupons for calibration
• recording coaxial photodiode signals during a build
• tuning thresholds and cluster counts
• comparing detected indicators with CT data
• validating a flaw-detection workflow for production or development parts

What changed in SIST-TP CEN ISO/ASTM TR 52958:2026 from the previous edition?

SIST-TP CEN ISO/ASTM TR 52958:2026 is the first edition of ISO/ASTM TR 52958:2026.

Which standards are used with SIST-TP CEN ISO/ASTM TR 52958:2026?

• ISO/ASTM 52900 - The normative reference for general principles, fundamentals, and vocabulary of additive manufacturing.
• ISO/ASTM TR 52906 - Cited in the bibliography as the companion document on intentionally seeding flaws in metallic parts, which supports the coupon-design approach used here.
• ASTM E3166-20 - Cited as the source of the lack of fusion definition used in the terms section.

What does the SIST-TP CEN ISO/ASTM TR 52958:2026 document contain?

The document contains a full workflow supported by figures, formulas, tables, and a worked case study. Figures show the sensor layout, signal perturbation concepts, coupon geometries, algorithm flow, and voxelization logic, while Clause 9 applies the method to Hastelloy X examples.

It also includes:

• a moving-average formula for statistical processing
• an accuracy formula based on confusion-matrix counts
• a confusion matrix for comparing algorithm output with CT
• case-study tables for process settings and validation results

For a reader, these elements show how to move from raw photodiode signals to a checked flaw-detection result, rather than only describing the signal-processing concepts in the abstract.

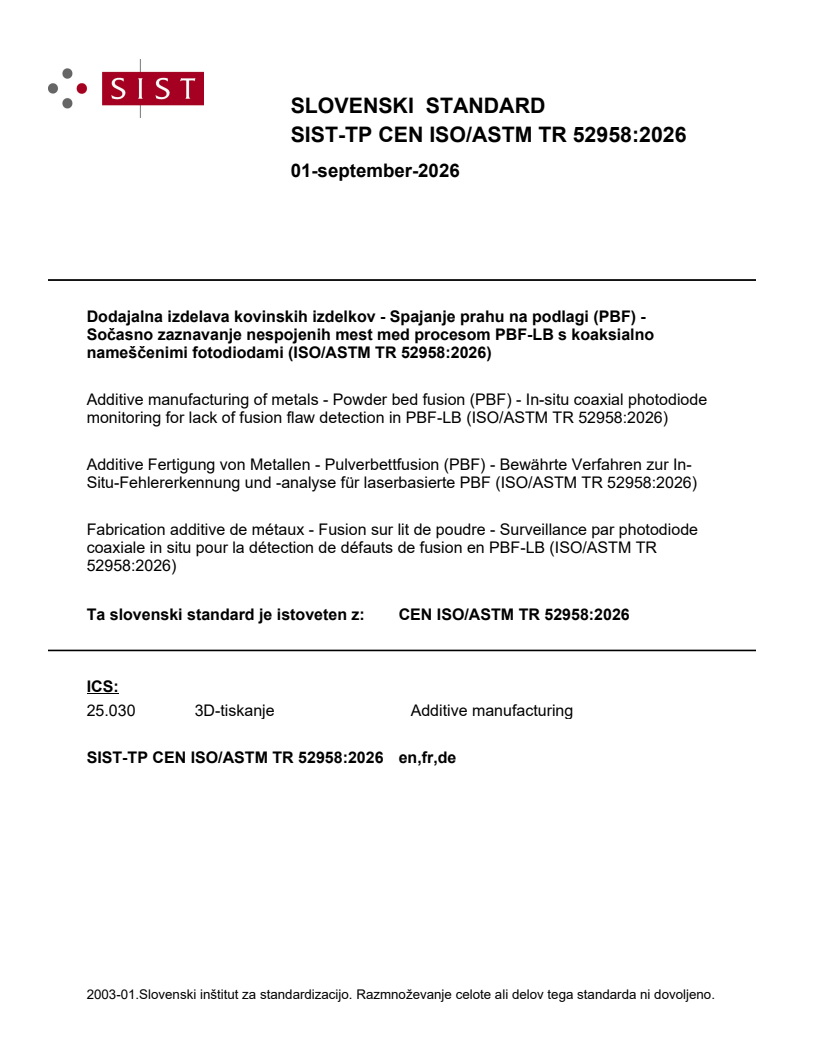

SLOVENSKI STANDARD
01-september-2026
Dodajalna izdelava kovinskih izdelkov - Spajanje prahu na podlagi (PBF) -
Sočasno zaznavanje nespojenih mest med procesom PBF-LB s koaksialno
nameščenimi fotodiodami (ISO/ASTM TR 52958:2026)
Additive manufacturing of metals - Powder bed fusion (PBF) - In-situ coaxial photodiode
monitoring for lack of fusion flaw detection in PBF-LB (ISO/ASTM TR 52958:2026)
Additive Fertigung von Metallen - Pulverbettfusion (PBF) - Bewährte Verfahren zur In-
Situ-Fehlererkennung und -analyse für laserbasierte PBF (ISO/ASTM TR 52958:2026)
Fabrication additive de métaux - Fusion sur lit de poudre - Surveillance par photodiode
coaxiale in situ pour la détection de défauts de fusion en PBF-LB (ISO/ASTM TR
52958:2026)
Ta slovenski standard je istoveten z: CEN ISO/ASTM TR 52958:2026
ICS:
25.030 3D-tiskanje Additive manufacturing
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

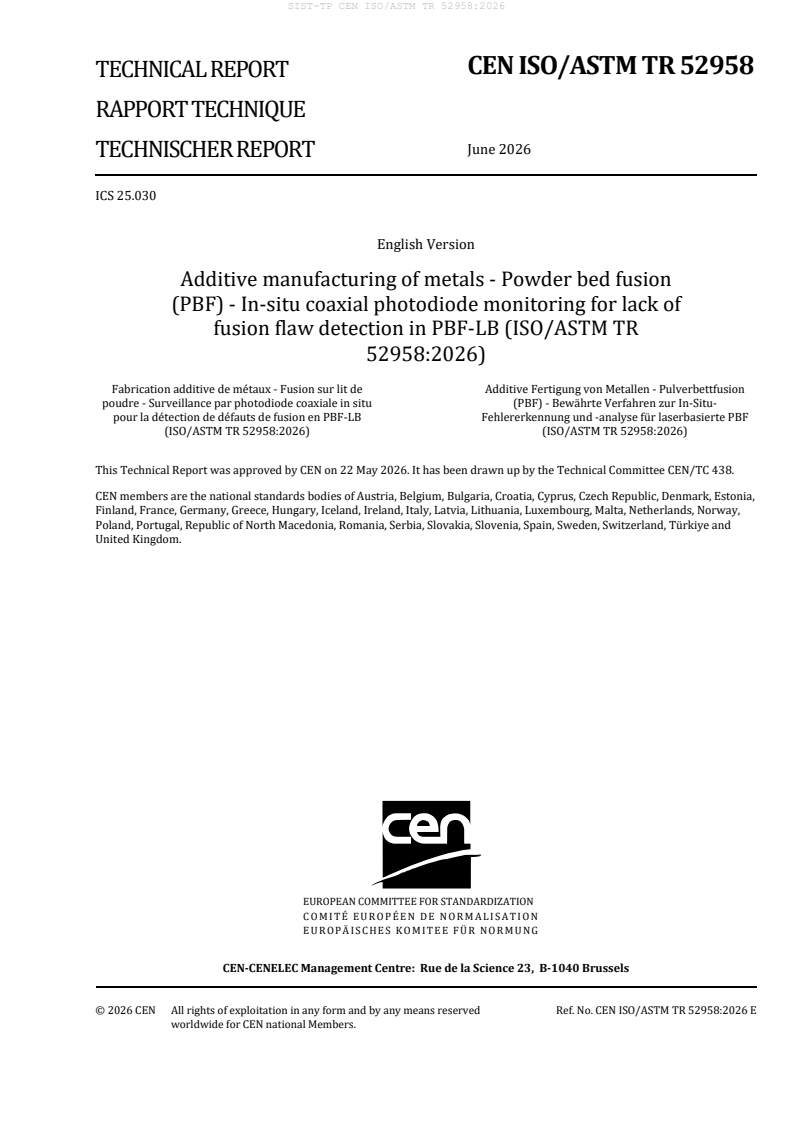

CEN ISO/ASTM TR 52958
TECHNICAL REPORT
RAPPORT TECHNIQUE
June 2026
TECHNISCHER REPORT
ICS 25.030
English Version
Additive manufacturing of metals - Powder bed fusion
(PBF) - In-situ coaxial photodiode monitoring for lack of
fusion flaw detection in PBF-LB (ISO/ASTM TR
52958:2026)
Fabrication additive de métaux - Fusion sur lit de Additive Fertigung von Metallen - Pulverbettfusion
poudre - Surveillance par photodiode coaxiale in situ (PBF) - Bewährte Verfahren zur In-Situ-
pour la détection de défauts de fusion en PBF-LB Fehlererkennung und -analyse für laserbasierte PBF
(ISO/ASTM TR 52958:2026) (ISO/ASTM TR 52958:2026)

This Technical Report was approved by CEN on 22 May 2026. It has been drawn up by the Technical Committee CEN/TC 438.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2026 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN ISO/ASTM TR 52958:2026 E
worldwide for CEN national Members.

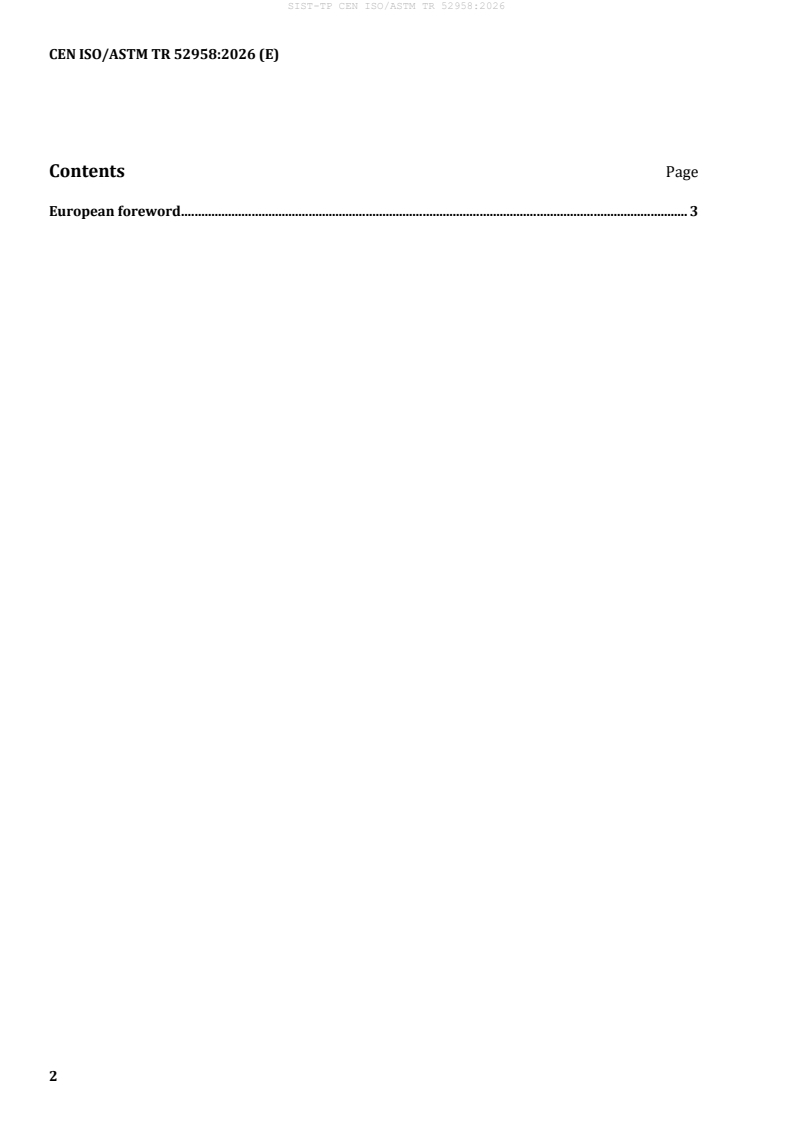

Contents Page
European foreword . 3

European foreword
This document (CEN ISO/ASTM TR 52958:2026) has been prepared by Technical Committee
ISO/TC 261 "Additive manufacturing" in collaboration with Technical Committee CEN/TC 438 “Additive
Manufacturing” the secretariat of which is held by AFNOR.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national standards
body/national committee. A complete listing of these bodies can be found on the CEN website.
Endorsement notice
The text of ISO/ASTM TR 52958:2026 has been approved by CEN as CEN ISO/ASTM TR 52958:2026
without any modification.
Technical
Report
ISO/ASTM TR 52958
First edition
Additive manufacturing of metals —
2026-05
Powder bed fusion (PBF) — In-situ
coaxial photodiode monitoring for
lack of fusion flaw detection in PBF-
LB
Fabrication additive de métaux — Fusion sur lit de poudre —
Surveillance par photodiode coaxiale in situ pour la détection de
défauts de fusion en PBF-LB
Reference number
ISO/ASTM TR 52958:2026(en) © ISO/ASTM International 2026

ISO/ASTM TR 52958:2026(en)
© ISO/ASTM International 2026
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester. In the United States, such requests should be sent to ASTM International.
ISO copyright office ASTM International
CP 401 • Ch. de Blandonnet 8 100 Barr Harbor Drive, PO Box C700
CH-1214 Vernier, Geneva West Conshohocken, PA 19428-2959, USA
Phone: [phone] Phone: [phone]
Fax: [phone]
Email: [e-mail] Email: [e-mail]
Website: www.iso.org Website: www.astm.org
Published in Switzerland
© ISO/ASTM International 2026 – All rights reserved
ii
ISO/ASTM TR 52958:2026(en)
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Significance and use . 2
5 Design of coupons . 3
5.1 General .3
5.2 Intentionally seeded flaws .4
5.3 Randomized/stochastic flaws .6
6 Sensor description . 6
7 Flaw detection algorithms . 7
7.1 General .7
7.2 Statistical algorithms .8
7.2.1 General .8
7.2.2 Absolute limits (AL) .9
7.2.3 Short term fluctuations (STF) .11
7.2.4 Workflow .11
7.3 Machine-learning approach: clustering algorithm . 13
7.3.1 Self-organizing map (SOM) .14
7.3.2 K-means . 15
8 Implementation of customized algorithms to components with randomized flaws and
the associated voxelization thereof .16
9 Case study: procedural implementation and validation results . 19
Bibliography .25

© ISO/ASTM International 2026 – All rights reserved
iii
ISO/ASTM TR 52958:2026(en)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO documents should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 261, Additive manufacturing, in cooperation
with ASTM Committee F42, Additive Manufacturing Technologies, on the basis of a partnership agreement
between ISO and ASTM International with the aim to create a common set of ISO/ASTM standards on
Additive Manufacturing, and in collaboration with the European Committee for Standardization (CEN)
Technical Committee CEN/TC 438, Additive manufacturing, in accordance with the Agreement on technical
cooperation between ISO and CEN (Vienna Agreement).
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

© ISO/ASTM International 2026 – All rights reserved
iv
Technical Report ISO/ASTM TR 52958:2026(en)
Additive manufacturing of metals — Powder bed fusion (PBF)
— In-situ coaxial photodiode monitoring for lack of fusion
flaw detection in PBF-LB
1 Scope
This document provides a workflow comprising experimental procedures and flaw detection algorithms
aimed at locating flaws in parts produced during the powder bed fusion-laser-based (PBF-LB) process of
metals. It emphasizes the use of coaxial photodiode-based in-situ monitoring and statistical and clustering
machine learning algorithms, particularly for detecting lack of fusion-induced flaws. The workflow
delineates setting thresholds for statistical detection and determining the number of clusters for machine
learning algorithms, utilizing intentional seeded flaws in parts. Validation procedures are provided through
computed tomography scanner data. Hardware limitations and considerations for multi-laser processes are
addressed, with attention to potential issues.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO/ASTM 52900, Additive manufacturing — General principles — Fundamentals and vocabulary
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/ASTM 52900 and the following
apply:
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
clustering algorithm
unsupervised machine learning methods with unlabelled input data is grouped by similarity
3.2
coaxial photodiode arrangement
type of sensor arrangement on the powder bed fusion-laser-based machine aligned with the laser beam path
3.3
computed tomography
CT
non-destructive examination technique capturing radiographic projections of an object at various rotational
angles followed by mathematically reconstruction to produce a three-dimensional volume data set or one or
more two-dimensional cross-sectional images

© ISO/ASTM International 2026 – All rights reserved
ISO/ASTM TR 52958:2026(en)
3.4
data alignment
process of transforming different sets of geometrically or temporally related data into a single, global
coordinate system
3.5
data registration
procedure of data alignment and assignation of a persistent identification to the aligned data set
3.6
ex-situ analysis
measurement procedure performed after the completion of the build cycle
3.7
flaw indicator
indicator corresponding to the location of flaws predicted by the flaw detection algorithm
3.8
lack of fusion
type of process-induced porosity with not fully melted or fused powder particles onto the previously
deposited substrate.
[SOURCE: ASTM E3166-20, 3.4.7]
3.9
reference datum feature
notch, groove, or similar feature added to the geometry in a seeded flaw coupon to ease data alignment and
registration of porosity locations for CT-scan ex-situ analysis
3.10
intentionally seeded flaw
act of intentionally creating flaws through computer-aided design or manipulation of designated processing
parameters, resulting in the placement of the anticipated flaw or the act of intentionally creating a flaw
through the insertion of an artificial object
4 Significance and use
A workflow for indirect flaw detection and analysis documentation during PBF-LB is provided by using
the signals received from a coaxial photodiode that can detect flaws, including lack of fusion, in fabricated
components.
These flaws may have detrimental effects on the mechanical performance of fabricated parts. The workflow
of this document provides a procedure to identify the range of upper and lower thresholds required for the
statistical detection algorithms to identify stochastic lack of fusion defects induced during the process. It
provides a procedure to identify the number of clusters required for machine learning detection algorithms.
In the validation procedure, the datasets collected from a CT scanner that are registered and voxelized
can be used. It is noted that the size of detectable flaw, as determined by the procedure outlined in this
document, is contingent upon the resolution and frequency of the hardware employed, specifically a co-
axial photodiode and its associated data acquisition card. For instance, when utilizing a commonly available
photodiode with a frequency of 60 kHz, the procedure and algorithms specified by this document are unable
to detect flaws smaller than 100 μm.
In general, an in situ photodiode installed coaxially provides information from the process signature and
flaws. However, the recorded in situ data needs to be corrected to remove chromatic and monochromatic
distortion. The corrected data analyse by two main algorithms to identify flaws:
a) statistically, and
b) by machine learning.
© ISO/ASTM International 2026 – All rights reserved
ISO/ASTM TR 52958:2026(en)
These algorithms can be systematically optimized and customized to detect lack of fusion flaws. To this
end, intentionally seeded flaws are first added to the computer-aided design (CAD) of coupons to tune
the parameters of the algorithms. Then, the customized algorithm is tested by detecting randomized/
stochastic flaws created by powder bed fusion-laser based with intentionally decreased energy density.
The comparison of detection results could be analysed by algorithms with the CT data applied through a
volumetric approach to identify the randomized/stochastic flaws. A flowchart illustrating the progression
in this document is shown in Figure 1.
Figure 1 — Schematic for calibration flow needed for detecting the lack of fusion flaw
5 Design of coupons
5.1 General
To customize and calibrate the detection algorithms systematically, two sets of coupons are suggested.
Reference datum features can also be added to the geometry to ease data alignment and data registration
of porosity locations in the ex situ analysis that is CT-scan in this practice. Figure 2 represents some
suggestions for registry notches/grooves.

© ISO/ASTM International 2026 – All rights reserved
ISO/ASTM TR 52958:2026(en)
a) Added vertical and horizontal registry grooves b) Added inclined notches
Figure 2 — Addition of registry grooves and inclined notches to the geometry of the coupon
5.2 Intentionally seeded flaws
The effect of the lack of fusion flaw can be mimicked by embedding intentional seeds/voids in the coupons.
[1]
According to ISO/ASTM TR 52Same as above906 , for creating these seeds, various sizes, distributions,
and geometries of seeds can be added to the computer-aided design. Two forms of spherical and cylindrical
intentional seeded flaws can be considered where the size of spherical flaws is identified by their diameter
and the size of cylindrical flaws is identified by their cross-sectional diameter and height. Note that the
minimum size of the intentional flaw is dictated by the PBF-LB restrictions. It is, however, recommended
that the feature size of flaws is set in the computer-aided design model to three different classes:
The minimum size possible to be made by the PBF-LB (for example 100 µm for the diameter of spheres and
100 µm for height and diameter of cylinders) depending on the resolution and laser spot size:
a) the minimum value plus 50 μm (for example 150 µm for the above-mentioned parameters);
b) the minimum value plus 100 µm (for example 200 µm for the above-mentioned parameters).
Note that within the layers in which the intentional flaws are made, an optimum down-skin parameter is
used to endure the mechanical integrity of the intentional flaw. The capping layer, however, can have no
down-skin setting.
Two examples of intentionally seeded flaws are shown in Figure 3. Figure 3 a) and b) represent two
dimensional cross sections of samples showing the distribution of the intentionally seeded flaws (cylindrical
and spherical), respectively. In Figure 3 a), six nominally identical sets of three sizes of cylindrical flaws (Ø,
H = 200 µm, Ø, H = 150 µm, and Ø, H = 100 µm are shown; in Figure 3 b), six nominally identical sets of three
sizes of spherical flaws (Ø = 200 µm, Ø = 150 µm, and Ø = 100 µm) where Ø is the diameter and H is the
height, in microns, are demonstrated; in Figure 3 c), the capping layer of spherical flaws are represented.

© ISO/ASTM International 2026 – All rights reserved
ISO/ASTM TR 52958:2026(en)
a)  Cylindrical type b)  Spherical type
c)  Schematic of spherical flaws showing the capping layer
Key
A sets (clustered intentional voids)
B capping layer
NOTE 1 All dimensions are in SI coordinate system.
NOTE 2 Figures 3 a) and 3 b) are published under an open access CC by 4.0 license.
Figure 3 — Two dimensional cross sections of samples showing the distribution of different types of
intentionally seeded flaws
© ISO/ASTM International 2026 – All rights reserved
ISO/ASTM TR 52958:2026(en)
5.3 Randomized/stochastic flaws
Randomized/stochastic flaws can be achieved normally because of process anomalies or by altering process
parameters in which the lack of fusion flaws are created by decreasing the energy density during the build
cycle. For creating randomized lack of fusion flaws, four scenarios are recommended:
a) reducing the laser power;
b) increasing the hatching distance;
c) increasing the scanning speed;
d) increasing the layer thickness.
These alterations depend on the material. It is, however, recommended that the produced parts with altered
process parameters exhibit a relative density reduction of around 0,5 % compared to parts built with
nominal process parameters.
6 Sensor description
The sensor embodied in this document is a coaxial photodiode arrangement with a sampling frequency
of equal or more than 60 kHz. The coaxial photodiode arrangement is aligned with the laser beam path
through a beam splitter (see Figure 4).
NOTE 1 Photodiodes can capture light intensity signals from the melt pool in different wavelengths; however, the
preferred wavelength range for most metallic alloys to capture melt pool light intensity is normally in the visible and
near-infrared ranges (between 750 nm to 900 nm).
In addition to the light intensity data, laser modulation and XY scanner position are recorded and stored in
the associated personal computer. Intensity and geometry calibrations of dataset are also required.
NOTE 2 Details of the data calibration routines are out of the scope of this practice.
NOTE 3 The intensity correction for the coaxial data can be implemented because of the chromatic aberration
phenomenon. It is initiated because the wavelength of light intensity recorded by the photodiode is not the same as the
wavelength optimized for the scanner mirror and f-theta lens or dynamic focusing units.
NOTE 4 The intensity and geometry corrections are dependent on the commercial system and are normally
implemented by the original equipment manufacturer’s monitoring system.

© ISO/ASTM International 2026 – All rights reserved
ISO/ASTM TR 52958:2026(en)
Key
1 laser
2 scanner mirror
3 F-Thena lense
4 roller (recoater)
5 powder
6 build plate
7 beam splitter
8 along the beam path
9 co-axial sensor
Figure 4 — Position of the coaxial sensor in the PBF-LB setup
7 Flaw detection algorithms
7.1 General
Two different approaches are recommended for detecting flaws: statistical algorithms and clustering
machine learning-clustering algorithms.
The statistical algorithm works based on the threshold method, and the clustering algorithm distributes
data into different groups. The workflow to detect the flaws was demonstrated in Figure 1 and is the
following:
Step 1: The preferred algorithm can be applied to the data collected during the printing of the samples with
intentionally seeded flaws.
© ISO/ASTM International 2026 – All rights reserved
ISO/ASTM TR 52958:2026(en)
Step 2: The detection result is compared with the design and CT scan data to customize/calibrate the
algorithm parameters such as moving average windows length and thresholds.
NOTE The setting of CT scan can normally be optimized in terms of resolution.
Step 3: The customized algorithm stemmed from Step 2 can be used for the detection of randomized flaws
in the fabricated samples.
Step 4: The detection results of Step 3 are validated by CT scan through the volumetric approach and
confusion matrix which is explained in Clause 9.
As an example, several statistical and machine-learning algorithms that are suitable for this practice are
