EUROPEAN STANDARD EN 60357:2003/A11
NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2016
ICS 29.140.20
English Version
Tungsten halogen lamps (non-vehicle) - Performance
specifications

Lampes tungstène-halogène (véhicules exceptés) - Halogen-Glühlampen (Fahrzeuglampen ausgenommen) -

Prescriptions de performances Anforderungen an die Arbeitsweise

This amendment A11 modifies the European Standard EN 60357:2003; it was approved by CENELEC on 2016-03-14. CENELEC members

are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the status of a

national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC

Management Centre or to any CENELEC member.

This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the

responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as

the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,

Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,

Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels

© 2016 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Ref. No. EN 60357:2003/A11:2016 E
---------------------- Page: 3 ----------------------
SIST EN 60357:2004/A11:2016
EN 60357:2003/A11:2016 (E)

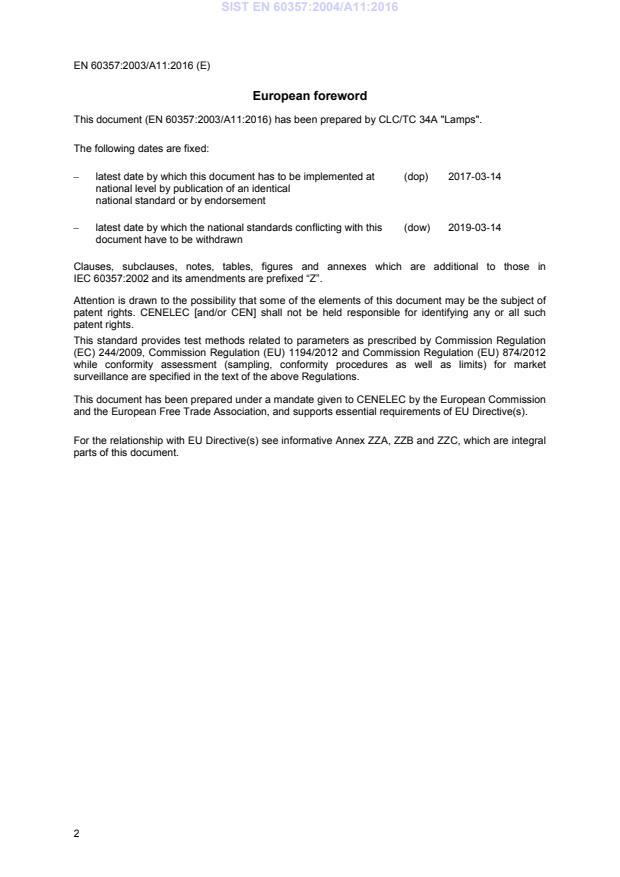

European foreword
This document (EN 60357:2003/A11:2016) has been prepared by CLC/TC 34A "Lamps".
The following dates are fixed:
– latest date by which this document has to be implemented at (dop) 2017-03-14
national level by publication of an identical
national standard or by endorsement

– latest date by which the national standards conflicting with this (dow) 2019-03-14

document have to be withdrawn

Clauses, subclauses, notes, tables, figures and annexes which are additional to those in

IEC 60357:2002 and its amendments are prefixed “Z”.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such

patent rights.

This standard provides test methods related to parameters as prescribed by Commission Regulation

(EC) 244/2009, Commission Regulation (EU) 1194/2012 and Commission Regulation (EU) 874/2012

while conformity assessment (sampling, conformity procedures as well as limits) for market

surveillance are specified in the text of the above Regulations.

This document has been prepared under a mandate given to CENELEC by the European Commission

and the European Free Trade Association, and supports essential requirements of EU Directive(s).

For the relationship with EU Directive(s) see informative Annex ZZA, ZZB and ZZC, which are integral

parts of this document.
---------------------- Page: 4 ----------------------
SIST EN 60357:2004/A11:2016
EN 60357:2003/A11:2016 (E)
CONTENTS Add the following annexes:

Annex ZA (normative) Normative references to international publications with their

corresponding European publications
Annex ZZA (informative) Relationship between this European Standard and the
requirements of Commission Regulation (EC) No 244/2009
Annex ZZB (informative) Relationship between this European Standard and the
requirements of Commission Regulation (EU) No 1194/2012
Annex ZZC (informative) Relationship between this European Standard and the
requirements of Commission Delegates Regulation (EU)
N° 874/2012
Delete all references to lamp caps E11.
Delete the following lamp data sheets from the IEC text:
60357-IEC-3211-3
60357-IEC-3230-2
60357-IEC-6115-1
60357-IEC-6720-1
60357-IEC-6722-1
60357-IEC-6725-1 and 2
60357-IEC-6726
60357-IEC-6727
60357-IEC-6820-1

Delete the following particular lamp types from lamp data sheets in the IEC text:

Lamp types deleted
Lamp data sheet
Rated wattage Voltage range Z
nom
60357-IEC-3005-3 1 000 B 89,6
1 000 B 104,1
750 B 114,2
1 000 B 138,1
1 000 B 162,0
1 500 B 162,0
60357-IEC-3105-2 650 B 74,9
800 C 74,9
1 250 C 121,7
60357-IEC-3210-3 750 B –
60357-IEC-4105-4 2 000 – 327,4
60357-IEC-4105-5 2 000 – 327,4
1.0.Z1 Add the following clause before clause 1.1
1.0.Z1 Overall statement
---------------------- Page: 5 ----------------------
SIST EN 60357:2004/A11:2016
EN 60357:2003/A11:2016 (E)

Where a Commission Regulation specifies limits for parameters these limits shall be

used instead of the limits specified in this standard.
1.3.Z1 After 1.3.18 add new definitions 1.3.Z1 up to 1.3.Z3:
3.Z1
directional lamp

lamp having at least 80 % light output within a solid angle of π sr (corresponding to a

cone with angle of 120°)
[SOURCE: Regulation 1194/2012 Article 2]
3.Z2
partial luminous flux (of a light source, within a specified cone angle)

luminous flux emitted from a light source within a specified cone angle α, determined

from the luminous intensity distribution I(θ, ϕ) of the source:
2π α /2
Φ = I(θ,ϕ) sinθ dθ dϕ
ϕθ00
(2)
Note 1 to entry: Partial luminous flux is expressed in lumen (lm)
Note 2 to entry: (θ, ϕ)=(0,0) is the direction of the cone axis
Note 3 to entry: The cone angle α is the full angle (diameter) of the cone
[SOURCE: EN 13032-4:2015, 3.41, modified, – Notes 4 and 5 removed]
3.Z3
useful luminous flux, Φ
use

partial luminous flux of a halogen lamp falling within the cone used for calculating the

halogen lamp’s energy efficiency according Annex III, point 1.1 of COMMISSION
REGULATION (EU) No 1194/2012
Note 1 to entry: Useful luminous flux is expressed in lumen (lm)

Note 2 to entry: The regulation specifies 90° or 120° cones according to the product characteristics

Note 3 to entry: Useful luminous flux is similar to partial luminous flux. It is determined with the cone axis

coincident with the observed optical beam axis of the light source, the axis about which

the luminous intensity is substantially symmetrical
1.4.3 Replace the entire clause 1.4.3 by:
1.4.3 Dimensions
1.4.3.Z1 General

Lamps and, if applicable, filament dimensions shall comply with the values specified

on the relevant lamp data sheet.

Measurement of the lamp dimensions shall be done with a caliper at 20 ºC to 30 ºC.

---------------------- Page: 6 ----------------------
SIST EN 60357:2004/A11:2016
EN 60357:2003/A11:2016 (E)
1.4.3.Z2 Relationship between some types and Table 6 of COMMISSION
REGULATION (EU) No 1194/2012
The following types, as listed in Table 6 of COMMISSION REGULATION (EU)

No 1194/2012, are considered to be related to data sheet as given in the following

Table Z1.
Table Z1 - Relationship between some types and Table 6 of COMMISSION
REGULATION (EU) No 1194/2012
Type Data sheet covering Designation covered by the sheet
the type
(as in Table 6 of 1194/2012)
Mains-voltage blown glass reflector types
R50/NR50 1 R50 E14
60630-IEC-1510-
R63/NR63 60630-IEC-1520- R63 E27
60630-IEC-1530- R63 B22d
R80/NR80 60630-IEC-1540- R80 E27
60630-IEC-1550- R80 B22d
R95/NR95 60630-IEC-1570- R95 E27
60630-IEC-1580- R95 B22d
R125 60630-IEC-1590- R125 E27
60630-IEC-1600- R125 B22d
Mains-voltage pressed glass reflector types
PAR16 60357-IEC-1015- PAR16 GU10
(also called PAR50 GU10)
PAR16 60630-IEC-1510- PAR50 E14
(also called PAR16)
PAR20 60357-IEC-1016- PAR20 GU10
(also called PAR63 GU10)
PAR20 60630-IEC-1520- PAR63 E27
(also called PAR20)
PAR25 60630-IEC-1540- PAR80 E27
(also called PAR25)
PAR30S 60630-IEC-1610- PAR95S E27
(also called PAR30S)
PAR38 60630-IEC-1620- PAR121 E27
(also called PAR38)
Extra-low voltage reflector type
MR11 GU4 60357-IEC-6310- MR11
MR11 GU4 60357-IEC-6315- MR11
MR16 GU 5.3 60357-IEC-6320- MR16
MR16 GU 5.3 60357-IEC-6325- MR16
AR111 60357-IEC-6450- AR111
1.4.5.1 Add in indent a) the following after the wording ‘tungsten halogen lamp:
———————

These data sheets refer to lamp maximum outline dimensions in EN 60630. These lamps are not otherwise specified in this

standard.
---------------------- Page: 7 ----------------------
SIST EN 60357:2004/A11:2016
EN 60357:2003/A11:2016 (E)
(or useful luminous flux for directional lamps) (lm)
1.4.Z1 After 1.4.7 add new clauses 1.4.Z1 up to 1.4.Z7:
1.4.Z1
The measurement of the spectral power distribution shall be made under the
conditions of Annex A and in accordance with CIE 63.
1.4.Z2
The Correlated colour temperature (CCT) shall be calculated in accordance with
CIE 015:2004.
1.4.Z3

The test for starting and warm-up times shall be in accordance with EN 60969:201x ,

B.3.

Starting time is determined as the period from the start of the test to when the lamp

has fully completed the starting sequence (lamp has started and remains alight).

Warm-up time is the time taken from the start of the test to when the lamp achieves

the required percentage of its stable luminous flux.

Halogen lamps without integrated controlgear are deemed to fulfil the starting time

requirement by their technology. Testing is not needed.
1.4.Z4

The Colour rendering index (CRI) of an individual lamp shall be calculated from the

spectral power distribution in accordance with CIE 13.3:1995.
1.4.Z5

The determination of the power factor shall be in accordance with IEC/TR 61000-1-

7:2016.

Halogen lamps without integrated controlgear are deemed to fulfil the power factor

requirement by their technology. Testing is not needed.
1.4.Z6

Lamps without integrated control gear are deemed to be dimmable without testing.

Testing of other types is under consideration.
1.4.Z7

For switching requirements the test conditions shall be as specified in A.3.1. The

switching cycle used shall be 1 min on and 3 min off.
———————
In preparation
---------------------- Page: 8 ----------------------
SIST EN 60357:2004/A11:2016
EN 60357:2003/A11:2016 (E)
Annex A.2 Replace the entire subclause by:
A.2.1 General
Luminous flux shall be measured in accordance with CIE 84:1984.
Beam angle(s) and centre beam intensity shall be measured in accordance with
EN 61341:2011.

Prior to the initial measurements the lamp shall be aged for approximately 1 h at its

rated voltage.
Tests shall be made in a draught-free atmosphere.

Photometric characteristics shall be measured in accordance with EN 13032-1:2004.

A.2.2 Useful luminous flux

For directional lamps the useful luminous flux is obtained by luminous intensity

integration as described in EN 13032-4:2015, 6.3 “Partial luminous flux “.
Alternative measurement methods may be used if they can be shown to give

equivalent results for the product being tested, if necessary by applying correction

factors. Measurements with lamps operating horizontally are often much easier to

carry out. The reference method, however, uses the following measurement position:

lamps shall be operated in free air in a vertical base-up position.
In case of doubt a goniophotometry measurement in accordance with
EN 13032-4:2015, 6.3 shall be leading.

NOTE Below are a few examples of alternative measurement methods. It is not an exhaustive list.

• For small beam angles shine into integrating sphere.
• Mount lamp on internal surface of integrating sphere.
• Mount
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
