This European Standard specifies general requirements for professional motorcycle riders jackets, trousers and one-piece or divided suits which are intended to protect the wearer against mechanical injury, it does not apply to motor sport competition events organised by Federation. It also specifies appropriate test methods.
Schutzkleidung für professionelle Motorradfahrer - Jacken, Hosen und ein- oder mehrteilige Anzüge - Teil 1: Allgemeine Anforderungen
Diese Europäische Norm legt allgemeine Anforderungen an Jacken, Hosen und ein- und zweiteilige Anzüge fest, die zum Schutz professioneller Motorradfahrer vor mechanischen Verletzungen dienen, und spezifiziert geeignete Prüfverfahren. Sie findet keine Anwendung bei Motorsportveranstaltungen, die durch Verbände organisiert werden.
Vetements de protection pour les motocyclistes professionnels - Vestes, Pantalons et combinaisons une ou deux pieces - Partie 1: Exigences générales
La présente Norme européenne spécifie les exigences générales applicables aux vetements réservés aux motocyclistes professionnels, tels que vestes, pantalons et combinaisons une ou deux pieces conçus pour protéger la personne qui les porte de toute blessure d'origine mécanique ; elle ne s'applique pas aux compétitions sportives organisées par la Fédération. Elle précise également les méthodes d'essai appropriées qui servent a évaluer leur conformité a ces memes exigences.
Varovalna obleka za poklicne voznike motornih koles - Jopiči, hlače in enodelne ali večdelne obleke - 1. del: Splošne zahteve
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Schutzkleidung für professionelle Motorradfahrer - Jacken, Hosen und ein- oder mehrteilige Anzüge - Teil 1: Allgemeine AnforderungenVetements de protection pour les motocyclistes professionnels - Vestes, Pantalons et combinaisons une ou deux pieces - Partie 1: Exigences généralesProtective clothing for professional motorcycle riders - Jackets, trousers and one piece or divided suits - Part 1: General requirements43.140Motorna kolesa in mopediMotor cycles and mopeds13.340.10Varovalna oblekaProtective clothingICS:Ta slovenski standard je istoveten z:EN 13595-1:2002SIST EN 13595-1:2002en01-november-2002SIST EN 13595-1:2002SLOVENSKI
STANDARD
SIST EN 13595-1:2002
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13595-1July 2002ICS 13.340.10English versionProtective clothing for professional motorcycle riders - Jackets,trousers and one piece or divided suits - Part 1: GeneralrequirementsVêtements de protection pour les motocyclistesprofessionnels - Vestes, Pantalons et combinaisons une oudeux pièces - Partie 1: Exigences généralesSchutzkleidung für professionelle Motorradfahrer - Jacken,Hosen und ein- oder mehrteilige Anzüge - Teil 1:Allgemeine AnforderungenThis European Standard was approved by CEN on 6 April 2002.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2002 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13595-1:2002 ESIST EN 13595-1:2002

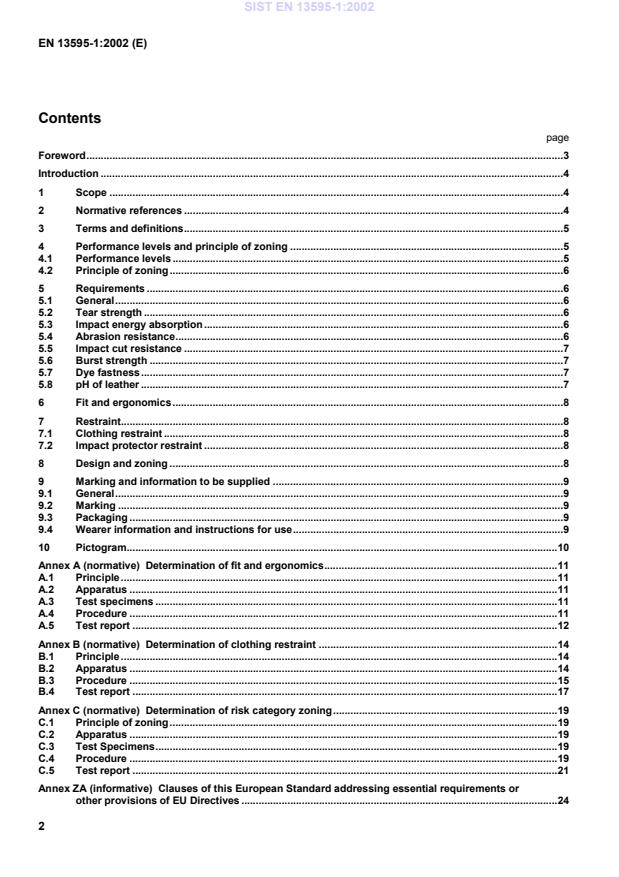

EN 13595-1:2002 (E)2ContentspageForeword.3Introduction.41Scope.42Normative references.43Terms and definitions.54Performance levels and principle of zoning.54.1Performance levels.54.2Principle of zoning.65Requirements.65.1General.65.2Tear strength.65.3Impact energy absorption.65.4Abrasion resistance.65.5Impact cut resistance.75.6Burst strength.75.7Dye fastness.75.8pH of leather.76Fit and ergonomics.87Restraint.87.1Clothing restraint.87.2Impact protector restraint.88Design and zoning.89Marking and information to be supplied.99.1General.99.2Marking.99.3Packaging.99.4Wearer information and instructions for use.910Pictogram.10Annex A (normative)
Determination of fit and ergonomics.11A.1Principle.11A.2Apparatus.11A.3Test specimens.11A.4Procedure.11A.5Test report.12Annex B (normative)
Determination of clothing restraint.14B.1Principle.14B.2Apparatus.14B.3Procedure.15B.4Test report.17Annex C (normative)
Determination of risk category zoning.19C.1Principle of zoning.19C.2Apparatus.19C.3Test Specimens.19C.4Procedure.19C.5Test report.21Annex ZA (informative)
Clauses of this European Standard addressing essential requirements orother provisions of EU Directives.24SIST EN 13595-1:2002
EN 13595-1:2002 (E)3ForewordThis document EN 13595-1:2002 has been prepared by Technical Committee CEN/TC 162 "Protective clothingincluding hand and arm protection and lifejackets", the secretariat of which is held by DIN.This European Standard shall be given the status of a national standard, either by publication of an identical text orby endorsement, at the latest by January 2003, and conflicting national standards shall be withdrawn at the latestby January 2003.This document has been prepared under a mandate given to CEN by the European Commission and the EuropeanFree Trade Association, and supports essential requirements of EU Directive(s).For relationship with EU Directive(s), see informative annex ZA, which is an integral part of this document.Annexes A, B and C are normative.This standard is part of a series of standards specifying requirements for particular items of clothing or particularperformance levels and hazards. EN 13595 comprises four parts:Part 1: General requirements;Part 2: Test method for determination of impact abrasion resistance;Part 3: Test method for determination of burst strength;Part 4: Test method for determination of impact cut resistance.According to the CEN/CENELEC Internal Regulations, the national standards organizations of the followingcountries are bound to implement this European Standard: Austria, Belgium, Czech Republic, Denmark, Finland,France, Germany, Greece, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain,Sweden, Switzerland and the United Kingdom.SIST EN 13595-1:2002
EN 13595-1:2002 (E)4IntroductionThe only protection a motorcyclist involved in a road traffic accident has against injury is the clothing he or she iswearing at the time. Motorcyclists' clothing is generally worn as an extension of normal clothing, providingprotection against ambient conditions of wind, water and cold, but motorcycle clothing performing the requirementsof this standard also provides some protection from injury in the event of an accident. It is intended not to hinder arider from controlling his machine. It should be of an acceptable appearance to the wearer.This European Standard is primarily concerned with the protection provided by clothing against injury in accidents.The hazards to which motorcyclists are exposed vary widely depending on the physical environment such as thenature of the road track or mountainside, the climatic environment, the traffic environment, the speed at which themotorcycle is being ridden and the skill of the rider. It is impractical to obtain total clothing performance againstevery combination of hazard existing. Therefore this standard contains the requirements for single characteristics ofsingle items of clothing or simple combinations of garments.This standard is part of a series of standards specifying requirements for particular items of clothing or particularperformance levels and hazards. Further Parts will be issued in due course.1 ScopeThis European Standard specifies general requirements for professional motorcycle riders jackets, trousers andone-piece or divided suits which are intended to protect the wearer against mechanical injury, it does not apply tomotor sport competition events organised by Federation. It also specifies appropriate test methods.2 Normative referencesThis European Standard incorporates by dated or undated reference, provisions from other publications. Thesenormative references are cited at the appropriate places in the text, and the publications are listed hereafter. Fordated references, subsequent amendments to or revisions of any of these publications apply to this EuropeanStandard only when incorporated in it by amendment or revision. For undated references the latest edition of thepublication referred to applies (including amendments).EN 340, Protective clothing — General requirements.EN 1621-1, Motorcyclists' protective clothing against mechanical impact - Part 1: Requirements and test methodsfor impact protectors.prEN 13595–2, Protective clothing for professional motorcycle riders - Jackets, trousers and one-piece or dividedsuits - Part 2: Test method for determination of impact abrasion resistance.EN 13595-3, Protective clothing for professional motorcycle riders - Jackets, trousers and one-piece or dividedsuits - Part 3: Test method for determination of burst strength.EN 13595-4, Protective clothing for professional motorcycle riders - Jackets, trousers and one-piece or dividedsuits - Part 4: Test method for determination of impact cut resistance.ISO 105, Textiles — Tests for colour fastness.ISO 3377:1975, Leather — Determination of tearing load.ISO 3635:1981, Size designation of clothes — Definitions and body measurement procedure.SIST EN 13595-1:2002
EN 13595-1:2002 (E)5ISO 4045:1977, Leather — Determination of pH.ISO 4674:1977, Fabrics coated with rubber or plastics — Determination of tear resistance.ISO 11642:1993, Leather — Tests for colour fastness — Colour fastness to water.3 Terms and definitionsFor the purposes of this standard, the following terms and definitions apply.3.1high trousers (including salopettes)trousers with protective material around the full circumference of the torso to a height of at least 100 mm above thewaist of the wearer3.2long jacketsjackets with protective material around the full circumference of the torso to a height of at least 100 mm below thewaist of the wearer3.3protectorsarrangement of energy absorbing and/or impact spreading materials designed to offer some protection to theimpact areas3.4professional riderperson who is employed to provide or contracts to perform for reward, the services requiring the riding of amotorcycleExamples are:a) the delivery of letters, packets or other small freight;b) the transport of passengers by motorcycle;c) emergency medical treatment;d) vehicle breakdown support.3.5structural strong layer(s), (SSL)layer or layers of material that confer the mechanical properties on a garment that allow it to resist damage andthereby provide protection in an accident. In a leather suit these are the double or single layers of hide sewntogether with strong seams. In a fabric suit the same function may be performed by one, or by several layers.These may or may not include the outermost layer4 Performance levels and principle of zoning4.1 Performance levelsTwo performance levels are specified for clothing providing protection against road surface impacts. These are asfollows:LEVEL 1: Clothing designed to give some protection whilst having the lowest possible weight and ergonomicpenalties associated with its use;SIST EN 13595-1:2002
EN 13595-1:2002 (E)6LEVEL 2: Clothing providing a moderate level of protection, higher than that provided by level 1. There are,however, weight and restriction penalties in providing this level of protection.4.2 Principle of zoningSee C.15 Requirements5.1 General5.1.1 The performance level marked on the garment and in the manufacturer’s information to the user shall bedetermined by the lowest performance level achieved in testing according to 5.4, 5.5 and 5.6.5.1.2 Clothing which includes cleaning instructions shall conform to with the requirements specified in 5.2, 5.4, 5.5 and5.6 after at least five recommended cleaning cycles recommended by manufacturers.NOTEIt is not necessary to carry out repeat testing after cleaning for garments where only trivial surface cleaningtreatments which are considered not to affect the performance of the garment are recommended, for example wiping with adamp sponge.The change in linear dimensions of the clothing material shall not exceed ± 3% when cleaned five times and testedin accordance with EN 340.5.2 Tear strengthWhen tested in accordance with ISO 3377:1975, the minimum tear strength of leather shall be 100 N.When tested in accordance with ISO 4674:1977, the minimum tear strength of non-leather materials, excludingelasticated and knitted fabrics, shall be 70 N.Where several separate layers are present, these requirements apply to the strongest layer.5.3 Impact energy absorptionProtectors (see 3.3) shall be present in zone 1. The location and fixation of these protectors shall meet therequirements of 7.2 when assessed using the method described in annex B, B.3.4.5.4 Abrasion resistanceWhen tested in accordance with the method described in prEN 13595-2, the abrasion resistance of the fullthickness of the clothing in the various zones shall meet the minimum requirements given in Table 1 for theappropriate performance level.SIST EN 13595-1:2002
EN 13595-1:2002 (E)7Table 1 — Minimum requirements for abrasion resistanceAbrasion resistance requirementssZonesLevel 1Level 21 and 24,07,031,82,541,01,5The removable protector shall be put outside the pocket.5.5 Impact cut resistanceWhen tested in accordance with the method described in EN 13595-4, the impact cut resistance of the fullthickness of the clothing in the various zones shall meet the minimum requirements given in Table 2 for theappropriate performance level.Table 2 — Minimum requirements for impact cut resistanceZone1 & 234Impact speed of knife [m/s]2,82,02,0Maximum knife penetration [mm];Level 1253035Maximum knife penetration [mm];Level 21525305.6 Burst strengthWhen tested in accordance with the method described in EN 13595-3, the seams, slide fasteners and materials inthe various zones shall meet the minimum burst strength requirements given in Table 3 for the appropriateperformance level.Table 3 — Minimum burst strength requirementsZone2 & 134LiningsRequirement [kPa]; Level 1700500400200Requirement [kPa]; Level 28006004502005.7 Dye fastnessClothing shall not be manufactured from material containing dyes which will readily migrate when the clothingbecomes wet with water. When tested in accordance with ISO 11642:1993 or ISO 105 the change in colour of anycomponent of the multi-fibre reference fabric shall be not worse than Grey Scale rating 3.5.8 pH of leatherWhen tested in accordance with ISO 4045:1977, leather and/or leather fabric material shall have a pH of between3,5 and 9,5 and if the pH is less than 4 the difference figure shall be less than 0,7.SIST EN 13595-1:2002
EN 13595-1:2002 (E)86 Fit and ergonomicsClothing shall be sized in accordance with EN 340 or shall be made-to-measure.When tested in accordance with the method described in annex A, the assessor shall be able to carry out all thedefined critical movements while wearing the test garment and all responses given by the assessor to thequestions detailed in Table A.1 shall be positive.7 RestraintWhen tested in accordance with the methods described in annex B, the clothing shall meet the followingrequirements, as appropriate.7.1 Clothing restraintAll restraint systems (belts, velcro, etc.) shall be correctly closed before clothing restraint is tested.Divided suits joined at the waist (i.e. with a slide fastener) shall have no more than a 200 mm gap horizontallybetween the ends of the fastener on the abdomen. The jacket and trousers shall remain joined when the test forceis applied.Divided suits with a long jacket or with high trousers (including salopettes) shall be joined or restrained so that nogap opens vertically between the two parts of the suit when the test force is applied.Arm sleeves shall not slide up the test cone more than 60 mm when the test force is applied. Ready-madegarments shall have available adjustment to fit wrists 10 mm smaller and 10 mm greater in circumference than thetest cone.Trouser ankles shall not slide up the test cone more than 100 mm when the test load is applied not on the ankle buton the knees. Ready-made garments shall have available adjustment to fit ankles 10 mm smaller and 10 mmgreater in circumference than the test cone for pants that are wear inside or outside the motorcycle boots. This testshould be made performed at least on one size for each different model.7.2 Impact protector restraintWhen tested according to B.3.4 shall not be displaced by more than 20 %.8 Design and zoningWhen examined in accordance with the method described in annex C, the clothing shall meet the following designcriteria:Protectors to provide shock absorption conforming to EN 1621-1 shall be present in zone 1.All stiched structural seams in zones 1, 2 and 3 shall have at least one row of stitches that is protected by at least alayer of basic material. This can be checked by cutting across the seams as necessary, other seams shall meet theimpact abrasion test requirement in 5.4.Slide fasteners, if present, shall be mounted below the outer surface of the garment and shall have a layer ofleather or fabric behind them. Where assembly samples have been submitted for testing, these shall be identical tothe construction found in the garment.The lining shall not be attached to, but shall slide freely against the outer shell of the clothing in zones 1 and 2.SIST EN 13595-1:2002
EN 13595-1:2002 (E)9The total area of materials and constructions present in zone 3 to provide elasticity or ventilation but which onlymeet zone 4 requirements shall not exceed 30 cm2 in any single area and 50 cm2 total area in a jacket or trousersor 100 cm2 total area in a suit.The length of free ends of projections on the outer surface of the clothing shall be less than 50 mm.9 Marking and information to be supplied9.1 GeneralThe information specified in 9.2, 9.3 and 9.4, in the official language(s) of the destination country, shall be suppliedwith each item of clothing.9.2 MarkingEach item of clothing shall be marked with the following information, which shall be permanently attached to thegarment and remain perfectly legible. If the user information includes cleaning instructions the labelling shall bevisually examined after it has been cleaned five times using the cleaning treatment recommended in thoseinstructions. The labelling shall still be perfectly legible after these cleaning treatments.a) A means of identifying either the manufacturer or his authorised representative within the EC, for example atrade mark.b) The product's commercial name, style code or other means of identification.c) The size designation.d) A brief description of the level of protection offered.e) A warning that no item of clothing can offer full protection.f) Care instructions (care label symbols including negative symbols where appropriate).g) The number of this European Standard, EN 13595-1.9.3 PackagingWhere provided, the packaging which immediately contains the clothing shall be marked with the informationspecified in 9.2 a), b), c) and d), and shall indicate where the wearer information and instructions for use can befound.9.4 Wearer information and instructions for useThe following information shall be supplied by the manufacturer for example on a leaflet accompanying the item ofclothing.a) The name and full address of the manufacturer or his authorised representative and, where possible, includingthe trade mark of the manufacturer.b) The product name, style or other means of identification.c) Information on how to select a garment of the correct size.d) Information on the various performance levels available and an explanation of how to select a garment offeringthe most suitable level of protection.e) Information on specific hazard against which protection is given.SIST EN 13595-1:2002
EN 13595-1:2002 (E)10f) A warning about the specific hazards against which protection is NOT given.g) Care instructions and International care label symbols including negative symbols. Also a warning about anycontamination or misuse that could dangerously reduce the protective performance of the garment.h) Details on storage and packaging suitable for transit.i) The suggested lifetime of the garment, or instructions on how to carry out regular inspections to identify agarment which is no longer suitable to use.j) The significance of any markings, for example pictograms, on the garment.k) Reference to suitable accessories or other items of compatible PPE supplied by this manufacturer. Alsoinformation about the need to wear properly fitting boots and gloves that are compatible.l) Any type of motorcycle with which the garment may not be suitable for use.m) Product liability disclaimer than if removable or exchangeable protectors are supplied with the garment,EN 1621-1 impact protectors must always be used for replacement.10 PictogramGarments fulfilling requirements of this European Standard shall be marked with the pictogram shown in Figure 1. Itshall be marked with a pictogram including the protection levels (above = level of upper abrasion resistance, middle= level of upper cut resistance, below = level of upper burst strength) and including the number of this standard.The pictogram is to be placed on the garments.X level of upper abrasion resistanceX level of upper cut resistanceX level of upper burst strengthEN 13595Figure 1 — PictogramSIST EN 13595-1:2002
EN 13595-1:2002 (E)11Annex A(normative)Determination of fit and ergonomicsA.1 PrincipleThe test clothing is examined visually for design features that may interfere with riding. The clothing is then worn byan assessor of suitable size and with experience of riding a motorcycle. He or she assesses whether it is possibleto make a range of critical movements required for motorcycle riding.NOTEThe results of manufacturers’ use of trials and development studies as far as included in their Technical File shouldbe taken into account and, at the discretion of the Notified Body, the following evaluation processes of the product’s ergonomicperformance may be reduced or waived.A.2 ApparatusA.2.1A motorcycle or a suitable device which permits the assessor to mimic sitting astride a motorcycle.A.2.2A flight of at least 10 stairs with a step height of 180 mm ± 50 mm.A.2.3A small object of mass less than 0,5 kg.A.2.4An assessor of the sex for which the test garment is designed with experience of riding a motorcycle and abody with dimensions suitable for the test garment.A.2.5A pair of motorcycle gloves and boots, an over suit and a full face helmet all of suitable size for theassessor (A.2.4).A.3 Test specimensOne test garment of a size suitable for the assessor (A.2.4).A.4 ProcedureA.4.1Examine the inside and outside of the garment visually and by touch for any sharp edges or rough areas.Complete question 1 in Table A.1.A.4.2Using the procedure described in ISO 3635, measure and record the dimensions of the assessor.A.4.3Record the marked size of the garment.A.4.4Allow the assessor to don the test garment(s) while completing question 3 in Table A.1. The garment shallbe fitted with the appropriate impact protectors. If the garment was supplied without protectors, suitable protectorsmeeting the requirements of this European Standard shall be inserted. If the garment is made of thick or stiffmaterial, it may be worn, stretched and worked to simulate the effects of use and to assist the moulding of thegarment to the rider's body, before assessment. The manufacturer may offer advice on this process. Leather shallnot be treated with wax or oil unless it is a procedure recommended by the manufacturer.Unless otherwise specified in the user information; the garments under evaluation shall be worn over underclothingand shall not hinder the freedom of movement of the users.SIST EN 13595-1:2002
EN 13595-1:2002 (E)12The assessor shall answer all the questions in Table A.1.A.5 Test reportThe test report shall include the following information:a) reference to this test method, annex A of EN 13595-1:2002;b) a description of the test garment;c) the name, sex and dimensions of the assessor, together with a description of the clothing worn underneath thetest garment;d) the questionnaire in Table A.1 completed after assessing the garment;e) for each cleaning treatment carried out, the cleaning treatments used and the questionnaire Table A.1completed after assessing the cleaned garment;f) any deviations from the specified procedure.Table A.1 — Assessment of fit and ergonom
...
