SIST EN 4710-007:2015

Aerospace series - Quick release fastening systems for non-structural applications - Part 007: Retaining grommet

This European Standard specifies the dimensions, mass and tolerances of the retaining grommet for use in fuselage interior equipment and non- structural or secondary structural area.
This European Standard is to be used in conjunction with EN 4710-06 as described in EN 4710-02.
The applicable temperature range is -55 °C to 85 °C.

Luft- und Raumfahrt - Druckverschlüsse nicht-strukturelle Anwendunge - Teil 007: Haltering

Diese Europäische Norm legt die Maße, Massen, und Toleranzen von Halteringen fest, die bei der Inneneinrichtung von Luftfahrzeugen und in nicht-strukturellen oder Sekundärstrukturbereichen verwendet werden.
Diese Europäische Norm ist in Verbindung mit EN 4710-06 wie in EN 4710-02 beschrieben anzuwenden.
Der gültige Temperaturbereich ist zwischen −55 °C und 85 °C.

Série aérospatiale - Fixations rapides filetées pour applications non-structurales - Partie 007 : Œillet de retenue

La présente Norme européenne spécifie les dimensions, la masse et les tolérances des oeillets de retenue pour utilisation dans les équipements intérieurs et dans les zones non structurales ou structurales secondaires du fuselage.
La présente Norme européenne doit être utilisée conjointement avec l’EN 4710-06 comme défini dans l’EN 4710-02.
La gamme de température applicable est comprise entre - 55 °C et 85 °C.

Aeronavtika - Spončni sistemi za hitro sprostitev za nestrukturne aplikacije - 007. del: Držalni obroček

Ta evropski standard določa dimenzije, maso in tolerance držalnega obročka za uporabo v notranji opremi v trupu letala ter nestrukturnem ali sekundarnem strukturnem območju. Ta evropski standard je treba uporabljati v povezavi s standardom EN 4710-06, kot je opisano v standardu EN 4710-02. Delovna temperatura je med –55 °C in 85 °C.

General Information

• Status: Published
• Publication Date: 04-Nov-2015
• ICS: 49.030.01 - Fasteners in general
• Technical Committee: I13 - Imaginarni 13
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 29-Oct-2015
• Due Date: 03-Jan-2016
• Completion Date: 05-Nov-2015
• Ref Project: EN 4710-07:2015 - Aerospace series - Quick release fastening systems for non-structural applications - Part 07: Retaining grommet

Overview

SIST EN 4710-007:2015 is a European Standard published by CEN, specifying the quick release retaining grommets used in aerospace non-structural applications, particularly for fuselage interior equipment. It defines the dimensional, mass, and tolerance requirements essential for ensuring compatibility and reliability in aerospace environments. This standard is designed to be used alongside EN 4710-06 and EN 4710-02 for comprehensive quick release fastening system conformity.

The standard covers retaining grommets suitable for operating within an ambient temperature range from -55 °C to 85 °C, aligning with aerospace industry demands for durable components in varying thermal conditions.

Key Topics

• Scope and Application
  SIST EN 4710-007:2015 specifically addresses the dimensions, tolerances, and mass of retaining grommets for use on fuselage interiors and other non-structural or secondary structural zones within aerospace assemblies.

• Design and Dimensions
  The standard provides detailed dimensional charts, including configurations and tolerances compliant with ISO 2768-mK for linear and angular measurements.
  Key dimension parameters include:

  • Outer and inner diameters
  • Length codes and mass for different grommet types (RS, RM, RL)

• Material Specifications
  The retaining grommets are made of silicone rubber with a hardness specified at 60 ± 5 Shore A (IHDC), ensuring appropriate flexibility and resilience without a live limit.

• Marking Requirements
  The grommets must be marked following EN 2424 style G, which ensures traceability and conformity with aerospace product marking standards.

• Testing and Qualification
  Acceptance and qualification tests cover:

  • Material verification
  • Dimensional accuracy
  • Surface quality (defect inspection)
  • Burning behavior
  • Functional performance
    Testing protocols refer to requirements established in EN 4710-01, maintaining consistency across the aerospace quick release fastening series.

Applications

SIST EN 4710-007:2015 retaining grommets are primarily used within aerospace fuselage interiors and secondary structural areas where secure yet quick-release fastening solutions are critical. Common practical applications include:

• Interior panels and equipment attachments in aircraft cabins
• Non-structural fastening points requiring vibration resistance and environmental stability
• Secondary structural assemblies where ease of maintenance and part replacement is essential
• Use in environmental conditions ranging from subzero to high ambient temperatures (-55 °C to 85 °C)

By following this standard, manufacturers and aerospace engineers can ensure that retaining grommets meet rigorous durability, size, and functional standards indispensable for aircraft safety and maintenance efficiency.

Related Standards

EN 4710-07 should be used in conjunction with related parts of the aerospace quick release fastening system series for comprehensive compliance:

• EN 4710-01: Quick release fastening systems – Technical specification
• EN 4710-02: Spring clamp stud combination
• EN 4710-06: Stud - quick-release and locking mechanisms
• EN 2424: Marking of aerospace products
• EN 22768-1 and EN 22768-2: General tolerances for linear, angular, and geometrical dimensions without individual tolerance indications

Together, these standards harmonize the aerospace fastening components’ design, testing, and application for non-structural aerospace equipment ensuring interchangeability and safety.

---

Keywords: EN 4710-07, aerospace retaining grommet, quick release fastening system, fuselage interior fasteners, non-structural aerospace components, silicone grommet, aerospace standard, CEN, fastening system dimensions, aerospace material standards, aerospace component testing

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Luft- und Raumfahrt - Druckverschlüsse nicht-strukturelle Anwendunge - Teil 007: HalteringSérie aérospatiale - Fixations rapides filetées pour applications non-structurales - Partie 007 : Œillet de retenueAerospace series - Quick release fastening systems for non-structural applications - Part 007: Retaining grommet49.030.01Vezni elementi na splošnoFasteners in generalICS:Ta slovenski standard je istoveten z:EN 4710-07:2015SIST EN 4710-007:2015en,fr,de01-december-2015SIST EN 4710-007:2015SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 4710-07
October
t r s w ICS
v {ä r u w English Version
Aerospace series æ Quick release fastening systems for nonæstructural applications æ Part
r yã Retaining grommetSérie aérospatiale æ Fixations rapides filetées pour applications nonæstructurales æ Partie
r y ã Oeillet de retenue
Luftæ und Raumfahrt æ Schnellverschlüsse für nichtæstrukturelle Anwendungen æ Teil
r yã Haltering This European Standard was approved by CEN on
w March
t r s wä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey andUnited Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
t r s w CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
v y s ræ r yã t r s w ESIST EN 4710-007:2015

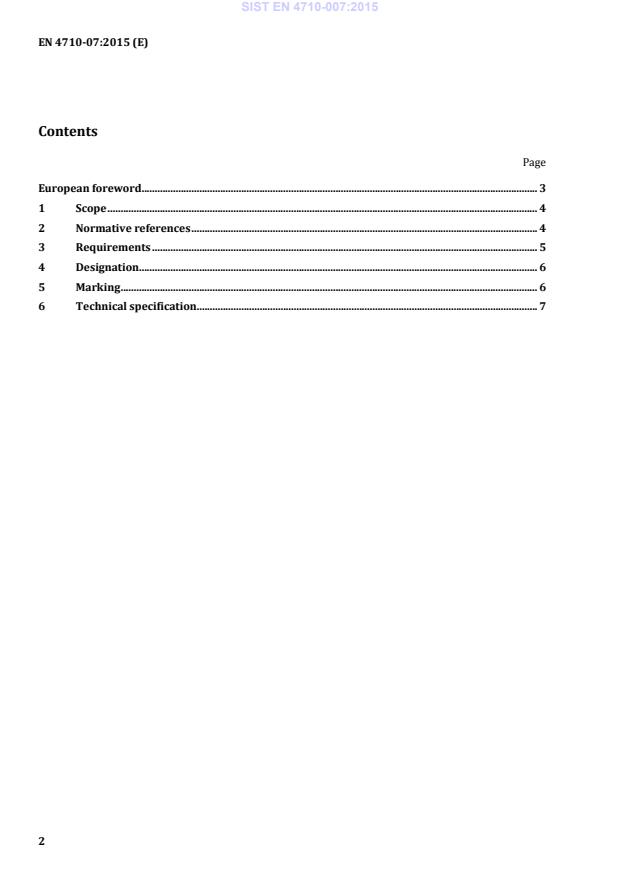

Page European foreword . 3 1 Scope . 4 2 Normative references . 4 3 Requirements . 5 4 Designation. 6 5 Marking . 6 6 Technical specification . 7
...
