SIST EN ISO 4892-2:2013/A1:2021

Plastics - Methods of exposure to laboratory light sources - Part 2: Xenon-arc lamps - Amendment 1: Classification of daylight filters (ISO 4892-2:2013/Amd 1:2021)

Kunststoffe - Künstliches Bestrahlen oder Bewittern in Geräten - Teil 2: Xenonbogenlampen - Änderung 1: Klassifizierung von Tageslichtfiltern (ISO 4892-2:2013/Amd 1:2021)

No scope available

Plastiques - Méthodes d'exposition à des sources lumineuses de laboratoire - Partie 2: Lampes à arc au xénon - Amendement 1: Classification des filtres de la lumière du jour (ISO 4892-2:2013/Amd 1:2021)

Polimerni materiali - Metode izpostavitve laboratorijskim virom svetlobe - 2. del: Ksenonske svetilke - Dopolnilo A1: Razvrstitev filtrov za dnevno svetlobo (ISO 4892-2:2013/Amd 1:2021)

General Information

• Status: Published
• Public Enquiry End Date: 28-Feb-2021
• Publication Date: 01-Sep-2021
• ICS: 83.080.01 - Plastics in general
• Technical Committee: IPMA - Polimer materials and products
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 26-Aug-2021
• Due Date: 31-Oct-2021
• Completion Date: 02-Sep-2021
• Ref Project: EN ISO 4892-2:2013/A1:2021 - Plastics - Methods of exposure to laboratory light sources - Part 2: Xenon-arc lamps - Amendment 1: Classification of daylight filters (ISO 4892-2:2013/Amd 1:2021)

Relations

• Amends: SIST EN ISO 4892-2:2013 - Plastics - Methods of exposure to laboratory light sources - Part 2: Xenon-arc lamps (ISO 4892-2:2013)
• Effective Date: 26-Aug-2020

Overview

EN ISO 4892-2:2013/A1:2021 is the CEN-endorsed amendment to ISO 4892‑2 (Xenon‑arc lamps) for the accelerated weathering of plastics. Amendment A1 adds an informative Annex C that introduces a formal classification of daylight filters used with xenon‑arc laboratory light sources. The change improves reproducibility and comparability of accelerated exposure results by specifying two daylight‑filter spectral types (Type I and Type II) and by clarifying how spectral irradiance is to be interpreted for Method A testing.

Key topics and requirements

• Daylight filter classification: Annex C defines Type I and Type II daylight filter systems based on relative spectral irradiance in 20 nm increments across the UV‑visible range (table values referenced to Table 1 of the main standard).
• Spectral measurement guidance: To determine compliance, the spectral irradiance of the xenon‑arc lamp with its daylight filter must be measured across the UV region (250 nm–400 nm) and passband contributions summed relative to the total irradiance from 290 nm–400 nm.
• Type characteristics:
  • Type I - higher UV cut‑on wavelength, closer to natural global solar radiation (recommended for setups aiming to mimic solar UV).
  • Type II - lower UV cut‑on wavelength; typically produces faster material degradation in accelerated tests.
• Reporting recommendation: When available, the type of daylight filter (Type I or Type II) should be stated in test reports to aid result comparability.
• Normative context: Annex C is informative and supplements Method A; any filters fulfilling the spectral requirements in Table 1 remain permitted even if they don’t match Type I/II exactly.

Practical applications

• Accelerated weathering tests for polymeric materials, coatings, textiles and automotive exterior materials where exposure to a solar‑like spectrum is required.
• Comparative materials testing, product development, durability screening, and quality control where consistent light source characteristics are critical.
• Laboratories seeking improved repeatability and cross‑lab comparability by declaring filter type and following the Annex C spectral definitions.

Who should use this standard

• Materials scientists, polymer formulators and R&D teams
• Third‑party and in‑house accelerated weathering test laboratories
• Automotive and coatings engineers conducting exterior durability testing
• Standards and compliance professionals referencing ISO 4892 test methods

Related standards

• ISO 4892 series (other parts for different light sources)
• ISO/TR 17801 (reference global solar spectral irradiance)
• ASTM D7869 (xenon arc practice - aligns with Type I)
• SAE J2527 (automotive xenon‑arc performance - aligns with Type II)

Keywords: EN ISO 4892‑2:2013/A1:2021, ISO 4892‑2, xenon‑arc lamps, daylight filters, accelerated weathering, plastics, spectral irradiance, Type I, Type II.

Standards Content (Sample)

SLOVENSKI STANDARD
01-oktober-2021
Polimerni materiali - Metode izpostavitve laboratorijskim virom svetlobe - 2. del:
Ksenonske svetilke - Dopolnilo A1: Razvrstitev filtrov za dnevno svetlobo (ISO
4892-2:2013/Amd 1:2021)
Plastics - Methods of exposure to laboratory light sources - Part 2: Xenon-arc lamps -
Amendment 1: Classification of daylight filters (ISO 4892-2:2013/Amd 1:2021)
Kunststoffe - Künstliches Bestrahlen oder Bewittern in Geräten - Teil 2:
Xenonbogenlampen - Änderung 1: Klassifizierung von Tageslichtfiltern (ISO 4892-
2:2013/Amd 1:2021)
Plastiques - Méthodes d'exposition à des sources lumineuses de laboratoire - Partie 2:
Lampes à arc au xénon - Amendement 1: Classification des filtres de la lumière du jour
(ISO 4892-2:2013/Amd 1:2021)
Ta slovenski standard je istoveten z: EN ISO 4892-2:2013/A1:2021
ICS:
83.080.01 Polimerni materiali na Plastics in general
splošno
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN ISO 4892-2:2013/A1
EUROPEAN STANDARD
NORME EUROPÉENNE
August 2021
EUROPÄISCHE NORM
ICS 83.080.01
English Version
Plastics - Methods of exposure to laboratory light sources -
Part 2: Xenon-arc lamps - Amendment 1: Classification of
daylight filters (ISO 4892-2:2013/Amd 1:2021)
Plastiques - Méthodes d'exposition à des sources Kunststoffe - Künstliches Bestrahlen oder Bewittern in
lumineuses de laboratoire - Partie 2: Lampes à arc au Geräten - Teil 2: Xenonbogenlampen - Änderung 1:
xénon - Amendement 1: Classification des filtres de la Klassifizierung von Tageslichtfiltern (ISO 4892-
lumière du jour (ISO 4892-2:2013/Amd 1:2021) 2:2013/Amd 1:2021)
This amendment A1 modifies the European Standard EN ISO 4892-2:2013; it was approved by CEN on 1 July 2021.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for inclusion of
this amendment into the relevant national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 4892-2:2013/A1:2021 E
worldwide for CEN national Members.

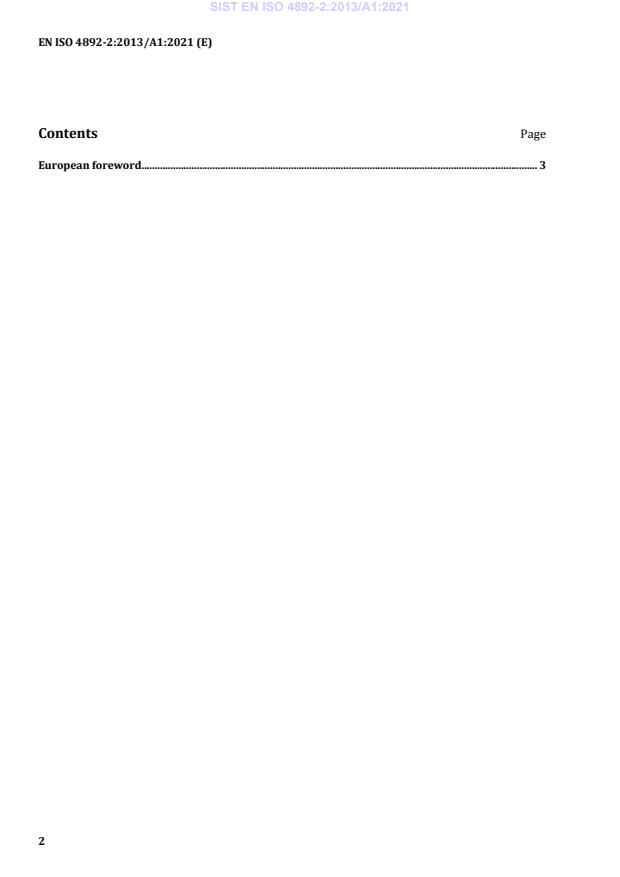

Contents Page
European foreword . 3

European foreword
This document (EN ISO 4892-2:2013/A1:2021) has been prepared by Technical Committee ISO/TC 61
"Plastics" in collaboration with Technical Committee CEN/TC 249 “Plastics” the secretariat of which is
held by NBN.
This Amendment to the European Standard EN ISO 4892-2:2013 shall be given the status of a national
standard, either by publication of an identical text or by endorsement, at the latest by February 2022,
and conflicting national standards shall be withdrawn at the latest by February 2022.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national standards
body/national committee. A complete listing of these bodies can be found on the CEN websites.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the
United Kingdom.
Endorsement notice
The text of ISO 4892-2:2013/Amd 1:2021 has been approved by CEN as EN ISO 4892-2:2013/A1:2021
without any modification.
INTERNATIONAL ISO
STANDARD 4892-2
Third edition
2013-03-01
AMENDMENT 1
2021-08
Plastics — Methods of exposure to
laboratory light sources —
Part 2:
Xenon-arc lamps
AMENDMENT 1: Classification of daylight
filters
Plastiques — Méthodes d'exposition à des sources lumineuses de
laboratoire —
Partie 2: Lampes à arc au xénon
AMENDEMENT 1: Classification des filtres de la lumière du jour
Reference number
ISO 4892-2:2013/Amd.1:2021(E)
©
ISO 2021
ISO 4892-2:2013/Amd.1:2021(E)
© ISO 2021
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii © ISO 2021 – All rights reserved

ISO 4892-2:2013/Amd.1:2021(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates clo
...
