SIST EN 50173-10:2025
(Main)Information technology - Generic cabling systems - Part 10: Single pair cabling
Information technology - Generic cabling systems - Part 10: Single pair cabling
This document specifies 1-pair cabling and can be used in conjunction with all the space-specific standards of the EN 50173 series but especially EN 50173-3 and EN 50173-6.
NOTE 1-pair cabling for EN 50173-2, EN 50173-4 and EN 50173-5 is for further study.
It delivers 1-pair cabling specifications to extend generic cabling systems according to the EN 50173 series.
This document specifies the:
- structure and minimum configuration for extension of generic cabling by 1-pair cabling;
- interfaces at the service outlet (SO/TO);
- performance requirements for cabling links and channels;
- implementation requirements and options;
- performance requirements for cabling components;
- conformance requirements and verification procedures.
This document takes into account the requirements specified in application standards listed in Annex C.
Informationstechnik - Anwendungsneutrale Kommunikationskabelanlagen - Teil 10: Einpaarige Verkabelung
Technologies de l'information - Systèmes de câblage générique - Partie 10: Câblage mono-paire
Le présent document spécifie le câblage à 1 paire et peut être utilisé conjointement avec les normes spécifiques aux différents espaces de la série EN 50173, et plus particulièrement l’EN 50173-3 et l’EN 50173-6.
NOTE Le câblage à 1 paire destiné aux espaces couverts par l’EN 50173-2, l’EN 50173-4 et l’EN 50173-5 est soumis à étude ultérieure.
Il donne des spécifications de câblage à 1 paire afin d’étendre le domaine d’application des systèmes de câblage générique conformément à la série EN 50173.
Le présent document spécifie:
- la structure et la configuration minimale pour étendre le domaine d’application du câblage générique à l’aide du câblage à 1 paire;
- les interfaces au niveau de la prise de service (prise de services (SO, Service Outlet)/prise de télécommunication (TO, Telecommunications Outlet));
- les exigences de performances concernant les liaisons et canaux de câblage;
- les exigences et les options de mise en œuvre;
- les exigences de performances concernant les composants du câblage;
- les exigences de conformité et les procédures de vérification.
Le présent document tient compte des exigences spécifiées dans les normes d’application énumérées à l’Annexe C.
Informacijska tehnologija - Osnovni kabelski sistemi - 10. del: Enoparični kabli
General Information
Standards Content (Sample)

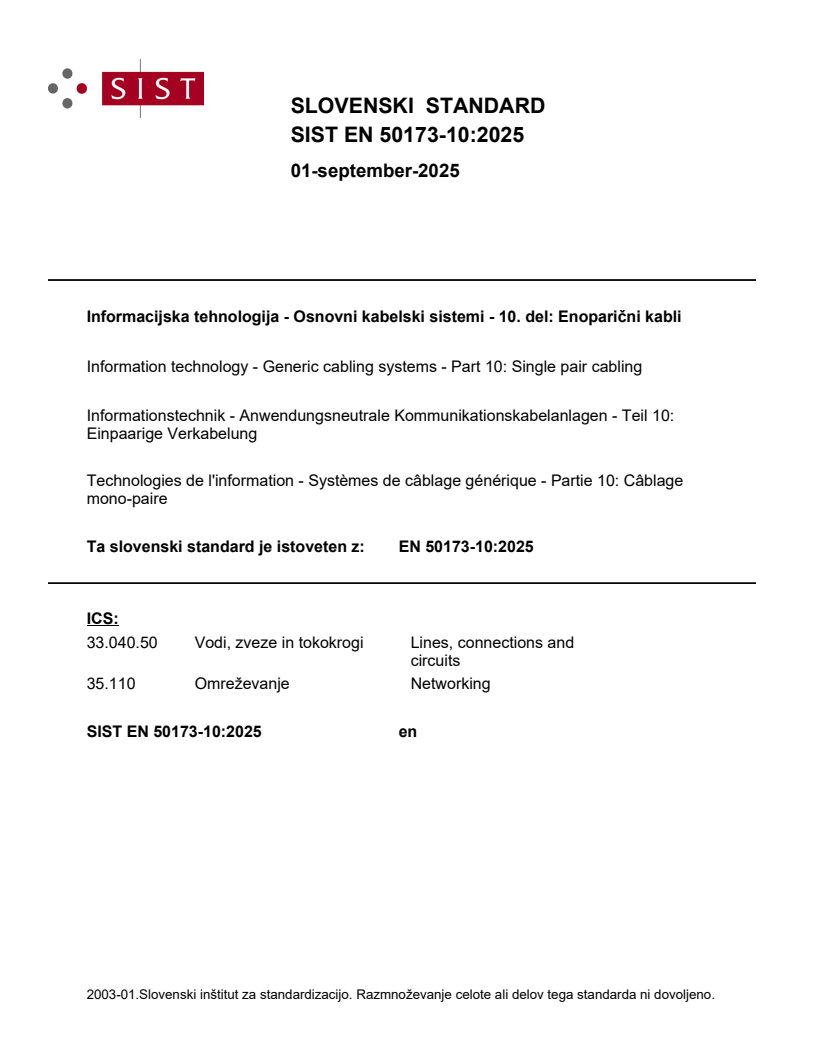

SLOVENSKI STANDARD
01-september-2025
Informacijska tehnologija - Osnovni kabelski sistemi - 10. del: Enoparični kabli
Information technology - Generic cabling systems - Part 10: Single pair cabling
Informationstechnik - Anwendungsneutrale Kommunikationskabelanlagen - Teil 10:
Einpaarige Verkabelung
Technologies de l'information - Systèmes de câblage générique - Partie 10: Câblage
mono-paire
Ta slovenski standard je istoveten z: EN 50173-10:2025
ICS:
33.040.50 Vodi, zveze in tokokrogi Lines, connections and
circuits
35.110 Omreževanje Networking
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

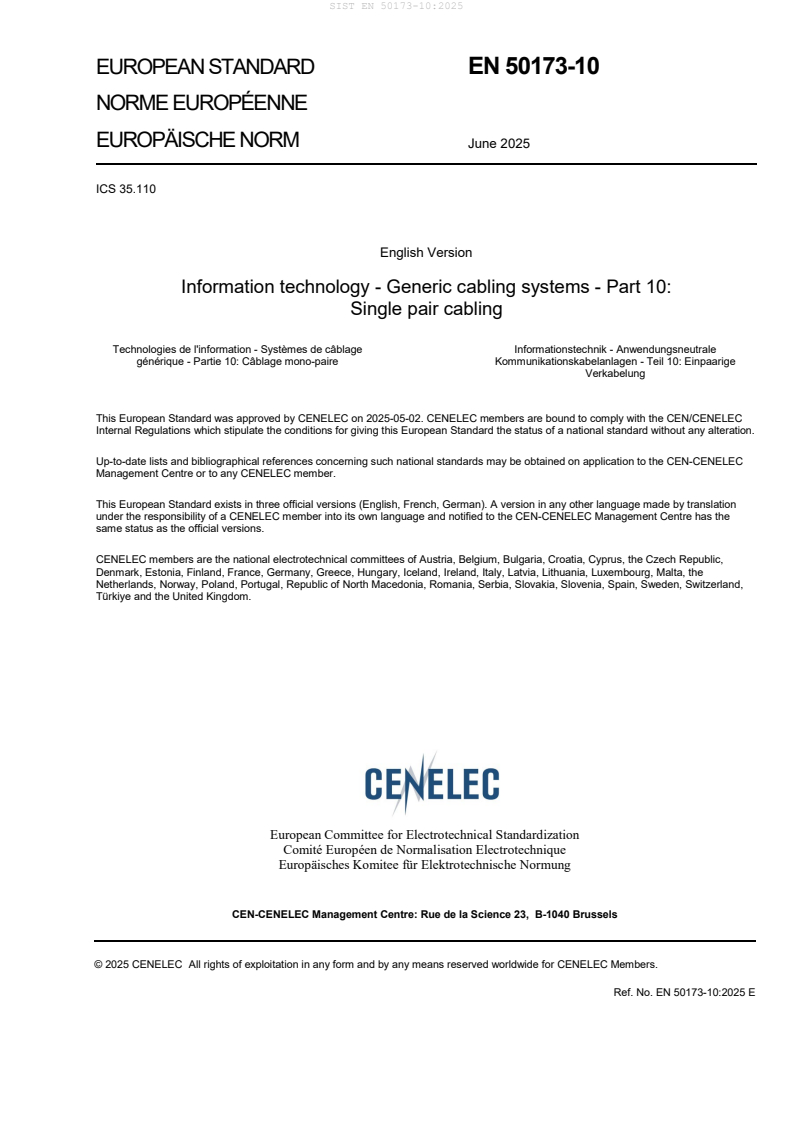

EUROPEAN STANDARD EN 50173-10
NORME EUROPÉENNE
EUROPÄISCHE NORM June 2025
ICS 35.110
English Version
Information technology - Generic cabling systems - Part 10:
Single pair cabling
Technologies de l'information - Systèmes de câblage Informationstechnik - Anwendungsneutrale
générique - Partie 10: Câblage mono-paire Kommunikationskabelanlagen - Teil 10: Einpaarige
Verkabelung
This European Standard was approved by CENELEC on 2025-05-02. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 50173-10:2025 E
Contents Page
European foreword . 4
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Terms, definitions and abbreviations . 8
3.1 Terms and definitions . 8
3.2 Abbreviations . 8
3.3 Symbols . 8
4 Structure of 1-pair cabling . 8
4.1 General . 8
4.2 Functional elements . 9
4.3 Structure and hierarchy . 9
4.4 Channels . 9
4.5 Equipment interfaces and test interfaces . 10
5 Channel performance . 10
5.1 Environmental performance . 10
5.2 Transmission performance . 10
5.2.1 General . 10
5.2.2 Balanced single-pair cabling channel performance . 10
6 Balanced single-pair cabling link performance . 21
6.1 General . 21
6.2 Return loss . 22
6.3 Insertion loss/attenuation . 23
6.4 Direct current (DC) loop resistance. 25
6.5 Direct current (DC) resistance unbalance . 27
6.6 Propagation delay . 27
6.7 Unbalance attenuation and coupling attenuation . 28
6.7.1 General . 28
6.7.2 Unbalance attenuation, near-end . 28
6.7.3 Unbalance attenuation, far-end . 29
6.7.4 Coupling attenuation . 30
6.8 Alien crosstalk . 31
6.8.1 General . 31
6.8.2 Power sum alien NEXT (PSANEXT) . 31
6.8.3 Power sum alien ACR-F (PSAACR-F) . 32
6.8.4 Alien crosstalk and coupling attenuation for screened links . 33
7 Cable Sharing . 34
8 Reference implementations for 1-pair cabling . 34
8.1 General . 34
8.2 Component choice . 35
8.3 Dimensions . 35
9 Cable requirements . 35
9.1 General . 35
9.2 Operating environment . 35
9.3 Balanced cables - Basic performance requirements . 35
10 Connecting hardware requirements. 36
10.1 General requirements . 36
10.1.1 Overview . 36
10.1.2 Location . 37
10.1.3 Design . 37
10.1.4 Operating environment . 37
10.2 Connecting hardware . 37
10.2.1 General . 37
10.2.2 Performance marking . 39
10.2.3 Electrical, mechanical and environmental performance . 39
10.2.4 Connecting hardware in accordance with EN IEC 63171-1 . 39
10.2.5 Connecting hardware in accordance with IEC 63171-6 . 39
10.3 Performance marking . 40
11 Requirements for cords and jumpers . 40
11.1 General . 40
11.2 Identification . 40
11.3 Operating requirement . 40
11.4 Return Loss . 41
Annex A (informative) Relationship of EN 50173-10 to other documents and practical
considerations . 42
Annex B (informative) Cable sharing . 44
B.1 General . 44
B.2 Simultaneous operation of multiple single pair applications within a system that
includes 4-pair cabling components according to EN 50173-1 . 44
B.2.1 General . 44
B.2.2 Creation of single pair cabling channels . 45
B.3 Evaluation of the parameters that need to be fulfilled by the shared 4-pair SCP link . 45
B.3.1 General . 45
B.3.2 T1-20 and T1-20A. 45
B.3.3 T1-600 . 47
B.4 Guidance . 47
B.4.1 General . 47
B.4.2 Frequency range . 48
B.4.3 Return loss . 48
B.4.4 Insertion loss . 48
B.4.5 Direct current (DC) Loop resistance . 48
B.4.6 Direct current (DC) resistance unbalance . 49
B.4.7 Curr
...
