SLOVENSKI STANDARD
SIST EN 60838-2-3:2017
01-junij-2017
5D]OLþQLRNRYLåDUQLFLQVLMDONGHO3RVHEQH]DKWHYH2NRYL]DOLQHDUQH
PRGXOH/(']GYHPDY]QRåNRPD,(&
Miscellaneous lampholders - Part 2-3: Particular requirements - Lampholders for double-
capped linear LED-lamps (IEC 60838-2-3:2016)
Douilles diverses pour lampes - Partie 2-3: Règles particulières - Douilles pour lampes
LED linéaires à deux culots (IEC 60838-2-3:2016)
Ta slovenski standard je istoveten z: EN 60838-2-3:2017
ICS:
29.140.10 Grla in držala žarnic Lamp caps and holders
SIST EN 60838-2-3:2017 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 60838-2-3:2017

---------------------- Page: 2 ----------------------

SIST EN 60838-2-3:2017


EUROPEAN STANDARD EN 60838-2-3

NORME EUROPÉENNE

EUROPÄISCHE NORM
April 2017
ICS 29.140.10

English Version
Miscellaneous lampholders - Part 2-3: Particular requirements -
Lampholders for double-capped linear LED lamps
(IEC 60838-2-3:2016)
Douilles diverses pour lampes - Partie 2-3: Règles Sonderfassungen - Teil 2-3: Besondere Anforderungen -
particulières - Douilles pour lampes LED linéaires à deux Lampenfassungen für zweiseitig gesockelte röhrenförmige
culots LED-Lampen
(IEC 60838-2-3:2016) (IEC 60838-2-3:2016)
This European Standard was approved by CENELEC on 2016-06-16. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.


European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
 Ref. No. EN 60838-2-3:2017 E

---------------------- Page: 3 ----------------------

SIST EN 60838-2-3:2017
EN 60838-2-3:2017

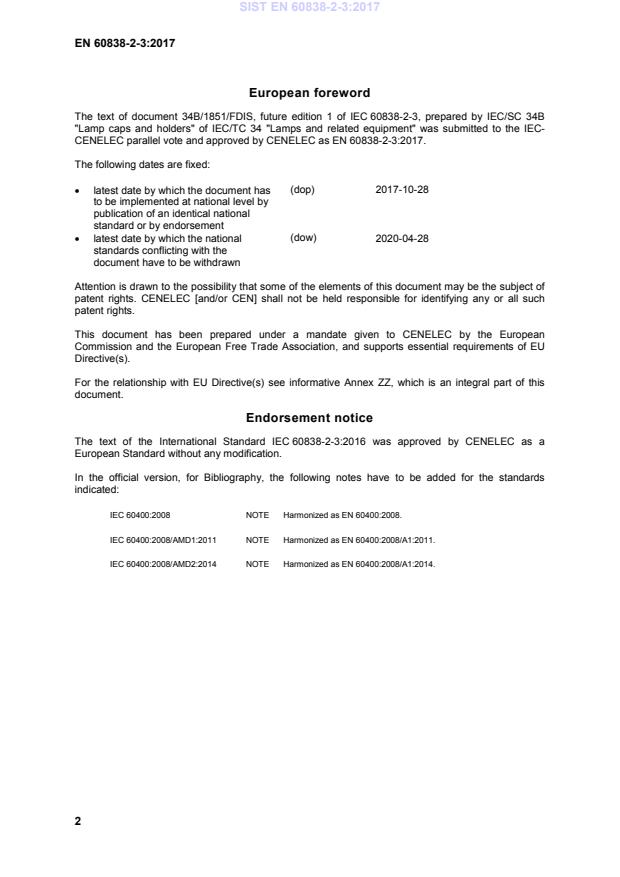

European foreword
The text of document 34B/1851/FDIS, future edition 1 of IEC 60838-2-3, prepared by IEC/SC 34B
"Lamp caps and holders" of IEC/TC 34 "Lamps and related equipment" was submitted to the IEC-
CENELEC parallel vote and approved by CENELEC as EN 60838-2-3:2017.
The following dates are fixed:
• latest date by which the document has (dop) 2017-10-28
to be implemented at national level by
publication of an identical national
standard or by endorsement
(dow) 2020-04-28
• latest date by which the national
standards conflicting with the
document have to be withdrawn

Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.

This document has been prepared under a mandate given to CENELEC by the European
Commission and the European Free Trade Association, and supports essential requirements of EU
Directive(s).

For the relationship with EU Directive(s) see informative Annex ZZ, which is an integral part of this
document.
Endorsement notice
The text of the International Standard IEC 60838-2-3:2016 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards
indicated:
IEC 60400:2008 NOTE Harmonized as EN 60400:2008.
IEC 60400:2008/AMD1:2011 NOTE Harmonized as EN 60400:2008/A1:2011.
IEC 60400:2008/AMD2:2014 NOTE Harmonized as EN 60400:2008/A1:2014.

2

---------------------- Page: 4 ----------------------

SIST EN 60838-2-3:2017
EN 60838-2-3:2017

Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document
and are indispensable for its application. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod), the relevant

EN/HD applies.

NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu.

Annex ZA of EN 60838-1 applies
Addition
Publication Year Title EN/HD Year
IEC 60061-2 -  Lamp caps and holders together with EN 60061-2 -
gauges for the control of interchangeability
and safety -- Part 2: Lampholders
IEC 60061-3 -  Lamp caps and holders together with EN 60061-3 -
gauges for the control of interchangeability
and safety -- Part 3: Gauges
IEC 60838-1 -  Miscellaneous lampholders -- Part 1: EN 60838-1 -
General requirements and tests
IEC 62504 -  General lighting - Light emitting diode EN 62504 -
(LED) products and related equipment -
Terms and definitions

3

---------------------- Page: 5 ----------------------

SIST EN 60838-2-3:2017
EN 60838-2-3:2017
Annex ZZ
(informative)

Relationship between this European standard and the safety objectives of
Directive 2014/35/EU [2014 OJ L96] aimed to be covered

This European standard has been prepared under a Commission’s standardisation request relating to
harmonised standards in the field of the Low Voltage Directive, M/511, to provide one voluntary
means of conforming to safety objectives of Directive 2014/35/EU of the European Parliament and of
the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to
the making available on the market of electrical equipment designed for use within certain voltage
limits [2014 OJ L96].

Once this standard is cited in the Official Journal of the European Union under that Directive,
compliance with the normative clauses of this standard given in Table ZZ.1 confers, within the limits of
the scope of this standard, a presumption of conformity with the corresponding safety objectives of
that Directive, and associated EFTA regulations.

Table ZZ.1 – Correspondence between this European standard and Annex I of Directive
2014/35/EU [2014 OJ L96]

Safety objectives of Directive Clause(s) / sub-clause(s)
Remarks / Notes
2014/35/EU of this EN
1. General conditions

a) the essential characteristics, Clause 7
the recognition and observance

of which will ensure that
electrical equipment will be used
safely and in applications for

which it was made, shall be
marked on the electrical
equipment, or, if this is not
possible, on an accompanying
document;
b) the electrical equipment, All clauses
together with its component

parts, shall be made in such a

way as to ensure that it can be
safely and properly assembled
and connected;
c) the electrical equipment shall See item 2 and 3 of this table
be so designed and
manufactured as to ensure that
protection against the hazards
set out in points 2 and 3 is

assured, providing that the
equipment is used in
applications for which it was
made and is adequately
maintained.
2. Protection against hazards

arising from the electrical
4

---------------------- Page: 6 ----------------------

SIST EN 60838-2-3:2017
EN 60838-2-3:2017
equipment
Measures of a technical nature
shall be laid down in
accordance with point 1, in
order to ensure that:
a) persons and domestic Clauses 4, 8, 9, 10, 11, 12 and
14
animals are adequately

protected against the danger of

physical injury or other harm
which might be caused by direct
or indirect contact;
b) temperatures, arcs or Clauses 11, 12, 15, 16 and 17
radiation which would cause a

danger, are not produced;
c) persons, domestic animals Clauses 4, 11, 13, 16 and 18
and property are adequately

protected against non-electrical

dangers caused by the electrical
equipment which are revealed
by experience;
d) the insulation is suitable for Clauses 8, 10, 11, 13, 15 and

foreseeable conditions. 17
3. Protection against hazards
which may be caused by
external influences on the
electrical equipment

Technical measures shall be
laid down in accordance with
point 1, in order to ensure that
the electrical equipment:
a) meets the expected Clauses 7, 11, 13 and 18
mechanical requirements in

such a way that persons,
domestic animals and property
are not endangered;
b) is resistant to non-mechanical Clauses 11, 12,15 and 17
influences in expected
environmental conditions, in

such a way that persons,
domestic animals and property
are not endangered;
c) does not endanger persons, Clauses 11, 12 and 17
domestic animals and property


in foreseeable conditions of
overload.

WARNING 1: Presumption of conformity stays valid only as long as a reference to this European
standard is maintained in the list published in the Official Journal of the European Union. Users of this
5

---------------------- Page: 7 ----------------------

SIST EN 60838-2-3:2017
EN 60838-2-3:2017
standard should consult frequently the latest list published in the Official Journal of the European
Union.

WARNING 2: Other Union legislation may be applicable to the product(s) falling within the scope of
this standard.

6

---------------------- Page: 8 ----------------------

SIST EN 60838-2-3:2017



IEC 60838-2-3

®


Edition 1.0 2016-05




INTERNATIONAL



STANDARD




NORME



INTERNATIONALE











Miscellaneous lampholders –

Part 2-3: Particular requirements – Lampholders for double-capped linear LED

lamps




Douilles diverses pour lampes –

Partie 2-3: Exigences particulières – Douilles pour lampes LED linéaires à deux


culots













INTERNATIONAL

ELECTROTECHNICAL

COMMISSION


COMMISSION

ELECTROTECHNIQUE


INTERNATIONALE




ICS 29.140.10 ISBN 978-2-8322-3357-3



Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale

---------------------- Page: 9 ----------------------

SIST EN 60838-2-3:2017
– 2 – IEC 60838-2-3:2016 © IEC 2016
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references. 5
3 Terms and definitions . 5
4 General requirements . 6
5 General conditions for tests . 6
6 Classification . 9
7 Marking . 9
8 Protection against electric shock . 10
9 Terminals . 10
10 Provision for earthing . 10
11 Construction . 10
12 Moisture resistance, insulation resistance and electric strength . 13
13 Mechanical strength . 13
14 Screws, current-carrying parts and connections . 13
15 Creepage distances and clearances . 13
16 Endurance . 13
17 Resistance to heat and fire . 13
18 Resistance to excessive residual stresses (season cracking) and to rusting . 13
Annex A (normative) Lampholders covered by this standard . 14
Annex B (normative) Test probes for checking gasket sleeves on lampholders for
higher IP protection . 15
Annex C (informative) Explanatory details for the installation of lampholders according
to 11.1 . 16
Bibliography . 17

Figure 1 – Mounting sheet . 7
Figure 2 – Fixture for the testing of lampholder flexibility . 8
Figure 3 – Test cap GX16t-5 . 9
Figure 4 – Mounting jig for the testing of lampholders . 12
Figure B.1 – Test probes for checking gasket sleeves . 15
Figure C.1 – Examples of lampholders . 16

---------------------- Page: 10 ----------------------

SIST EN 60838-2-3:2017
IEC 60838-2-3:2016 © IEC 2016 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________

MISCELLANEOUS LAMPHOLDERS –

Part 2-3: Particular requirements –
Lampholders for double-capped linear LED lamps

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60838-2-3 has been prepared by subcommittee 34B: Lamp caps
and holders, of IEC technical committee 34: Lamps and related equipment.
The text of this standard is based on the following documents:
FDIS Report on voting
34B/1851/FDIS 34B/1857/RVD

Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

---------------------- Page: 11 ----------------------

SIST EN 60838-2-3:2017
– 4 – IEC 60838-2-3:2016 © IEC 2016
This Part 2-3 is to be used in conjunction with the latest edition of IEC 60838-1 and its
amendments. It was established on the basis of the fifth edition (2016) of that standard.
A list of all parts in the IEC 60838 seri
...
