Overview

EN 62841-3-6:2014/A12:2022 is a CENELEC amendment to the European safety standard for transportable diamond drills with liquid systems. Approved 16 May 2022, this amendment (A12) clarifies requirements for liquid systems used on transportable diamond drilling machines and updates supply-cord requirements. The document forms part of the EN 62841 series for electric motor‑operated hand‑held and transportable tools and supports conformity with EU Machinery Directive 2006/42/EC within its scope.

Key topics and requirements

• Scope and hazards: Confirms the document covers all significant hazards, hazardous situations or events relevant to the tools in scope, and notes which essential requirements are deemed not applicable.
• Liquid system clarifications: Introduces specific clarifications on the safety and design considerations for liquid systems used with diamond drills (e.g., circulation and containment aspects are addressed in the amendment text).
• Supply cords (Table 8): Replaces the minimum cross‑section table for external flexible supply cords. Minimum nominal cross‑section areas by rated current:
  • Up to and including 6 A: 0.75 mm²
  • Over 6 to 10 A: 1 mm²
  • Over 10 to 16 A: 1.5 mm²
  • Over 16 to 25 A: 2.5 mm²
  • Over 25 to 32 A: 4 mm²
  • Over 32 to 40 A: 6 mm²
  • Over 40 to 63 A: 10 mm²
• Normative references: Replaces references to IEC 62841-1:2014 with EN 62841-1:2015 (including applicable corrigenda/amendments).
• Moisture resistance: Removes specific notes in clause 14.5 related to moisture resistance testing.
• Annex updates: Updates Annex ZA (normative references alignment with international publications) and Annex ZZ (relationship to Directive 2006/42/EC), clarifying presumption of conformity and covered essential requirements.

Practical applications

• Product design and development: Use the amendment to ensure transportable diamond drills with liquid systems meet updated safety and electrical connection requirements.
• Testing and certification: Test labs and conformity assessors apply the clarified moisture and liquid‑system provisions and the updated supply‑cord table during type testing and CE marking assessments.
• Technical documentation and instructions: Manufacturers update user instructions, warnings and technical files to reflect the amended normative references and hazard coverage.
• Procurement and compliance: Safety managers and procurement teams rely on the standard to specify compliant equipment for construction, masonry and stone‑working applications.

Who should use this standard

• Manufacturers of transportable diamond drills and accessory liquid systems
• Safety engineers and product compliance specialists
• Test laboratories, notified bodies and conformity assessors
• Technical authors preparing instructions, declarations of conformity and product specifications

Related standards

• EN 62841-1:2015 (Part 1: General requirements) - normative reference
• Directive 2006/42/EC - Annex ZZ maps essential requirements covered by this standard

Keywords: EN 62841-3-6 A12, transportable diamond drills, liquid system, safety standard, supply cord, moisture resistance, CENELEC, Machinery Directive.

Standards Content (Sample)

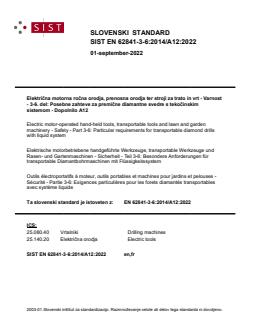

SLOVENSKI STANDARD
01-september-2022
Električna motorna ročna orodja, prenosna orodja ter stroji za trato in vrt - Varnost
- 3-6. del: Posebne zahteve za premične diamantne svedre s tekočinskim
sistemom - Dopolnilo A12
Electric motor-operated hand-held tools, transportable tools and lawn and garden
machinery - Safety - Part 3-6: Particular requirements for transportable diamond drills
with liquid system
Elektrische motorbetriebene handgeführte Werkzeuge, transportable Werkzeuge und
Rasen- und Gartenmaschinen - Sicherheit - Teil 3-6: Besondere Anforderungen für
transportable Diamantbohrmaschinen mit Flüssigkeitssystem
Outils électroportatifs à moteur, outils portables et machines pour jardins et pelouses -
Sécurité - Partie 3-6: Exigences particulières pour les forets diamantés transportables
avec système liquide
Ta slovenski standard je istoveten z: EN 62841-3-6:2014/A12:2022
ICS:
25.080.40 Vrtalniki Drilling machines
25.140.20 Električna orodja Electric tools
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

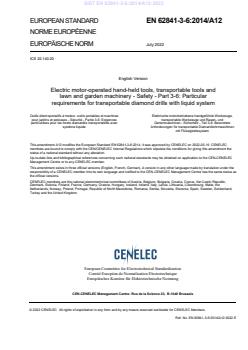

EUROPEAN STANDARD EN 62841-3-6:2014/A12

NORME EUROPÉENNE
EUROPÄISCHE NORM July 2022
ICS 25.140.20
English Version
Electric motor-operated hand-held tools, transportable tools and
lawn and garden machinery - Safety - Part 3-6: Particular
requirements for transportable diamond drills with liquid system
Outils électroportatifs à moteur, outils portables et machines Elektrische motorbetriebene handgeführte Werkzeuge,
pour jardins et pelouses - Sécurité - Partie 3-6: Exigences transportable Werkzeuge und Rasen- und
particulières pour les forets diamantés transportables avec Gartenmaschinen - Sicherheit - Teil 3-6: Besondere
système liquide Anforderungen für transportable Diamantbohrmaschinen
mit Flüssigkeitssystem
This amendment A12 modifies the European Standard EN 62841-3-6:2014; it was approved by CENELEC on 2022-05-16. CENELEC
members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the
status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 62841-3-6:2014/A12:2022 E

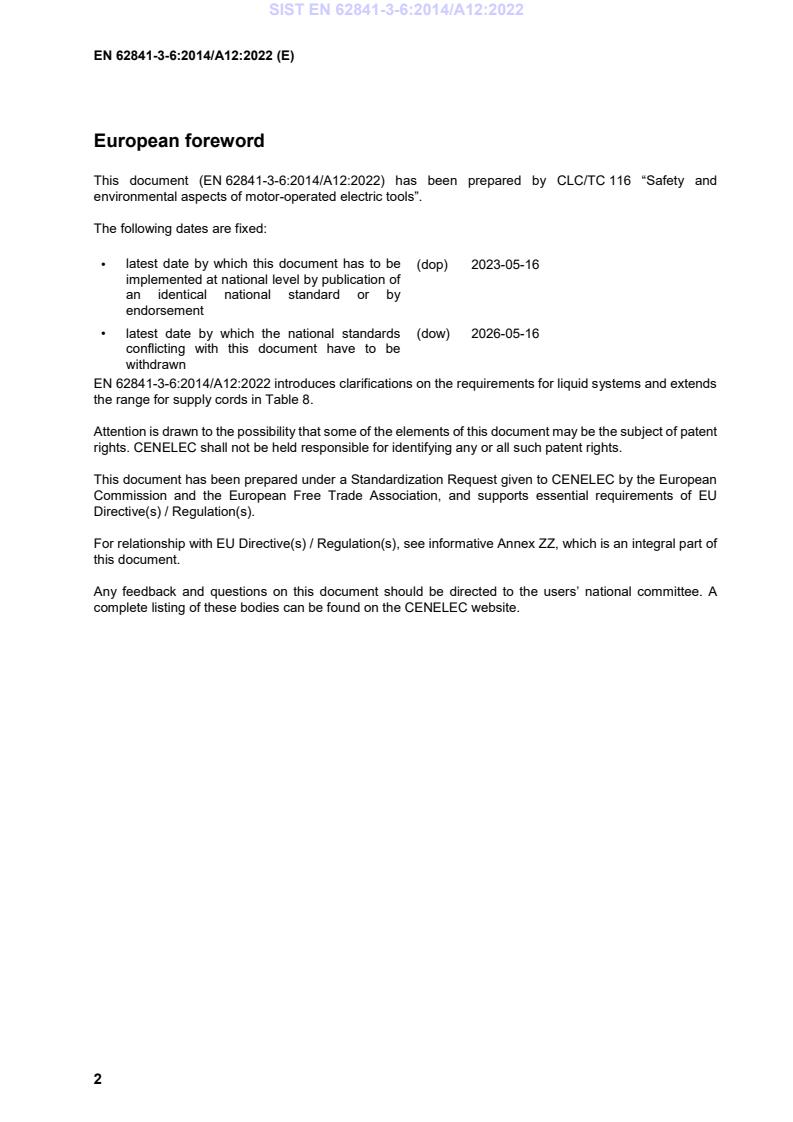

European foreword
This document (EN 62841-3-6:2014/A12:2022) has been prepared by CLC/TC 116 “Safety and
environmental aspects of motor-operated electric tools”.
The following dates are fixed:
• latest date by which this document has to be (dop) 2023-05-16
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) 2026-05-16
conflicting with this document have to be
withdrawn
the range for supply cords in Table 8.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a Standardization Request given to CENELEC by the European
Commission and the European Free Trade Association, and supports essential requirements of EU
Directive(s) / Regulation(s).
For relationship with EU Directive(s) / Regulation(s), see informative Annex ZZ, which is an integral part of
this document.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
1 Modification to Clause 1, “Scope”
Add the following to the existing Clause 1:
“This document covers all significant hazards, hazardous situations or hazardous events relevant for tools
covered by this standard.
NOTE Z101 Essential requirements not mentioned in Table ZZ.1 are deemed to be not applicable, because the
corresponding hazards are either not relevant for tools covered by this document or do not require specific action by
the designer.”
2 Modification to Clause 2, “Normative references”
Replace the normative reference “IEC 62841-1:2014” with the following in Clause 2 and throughout the
text:
EN 62841-1:2015 , Electric motor-operated hand-held tools, transportable tools and lawn and garden
machinery - Safety - Part 1: General requirements
3 Modification to Clause 14, “Moisture resistance”
In 14.5, delete NOTE 2 and NOTE 3.
4 Modification to Clause 24, “Supply connection and external flexible cords”
Replace the existing 24.5 with the following:
“24.5  Replacement of Table 8:
Table 8 — Minimum cross-sectional area of supply cords
Rated current of the tool Nominal cross-sectional area
A mm
Up to and including 6 0,75
Over 6 up to and including 10 1
Over 10 up to and including 16 1,5
Over 16 up to and including 25 2,5
Over 25 up to and including 32 4
Over 32 up to and including 40 6
Over 40 up to and including 63 10
“
———————
As impacted by EN 62841-1:2015/AC:2015 and EN 62841-1:2015/A11:2022.
5 Replacement of the Annex ZA, “Normative references to international
publications with their corresponding European publications”
Replace the existing Annex ZA with the following:
“
Annex ZA
(normative)
Normative references to international publications with their
corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
t
...
