SIST EN ISO 4761:2023

Non-destructive testing of welds - Phased array ultrasonic testing (UT-PA) for thin-walled steel components - Acceptance levels (ISO 4761:2022)

This document specifies acceptance levels for the phased array ultrasonic testing technique (UT-PA) of full-penetration welds in low-alloy and/or fine-grained steels in the wall thickness range from 3,2 mm to 8 mm which correspond to the quality levels of ISO 5817.
These acceptance levels are applicable to indications detected according to ISO 20601.

Zerstörungsfreie Prüfung von Schweißverbindungen - Phased-Array-Ultraschallprüfung (UT‑PA) dünnwandiger Stahlkomponenten - Zulässigkeitsgrenzen (ISO 4761:2022)

Essais non destructifs des assemblages soudés - Technique ultrasons multi-éléments (UT-PA) pour les composants en acier à paroi mince - Niveaux d’acceptation (ISO 4761:2022)

Neporušitveno preskušanje zvarnih spojev - Ultrazvočno preskušanje s faznim krmiljenjem (UT-PA) tankostenskih jeklenih delov - Stopnje sprejemljivosti (ISO 4761:2022)

Ta dokument določa stopnje sprejemljivosti za tehniko ultrazvočnega preskušanja s faznim krmiljenjem (UT-PA) zvarnih spojev s popolno penetracijo pri malolegiranih in/ali drobnozrnatih jeklih z debelino sten od 3,2 do 8 mm, ki ustrezajo stopnjam sprejemljivosti iz standarda ISO 5817.
Te stopnje sprejemljivosti se uporabljajo za indikacije, zaznane v skladu s standardom ISO 20601.

General Information

• Status: Published
• Public Enquiry End Date: 01-Oct-2022
• Publication Date: 09-Feb-2023
• ICS: 25.160.40 - Welded joints and welds
• Technical Committee: VAR - Welding
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 20-Jan-2023
• Due Date: 27-Mar-2023
• Completion Date: 10-Feb-2023
• Ref Project: EN ISO 4761:2022 - Non-destructive testing of welds - Phased array ultrasonic testing (UT-PA) for thin-walled steel components - Acceptance levels (ISO 4761:2022)

Relations

• Refers: SIST EN 17163:2019 - Pulp, paper and board - Determination of primary aromatic amines (PAA) in a water extract by a LC-MS method
• Effective Date: 28-Jan-2026
• Refers: SIST EN ISO 3262-8:2023 - Extenders - Specifications and methods of test - Part 8: Natural clay (ISO 3262-8:2023)
• Effective Date: 28-Jan-2026
• Referred By: SIST EN 448:2025 - District heating pipes - Bonded single pipe systems for directly buried hot water networks - Factory made fitting assemblies of steel service pipes, polyurethane thermal insulation and a casing of polyethylene
• Effective Date: 28-Jan-2026

Overview

SIST EN ISO 4761:2023 specifies acceptance levels for the phased array ultrasonic testing (UT-PA) of full-penetration welds in thin-walled steel components. Focusing on low-alloy and/or fine-grained steels within a wall thickness range of 3.2 mm to 8 mm, this standard ensures a harmonized approach to the evaluation and acceptance of weld imperfections detected using advanced UT-PA techniques. The acceptance levels directly correspond to ISO 5817 quality requirements, establishing consistent criteria for welded joint quality in critical applications.

Key Topics

• Scope of Application: The standard is intended for non-destructive testing (NDT) of full-penetration welds in thin-walled steel structures using phased array ultrasonic testing.
• Reference and Acceptance Levels: Provides detailed definitions and criteria for reference, acceptance, and evaluation levels, including amplitude and indication length.
• Testing Guidelines: Outlines methods for setting inspection sensitivity and evaluating longitudinal and transverse indications, both for two-sided and single-sided UT-PA approaches.
• Cumulative Indications: Specifies how to calculate and evaluate the total acceptable length of individual indications along the weld.
• Alignment with ISO 5817: Each acceptance level in SIST EN ISO 4761:2023 is associated with a quality level according to the widely recognized ISO 5817 standard, ensuring international consistency.
• Reporting Requirements: Details conditions for reporting sub-acceptance-level indications and appropriate documentation practices.

Applications

SIST EN ISO 4761:2023 is essential for organizations seeking to improve the safety and quality of welded steel structures through reliable non-destructive testing. Key application areas include:

• Pressure Vessels and Piping: Supports safe operation by verifying weld quality in components subjected to internal pressure, where thin-walled steel is often used.
• Manufacturing and Fabrication: Ensures weld integrity in structural elements of steel constructions, transport equipment, and machinery.
• Automotive and Aerospace Engineering: Provides robust inspection criteria for critical welds in industries with strict safety and performance standards.
• Quality Assurance: Strengthens risk management and compliance with international quality and safety requirements for welded joints.

By offering precise acceptance criteria for UT-PA detected indications, this standard helps improve defect detection, reduce repair costs, and increase confidence in welded component integrity.

Related Standards

For comprehensive non-destructive testing of welds and for the effective application of SIST EN ISO 4761:2023, consider integrating the following related standards:

• ISO 20601: Non-destructive testing of welds - Ultrasonic testing - Use of automated phased array technology for thin-walled steel components
• ISO 5817: Welding - Fusion-welded joints in steel, nickel, titanium and their alloys - Quality levels for imperfections
• ISO 5577: Non-destructive testing - Ultrasonic testing - Vocabulary
• ISO 23243: Non-destructive testing - Ultrasonic testing with arrays - Vocabulary
• ISO 9712: Non-destructive testing - Qualification and certification of NDT personnel
• ISO 11666: Non-destructive testing of welds - Ultrasonic testing - Acceptance levels
• ISO 13588: Non-destructive testing of welds - Ultrasonic testing - Use of automated phased array technology
• ISO 17635: Non-destructive testing of welds - General rules for metallic materials
• ISO 17640: Non-destructive testing of welds - Ultrasonic testing - Techniques, testing levels, and assessment

Practical Value

Implementing SIST EN ISO 4761:2023 ensures standardized, effective phased array ultrasonic testing of welds in thin-walled steel, promoting safety, reliability, and compliance across multiple industries. This standard is indispensable for manufacturers, inspectors, and quality assurance professionals intent on maintaining high-quality welded structures and meeting international best practices in non-destructive testing.

Standards Content (Sample)

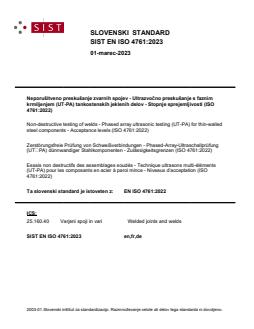

SLOVENSKI STANDARD
