ASTM A1007-22

Standard Specification for Carbon Steel Wire for Wire Rope

ABSTRACT
This specification covers uncoated and four classes of round, metallic coated, cold-drawn, carbon steel wire rope in five strength levels. The following materials testing procedures shall be conducted: standard tensile testing; alternate tensile testing; torsion testing; and wrap testing. The wire diameter tolerances of uncoated, drawn-galvanized or drawn-Zn5 Al-MM, and final-galvanized or final-coated Zn5 Al-MM rope wires shall be described. Minimum breakage forces for the carbon steel wire rope shall also be presented. During torsion testing, varying amounts of load shall be applied to the wire being tested.
SCOPE
1.1 This specification covers uncoated and metallic coated classes of round, cold-drawn, carbon steel wire for wire rope in five strength levels. This specification specifies:
1.1.1 Dimensional tolerances,
1.1.2 Mechanical characteristics,
1.1.3 Chemical composition requirements,
1.1.4 Coating requirements (if applicable), and
1.1.5 Packaging requirements.
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.3 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

• Status: Published
• Publication Date: 31-Jul-2022
• ICS: 77.140.65 - Steel wire, wire ropes and link chains
• Technical Committee: A01 - Steel, Stainless Steel and Related Alloys
• Drafting Committee: A01.03 - Steel Rod and Wire

Relations

• Refers: ASTM A941-24 - Standard Terminology Relating to Steel, Stainless Steel, Related Alloys, and Ferroalloys
• Effective Date: 01-Mar-2024
• Refers: ASTM E8/E8M-24 - Standard Test Methods for Tension Testing of Metallic Materials
• Effective Date: 01-Jan-2024
• Refers: ASTM A700-14(2019) - Standard Guide for Packaging, Marking, and Loading Methods for Steel Products for Shipment
• Effective Date: 01-Nov-2019
• Refers: ASTM A938-18 - Standard Test Method for Torsion Testing of Wire
• Effective Date: 01-Sep-2018
• Refers: ASTM A941-17 - Standard Terminology Relating to Steel, Stainless Steel, Related Alloys, and Ferroalloys
• Effective Date: 01-Sep-2017
• Refers: ASTM B899-16 - Standard Terminology Relating to Non-ferrous Metals and Alloys
• Effective Date: 01-Oct-2016
• Refers: ASTM E8/E8M-16 - Standard Test Methods for Tension Testing of Metallic Materials
• Effective Date: 15-Jul-2016
• Refers: ASTM B997-16 - Standard Specification for Zinc-Aluminum Alloys in Ingot Form for Hot-Dip Coatings
• Effective Date: 01-May-2016
• Refers: ASTM A941-15 - Standard Terminology Relating to Steel, Stainless Steel, Related Alloys, and Ferroalloys
• Effective Date: 01-Nov-2015
• Refers: ASTM B899-15 - Standard Terminology Relating to Non-ferrous Metals and Alloys
• Effective Date: 01-Oct-2015
• Refers: ASTM B997-15 - Standard Specification for Zinc-Aluminum Alloys in Ingot Form for Hot-Dip Coatings
• Effective Date: 01-Jun-2015
• Refers: ASTM E8/E8M-15 - Standard Test Methods for Tension Testing of Metallic Materials
• Effective Date: 01-Feb-2015
• Refers: ASTM A700-14 - Standard Guide for Packaging, Marking, and Loading Methods for Steel Products for Shipment
• Effective Date: 01-Nov-2014
• Refers: ASTM B899-14 - Standard Terminology Relating to Non-ferrous Metals and Alloys
• Effective Date: 01-Oct-2014
• Refers: ASTM A941-13b - Standard Terminology Relating to Steel, Stainless Steel, Related Alloys, and Ferroalloys
• Effective Date: 01-Jun-2013

Overview

ASTM A1007-22: Standard Specification for Carbon Steel Wire for Wire Rope is an internationally recognized standard developed by ASTM International. This specification covers the requirements for uncoated and four classes of round, metallic coated, cold-drawn carbon steel wire used in the manufacture of wire ropes. It establishes a comprehensive framework for the mechanical and chemical properties, dimensional tolerances, coating requirements, and packaging of carbon steel wire for use in wire rope products at five different strength levels.

ASTM A1007-22 is critical to ensuring consistency, safety, and performance in the manufacture and application of wire ropes for construction, industrial, and structural uses. Through standardized testing and clearly defined product requirements, this standard supports manufacturers, purchasers, and end-users in achieving reliable and high-strength wire rope assemblies.

Key Topics

• Wire Types: Specifies both uncoated and metallic coated carbon steel wires available in different strength levels (Levels 1-5).
• Mechanical and Chemical Requirements: Addresses mechanical characteristics such as minimum breaking force, tensile properties, and torsional properties, with chemical composition defined through industry-accepted analyses.
• Coating Classes: Outlines four coating options including drawn-galvanized, final-galvanized, drawn Zn-5Al-MM (zinc-aluminum-mischmetal), and final-coated Zn-5Al-MM, each designed to enhance wire durability and corrosion resistance.
• Dimensional Tolerances: Details strict diameter tolerances and ovality requirements for both uncoated and coated wires, ensuring consistent fit and strength in rope assemblies.
• Testing Procedures: Ensures product quality and reliability through rigorous testing methods, including tensile testing (standard/alternate), torsion testing, and wrap testing as defined by referenced ASTM standards.
• Ordering and Packaging: Describes necessary order information, packaging, and marking in accordance with recognized steel product standards.

Applications

ASTM A1007-22 plays a foundational role in industries where wire rope performance is critical:

• Construction and Structural Engineering: Used for elevator cables, bridge suspension, structural support, and lifting applications where high tensile strength and reliable performance are required.
• Mining and Marine Industries: Ensures safety and durability for hoisting, rigging, towing, and mooring wire ropes in harsh environments.
• Manufacturing: Supports the production of wire rope for cranes, winches, and other machinery requiring precision-engineered steel wire.
• Transportation and Logistics: Applied in cable car systems, aviation controls, and goods handling, where uniform strength and safety are priorities.

The flexible approach to coating and strength classification allows the standard to address varied environmental and mechanical demands, making it highly adaptable across applications.

Related Standards

ASTM A1007-22 references and complements several key standards in the field of steel wire, coatings, and mechanical testing:

• ASTM A90/A90M: Test Method for Weight/Mass of Coating on Iron and Steel Articles
• ASTM A510/A510M: General Requirements for Carbon Steel Wire Rods
• ASTM A700: Guide for Packaging and Marking Steel Products
• ASTM A902 & B899: Terminology for Metallic Coated and Non-Ferrous Metals and Alloys
• ASTM A938: Test Method for Torsion Testing of Wire
• ASTM E8/E8M: Test Methods for Tension Testing of Metallic Materials
• EN 10264-2: European standard for steel wire for wire rope
• ISO 2232: International standard for drawn wire for general-purpose non-alloy steel wire ropes
• API 9A: Specification for wire rope in petroleum applications

These standards collectively facilitate global interoperability, product quality, and safety for carbon steel wire designed for wire rope construction.

---

Keywords: ASTM A1007, carbon steel wire rope, wire rope standards, wire diameter tolerance, tensile properties, galvanized steel wire, torsion testing, metallic coated wire, ASTM wire rod standards, steel wire rope applications.

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

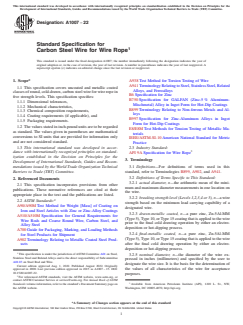

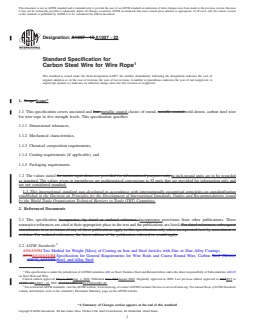

Designation:A1007 −22
Standard Specification for
Carbon Steel Wire for Wire Rope
This standard is issued under the fixed designation A1007; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope* A938 Test Method for Torsion Testing of Wire
A941 TerminologyRelatingtoSteel,StainlessSteel,Related
1.1 This specification covers uncoated and metallic coated
Alloys, and Ferroalloys
classes of round, cold-drawn, carbon steel wire for wire rope in
B6 Specification for Zinc
five strength levels. This specification specifies:
B750 Specification for GALFAN (Zinc-5 % Aluminum-
1.1.1 Dimensional tolerances,
Mischmetal) Alloy in Ingot Form for Hot-Dip Coatings
1.1.2 Mechanical characteristics,
B899 Terminology Relating to Non-ferrous Metals and Al-
1.1.3 Chemical composition requirements,
loys
1.1.4 Coating requirements (if applicable), and
B997 Specification for Zinc-Aluminum Alloys in Ingot
1.1.5 Packaging requirements.
Form for Hot-Dip Coatings
1.2 The values stated in inch-pound units are to be regarded
E8/E8M Test Methods for Tension Testing of Metallic Ma-
as standard. The values given in parentheses are mathematical
terials
conversions to SI units that are provided for information only
IEEE/ASTM-SI-10 American National Standard for Metric
and are not considered standard.
Practice
1.3 This international standard was developed in accor-
2.3 Industry Standard:
dance with internationally recognized principles on standard- API 9A Specification for Wire Rope
ization established in the Decision on Principles for the

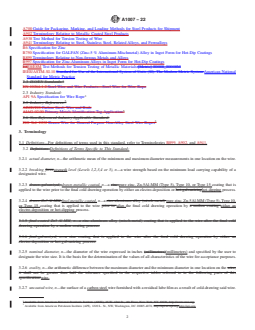

3. Terminology
Development of International Standards, Guides and Recom-
mendations issued by the World Trade Organization Technical 3.1 Definitions—For definitions of terms used in this
Barriers to Trade (TBT) Committee. standard, refer to Terminologies B899, A902, and A941.
3.2 Definitions of Terms Specific to This Standard:
2. Referenced Documents
3.2.1 actual diameter, n—the arithmetic mean of the mini-
2.1 This specification incorporates provisions from other
mum and maximum diameter measurements in one location on
publications. These normative references are cited at their
the wire.
appropriate place in the text and the publications are listed.
3.2.2 breaking strength level (Levels 1,2,3,4 or 5), n—a wire
2.2 ASTM Standards:
strength based on the minimum load carrying capability of a
A90/A90M Test Method for Weight [Mass] of Coating on
designated wire.
Iron and Steel Articles with Zinc or Zinc-Alloy Coatings
3.2.3 drawn-metallic coated, n—a pure zinc, Zn-5Al-MM
A510/A510M Specification for General Requirements for
(Type5),Type10,orType15coatingthatisappliedtothewire
Wire Rods and Coarse Round Wire, Carbon Steel, and
prior to the final cold drawing operation by either an electro-
Alloy Steel
deposition or hot-dipping process.
A700 Guide for Packaging, Marking, and Loading Methods
3.2.4 final-metallic coated, n—a pure zinc, Zn-5Al-MM
for Steel Products for Shipment
(Type5),Type10,orType15coatingthatisappliedtothewire
A902 Terminology Relating to Metallic Coated Steel Prod-
after the final cold drawing operation by either an electro-
ucts
deposition or hot-dipping process.
This specification is under the jurisdiction of ASTM Committee A01 on Steel,
3.2.5 nominal diameter, n—the diameter of the wire ex-
Stainless Steel and Related Alloys and is the direct responsibility of Subcommittee
pressed in inches (millimeters) and specified by the user to
A01.03 on Steel Rod and Wire.
designate the wire size. It is the basis for the determination of
Current edition approved Aug. 1, 2022. Published August 2022. Originally
approved in 2000. Last previous edition approved in 2015 as A1007 – 15. DOI: the values of all characteristics of the wire for acceptance
10.1520/A1007-22.
purposes.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM
Standards volume information, refer to the standard’s Document Summary page on Available from American Petroleum Institute (API), 1220 L. St., NW,
the ASTM website. Washington, DC 20005-4070, http://api.org.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
A1007−22

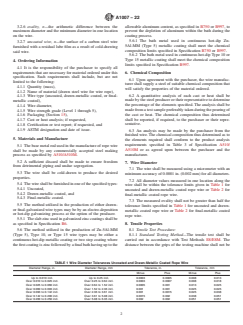

3.2.6 ovality, n—the arithmetic difference between the allowable aluminum content, as specified in B750 or B997,to
maximum diameter and the minimum diameter in one location prevent the depletion of aluminum within the bath during the
on the wire. coating process.

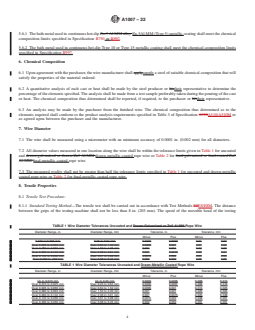

5.6.1 The bath metal used in continuous hot-dip Zn-
3.2.7 uncoated wire, n—the surface of a carbon steel wire
5Al-MM (Type 5) metallic coating shall meet the chemical
furnished with a residual lube film as a result of cold-drawing
composition limits specified in Specification B750 or B997.
said wire.
5.6.2 The bath metal used in continuous hot-dip Type 10 or
Type 15 metallic coating shall meet the chemical composition

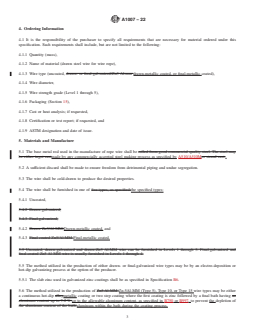

4. Ordering Information
limits specified in Specification B997.
4.1 It is the responsibility of the purchaser to specify all
requirements that are necessary for material ordered under this
6. Chemical Composition
specification. Such requirements shall include, but are not
6.1 Upon agreement with the purchaser, the wire manufac-
limited to the following:
turer shall supply a steel of suitable chemical composition that
4.1.1 Quantity (mass),
will satisfy the properties of the material ordered.
4.1.2 Name of material (drawn steel wire for wire rope),
6.2 A quantitative analysis of each cast or heat shall be
4.1.3 Wire type (uncoated, drawn-metallic coated, or final-
made by the steel producer or their representative to determine
metallic coated),
the percentage of the elements specified. The analysis shall be
4.1.4 Wire diameter,
made from a test sample preferably taken during the pouring of
4.1.5 Wire strength grade (Level 1 through 5),
the cast or heat. The chemical composition thus determined
4.1.6 Packaging (Section 15),
shall be reported, if required, to the purchaser or their repre-
4.1.7 Cast or heat analysis; if requested,
sentative.
4.1.8 Certification or test report; if requested, and
4.1.9 ASTM designation and date of issue.
6.3 An analysis may be made by the purchaser from the
finished wire. The chemical composition thus determined as to
5. Materials and Manufacture
the elements required shall conform to the product analysis
requirements specified in Table 3 of Specification A510/
5.1 The base metal rod used in the manufacture of rope wire
A510M or as agreed upon between the purchaser and the
shall be made by any commercially accepted steel making
manufacturer.
process as specified by A510/A510M.
5.2 A sufficient discard shall be made to ensure freedom
7. Wire Diameter
from detrimental piping and undue segregation.
7.1 The wire shall be measured using a micrometer with an
5.3 The wire shall be cold-drawn to produce the desired
minimum accuracy of 0.0001 in. (0.002 mm) for all diameters.
properties.
7.2 All diameter values measured in one location along the
5.4 Thewireshallbefurnishedinoneofthespecifiedtypes:
wire shall be within the tolerance limits given in Table 1 for
5.4.1 Uncoated,
uncoated and drawn-metallic coated rope wire or Table 2 for
5.4.2 Drawn-metallic coated, and
final-metallic coated rope wire.
5.4.3 Final-metallic coated.
7.3 The measured ovality shall not be greater than half the
5.5 The method utilized in the production of either drawn-
tolerance limits specified in Table 1 for uncoated and drawn-
or final-galvanized wire types may be by an electro-deposition
metallic coated rope wire or Table 2 for final-metallic coated
or hot-dip galvanizing process at the option of the producer.
rope wire.
5.5.1 The slab zinc used in galvanized zinc coatings shall be
as specified in Specification B6. 8. Tensile Properties
5.6 The method utilized in the production of Zn-5Al-MM 8.1 Tensile Test Procedure:
(Type 5), Type 10, or Type 15 wire types may be either a
8.1.1 Standard Testing Method—The tensile test shall be
continuous hot-dip metallic coating or two step coating where carried out in accordance with Test Methods E8/E8M. The
thefirstcoatingiszincfollowedbyafinalbathhavinguptothe distance between the grips of the testing machine shall not be
TABLE 1 Wire Diameter Tolerances Uncoated and Drawn-Metallic Coated Rope Wire
Diameter Range, in. Diameter Range, mm Tolerance, in. Tolerance, mm
Minus Plus Minus Plus
Up to 0.010 incl. Up to 0.25 incl. 0.0003 0.0005 0.008 0.013
Over 0.010 to 0.025 incl. Over 0.25 to 0.64 incl. 0.0003 0.0007 0.008 0.018
Over 0.025 to 0.060 incl. Over 0.64 to 1.52 incl. 0.0005 0.001 0.013 0.025
Over 0.060 to 0.093 incl. Over 1.52 to 2.36 incl. 0.001 0.001 0.025 0.025
Over 0.093 to 0.142 incl. Over 2.36 to 3.61 incl. 0.001 0.0015 0.025 0.038
Over 0.142 to 0.200 incl. Over 3.61 to 5.08 incl. 0.0015 0.002 0.038 0.051
Over 0.200 to 0.250 incl. Over 5.08 to 6.35 incl. 0.002 0.002 0.051 0.051
A1007−22

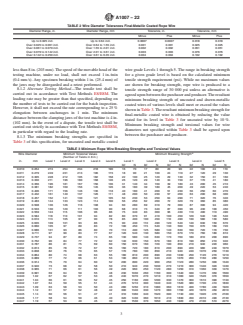

TABLE 2 Wire Diameter Tolerances Final-Metallic Coated Rope Wire
Diameter Range, in. Diameter Range, mm Tolerance, in. Tolerance, mm
Minus Plus Minus Plus
Up to 0.025 incl. Up to 0.64 incl. 0.0007 0.0007 0.018 0.018
Over 0.025 to 0.061 incl. Over 0.64 to 1.55 incl. 0.001 0.001 0.025 0.025
Over 0.061 to 0.079 incl. Over 1.55 to 2.01 incl. 0.002 0.002 0.051 0.051
Over 0.079 to 0.142 incl. Over 2.01 to 3.61 incl. 0.003 0.003 0.076 0.076
Over 0.142 to 0.250 incl. Over 3.61 to 6.35 incl. 0.004 0.004 0.102 0.102
less than 8 in. (203 mm).The speed of the movable head of the wire grade Levels 1 through 5. The range in breaking strength
testing machine, under no load, shall not exceed 1 in.⁄min
for a given grade level is based on the calculated minimum
(0.4 mm⁄s). Any specimen breaking within 1 in. (25.4 mm) of
tensile strength requirement (psi). While no maximum values
the jaws may be disregarded and a retest performed.
are shown for breaking strength, rope wire is produced to a
8.1.2 Alternate Testing Method—The tensile test shall be
tensile strength range of 30 000 psi unless an alternative is
carried out in accordance with Test Methods E8/E8M. The
agreed upon between the purchaser and producer.The resultant
loading rate may be greater than that specified, depending on
minimum breaking strength of uncoated and drawn-metallic
the number of tests to be carried out for the batch inspection.
coated wires of various levels shall meet or exceed the values
However, it shall not exceed the rate corresponding to a 25 %
showninTable3.Theresultantminimumbreakingstrengthfor
elongation between anchorages in 1 min. The minimum
final-metallic coated wire is obtained by reducing the value
distance between the clamping jaws of the test machine is 4 in.
stated for its level in Table 3 for uncoated wire by 10 %.
(102 mm). In the event of a dispute, the tensile test shall be
Minimum breaking strength and torsional values for wire
carried out strictly in accordance with Test Methods E8/E8M,
diameters not specified within Table 3 shall be agreed upon
in particular with regard to the loading rate.
between the purchaser and producer.
8.1.3 The minimum breaking strengths are specified in
Table 3 of this specification, for uncoated and metallic coated
TABLE 3 Minimum Rope Wire Breaking Strengths and Torsional Values
A
Wire Diameter Minimum Torsional Values Minimum Breaking Strength
(Number of Twists in 8 in.)
in. mm Level 1 Level 2 Level 3 Level 4 Level 5 Level 1 Level 2 Level 3 Level 4 Level 5
lbf N lbf N lbf N lbf N lbf N
0.010 0.254 274 254 234 218 190 16 70 17 80 20 90 22 100 24 110
0.011 0.279 249 231 213 196 173 18 90 21 100 24 110 27 120 29 130
0.012 0.305 228 212 195 182 158 22 100 25 120 29 130 32 150 31 160
0.013 0.330 211 196 180 168 146 26 120 29 140 34 150 37 170 41 180
0.014 0.356 196 181 167 156 136 31 140 34 160 39 180 43 200 45 210
0.015 0.381 182 169 156 145 126 36 180 39 180 45 200 49 220 53 240
0.016 0.406 171 156 146 136 118 40 180 41 200 51 230 56 250 60 270
0.017 0.432 161 149 137 126 111 48 200 50 230 57 260 63 290 68 300
0.018 0.457 152 141 130 121 105 50 230 53 250 64 290 71 320 76 340
0.019 0.483 144 133 123 114 100 56 250 62 260 72 320 79 360 85 380
0.020 0.508 136 126 116 108 94 60 280 69 310 79 360 87 390 94 420
0.021 0.533 130 120 111 103 90 68 310 73 340 87 390 96 430 100 450
0.022 0.559 124 115 106 96 86 75 340 83 360 96 430 110 490 110 490
0.023 0.584 118 110 101 94 82 80 370 91 410 100 450 120 540 120 540
0.024 0.610 113 105 97 90 78 85 400 100 450 110 490 130 580 130 580
0.025 0.635 109 101 93 86 75 90 430 110 490 120 540 140 630 150 670
0.026 0.660 105 97 89 83 72 100 450 115 540 130 560 150 670 160 720
0.027 0.686 101 93 86 80 70 110 490 125 580 140 630 160 720 170 730
0.028 0.711 97 90 83 77 67 120 540 130 580 150 670 170 760 180 810
0.029 0.737 94 87 80 74 65 130 580 140 630 170 760 180 810 200 890
0.030 0.762 90 84 77 72 62 140 630 150 670 180 810 190 850 210 940
0.031 0.787 86 81 75 69 60 150 670 160 720 190 850 210 940 220 960
0.032 0.813 85 78 72 67 56 160 720 180 810 200 890 220 980 240 1070
0.033 0.838 82 76 70 65 57 170 780 190 850 210 940 240 1070 250 1130
0.034 0.864 80 74 68 63 55 180 810 200 890 230 1030 250 1120 270 1210
0.035 0.889 77 72 66 61 53 190 860 210 940 240 1070 260 1160 280 1250
0.036 0.914 75 70 64 60 52 200 890 220 960 250 1120 280 1250 300 1340
0.037 0.940 73 68 62 58 50 210 940 230 1030 270 1210 300 1340 320 1430
0.038 0.965 71 66 61 56 49 220 960 250 1120 280 1250 310 1360 330 1470
0.039 0.991 69 64 59 55 48 230 1030 260 1160 300 1340 330 1470 350 1560
0.040 1.02 67 62 57 53 46 240 1070 270 1210 310 1360 340 1520 370 1650
0.041 1.04 66 61 56 52 45 250 1160 290 1290 330 1470 360 1610 390 1740
0.042 1.07 64 59 55 51 44 270 1210 300 1340 340 1520 380 1700 410 1830
0.043 1.09 63 58 53 50 43 280 1250 310 1380 360 1610 400 1780 430 1920
0.044 1.12 61 57 52 48 42 300 1340 330 1470 380 1700 420 1870 450 2010
0.045 1.14 60 56 51 47 41 310 1360 340 1520 390 1740 430 1920 470 2100
0.046 1.17 58 54 50 46 40 320 1430 360 1610 410 1830 450 2010 490 2130
0.047 1.19 57 53 49 45 39 340 1530 370 1650 430 1920 470 2100 510 2270
A1007−22

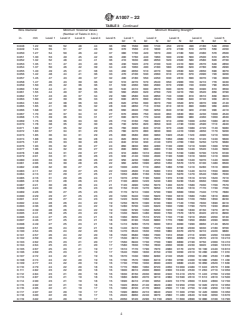

TABLE3 Continued
A
Wire Diameter Minimum Torsional Values Minimum Breaking Strength
(Number of Twists in 8 in.)
in. mm Level 1 Level 2 Level 3 Level 4 Level 5 Level 1 Level 2 Level 3 Level 4 Level 5
lbf N lbf N lbf N lbf N lbf N
0.048 1.22 56 52 48 44 36 350 1560 390 1740 450 2010 490 2180 540 2350
0.049 1.24 55 51 47 43 36 370 1560 410 1830 470 2100 510 2270 550 2450
0.050 1.27 54 50 46 42 37 380 1700 420 1870 490 2180 530 2380 570 2500
0.051 1.30 53 49 45 42 36 400 1760 440 1960 500 2230 560 2500 610 2670
0.052 1.32 52 48 44 41 36 410 1830 480 2050 520 2320 580 2580 620 2730
0.053 1.35 51 47 43 40 36 430 1920 470 2100 540 2410 600 2670 640 2850
0.054 1.37 50 46 42 39 34 440 1960 490 2180 580 2500 620 2780 660 2990
0.055 1.40 49 45 41 38 33 460 2050 510 2270 590 2630 640 2850 690 3070
0.056 1.42 48 44 41 36 33 470 2100 530 2360 610 2720 670 2990 720 3200
0.057 1.45 47 43 40 37 32 490 2180 550 2450 630 2810 690 3070 740 3300
0.058 1.47 46 43 39 36 32 510 2270 570 2540 650 2900 720 3210 770 3430
0.059 1.50 45 42 36 36 31 530 2360 580 2580 670 2990 740 3300 790 3520
0.060 1.52 44 41 38 35 30 540 2410 600 2670 690 3070 760 3390 810 3550
0.061 1.55 44 40 37 35 30 560 2500 620 2760 720 3210 790 3520 850 3790
0.062 1.57 43 40 37 34 29 580 2580 640 2850 740 3300 810 3610 830 3923
0.063 1.60 42 39 36 33 29 600 2670 660 2940 760 3390 840 3740 930 4310
0.064 1.63 42 38 36 33 28 620 2760 690 3070 790 3520 870 3870 930 4140
0.065 1.65 41 38 35 32 28 640 2850 710 3160 810 3610 890 3980 960 4283
0.066 1.68 40 37 34 32 28 660 2940 730 3250 840 3740 920 4100 990 4410
0.067 1.70 40 37 34 31 27 670 2990 750 3340 860 3830 950 4230 1000 4540
0.068 1.73 39 36 33 31 27 690 3070 770 3430 890 3960 980 4360 1060 4630
0.069 1.75 38 36 33 30 26 710 3160 790 3520 910 4050 1000 4450 1080 4810
0.070 1.78 38 35 32 30 26 730 3250 820 3650 940 4190 1030 4590 1110 4940
0.071 1.80 37 35 32 29 26 760 3390 840 3740 970 4320 1080 4720 1140 5080
0.072 1.83 37 34 31 29 25 780 3470 880 3830 990 4410 1090 4850 1170 5200
0.073 1.85 36 34 31 29 25 800 3580 890 3960 1020 4540 1120 4990 1210 5360
0.074 1.88 36 33 30 28 24 820 3650 910 4050 1050 4680 1150 5120 1240 5600
0.075 1.91 35 33 30 28 24 840 3740 930 4140 1070 4760 1180 5250 1270 5680
0.076 1.93 35 32 30 27 24 860 3830 960 4280 1100 4900 1210 5390 1300 5790
0.077 1.96 34 32 29 27 23 890 3960 980 4380 1130 5030 1240 5520 1340 5900
0.078 1.98 34 31 29 27 23 910 4080 1010 4500 1160 5160 1280 5700 1370 6100
0.079 2.01 33 31 28 26 23 930 4140 1030 4590 1190 5300 1310 5830 1410 6300
0.080 2.03 33 30 28 26 22 950 4230 1080 4720 1230 5430 1340 5970 1440 6400
0.081 2.06 33 30 28 26 22 960 4260 1090 4850 1250 5570 1370 6100 1480 6500
0.082 2.08 32 30 27 25 22 1000 4460 1110 4960 1280 5700 1410 6280 1510 0000
0.083 2.11 32 29 27 25 22 1020 4500 1140 5080 1310 5830 1440 6410 1550 0000
0.084 2.13 31 29 27 25 21 1050 4680 1160 5160 1340 5970 1470 6540 1580 7030
0.085 2.16 31 29 26 24 21 1070 4760 1190 5300 1370 6100 1510 6720 1620 7210
0.086 2.18 31 28 26 24 21 1100 4800 1220 5430 1400 6230 1540 6660 1660 7390
0.087 2.21 30 28 26 24 21 1120 4990 1250 5570 1430 6370 1580 7030 1700 7570
0.088 2.24 30 28 25 23 20 1150 5120 1270 5650 1470 6540 1610 7170 1730 7700
0.089 2.26 30 27 25 23 20 1170 5210 1300 5790 1500 6660 1650 7340 1770 7880
0.090 2.29 29 27 25 23 20 1200 5340 1330 5920 1530 6610 1680 7480 1810 8080
0.091 2.31 29 27 24 23 20 1220 5430 1360 6050 1560 6940 1720 7660 1850 8230
0.092 2.34 28 26 24 22 19 1250 5670 1390 6190 1600 7120 1760 7830 1890 8410
0.093 2.36 28 26 24 22 19 1280 5700 1420 6320 1630 7260 1790 7970 1930 8590
0.094 2.39 28 26 24 22 19 1300 5790 1450 6450 1670 7430 1830 8150 1970 8770
0.095 2.41 28 25 23 22 19 1330 5920 1480 6590 1700 7570 1870 8320 2010 8900
0.096 2.44 27 25 23 21 18 1360 6050 1510 6720 1740 7740 1910 8500 2050 9130
0.097 2.46 27 25 23 21 18 1390 6190 1540 6880 1770 7880 1950 8680 2090 9300
0.098 2.49 27 25 23 21 18 1410 6280 1570 6990 1810 8060 1990 8860 2140 9529
0.099 2.51 26 24 22 21 18 1440 6410 1600 7120 1840 8190 2030 9030 2180 9700
0.100 2.54 26 24 22 20 18 1470 6540 1630 7260 1880 8370 2070 9210 2220 9880
0.101 2.57 26 24 22 20 18 1500 6580 1680 7390 1910 8500 2110 9390 2260 10 000
0.102 2.59 26 24 22 20 17 1530 6810 1700 7570 1950 8680 2150 9570 2310 10 210
0.103 2.62 25 23 21 20 17 1560 6940 1730 7700 1990 8860 2190 9750 2360 10 410
0.104 2.64 25 23 21 20 17 1580 7030 1760 7830 2030 9030 2230 9920 2390 10 610
0.105 2.67 25 23 21 19 17 1610 7170 1790 7970 2080 9170 2270 10 100 2440 10 810
0.106 2.69 25 23 21 19 17 1640 7300 1830 8150 2100 9350 2310 10 280 2480 11 010
0.107 2.72 24 22 21 19 16 1670 7430 1860 8280 2140 9520 2350 10 460 2530 11 280
0.108 2.74 24 22 20 19 16 1700 7570 1890 8410 2180 9700 2400 10 680 2580 11 430
0.109 2.77 24 22 20 19 16 1730 7700 1930 8590 2220 9880 2440 10 860 2620 11 630
0.110 2.79 24 22 20 18 16 1770 7880 1960 8720 2260 10 060 2480 11 040 2670 11 830
0.111 2.82 23 22 20 18 16 1800 8010 2000 8900 2300 10 240 2530 11 260 2710 12 050
0.112 2.84 23 21 20 18 16 1830 8150 2030 9030 2340 10 410 2570 11 440 2760 12 230
0.113 2.87 23 21 19 18 15 1880 8280 2070 9210 2380 10 590 2610 11 610 2810 12 500
0.114 2.90 23 21 19 18 15 1890 8410 2100 9350 2420 10 770 2660 11 840 2860 12 730
0.115 2.92 22 21 19 18 15 1920 8550 2140 9620 2480 10 950 2700 12 020 2910 12 950
0.116 2.95 22 21 19 17 15 1960 8720 2170 9660 2500 11 130 2750 12 240 2950 13 130
0.117 2.97 22 20 19 17 15 1990 8860 2210 9840 2540 11 300 2790 12 420 3000 13 350
0.118 3.00 22 20 18 17 15 2020 8960 2240 9970 2580 11 480 2840 12 640 3050 13 670
0.119 3.02 22 20 18 17 15 2050 9120 2290 10 150 2620 11 660 2890 12 880 3100 13 790
A1007−22
TABLE3 Continued
A
Wire Diameter Minimum Torsional Values Minimum Breaking Strength
(Number of Twists in 8 in.)
in. mm Level 1 Level 2 Level 3 Level 4 Level 5 Level 1 Level 2 Level 3 Level 4 Level 5
lbf N lbf N lbf N lbf N lbf N
0.120 3.05 21 20 18 17 14 2090 9300 2320 10 320 2670 11 880
...

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: A1007 − 15 A1007 − 22
Standard Specification for
Carbon Steel Wire for Wire Rope
This standard is issued under the fixed designation A1007; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope Scope*
1.1 This specification covers uncoated and four metallic coated classes of round, metallic coated, cold-drawn, carbon steel wire
for wire rope in five strength levels. This specification specifies:
1.1.1 Dimensional tolerances,
1.1.2 Mechanical characteristics,
1.1.3 Chemical composition requirements,
1.1.4 Coating requirements (if applicable), and
1.1.5 Packaging requirements.
1.2 The values stated for metric equivalents are provided for informational purposes only.in inch-pound units are to be regarded
as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and
are not considered standard.
1.3 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 This specification incorporates, by dated or undated reference, incorporates provisions from other publications. These
normative references are cited at their appropriate place in the text and the publications are listed. For dated references, subsequent
amendments to or revisions of any of these publications apply to this specification only when incorporated in it by amendment or
revision. For undated references, the latest edition of the publication referred to would apply.
2.2 ASTM Standards:
A90/A90M Test Method for Weight [Mass] of Coating on Iron and Steel Articles with Zinc or Zinc-Alloy Coatings
A510A510/A510M Specification for General Requirements for Wire Rods and Coarse Round Wire, Carbon Steel (Metric)
A0510_A0510M Steel, and Alloy Steel
This specification is under the jurisdiction of ASTM Committee A01 on Steel, Stainless Steel and Related Alloys and is the direct responsibility of Subcommittee A01.03
on Steel Rod and Wire.
Current edition approved May 1, 2015Aug. 1, 2022. Published June 2015August 2022. Originally approved in 2000. Last previous edition approved in 20072015 as
A1007 – 07.A1007 – 15. DOI: 10.1520/A1007-15.10.1520/A1007-22.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
A1007 − 22
A700 Guide for Packaging, Marking, and Loading Methods for Steel Products for Shipment
A902 Terminology Relating to Metallic Coated Steel Products
A938 Test Method for Torsion Testing of Wire
A941 Terminology Relating to Steel, Stainless Steel, Related Alloys, and Ferroalloys
B6 Specification for Zinc
B750 Specification for GALFAN (Zinc-5 % Aluminum-Mischmetal) Alloy in Ingot Form for Hot-Dip Coatings
B899 Terminology Relating to Non-ferrous Metals and Alloys
B997 Specification for Zinc-Aluminum Alloys in Ingot Form for Hot-Dip Coatings
E8E8/E8M Test Methods for Tension Testing of Metallic Materials [Metric] E0008_E0008M
IEEE/ASTM-SI-10 Standard for Use of the International System of Units (SI): The Modern Metric System American National
Standard for Metric Practice
2.3 ISO/EN Standards:
EN 10264-1.2 Steel Wire and Wire Products—Steel Wire for Wire Rope
2.3 Industry Standard:
API 9A Specification for Wire Rope
2.5 Industry References:
AIME/ISS Carbon Steel, Wire and Rods
AIAG 02.00 Primary Metals Identification Tag Application
2.6 Non-Referenced Industry Applicable Standard:
ISO Std. 2232 Drawn Wire for General Purpose Non-Alloy Steel Wire Ropes
3. Terminology
3.1 Definitions—For definitions of terms used in this standard, refer to Terminologies B899, A902, and A941.
3.2 Definitions:Definitions of Terms Specific to This Standard:
3.2.1 actual diameter, n—the arithmetic mean of the minimum and maximum diameter measurements in one location on the wire.
3.2.2 breaking forcestrength level (Levels 1,2,3,4 or 5), n—a wire strength based on the minimum load carrying capability of a
designated wire.
3.2.3 drawn-galvanized, drawn-metallic coated, n—a zinc pure zinc, Zn-5Al-MM (Type 5), Type 10, or Type 15 coating that is
applied to the wire prior to the final cold drawing operation by either an electro-deposition or hot-galvanizinghot-dipping process.
3.2.4 drawn-Zn5 Al-MM,final-metallic coated, n—a zinc-aluminum alloy (misch-metal) pure zinc, Zn-5Al-MM (Type 5), Type 10,
or Type 15 coating that is applied to the wire prior to after the final cold drawing operation by a molten coating either an
electro-deposition or hot-dipping process.
3.1.5 final-coated Zn5 Al-MM, n—a zinc-aluminum alloy (misch-metal) coating that is applied to the wire after the final cold
drawing operation by a molten coating process.
3.1.6 final-galvanized, n—a zinc coating that is applied to the wire after the final cold drawing operation by either an
electro-deposition or hot-galvanizing process.
3.2.5 nominal diameter, n—the diameter of the wire expressed in inches (millimetres)(millimeters) and specified by the user to
designate the wire size. It is the basis for the determination of the values of all characteristics of the wire for acceptance purposes.
3.2.6 ovality, n—the arithmetic difference between the maximum diameter and the minimum diameter in one location on the wire;
it shall not be greater than half the tolerance specified in the respective tables referred to in the following parts of this
specification.wire.
3.2.7 uncoated wire, n—the surface of a carbon steel wire furnished with a residual lube film as a result of cold-drawing said wire.
Available from American National Standards Institute (ANSI), 25 W. 43rd St., 4th Floor, New York, NY 10036, http://www.ansi.org.
Available from American Petroleum Institute (API), 1220 L. St., NW, Washington, DC 20005-4070, http://api-ec.api.org.http://api.org.
A1007 − 22
4. Ordering Information
4.1 It is the responsibility of the purchaser to specify all requirements that are necessary for material ordered under this
specification. Such requirements shall include, but are not limited to the following:
4.1.1 Quantity (mass),
4.1.2 Name of material (drawn steel wire for wire rope),
4.1.3 Wire type (uncoated, drawn- or final-galvanized/Zn5 Al-mm drawn-metallic coated, or final-metallic coated),
4.1.4 Wire diameter,
4.1.5 Wire strength grade (Level 1 through 5),
4.1.6 Packaging (Section 15),
4.1.7 Cast or heat analysis; if requested,
4.1.8 Certification or test report; if requested, and
4.1.9 ASTM designation and date of issue.
5. Materials and Manufacture
5.1 The base metal rod used in the manufacture of rope wire shall be rolled from good commercial quality steel. The steel may
be either ingot castmade by any commercially accepted steel making process as specified by A510/A510Mor strand cast.
5.2 A sufficient discard shall be made to ensure freedom from detrimental piping and undue segregation.
5.3 The wire shall be cold-drawn to produce the desired properties.
5.4 The wire shall be furnished in one of five types, as specified:the specified types:
5.4.1 Uncoated,
5.4.2 Drawn-galvanized,
5.4.3 Final-galvanized,
5.4.2 Drawn Zn5/Al-MM,Drawn-metallic coated, and
5.4.3 Final coated Zn5/Al-MM.Final-metallic coated.
5.5 Uncoated, drawn-galvanized and drawn-Zn5 Al-MM wire can be furnished in Levels 1 through 5. Final-galvanized and
final-coated Zn5 Al-MM wire is usually furnished in Levels 1 through 4.
5.5 The method utilized in the production of either drawn- or final-galvanized wire types may be by an electro-deposition or
hot-dip galvanizing process at the option of the producer.
5.5.1 The slab zinc used in galvanized zinc coatings shall be as specified in Specification B6.
5.6 The method utilized in the production of Zn5 Al-MM Zn-5Al-MM (Type 5), Type 10, or Type 15 wire types may be either
a continuous hot-dip alloymetallic coating or two step coating where the first coating is zinc followed by a final bath having an
aluminum content up to 7.2 % up to the allowable aluminum content, as specified in B750 or B997, to prevent the depletion of
the aluminum content of the bath.aluminum within the bath during the coating process.
A1007 − 22
5.6.1 The bath metal used in continuous hot-dip Zn-5 Al-MM alloy Zn-5Al-MM (Type 5) metallic coating shall meet the chemical
composition limits specified in Specification B750 or B997.
5.6.2 The bath metal used in continuous hot-dip Type 10 or Type 15 metallic coating shall meet the chemical composition limits
specified in Specification B997.
6. Chemical Composition
6.1 Upon agreement with the purchaser, the wire manufacturer shall applysupply a steel of suitable chemical composition that will
satisfy the properties of the material ordered.
6.2 A quantitative analysis of each cast or heat shall be made by the steel producer or histheir representative to determine the
percentage of the elements specified. The analysis shall be made from a test sample preferably taken during the pouring of the cast
or heat. The chemical composition thus determined shall be reported, if required, to the purchaser or histheir representative.
6.3 An analysis may be made by the purchaser from the finished wire. The chemical composition thus determined as to the
elements required shall conform to the product analysis requirements specified in Table 3 of Specification A510A510/A510M or
as agreed upon between the purchaser and the manufacturer.
7. Wire Diameter
7.1 The wire shall be measured using a micrometer with an minimum accuracy of 0.0001 in. (0.002 mm) for all diameters.
7.2 All diameter values measured in one location along the wire shall be within the tolerance limits given in Table 1 for uncoated
and drawn-galvanized or drawn-Zn5 Al-MM drawn-metallic coated rope wire or Table 2 for final-galvanized or final-coated Zn5
Al-MM final-metallic coated rope wire.
7.3 The measured ovality shall not be greater than half the tolerance limits specified in Table 1 for uncoated and drawn-metallic
coated rope wire or Table 2 for final-metallic coated rope wire.
8. Tensile Properties
8.1 Tensile Test Procedure:
8.1.1 Standard Testing Method—The tensile test shall be carried out in accordance with Test Methods E8E8/E8M. The distance
between the grips of the testing machine shall not be less than 8 in. (203 mm). The speed of the movable head of the testing
TABLE 1 Wire Diameter Tolerances Uncoated and Drawn-Galvanized or Zn5 Al-MM Rope Wire
Diameter Range, in. Diameter Range, mm Tolerance, in. Tolerance, mm
Minus Plus Minus Plus
0.010 to 0.025 incl. 0.25 to 0.64 incl. 0.0003 0.0007 0.01 0.02
Over 0.025 to 0.060 incl. Over 0.64 to 1.50 incl. 0.0005 0.001 0.01 0.03
Over 0.060 to 0.093 incl. Over 1.50 to 2.36 incl. 0.001 0.001 0.03 0.03
Over 0.093 to 0.142 incl. Over 2.36 to 3.61 incl. 0.001 0.0015 0.03 0.04
Over 0.142 to 0.200 incl. Over 3.61 to 5.08 incl. 0.0015 0.002 0.04 0.05
Over 0.200 to .250 incl. Over 5.08 to 6.35 incl. 0.002 0.002 0.05 0.05
TABLE 1 Wire Diameter Tolerances Uncoated and Drawn-Metallic Coated Rope Wire
Diameter Range, in. Diameter Range, mm Tolerance, in. Tolerance, mm
Minus Plus Minus Plus
Up to 0.010 incl. Up to 0.25 incl. 0.0003 0.0005 0.008 0.013
Over 0.010 to 0.025 incl. Over 0.25 to 0.64 incl. 0.0003 0.0007 0.008 0.018
Over 0.025 to 0.060 incl. Over 0.64 to 1.52 incl. 0.0005 0.001 0.013 0.025
Over 0.060 to 0.093 incl. Over 1.52 to 2.36 incl. 0.001 0.001 0.025 0.025
Over 0.093 to 0.142 incl. Over 2.36 to 3.61 incl. 0.001 0.0015 0.025 0.038
Over 0.142 to 0.200 incl. Over 3.61 to 5.08 incl. 0.0015 0.002 0.038 0.051
Over 0.200 to 0.250 incl. Over 5.08 to 6.35 incl. 0.002 0.002 0.051 0.051
A1007 − 22
TABLE 2 Wire Diameter Tolerances Final-Galvanized or Final-Coated Zn5 Al-MM Rope Wire
Diameter Range, in. Diameter Range, mm Tolerance, in. Tolerance, mm
Minus Plus Minus Plus
0.025 to 0.061 incl. 0.64 to 1.55 incl. 0.001 0.001 0.03 0.03
Over 0.061 to 0.079 incl. Over 1.55 to 2.01 incl. 0.002 0.002 0.05 0.05
Over 0.079 to 0.092 incl. Over 2.01 to 2.34 incl. 0.003 0.003 0.08 0.08
Over 0.092 to 0.103 incl. Over 2.34 to 2.62 incl. 0.003 0.003 0.08 0.08
Over 0.103 to 0.119 incl. Over 2.62 to 3.02 incl. 0.003 0.003 0.08 0.08
Over 0.119 to 0.142 incl. Over 3.02 to 3.61 incl. 0.003 0.003 0.08 0.08
Over 0.142 to 0.187 incl. Over 3.61 to 4.75 incl. 0.004 0.004 0.10 0.10
Over 0.187 Over 4.75 0.004 0.004 0.10 0.10
TABLE 2 Wire Diameter Tolerances Final-Metallic Coated Rope Wire
Diameter Range, in. Diameter Range, mm Tolerance, in. Tolerance, mm
Minus Plus Minus Plus
Up to 0.025 incl. Up to 0.64 incl. 0.0007 0.0007 0.018 0.018
Over 0.025 to 0.061 incl. Over 0.64 to 1.55 incl. 0.001 0.001 0.025 0.025
Over 0.061 to 0.079 incl. Over 1.55 to 2.01 incl. 0.002 0.002 0.051 0.051
Over 0.079 to 0.142 incl. Over 2.01 to 3.61 incl. 0.003 0.003 0.076 0.076
Over 0.142 to 0.250 incl. Over 3.61 to 6.35 incl. 0.004 0.004 0.102 0.102
machine, under no load, shall not exceed 11 in. in./min⁄min (0.4 mm (0.4 mm/s). ⁄s). Any specimen breaking within 1 in. (25.4
mm) 1 in. (25.4 mm) of the jaws may be disregarded and a retest performed.
8.1.2 Alternate Testing Method—The tensile test shall be carried out in accordance with Test Methods E8E8/E8M. The loading
rate may be greater than that specified, depending on the number of tests to be carried out for the batch inspection. However, it
shall not exceed the rate corresponding to a 25 % elongation between anchorages in 1 min. The minimum distance between the
clamping jaws of the test machine is 4 in. (100(102 mm). In the event of a dispute, the tensile test shall be carried out strictly in
accordance with Test Methods E8E8/E8M, in particular with regard to the loading rate.
8.1.3 The minimum breaking forcesstrengths are specified in Table 3 of this specification, for uncoated and metallic coated wire
grade Levels 1 through 5. The range in breaking forcestrength for a given grade level is based on the calculated minimum tensile
strength requirement (psi). While no maximum values are shown for breaking force,strength, rope wire is generally produced to
a tensile strength range of 30 000 psi. psi unless an alternative is agreed upon between the purchaser and producer. The resultant
minimum breaking force of either uncoated, drawn-galvanized, and drawn-Zn5 Al-MMstrength of uncoated and drawn-metallic
coated wires of various levels shall meet or exceed the values shown in Table 3. The resultant minimum breaking force for
final-galvanized or final-coated Zn5 Al-MM strength for final-metallic coated wire is obtained by reducing the value stated for its
level in Table 3 for uncoated wire by 10 %. Minimum breaking strength and torsional values for wire diameters not specified within
Table 3 shall be agreed upon between the purchaser and producer.
TABLE 3 Minimum Breaking ForcesRope Wire Breaking Strengths and Torsional Values
A
Wire Diameter Minimum Torsional Values Minimum Breaking ForceStrength
(Number of Twists in 8 in.)
in. mm Level 1 Level 2 Level 3 Level 4 Level 5 Level 1 Level 2 Level 3 Level 4 Level 5
lbf N lbf N lbf N lbf N lbf N
0.010 0.254 274 254 234 218 190 16 70 17 80 20 90 22 100 24 110
0.011 0.279 249 231 213 196 173 18 90 21 100 24 110 27 120 29 130
0.012 0.305 228 212 195 182 158 22 100 25 120 29 130 32 150 31 160
0.013 0.330 211 196 180 168 146 26 120 29 140 34 150 37 170 41 180
0.014 0.356 196 181 167 156 136 31 140 34 160 39 180 43 200 45 210
0.015 0.381 182 169 156 145 126 36 180 39 180 45 200 49 220 53 240
0.016 0.408 171 156 146 136 118 40 180 41 200 51 230 56 250 60 270
0.016 0.406 171 156 146 136 118 40 180 41 200 51 230 56 250 60 270
0.017 0.432 161 149 137 126 111 48 200 50 230 57 260 63 290 68 300
0.018 0.467 152 141 130 121 105 50 230 53 250 64 290 71 320 76 340
0.018 0.457 152 141 130 121 105 50 230 53 250 64 290 71 320 76 340
0.019 0.483 144 133 123 114 100 56 250 62 260 72 320 79 360 85 380
0.020 0.508 136 126 116 108 94 60 280 69 310 79 360 87 390 94 420
0.021 0.533 130 120 111 103 90 68 310 73 340 87 390 96 430 100 450
0.022 0.559 124 115 106 96 86 75 340 83 360 96 430 110 490 110 490
0.023 0.584 118 110 101 94 82 80 370 91 410 100 450 120 540 120 540
0.024 0.610 113 105 97 90 78 85 400 100 450 110 490 130 580 130 580
0.025 0.635 109 101 93 86 75 90 430 110 490 120 540 140 630 150 670
0.026 0.680 105 97 89 83 72 100 450 130 540 130 560 150 670 160 720
0.026 0.660 105 97 89 83 72 100 450 115 540 130 560 150 670 160 720
A1007 − 22
TABLE 3 Continued
A
Wire Diameter Minimum Torsional Values Minimum Breaking ForceStrength
(Number of Twists in 8 in.)
in. mm Level 1 Level 2 Level 3 Level 4 Level 5 Level 1 Level 2 Level 3 Level 4 Level 5
lbf N lbf N lbf N lbf N lbf N
0.027 0.686 101 93 86 80 70 110 490 130 580 140 630 160 720 170 730
0.027 0.686 101 93 86 80 70 110 490 125 580 140 630 160 720 170 730
0.028 0.711 97 90 83 77 67 120 540 130 580 150 670 170 760 180 810
0.029 0.737 94 87 80 74 65 130 580 140 630 170 760 180 810 200 890
0.030 0.782 90 84 77 72 62 140 630 150 670 180 810 190 850 210 940
0.030 0.762 90 84 77 72 62 140 630 150 670 180 810 190 850 210 940
0.031 0.787 86 81 75 69 60 150 670 160 720 190 850 210 940 220 960
0.032 0.813 85 78 72 67 56 160 720 180 810 200 890 220 980 240 1070
0.033 0.836 82 76 70 65 57 170 780 190 850 210 940 240 1070 250 1130
0.033 0.838 82 76 70 65 57 170 780 190 850 210 940 240 1070 250 1130
0.034 0.864 80 74 68 63 55 180 810 200 890 230 1030 250 1120 270 1210
0.035 0.869 77 72 66 61 53 190 860 210 940 240 1070 260 1160 280 1250
0.035 0.889 77 72 66 61 53 190 860 210 940 240 1070 260 1160 280 1250
0.036 0.914 75 70 64 60 52 200 890 220 960 250 1120 280 1250 300 1340
0.037 0.940 73 68 62 58 50 210 940 230 1030 270 1210 300 1340 320 1430
0.038 0.966 71 66 61 56 49 220 960 250 1120 280 1250 310 1360 330 1470
0.038 0.965 71 66 61 56 49 220 960 250 1120 280 1250 310 1360 330 1470
0.039 0.991 69 64 59 55 48 230 1030 260 1160 300 1340 330 1470 350 1560
0.040 1.02 67 62 57 53 46 240 1070 270 1210 310 1360 340 1520 370 1650
0.041 1.04 66 61 56 52 45 250 1160 290 1290 330 1470 360 1610 390 1740
0.042 1.07 64 59 55 51 44 270 1210 300 1340 340 1520 380 1700 410 1830
0.043 1.09 63 58 53 50 43 280 1250 310 1380 360 1610 400 1780 430 1920
0.044 1.12 61 57 52 48 42 300 1340 330 1470 380 1700 420 1870 450 2010
0.045 1.14 60 56 51 47 41 310 1360 340 1520 390 1740 430 1920 470 2100
0.046 1.17 58 54 50 46 40 320 1430 360 1610 410 1830 450 2010 490 2130
0.047 1.19 57 53 49 45 39 340 1530 370 1650 430 1920 470 2100 510 2270
0.048 1.22 56 52 48 44 36 350 1560 390 1740 450 2010 490 2180 540 2350
0.049 1.24 55 51 47 43 36 370 1560 410 1830 470 2100 510 2270 550 2450
0.050 1.27 54 50 46 42 37 380 1700 420 1870 490 2180 530 2380 570 2500
0.051 1.30 53 49 45 42 36 400 1760 440 1960 500 2230 560 2500 610 2670
0.052 1.32 52 48 44 41 36 410 1830 480 2050 520 2320 580 2580 620 2730
0.053 1.35 51 47 43 40 36 430 1920 470 2100 540 2410 600 2670 640 2850
0.054 1.37 50 46 42 39 34 440 1960 490 2180 580 2500 620 2780 660 2990
0.055 1.40 49 45 41 38 33 460 2050 510 2270 590 2630 640 2850 690 3070
0.056 1.42 48 44 41 36 33 470 2100 530 2360 610 2720 670 2990 720 3200
0.057 1.45 47 43 40 37 32 490 2180 550 2450 630 2810 690 3070 740 3300
0.058 1.47 46 43 39 36 32 510 2270 570 2540 650 2900 720 3210 770 3430
0.059 1.50 45 42 36 36 31 530 2360 580 2580 670 2990 740 3300 790 3520
0.060 1.52 44 41 38 35 30 540 2410 600 2670 690 3070 760 3390 810 3550
0.061 1.56 44 40 37 35 30 560 2500 620 2760 720 3210 790 3520 850 3790
0.061 1.55 44 40 37 35 30 560 2500 620 2760 720 3210 790 3520 850 3790
0.062 1.57 43 40 37 34 29 580 2580 640 2850 740 3300 810 3610 830 3923
0.063 1.60 42 39 36 33 29 600 2670 660 2940 760 3390 840 3740 930 4310
0.064 1.63 42 38 36 33 28 620 2760 690 3070 790 3520 870 3870 930 4140
0.065 1.65 41 38 35 32 28 640 2850 710 3160 810 3610 890 3980 960 4283
0.066 1.68 40 37 34 32 28 680 2940 730 3250 840 3740 920 4100 990 4410
0.066 1.68 40 37 34 32 28 660 2940 730 3250 840 3740 920 4100 990 4410
0.067 1.70 40 37 34 31 27 670 2990 750 3340 860 3830 950 4230 1000 4540
0.068 1.73 39 36 33 31 27 690 3070 770 3430 890 3960 980 4360 1060 4630
0.069 1.75 38 36 33 30 26 710 3160 790 3520 910 4050 1000 4450 1160 4810
0.069 1.75 38 36 33 30 26 710 3160 790 3520 910 4050 1000 4450 1080 4810
0.070 1.78 38 35 32 30 26 730 3250 820 3650 940 4190 1030 4590 1110 4940
0.071 1.80 37 35 32 29 26 780 3390 840 3740 970 4320 1080 4720 1140 5080
0.071 1.80 37 35 32 29 26 760 3390 840 3740 970 4320 1080 4720 1140 5080
0.072 1.83 37 34 31 29 25 780 3470 880 3830 990 4410 1090 4850 1170 5200
0.073 1.85 36 34 31 29 25 800 3580 590 3960 1020 4540 1120 4990 1210 5360
0.073 1.85 36 34 31 29 25 800 3580 890 3960 1020 4540 1120 4990 1210 5360
0.074 1.86 36 33 30 28 24 820 3650 910 4050 1050 4680 1150 5120 1240 5600
0.074 1.88 36 33 30 28 24 820 3650 910 4050 1050 4680 1150 5120 1240 5600
0.075 1.91 35 33 30 28 24 840 3740 930 4140 1070 4760 1180 5250 1270 5680
0.076 1.93 35 32 30 27 24 860 3830 960 4280 1100 4900 1210 5390 1300 5790
0.077 1.96 34 32 29 27 23 890 3960 960 4380 1130 5030 1240 5520 1340 5900
0.077 1.96 34 32 29 27 23 890 3960 980 4380 1130 5030 1240 5520 1340 5900
0.078 1.98 34 31 29 27 23 910 4080 1010 4500 1160 5160 1280 5700 1370 6100
0.079 2.01 33 31 28 26 23 930 4140 1030 4590 1190 5300 1310 5830 1410 6300
0.080 2.03 33 30 28 26 22 950 4230 1080 4720 1230 5430 1340 5970 1440 6400
0.081 2.03 33 30 28 26 22 960 4260 1090 4850 1250 5570 1370 6100 1480 6500
0.081 2.06 33 30 28 26 22 960 4260 1090 4850 1250 5570 1370 6100 1480 6500
0.082 2.03 32 30 27 25 22 1000 4460 1110 4610 1280 5700 1410 6280 1510 0000
0.082 2.08 32 30 27 25 22 1000 4460 1110 4960 1280 5700 1410 6280 1510 0000
0.083 2.11 32 29 27 25 22 1020 4500 1140 5080 1310 5830 1440 6410 1550 0000
0.084 2.13 31 29 27 25 21 1050 4680 1160 5160 1340 5970 1470 6540 1580 7030
A1007 − 22
TABLE 3 Continued
A
Wire Diameter Minimum Torsional Values Minimum Breaking ForceStrength
(Number of Twists in 8 in.)
in. mm Level 1 Level 2 Level 3 Level 4 Level 5 Level 1 Level 2 Level 3 Level 4 Level 5
lbf N lbf N lbf N lbf N lbf N
0.085 2.16 31 29 26 24 21 1070 4760 1190 5300 1370 6100 1510 6720 1620 7210
0.086 2.18 31 28 26 24 21 1100 4800 1220 5430 1400 6230 1540 6660 1660 7390
0.087 2.21 30 28 26 24 21 1120 4990 1250 5570 1430 6370 1580 7030 1700 7570
0.088 2.24 30 28 25 23 20 1150 5120 1270 5650 1470 6540 1610 7170 1730 7700
0.089 2.26 30 27 25 23 20 1170 5210 1300 5790 1500 6660 1650 7340 1770 7880
0.090 2.29 29 27 25 23 20 1200 5340 1330 5920 1530 6610 1680 7480 1810 8080
0.091 2.31 29 27 24 23 20 1220 5430 1360 6050 1560 6940 1720 7660 1850 8230
0.092 2.34 28 26 24 22 19 1250 5670 1390 6190 1600 7120 1760 7830 1890 8410
0.093 2.36 28 26 24 22 19 1280 5700 1420 6320 1630 7260 1790 7970 1930 8590
0.094 2.39 28 26 24 22 19 1300 5790 1450 6450 1670 7430 1830 8150 1970 8770
0.095 2.41 28 25 23 22 19 1330 5920 1480 6590 1700 7570 1870 8320 2010 8900
0.096 2.44 27 25 23 21 18 1360 6050 1510 6720 1740 7740 1910 8500 2050 9130
0.097 2.46 27 25 23 21 18 1390 6190 1540 6880 1770 7880 1950 8680 2090 9300
0.098 2.49 27 25 23 21 18 1410 6280 1570 6990 1810 8060 1990 8860 2140 9529
0.099 2.51 26 24 22 21 18 1440 6410 1600 7120 1840 8190 2030 9030 2180 9700
0.100 2.54 26 24 22 20 18 1470 6540 1630 7260 1880 8370 2070 9210 2220 9880
0.101 2.57 26 24 22 20 18 1500 6580 1680 7390 1910 8500 2110 9390 2260 10 000
0.102 2.59 26 24 22 20 17 1530 6810 1700 7570 1950 8680 2150 9570 2310 10 210
0.103 2.62 25 23 21 20 17 1560 6940 1730 7700 1990 8860 2190 9750 2360 10 410
0.104 2.64 25 23 21 20 17 1580 7030 1760 7830 2030 9030 2230 9920 2390 10 610
0.105 2.67 25 23 21 19 17 1610 7170 1790 7970 2080 9170 2270 10 100 2440 10 810
0.106 2.69 25 23 21 19 17 1640 7300 1830 8150 2100 9350 2310 10 280 2480 11 010
0.107 2.72 24 22 21 19 16 1670 7430 1860 8280 2140 9520 2350 10 460 2530 11 280
0.108 2.74 24 22 20 19 16 1700 7570 1890 8410 2180 9700 2400 10 680 2580 11 430
0.109 2.77 24 22 20 19 16 1730 7700 1930 8590 2220 9880 2440 10 860 2620 11 630
0.110 2.79 24 22 20 18 16 1770 7880 1960 8720 2260 10 060 2480 11 040 2670 11 830
0.111 2.82 23 22 20 18 16 1800 8010 2000 8900 2300 10 240 2530 11 260 2710 12 050
0.112 2.84 23 21 20 18 16 1830 8150 2030 9030 2340 10 410 2570 11 440 2760 12 230
0.113 2.87 23 21 19 18 15 1880 8280 2070 9210 2380 10 590 2610 11 610 2810 12 500
0.114 2.90 23 21 19 18 15 1890 8410 2100 9350 2420 10 770 2660 11 840 2860 12 730
0.115 2.92 22 21 19 18 15 1920 8550 2140 9620 2480 10 950 2700 12 020 2910 12 950
0.116 2.95 22 21 19 17 15 1960 8720 2170 9660 2500 11 130 2750 12 240 2950 13 130
0.117 2.97 22 20 19 17 15 1990 8860 2210 9840 2540 11 300 2790 12 420 3000 13 350
0.118 3.00 22 20 18 17 15 2020 8960 2240 9970 2580 11 480 2840 12 640 3050 13 670
0.119 3.02 22 20 18 17 15 2050 9120 2290 10 150 2620 11 660 2890 12 880 3100 13 790
0.120 3.05 21 20 18 17 14 2090 9300 2320 10 320 2670 11 880 2930 13 040 3150 14 030
0.121 3.07 21 20 18 17 14 2120 9440 2360 10 500 2710 12 080 2960 13 260 3200 14 210
0.122 3.10 21 19 18 17 14 2150 9570 2390 10 640 2750 12 240 3030 13 480 3250 14 160
0.123 3.12 21 19 18 16 14 2190 9750 2430 10 610 2800 12 460 3070 13 660 3310 14 730
0.124 3.15 21 19 18 16 14 2220 9660 2470 10 990 2840 12 640 3120 13 880 3360 14 950
0.125 3.18 21 19 17 16 14 2260 10 080 2510 11 170 2880 12 820 3170 14 110 3410 15 170
0.126 3.20 20 19 17 16 14 2290 10 190 2550 11 360 2930 13 040 3220 14 330 3460 15 200
0.127 3.23 20 19 17 16 14 2330 10 370 2580 11 480 2970 13 220 3270 14 550 3510 15 320
0.128 3.25 20 18 17 16 13 2360 10 500 2620 11 600 3020 13 440 3320 14 770 3570 15 390
0.129 3.25 20 18 17 16 13 2400 10 660 2680 11 840 3080 13 620 3370 15 000 3620 16 110
0.129 3.28 20 18 17 16 13 2400 10 660 2680 11 840 3080 13 620 3370 15 000 3620 16 110
0.130 3.30 20 18 17 15 13 2430 10 610 2700 12 020 3110 13 640 3420 15 220 3670 16 330
0.131 3.33 20 18 17 15 13 2470 10 990 2740 12 190 3150 14 020 3470 15 440 3730 16 800
0.132 3.35 19 18 16 15 13 2500 11 130 2780 12 370 3200 14 240 3620 15 660 3780 16 830
0.132 3.35 19 18 16 15 13 2500 11 130 2780 12 370 3200 14 240 3490 15 660 3780 16 830
0.133 3.38 19 18 16 15 13 2540 11 300 2820 12 550 3250 14 480 3670 15 890 3840 17 090
0.133 3.38 19 18 16 15 13 2540 11 300 2820 12 550 3250 14 480 3545 15 890 3840 17 090
0.134 3.40 19 18 16 15 13 2580 11 460 2860 12 730 3290 14 640 3620 16 110 3890 17 310
0.135 3.43 19 17 16 15 13 2610 11 610 2900 12 900 3340 14 860 3670 16 330 3950 17 580
0.136 3.45 19 17 16 15 13 2650 11 790 2940 13 080 3390 15 080 3720 16 550 4000 17 800
0.137 3.48 19 17 16 15 13 2690 11 970 2990 13 310 3430 15 260 3780 16 820 4080 18 060
0.138 3.51 18 17 16 14 12 2720 12 100 3030 13 480 3480 15 480 3630 17 040 4120 18 330
0.138 3.51 18 17 16 14 12 2720 12 100 3030 13 480 3480 15 480 3830 17 040 4120 18 330
0.139 3.53 18 17 15 14 12 2760 12 260 3070 13 660 3530 15 710 3880 17 260 4170 18 560
0.140 3.56 18 17 15 14 12 2800 12 460 3110 13 840 3580 15 630 3940 17 530 4230 18 820
0.141 3.58 18 17 15 14 12 2840 12 640 3150 14 020 3630 16 150 3990 17 750 4290 19 090
0.142 3.61 18 17 15 14 12 2880 12 820 3200 14 240 3680 16 370 4040 17 980 4350 19 360
0.143 3.63 18 16 15 14 12 2910 12 950 3240 14 420 3720 16 550 4100 18 240 4400 19 680
0.144 3.65 18 16 15 14 12 2960 13 130 3260 14 600 3770 16 770 4150 18 470 4460 19 840
0.144 3.66 18 16 15 14 12 2960 13 130 3260 14 600 3770 16 770 4150 18 470 4460 19 840
0.145 3.66 18 16 15 14 12 2990 13 310 3330 14 820 3820 17 000 4210 18 730 4620 20 110
0.145 3.68 18 16 15 14 12 2990 13 310 3330 14 820 3820 17 000 4210 18 730 4620 20 110
0.146 3.71 17 16 15 14 12 3030 13 480 3370 15 000 3870 17 220 4280 18 950 4680 20 380
0.147 3.73 17 16 15 13 12 3070 13 880 3410 15 170 3920 17 440 4320 19 220 4640 20 640
0.148 3.76 17 16 14 13 11 3110 13 840 3480 15 400 3960 17 710 4370 19 440 4700 20 910
0.149 3.78 17 16 14 13 11 3150 14 020 3500 15 570 4030 17 930 4430 19 710 4760 21 180
0.150 3.81 17 16 14 13 11 3190 14 190 3550 15 800 4080 18 150 4490 19 980 4820 21 450
A1007 − 22
TABLE 3 Continued
A
Wire Diameter Minimum Torsional Values Minimum Breaking ForceStrength
(Number of Twists in 8 in.)
in. mm Level 1 Level 2 Level 3 Level 4 Level 5
...
