ASTM F1202-22

Standard Specification for Washing Machines, Heat Sanitizing, Commercial, Pot, Pan, and Utensil Vertically Oscillating Arm Type

ABSTRACT
This specification covers the requirements for manually fed, motor-driven vertically oscillating arm type, automatically controlled, commercial pot, pan, and utensil washing machine (also referred to as "the washer"). The washer is of one rack capacity (Type I) and is available in either Style A (one door/front loading) or Style B (three door/pass-through with front load door). Heat shall be provided to the washer through steam (Style 1) by injection (Class A) or heat exchange coil (Class B) or through electric means (Style 2). The washer and its components shall be manufactured free of defects. Piping and fittings shall be manufactured from corrosion-resisting material or heat-resisting plastic material. Valves, spray assemblies, and overflow drain shall be manufactured from corrosion-resisting materials. Tank and housing shall be constructed of corrosion-resistant steel. Scrap trays (strainers), access door/s, and legs shall be constructed of corrosion-resistant steel or other corrosion-resisting material. The pump motor shall be mounted on the tank or rigid steel base, with the pump casing being of cast iron or corrosion-resisting material. When specified, a final rinse booster heater and/or detergent feeder may be provided. The washer shall be operated at ambient room temperature. Tests for performance standards and operational compliance as well as for noise level, leakage, energy, and productivity requirements shall be performed and shall conform to the requirements specified.
SCOPE
1.1 This specification covers manually fed, motor-driven vertically oscillating arm type, automatically controlled, commercial pot, pan, and utensil washing machines, hereinafter referred to as “the washer.”
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.3 The following precautionary statement pertains only to the test methods portion, Section 9 of this specification: This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

• Status: Published
• Publication Date: 31-Mar-2022
• ICS: 97.040.40 - Dishwashers
• Technical Committee: F26 - Food Service Equipment
• Drafting Committee: F26.01 - Cleaning and Sanitation Equipment

Relations

• Refers: ASTM A53/A53M-24 - Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless
• Effective Date: 01-Mar-2024
• Refers: ASTM A240/A240M-23a - Standard Specification for Chromium and Chromium-Nickel Stainless Steel Plate, Sheet, and Strip for Pressure Vessels and for General Applications
• Effective Date: 01-Nov-2023
• Refers: ASTM D3951-18(2023) - Standard Practice for Commercial Packaging
• Effective Date: 01-Oct-2023
• Refers: ASTM A436-84(2020) - Standard Specification for Austenitic Gray Iron Castings
• Effective Date: 01-May-2020
• Refers: ASTM B43-20 - Standard Specification for Seamless Red Brass Pipe, Standard Sizes
• Effective Date: 01-Apr-2020
• Refers: ASTM B127-19 - Standard Specification for Nickel-Copper Alloy Plate, Sheet, and Strip
• Effective Date: 01-Nov-2019
• Refers: ASTM F1021-18 - Standard Specification for Feeders, Detergent, Rinse Agent, and Sanitizing Agent for Commercial Dishwashing and Glasswashing Machines
• Effective Date: 01-Dec-2018
• Refers: ASTM D3951-18 - Standard Practice for Commercial Packaging
• Effective Date: 01-May-2018
• Refers: ASTM A240/A240M-17 - Standard Specification for Chromium and Chromium-Nickel Stainless Steel Plate, Sheet, and Strip for Pressure Vessels and for General Applications
• Effective Date: 01-Nov-2017
• Refers: ASTM F760-93(2017) - Standard Specification for Food Service Equipment Manuals
• Effective Date: 01-Nov-2017
• Refers: ASTM A240/A240M-16a - Standard Specification for Chromium and Chromium-Nickel Stainless Steel Plate, Sheet, and Strip for Pressure Vessels and for General Applications
• Effective Date: 01-Dec-2016
• Refers: ASTM A240/A240M-16 - Standard Specification for Chromium and Chromium-Nickel Stainless Steel Plate, Sheet, and Strip for Pressure Vessels and for General Applications
• Effective Date: 01-May-2016
• Refers: ASTM D3951-15 - Standard Practice for Commercial Packaging
• Effective Date: 01-Dec-2015
• Refers: ASTM A240/A240M-15b - Standard Specification for Chromium and Chromium-Nickel Stainless Steel Plate, Sheet, and Strip for Pressure Vessels and for General Applications
• Effective Date: 01-Nov-2015
• Refers: ASTM B43-15 - Standard Specification for Seamless Red Brass Pipe, Standard Sizes
• Effective Date: 01-Oct-2015

Overview

ASTM F1202-22 is the standard specification established by ASTM for washing machines used in commercial food service settings, specifically motor-driven, vertically oscillating arm type machines for cleaning pots, pans, and utensils. This standard outlines design, construction, performance, and safety requirements for these machines, ensuring effective cleaning and heat sanitization in demanding commercial environments. Compliance with ASTM F1202-22 helps guarantee high levels of hygiene, durability, and operational reliability for food service operators.

Key Topics

• Applicability: Covers manually fed, automatically controlled, motor-driven pot, pan, and utensil washing machines, with vertically oscillating arms for thorough cleaning and sanitization.
• Machine Types and Styles:
  • Type I: One rack capacity.
  • Style A: Single door, front-loading.
  • Style B: Three-door, pass-through with front inspection door.
• Heating Methods:
  • Style 1: Steam heated (by injection or heat exchange coil).
  • Style 2: Electric heat.
• Construction and Material:
  • Corrosion-resistant steel required for tanks, housings, and key components.
  • Use of approved materials for piping, valves, spray assemblies, and strainers to ensure durability and sanitation.
• Performance Criteria:
  • Must meet energy, productivity, noise level (max 80 dB), and leakage requirements.
  • Machines must wash, rinse, and heat sanitize per food safety standards.
• Safety and Marking:
  • Electrical controls must conform to recognized safety standards.
  • Data plate and instruction plate required for identification and safe operation.
  • Equipment must be safe for operators and maintain hygienic conditions.

Applications

ASTM F1202-22 is vital for businesses where large-scale washing of cookware and utensils is frequent and diligent sanitation is required. Key application areas include:

• Commercial Kitchens: Restaurants, cafeterias, and catering facilities relying on robust washing machines to ensure rapid, sanitary turnaround of pots, pans, and utensils.
• Institutional Food Service: Schools, hospitals, and correctional facilities where volume and health standards necessitate reliable and compliant warewashing equipment.
• Industrial Food Processing: Manufacturers and processors needing standardized, high-capacity washing solutions for equipment and utensils.
• Food Service Equipment Procurement: Helps buyers and specifiers ensure that their chosen commercial pot and pan washers meet recognized international requirements for safety, energy efficiency, and hygiene.

Related Standards

The following standards are either cited by or aligned with ASTM F1202-22 to ensure comprehensive compliance and compatibility across food service equipment:

• NSF/ANSI 3: Commercial Warewashing Equipment - sanitation and performance criteria.
• NSF/ANSI 5: Commercial Hot Water Generating Equipment.
• NSF/ANSI 29: Chemical feeders for dishwashing and glasswashing.
• UL 921: Commercial Dishwasher safety requirements.
• ANSI S1.4 / S1.13: Sound level measurement.
• NEMA ICS, NEMA MG-1: Motor and control equipment standards.
• NFPA/ANSI 70: National Electrical Code.
• ASTM F1696: Energy performance test method for commercial dishwashing machines.
• ASTM F760: Food Service Equipment Manuals.
• ASTM A240/A276/A554: Stainless steel material specifications.

Practical Value

Adhering to ASTM F1202-22 ensures the selection, installation, and safe operation of reliable pot, pan, and utensil washers in commercial kitchens. By specifying compliant machines, operators and facility managers can maintain food safety, extend equipment life with corrosion-resistant construction, and reduce operational disruptions due to standardized performance and safety features. This standard helps support regulatory compliance, operational efficiency, and public health in food service environments.

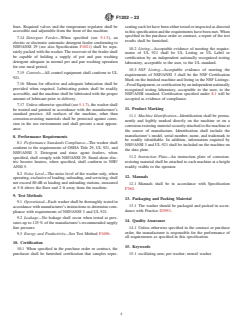

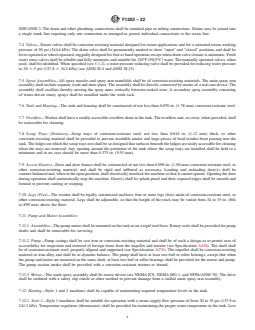

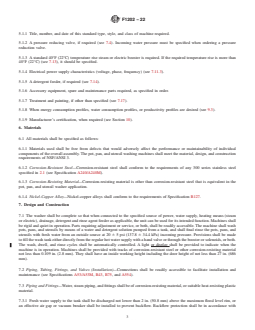

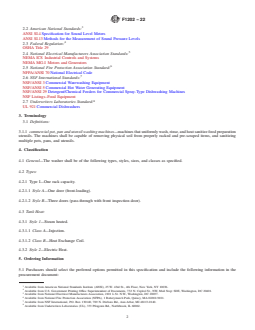

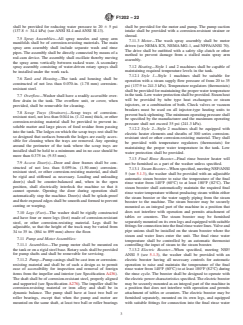

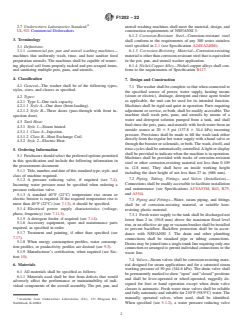

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

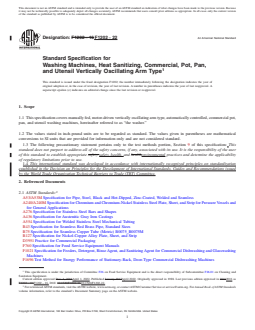

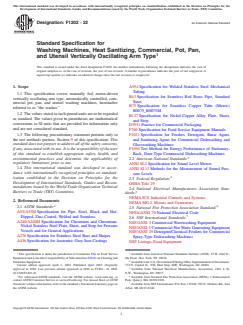

Designation:F1202 −22 An American National Standard
