ASTM C1190-18(2022)

Standard Practice for Location of Test Specimens from Magnesia-Carbon and Impregnated Burned Basic Brick

SIGNIFICANCE AND USE
4.1 This practice defines a procedure that ensures reasonably consistent preparation of specimens for product testing and evaluation.
4.2 This practice can be used in the laboratories of producers, users, and general interest parties for research and development or quality control work. It is particularly useful for interlaboratory comparisons on products, for repetitive evaluations or comparisons of products or product quality, and in specifying a uniform preparation practice for specimens for acceptance testing.
4.3 If pitch-impregnated samples are prepared by wet cutting or drilling, care should be taken in drying them. If the samples are heated to facilitate drying, the temperature to which they are heated should not be so high that it causes drainage of pitch from the samples.
4.4 Porosities of metal-containing brick must be measured using kerosene or mineral spirits, because using water will result in an artificially low result.
SCOPE
1.1 This practice covers a procedure for preparing test specimens from magnesia-carbon and impregnated burned basic brick. This practice generally concerns preparation of test specimens from brick greater than 13 in. (33 cm) in length. These brick are mainly manufactured for use in electric arc furnaces and basic oxygen furnaces.
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

• Status: Published
• Publication Date: 31-Aug-2022
• ICS: 91.100.25 - Terracotta building products
• Technical Committee: C08 - Refractories
• Drafting Committee: C08.92 - The Joseph E. Kopanda Subcommittee for Editorial, Terminology and Classification

Relations

• Refers: ASTM C133-24 - Standard Test Methods for Cold Crushing Strength and Modulus of Rupture of Refractories
• Effective Date: 01-Apr-2024
• Refers: ASTM C831-18(2023) - Standard Test Methods for Residual Carbon, Apparent Residual Carbon, and Apparent Carbon Yield in Coked Carbon-Containing Brick and Shapes
• Effective Date: 01-Nov-2023
• Refers: ASTM C1099-07(2019) - Standard Test Method for Modulus of Rupture of Carbon-Containing Refractory Materials at Elevated Temperatures
• Effective Date: 01-Apr-2019
• Refers: ASTM C831-18 - Standard Test Methods for Residual Carbon, Apparent Residual Carbon, and Apparent Carbon Yield in Coked Carbon-Containing Brick and Shapes
• Effective Date: 01-Feb-2018
• Refers: ASTM C831-98(2017)e1 - Standard Test Methods for Residual Carbon, Apparent Residual Carbon, and Apparent Carbon Yield in Coked Carbon-Containing Brick and Shapes 
• Effective Date: 01-Nov-2017
• Refers: ASTM C831-98(2017) - Standard Test Methods for Residual Carbon, Apparent Residual Carbon, and Apparent Carbon Yield in Coked Carbon-Containing Brick and Shapes 
• Effective Date: 01-Nov-2017
• Refers: ASTM C607-88(2016) - Standard Practice for Coking Large Shapes of Carbon-Bearing Materials
• Effective Date: 01-Jun-2016
• Refers: ASTM C831-98(2013) - Standard Test Methods for Residual Carbon, Apparent Residual Carbon, and Apparent Carbon Yield in Coked Carbon-Containing Brick and Shapes 
• Effective Date: 01-Apr-2013
• Refers: ASTM C1099-07(2012) - Standard Test Method for Modulus of Rupture of Carbon-Containing Refractory Materials at Elevated Temperatures
• Effective Date: 01-Oct-2012
• Refers: ASTM C830-00(2011) - Standard Test Methods for Apparent Porosity, Liquid Absorption, Apparent Specific Gravity, and Bulk Density of Refractory Shapes by Vacuum Pressure
• Effective Date: 01-Jul-2011
• Refers: ASTM C607-88(2010)e1 - Standard Practice for Coking Large Shapes of Carbon-Bearing Materials
• Effective Date: 01-Apr-2010
• Refers: ASTM C133-97(2008) - Standard Test Methods for Cold Crushing Strength and Modulus of Rupture of Refractories
• Effective Date: 01-Aug-2008
• Refers: ASTM C133-97(2008)e1 - Standard Test Methods for Cold Crushing Strength and Modulus of Rupture of Refractories
• Effective Date: 01-Aug-2008
• Refers: ASTM C831-98(2008) - Standard Test Methods for Residual Carbon, Apparent Residual Carbon, and Apparent Carbon Yield in Coked Carbon-Containing Brick and Shapes
• Effective Date: 01-Mar-2008
• Refers: ASTM C1099-07 - Standard Test Method for Modulus of Rupture of Carbon-Containing Refractory Materials at Elevated Temperatures
• Effective Date: 01-Mar-2007

Overview

ASTM C1190-18(2022): Standard Practice for Location of Test Specimens from Magnesia-Carbon and Impregnated Burned Basic Brick provides a standardized procedure for preparing and selecting test specimens from large refractory bricks. These bricks, primarily magnesia-carbon and pitch-impregnated burned basic types, are extensively used in high-temperature industrial settings such as electric arc furnaces and basic oxygen furnaces.

The standard ensures a consistent approach to specimen preparation, improving the reliability and comparability of test results for critical properties such as modulus of rupture, porosity, and carbon characteristics. This practice is valuable for laboratories involved in product development, quality assurance, and interlaboratory testing programs.

Key Topics

• Specimen Preparation: The practice details how to locate and extract samples from brick exceeding 13 inches (33 cm) in length. It specifies locations to ensure representative and unbiased samples for testing.
• Consistent Testing Procedures: By following the procedures outlined, laboratories can achieve reproducible and comparable results, critical for quality control and product evaluation.
• Handling of Pitch-Impregnated Samples: Special precautions are emphasized for drying pitch-impregnated bricks to prevent the loss of pitch during preparation.
• Porosity Testing: The standard highlights the importance of using kerosene or mineral spirits, rather than water, when measuring the porosities of metal-containing bricks.
• Modulus of Rupture: Procedures for breaking bricks and selecting samples for three-point modulus of rupture tests are described, ensuring physical samples are unaffected by prior breaks.

Applications

ASTM C1190-18(2022) is widely used in the following areas:

• Refractories Manufacturing: Ensures uniformity in testing brick products for use in high-temperature processing equipment, enhancing product reliability and performance.
• Quality Control Laboratories: Supports repeatable testing and verification of physical and mechanical properties, essential for ongoing production quality.
• Interlaboratory Studies: Facilitates direct comparisons of results across multiple labs by standardizing specimen selection and preparation.
• Research and Development: Provides a foundation for R&D teams to evaluate new materials or formulations in a consistent manner.

Industries that benefit from this standard include steelmaking, foundries, and any operations utilizing magnesia-carbon or impregnated burned basic bricks in extreme thermal environments.

Related Standards

For comprehensive product characterization and testing of refractory materials, ASTM C1190-18(2022) references several related ASTM standards:

• ASTM C133: Test Methods for Cold Crushing Strength and Modulus of Rupture of Refractories
• ASTM C607: Practice for Coking Large Shapes of Carbon-Bearing Materials
• ASTM C830: Test Methods for Apparent Porosity, Liquid Absorption, Apparent Specific Gravity, and Bulk Density of Refractory Shapes by Vacuum Pressure
• ASTM C831: Test Methods for Residual Carbon and Carbon Yield in Carbon-Containing Brick and Shapes
• ASTM C1099: Test Method for Modulus of Rupture of Carbon-Containing Refractory Materials at Elevated Temperatures

Utilizing these standards alongside ASTM C1190-18(2022) elevates the accuracy and repeatability of refractory brick testing, supporting high standards in product development, quality assurance, and performance evaluation.

---

Keywords: magnesia-carbon brick, impregnated burned brick, refractory test specimens, brick testing standard, modulus of rupture, porosity testing, ASTM C1190-18(2022), quality control, electric arc furnace brick, basic oxygen furnace brick, refractory brick standard

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

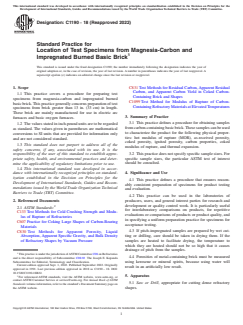

Designation: C1190 − 18 (Reapproved 2022)
Standard Practice for
Location of Test Specimens from Magnesia-Carbon and
Impregnated Burned Basic Brick
This standard is issued under the fixed designation C1190; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope C831Test Methods for Residual Carbon,Apparent Residual
Carbon, and Apparent Carbon Yield in Coked Carbon-
1.1 This practice covers a procedure for preparing test
Containing Brick and Shapes
specimens from magnesia-carbon and impregnated burned
C1099Test Method for Modulus of Rupture of Carbon-
basicbrick.Thispracticegenerallyconcernspreparationoftest
ContainingRefractoryMaterialsatElevatedTemperatures
specimens from brick greater than 13 in. (33 cm) in length.
These brick are mainly manufactured for use in electric arc
3. Summary of Practice
furnaces and basic oxygen furnaces.
3.1 This practice defines a procedure for obtaining samples
1.2 The values stated in inch-pound units are to be regarded
fromcarbon-containingbasicbrick.Thesesamplescanbeused
as standard. The values given in parentheses are mathematical
to characterize the product for the following physical proper-
conversions to SI units that are provided for information only
ties: hot modulus of rupture (MOR), as-received porosity,
and are not considered standard.
coked porosity, ignited porosity, carbon properties, coked
1.3 This standard does not purport to address all of the
modulus of rupture, and thermal expansion.
safety concerns, if any, associated with its use. It is the
3.2 This practice does not specify specific sample sizes. For
responsibility of the user of this standard to establish appro-
specific sample sizes, the particular ASTM test of interest
priate safety, health, and environmental practices and deter-
should be consulted.
mine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accor-
4. Significance and Use
dance with internationally recognized principles on standard-
ization established in the Decision on Principles for the
4.1 This practice defines a procedure that ensures reason-
Development of International Standards, Guides and Recom-
ably consistent preparation of specimens for product testing
mendations issued by the World Trade Organization Technical
and evaluation.
Barriers to Trade (TBT) Committee.
4.2 This practice can be used in the laboratories of
producers, users, and general interest parties for research and
2. Referenced Documents
development or quality control work. It is particularly useful
2.1 ASTM Standards:
for interlaboratory comparisons on products, for repetitive
C133Test Methods for Cold Crushing Strength and Modu-
evaluations or comparisons of products or product quality, and
lus of Rupture of Refractories
in specifying a uniform preparation practice for specimens for
C607Practice for Coking Large Shapes of Carbon-Bearing
acceptance testing.
Materials
4.3 If pitch-impregnated samples are prepared by wet cut-
C830 Test Methods for Apparent Porosity, Liquid
Absorption, Apparent Specific Gravity, and Bulk Density ting or drilling, care should be taken in drying them. If the
samples are heated to facilitate drying, the temperature to
of Refractory Shapes by Vacuum Pressure
which they are heated should not be so high that it causes
drainage of pitch from the samples.
ThispracticeisunderthejurisdictionofASTMCommitteeC08onRefractories
4.4 Porosities of metal-containing brick must be measured
and is the direct responsibility of Subcommittee C08.92 The Joseph E. Kopanda
Subcommittee for Editorial, Terminology and Classification.
using kerosene or mineral spirits, because using water will
Current edition approved Sept. 1, 2022. Published September 2022. Originally
result in an artificially low result.
approved in 1991. Last previous edition approved in 2018 a
...
