ASTM F1000-21

Standard Practice for Piping System Drawing Symbols

SIGNIFICANCE AND USE

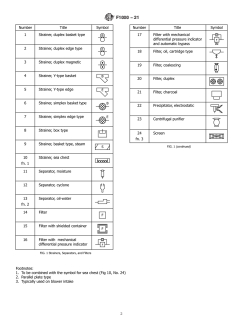

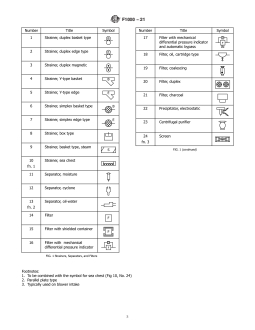

2.1 Fig. 1 provides symbols for strainers, separators, and filters.

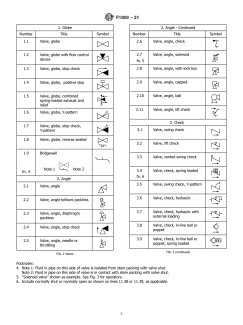

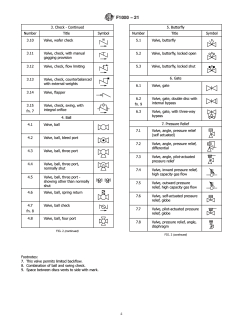

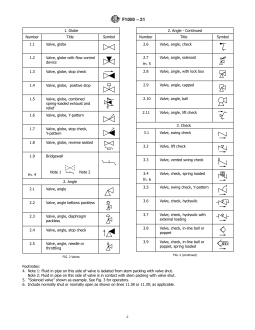

2.2 Fig. 2 provides symbols for valves. Valves are categorized under the following headings: globe, angle, check, ball, butterfly, gate, relief, manifolds, control, noise control, and miscellaneous.
2.3 Fig. 3 provides symbols for valve appendages such as actuators and locking devices. Symbols shown on Fig. 3 are to be combined with the appropriate symbol from Fig. 2.
2.4 Fig. 4 provides symbols for piping system–related instrumentation. These symbols are categorized under the following headings: pressure, temperature, flow, level, switches, alarms, and miscellaneous.
2.5 Fig. 5 provides symbols for fans, pumps, and turbines.
2.6 Fig. 6 provides symbols for plumbing components.
2.7 Fig. 7 provides symbols for pipe and pipe fittings.
2.8 Fig. 8 provides symbols for noise control components and designations. These symbols are generally used for submarine design.
2.9 Fig. 9 provides symbols for transitions. These symbols identify transitions such as pipe material or pipe schedule changes.
2.10 Fig. 10 provides symbols for miscellaneous components. These are components which could not be classified under the above categories. Examples include heat exchangers, flasks, and sea chests.
2.11 Fig. 11 provides symbols for grooved piping.
SCOPE
1.1 This practice establishes piping system drawing symbols for marine use.
1.2 This set of standard symbols is intended for use on piping system diagrammatics and arrangements for ships.
1.3 Where graphical symbols are required for an item or equipment not covered by this practice, the form and character of the symbol will be left to the discretion of the activity concerned, provided that the symbol used does not duplicate any of those contained herein, and is clearly understandable, subject to one interpretation only, or explained by a suitable note on the drawing when necessary.
1.4 Since symbolic representation does not usually involve exact or scale layout or the actual run or leads of piping, the same symbol may be used for all projections of the system (plan, elevations, and sections).
1.5 Symbols for fluid power, heating, ventilation, and air conditioning (HVAC), and Navy damage control diagrams are not included in this practice.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

• Status: Published
• Publication Date: 31-May-2021
• ICS: 01.080.20 - Graphical symbols for use on specific equipment
• ICS: 47.020.80 - Accommodation spaces
• Technical Committee: F25 - Ships and Marine Technology
• Drafting Committee: F25.11 - Machinery and Piping Systems

Overview

ASTM F1000-21, Standard Practice for Piping System Drawing Symbols, establishes a comprehensive set of standardized graphical symbols specifically for marine piping systems. Developed by ASTM International, this standard supports clarity and uniformity in shipbuilding and marine engineering drawings. By providing an internationally recognized set of symbols for components such as valves, instruments, fittings, and machinery, ASTM F1000-21 facilitates easier communication, documentation, and interpretation of piping diagrams across the marine industry.

Key Topics

1. Symbol Categories:

• Strainers, Separators, Filters: Symbols for various devices used to remove solids or separate fluids.
• Valves: Detailed symbols for globe, angle, check, ball, butterfly, gate, relief, manifold, control, noise control, and miscellaneous marine valves.
• Valve Appendages: Standardized representations for actuators, locking devices, and other attachments, to be combined with valve symbols.
• Instrumentation: Graphical symbols for pressure, temperature, flow, level measurement, switches, alarms, and other instrumentation related to piping systems.
• Mechanical Components: Symbols for fans, pumps, turbines, and related equipment used in marine piping.
• Plumbing Components: Representations of plumbing features found within shipboard piping networks.
• Pipe and Fittings: Standardized depiction of pipe sections, connectors, and fittings.
• Noise Control: Symbols often used in submarine or noise-critical marine applications for related components and designations.
• Transitions: Graphics detailing changes in pipe material, size, or schedule.
• Miscellaneous Components: Catch-all symbols including heat exchangers, flasks, sea chests, and other non-categorized elements.
• Grooved Piping: Standard icons representing grooved piping systems.

2. Application Guidelines:

• Symbols are intended for all projections (plan, elevation, section) and do not require exact scale layouts.
• For items not covered, supplemental clearly-understood symbols may be used, provided they do not duplicate existing ones and are explained as necessary.

3. Exclusions:

• Fluid power, HVAC, and Navy damage control diagrams are not included.

Applications

ASTM F1000-21 is predominantly used for:

• Marine Shipbuilding and Engineering: Simplifies design by ensuring that engineers, designers, and contractors use a shared language when creating piping system diagrammatics and arrangements for ships.
• Project Documentation: Enhances the accuracy and clarity of technical drawings, contributing to efficient project execution, maintenance, and regulatory review.
• Standardized Training: Offers a reliable reference for training marine engineers, draftsmen, and quality inspectors in interpreting piping diagrams.
• International Projects: Its international status ensures uniformity in multinational projects, aiding global compliance and communication.

By adopting ASTM F1000-21, organizations can reduce misinterpretation, improve drawing efficiency, and maintain consistency in technical documentation for marine piping systems.

Related Standards

• ISO 10628: Diagrams for the chemical and petrochemical industry - Specification of diagrams.
• ASME Y32.11: Graphic symbols for process flow diagrams and instrumentation.
• ISO 4067: Graphical symbols for diagrams in the field of fluid power.
• ASTM F1071: Standard Practice for Design and Construction of Shipboard Piping Systems.
• ASTM F1511: Standard Terminology Relating to Piping and Piping Systems.

Keywords: piping system symbols, marine piping diagrams, ASTM F1000, standard piping symbols, marine engineering symbols, ship piping drawings, piping instrumentation symbols.

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Designation: F1000 − 21 An American National Standard
Standard Practice for
Piping System Drawing Symbols
This standard is issued under the fixed designation F1000; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope 2. Significance and Use
2.1 Fig. 1 provides symbols for strainers, separators, and
1.1 This practice establishes piping system drawing sym-
filters.
bols for marine use.
2.2 Fig. 2 provides symbols for valves. Valves are catego-
1.2 This set of standard symbols is intended for use on
rized under the following headings: globe, angle, check, ball,
piping system diagrammatics and arrangements for ships.
butterfly, gate, relief, manifolds, control, noise control, and
miscellaneous.
1.3 Where graphical symbols are required for an item or
equipment not covered by this practice, the form and character
2.3 Fig. 3 provides symbols for valve appendages such as
of the symbol will be left to the discretion of the activity actuators and locking devices. Symbols shown on Fig. 3 are to
concerned, provided that the symbol used does not duplicate
be combined with the appropriate symbol from Fig. 2.
any of those contained herein, and is clearly understandable,
2.4 Fig. 4 provides symbols for piping system–related
subject to one interpretation only, or explained by a suitable
instrumentation. These symbols are categorized under the
note on the drawing when necessary.
following headings: pressure, temperature, flow, level,
switches, alarms, and miscellaneous.
1.4 Since symbolic representation does not usually involve
exact or scale layout or the actual run or leads of piping, the 2.5 Fig. 5 provides symbols for fans, pumps, and turbines.
same symbol may be used for all projections of the system
2.6 Fig. 6 provides symbols for plumbing components.
(plan, elevations, and sections).
2.7 Fig. 7 provides symbols for pipe and pipe fittings.
1.5 Symbols for fluid power, heating, ventilation, and air
2.8 Fig. 8 provides symbols for noise control components
conditioning (HVAC), and Navy damage control diagrams are
and designations. These symbols are generally used for sub-
not included in this practice.
marine design.
2.9 Fig. 9 provides symbols for transitions. These symbols
1.6 This international standard was developed in accor-
identify transitions such as pipe material or pipe schedule
dance with internationally recognized principles on standard-
changes.
ization established in the Decision on Principles for the
Development of International Standards, Guides and Recom-
2.10 Fig. 10 provides symbols for miscellaneous compo-
mendations issued by the World Trade Organization Technical
nents. These are components which could not be classified
Barriers to Trade (TBT) Committee.
under the above categories. Examples include heat exchangers,
flasks, and sea chests.
2.11 Fig. 11 provides symbols for grooved piping.
This practice is under the jurisdiction of ASTM Committ
...

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
