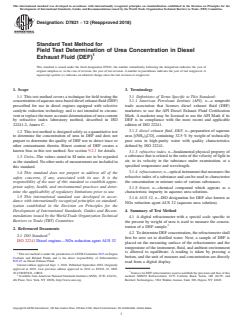

Designation: D7821 − 12 (Reapproved 2018)
Standard Test Method for
Field Test Determination of Urea Concentration in Diesel
Exhaust Fluid (DEF)
This standard is issued under the fixed designation D7821; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 3. Terminology
1.1 This test method covers a technique for field testing the 3.1 Definitions of Terms Specific to This Standard:
concentrationofaqueousurea-baseddieselexhaustfluid(DEF) 3.1.1 American Petroleum Institute (API), n—a nonprofit
prescribed for use in diesel engines equipped with selective trade association that licenses diesel exhaust fluid (DEF)
catalytic reduction technology and is not intended to circum- marketers to use the API Diesel Exhaust Fluid Certification
ventorreplacethemoreaccuratedeterminationofureacontent Mark. A marketer may be licensed to use the API Mark if its
by refractive index laboratory method, described in ISO DEF is in compliance with the most recent and applicable
22241-2, Annex C. edition of ISO 22241.
3.1.2 diesel exhaust fluid, DEF, n—preparation of aqueous
1.2 This test method is designed solely as a quantitative test
urea [(NH ) CO], containing 32.5 % by weight of technically
to determine the concentration of urea in DEF and does not
2 2
pure urea in high-purity water with quality characteristics
purport to determine the quality of DEF nor to detect trace or
defined by ISO 22241.
other contaminants therein. Biuret content of DEF creates a
known bias in this test method. See section 9.2.1 for details.
3.1.3 refractive index, n—fundamental physical property of
a substance that is related to the ratio of the velocity of light in
1.3 Units—The values stated in SI units are to be regarded
air, to its velocity in the substance under examination, at a
as the standard. No other units of measurement are included in
specified temperature and wavelength.
this standard.
3.1.4 refractometer, n—optical instrument that measures the
1.4 This standard does not purport to address all of the
refractive index of a substance and can be used to characterize
safety concerns, if any, associated with its use. It is the
the concentration or mixture ratio of various substances.
responsibility of the user of this standard to establish appro-
priate safety, health, and environmental practices and deter-
3.1.5 biuret, n—chemical compound which appears as a
mine the applicability of regulatory limitations prior to use.
characteristic impurity in aqueous urea solutions.
1.5 This international standard was developed in accor-
3.1.6 AUS 32, n—ISO designation for DEF also known as
dance with internationally recognized principles on standard-
NOx reduction agent AUS 32 (aqueous urea solution).
ization established in the Decision on Principles for the
Development of International Standards, Guides and Recom- 4. Summary of Test Method
mendations issued by the World Trade Organization Technical
4.1 A digital refractometer with a special scale specific to
Barriers to Trade (TBT) Committee.
the percent by weight of urea is used to measure the concen-
tration of a DEF sample.
2. Referenced Documents
4.2 TodetermineDEFconcentration,therefractometershall
2.1 ISO Standard:
first be zero set to distilled water. Next, a sample of DEF is
ISO 22241 Diesel engines—NOx reduction agent AUS 32
placed on the measuring surface of the refractometer and the
temperature of the instrument, fluid, and ambient environment
is allowed to equilibrate. A reading is taken by pressing a
This test method is under the jurisdiction ofASTM Committee D15 on Engine
button, and the unit of measure and concentration are directly
Coolants and Related Fluids and is the direct responsibility of Subcommittee
D15.25 on Diesel Exhaust Fluid.
read from a digital display.
Current edition approved Sept. 1, 2018. Published September 2018. Originally
approved in 2012. Last previous edition approved in 2012 as D7821–12. DOI:
10.1520/D7821–12R18. Sources for DEF refractometers used to establish the precision and bias of this
Available from American National Standards Institute (ANSI), 25 W. 43rd St., method: MISCO Refractometer, 6275 Cochran Road, Solon, OH 44139, and
4th Floor, New York, NY 10036, http://www.ansi.org. Reichert Technologies, 3362 Walden Avenue, Suite 100, Depew, NY 14043.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
D7821 − 12 (2018)

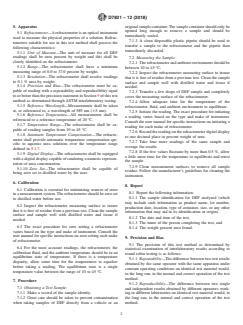

5. Apparatus originalsamplecontainer.Thesamplecontainershouldonlybe
opened long enough to remove a sample and should be
5.1 Refractometer—Arefractometer is an optical instrument
immediately sealed.
used to measure the physical properties of a solution. Refrac-
7.1.3 A clean disposable plastic pipette should be used to
tometers suitable for use in this test method shall possess the
transfer a sample to the refractometer and the pipette then
following characteristics:
immediately discarded.
5.1.1 Unit of Measure—The unit of measure for all DEF
readings shall be urea percent by weight and this shall be
7.2 Measuring the Sample:
clearly identified on the refractometer.
7.2.1 The refractometer and ambient environment should be
5.1.2 Range—The refractometer shall have a minimum
between 10 to 45 °C.
measuring range of 0.0 to 37.0 percent by weight.
7.2.2 Inspect the refractometer measuring surface to insure
5.1.3 Resolution—The refractometer shall resolve readings
that it is free of residue from a previous test. Clean the sample
to 0.1 % urea by weight.
surface and sample well with distilled water and tissue if
5.1.4 Precision and Bias—The refractometer must be ca-
needed.
pable of reading with a
...
