prEN ISO 27913

Carbon dioxide capture, transportation and geological storage - Pipeline transportation systems (ISO 27913:2024)

This document specifies the requirements and recommendations for the transportation of CO2 streams from the capture site to the storage facility where it is primarily stored in a geological formation or used for other purposes (e.g. for enhanced oil recovery or CO2 use).
This document applies to the transportation of CO2 streams by
—     rigid metallic pipelines,
—     pipeline systems,
—     onshore and offshore pipelines for the transportation of CO2 streams,
—     conversion of existing pipelines for the transportation of CO2 streams, and
—     transportation of CO2 streams in the gaseous and dense phases.
This document also includes aspects of CO2 stream quality assurance, as well as converging CO2 streams from different sources.
Health, safety and environment aspects specific to CO2 transport and monitoring are also considered in this document.
Transportation of CO2 via ship, rail or on road is not covered in this document.

Abscheidung, Transport und geologische Speicherung von Kohlenstoffdioxid - Rohrleitungstransportsysteme (ISO 27913:2024)

Captage, transport et stockage géologique du dioxyde de carbone - Systèmes de transport par conduites (ISO 27913:2024)

Le présent document spécifie des exigences et des recommandations sur les conduites, applicables au transport de flux de CO2 du site de captage jusqu’à l’installation de stockage où il est principalement stocké dans des formations géologiques ou utilisé à d’autres fins (par exemple, pour une récupération assistée des hydrocarbures ou une utilisation du CO2).
Le présent document s’applique au transport de flux de CO2 par:
—     conduites métalliques rigides;
—     réseaux de conduites;
—     conduites terrestres et en mer destinées au transport de flux de CO2;
—     conversion de conduites existantes pour le transport de flux de CO2; et
—     transport de flux de CO2 en phase gazeuse et en phase dense.
Le présent document inclut également des aspects d’assurance qualité du flux de CO2 et traite de la convergence de flux de CO2 provenant de différentes sources.
Les aspects liés à la santé, la sécurité et l’environnement spécifiques à la surveillance et au transport du CO2 sont également pris en compte dans le présent document.
Le transport du CO2 par voie maritime, ferroviaire ou routière n’est pas traité dans le présent document.

Zajetje, transport in geološko shranjevanje ogljikovega dioksida - Transportni cevovodni sistemi (ISO 27913:2024)

General Information

• Status: Not Published
• Publication Date: 24-Jun-2025
• ICS: 13.020.40 - Pollution, pollution control and conservation
• Technical Committee: TC 474 - CO2 capture, transportation, utilization, storage and carbon accounting
• Drafting Committee: WG 2 - Pipeline Transportation
• Current Stage: 4060 - Closure of enquiry - Enquiry
• Start Date: 08-May-2025
• Due Date: 17-Nov-2025
• Completion Date: 08-May-2025
• Ref Project: oSIST prEN ISO 27913:2025 - Carbon dioxide capture, transportation and geological storage - Pipeline transportation systems (ISO 27913:2024)

Standards Content (Sample)

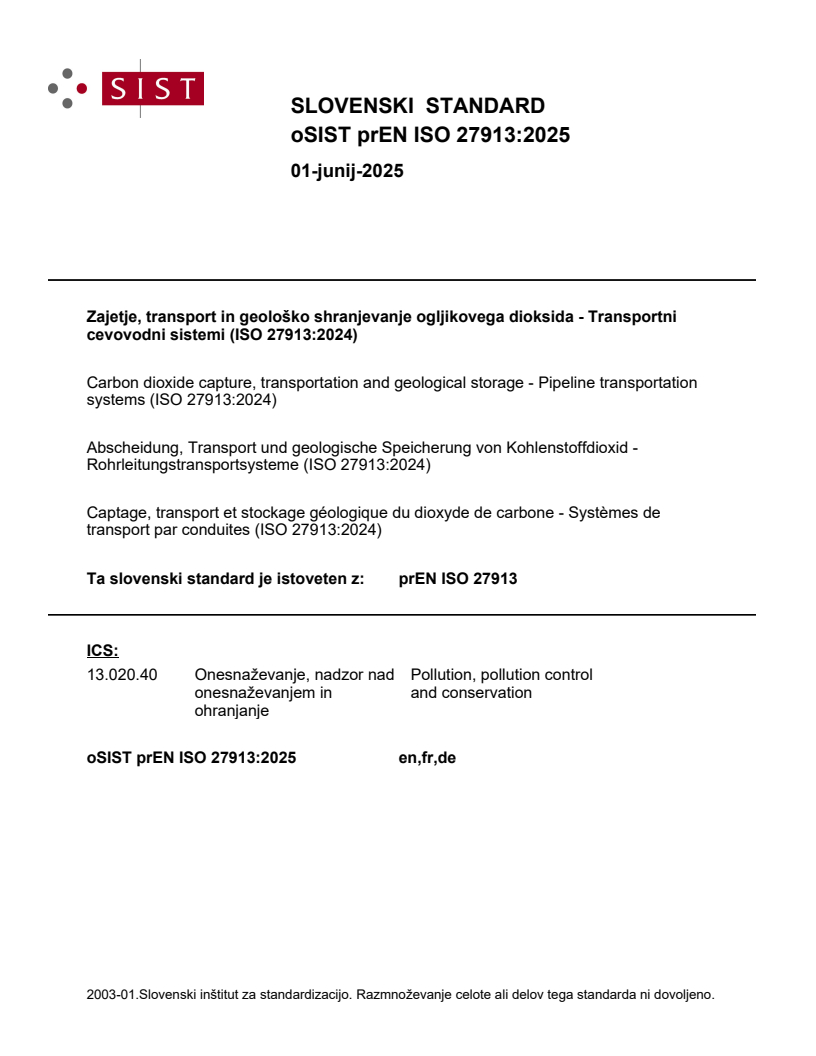

SLOVENSKI STANDARD
01-junij-2025
Zajetje, transport in geološko shranjevanje ogljikovega dioksida - Transportni
cevovodni sistemi (ISO 27913:2024)
Carbon dioxide capture, transportation and geological storage - Pipeline transportation
systems (ISO 27913:2024)
Abscheidung, Transport und geologische Speicherung von Kohlenstoffdioxid -
Rohrleitungstransportsysteme (ISO 27913:2024)
Captage, transport et stockage géologique du dioxyde de carbone - Systèmes de
transport par conduites (ISO 27913:2024)
Ta slovenski standard je istoveten z: prEN ISO 27913
ICS:
13.020.40 Onesnaževanje, nadzor nad Pollution, pollution control
onesnaževanjem in and conservation
ohranjanje
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

International
Standard
ISO 27913
Second edition
Carbon dioxide capture,
2024-10
transportation and
geological storage — Pipeline
transportation systems
Captage, transport et stockage géologique du dioxyde de
carbone — Systèmes de transport par conduites
Reference number
ISO 27913:2024(en) © ISO 2024
ISO 27913:2024(en)
© ISO 2024
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii
ISO 27913:2024(en)
Contents Page
Foreword .vi
Introduction .vii
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols and abbreviated terms. 5
4.1 Symbols .5
4.2 Abbreviated terms .5
5 Properties of CO , CO streams and the mixing of CO streams that influence pipeline
2 2 2
transportation . 6
5.1 General .6
5.2 Pure CO .6
5.2.1 Thermodynamics .6
5.2.2 Chemical reactions and corrosion .6
5.3 CO streams .7
5.3.1 Thermodynamics .7
5.3.2 Chemical reactions .7
6 Concept development and design criteria . 7
6.1 General .7
6.2 Safety philosophy .7
6.3 Reliability and availability of CO stream pipeline systems .8
6.4 Short-term storage reserve .8
6.5 Access to the pipeline system . .8
6.6 System design principles .9
6.6.1 General .9
6.6.2 CO stream specification .9
6.6.3 Pressure control and protection system .10
6.7 General principles to avoid internal pipeline corrosion .10
6.7.1 Particular aspects related to CO streams .10
6.7.2 Maximum water content .10
6.7.3 Avoidance of hydrate formation .10
6.7.4 Measurement of water content in the CO stream .11
6.8 Flow assurance .11
6.8.1 General .11
6.8.2 Operation under single-phase flow conditions during normal operation .11
6.8.3 Pipeline operation under multi-phase flow conditions during transient
operations . . 12
6.8.4 Planned and unscheduled pipeline pressure release . 12
6.8.5 Reduced flow capacity. 13
6.8.6 Available transport capacity . 13
6.8.7 Flow coating . 13
6.8.8 External thermal insulation .14
6.8.9 Leak detection .14
6.8.10 Fugitive emissions .14
6.8.11 Impurities .14
6.9 Pipeline layout.14
6.9.1 Vent stations .14
6.9.2 Block valve stations . 15
6.9.3 Pumping and compressor stations . 15
6.9.4 In-line inspection . 15
6.9.5 Onshore vent facility design . . 15
6.9.6 Offshore vent facilities .16

iii
ISO 27913:2024(en)
7 Materials and pipeline design .16
7.1 General .16
7.2 Internal corrosion .16
7.3 Pipeline system materials .17
7.3.1 Steel selection .17
7.3.2 External coating .17
7.3.3 Non-metallic materials .17
7.3.4 Lubricants .17
8 Wall thickness calculations .18
8.1 Calculation principles .18
8.1.1 Design loads .18
8.1.2 Minimum wall thickness .18
8.1.3 Minimum wall thickness against internal pressure .18
8.1.4 Minimum wall thickness aga
...
