Standards Content (Sample)
SLOVENSKI STANDARD
01-marec-2002
Kovinske prevleke - Preskus poroznosti - Ugotavljanje poroznosti zlatih ali
paladijskih prevlek na kovinskih podlagah z gelsko elektrografijo (ISO 15720:2001)
Metallic coatings - Porosity tests - Porosity in gold or palladium coatings on metal
substrates by gel-bulk electrography (ISO 15720:2001)
Metallische Überzüge - Porenprüfungen - Bestimmung des Porenanteils in Gold- oder
Palladiumüberzügen auf metallischen Grundwerkstoffen durch Gel-Elektrographie (ISO
15720:2001)
Revetements métalliques - Essais de porosité - Porosité des revetements d'or ou de
palladium sur métaux par électrographie par gélification (ISO 15720:2001)
Ta slovenski standard je istoveten z: EN ISO 15720:2001
ICS:
25.220.40 Kovinske prevleke Metallic coatings
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN ISO 15720
NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2001
ICS 25.220.40
English version
Metallic coatings - Porosity tests - Porosity in gold or palladium
coatings on metal substrates by gel-bulk electrography (ISO
15720:2001)
Revêtements métalliques - Essais de porosité - Porosité Metallische Überzüge - Porenprüfungen - Bestimmung des
des revêtements d'or ou de palladium sur métaux par Porenanteils in Gold- oder Palladiumüberzügen auf
électrographie par gélification (ISO 15720:2001) metallischen Grundwerkstoffen durch Gel-Elektrographie
(ISO 15720:2001)
This European Standard was approved by CEN on 15 April 2001.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,
Iceland, Ireland, Italy, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels
© 2001 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 15720:2001 E
worldwide for CEN national Members.

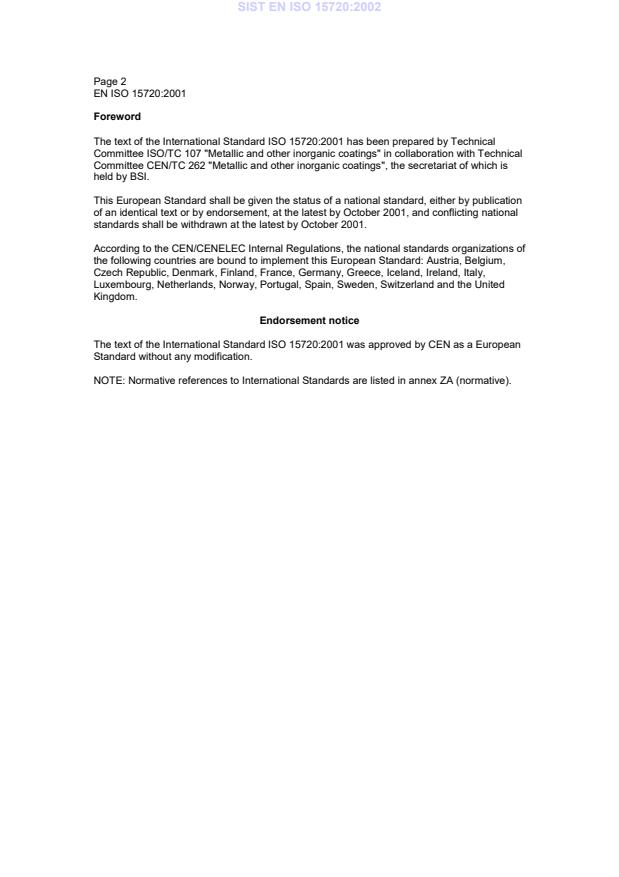

Page 2
Foreword
The text of the International Standard ISO 15720:2001 has been prepared by Technical
Committee ISO/TC 107 "Metallic and other inorganic coatings" in collaboration with Technical
Committee CEN/TC 262 "Metallic and other inorganic coatings", the secretariat of which is
held by BSI.
This European Standard shall be given the status of a national standard, either by publication
of an identical text or by endorsement, at the latest by October 2001, and conflicting national
standards shall be withdrawn at the latest by October 2001.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of
the following countries are bound to implement this European Standard: Austria, Belgium,
Czech Republic, Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Italy,
Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and the United
Kingdom.
Endorsement notice
The text of the International Standard ISO 15720:2001 was approved by CEN as a European
Standard without any modification.
NOTE: Normative references to International Standards are listed in annex ZA (normative).
Page 3
Annex ZA (normative)
Normative references to international publications
with their relevant European publications
This European Standard incorporates by dated or undated reference, provisions from other
publications. These normative references are cited at the appropriate places in the text and the
publications are listed hereafter. For dated references, subsequent amendments to or revisions
of any of these publications apply to this European Standard only when incorporated in it by
amendment or revision. For undated references the latest edition of the publication referred to
applies (including amendments).
NOTE Where an International Publication has been modified by common modifications,
indicated by (mod.), the relevant EN/HD applies.
Publication Year Title EN Year
ISO 10308 1995 Metallic coatings - Review of porosity EN ISO 10308 1997
tests
INTERNATIONAL ISO
STANDARD 15720
First edition
2001-04-15
Metallic coatings — Porosity tests —
Porosity in gold or palladium coatings on
metal substrates by gel-bulk electrography
Revêtements métalliques — Essais de porosité — Porosité des
revêtements d'or ou de palladium sur métaux par électrographie par
gélification
Reference number
ISO 15720:2001(E)
©
ISO 2001
ISO 15720:2001(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not
be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this
file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this
area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters
were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event
that a problem relating to it is found, please inform the Central Secretariat at the address given below.
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic
or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's member body
in the country of the requester.
ISO copyright office
Case postale 56 � CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.ch
Web www.iso.ch
Printed in Switzerland
ii © ISO 2001 – All rights reserved
ISO 15720:2001(E)
Contents Page
Foreword.iv
Introduction.v
1 Scope .1
2 Normative references .1
3 Terms and definitions .2
4 Apparatus .2
5 Reagent.4
6 Safety hazards.4
7 Procedure .5
8 Examination.7
9 Precision.7
10 Test report .8
Annex A (informative) Useful guidelines for examining samples .9
Annex B (informative) Significance and use .10
Bibliography.11
ISO 15720:2001(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, governmental and non-governmental, in
liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
Draft International Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this International Standard may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
International Standard ISO 15720 was prepared by Technical Committee ISO/TC 107, Metallic and other inorganic
coatings, Subcommittee SC 7, Corrosion tests.
Annexes A and B of this International Standard are for information only.
iv © ISO 2001 – All rights reserved
ISO 15720:2001(E)
Introduction
This test method is an electrographic technique, "gel-bulk electrography." The specimen is made the anode in a
cell containing a solid or semi-solid electrolyte of gelatin, conducting salts and an indicator. Application of current to
this cell results in the migration of base metal ions through continuous pores. Reaction of cations with an indicator
gives rise to coloured reaction products (not to be confused with corrosion products) at pore sites which may be
counted through the clear gel. Individual spots are counted with the aid of a lense or low-power stereomicroscope.
The test method is designed to show whether the porosity level is less than or greater than a given value which,
from experience, is considered by the user to be acceptable for the intended application.
These porosity tests involve corrosion reactions in which the products delineate defect sites in coatings. Since the
chemistry and properties of these products do not resemble those found in natural or service environments, these
tests can not be recommended for the prediction of the electrical performance of contacts unless correlation is first
established with service experience.
This test method is suitable for coatings containing 75 % or more of gold on substrates of silver, nickel, copper and
its alloys that are commonly used in electrical contacts. This test method is also suitable for coatings of 95 % or
more of palladium on nickel, copper and its alloys, and for coatings of palladium-nickel alloy (75 % or more of
palladium) on nickel, copper and its alloys.
This test method is capable of detecting porosity or other defects in gold or palladium coatings that could
participate in substrate corrosion reactions. In addition, it can be used on contacts having complex geometry such
as pin-socket contacts (although difficulty may be experienced in inspecting deep recesses).
This test is considered destructive because it reveals the presence of porosity by contaminating the surface with
corrosion products and by it undercuts the corrodible metal at pore sites and at unplated areas. In addition, the
surface is coated with a corrosive gel mixture which is difficult to remove completely. Any parts exposed to the gel
test shall not be placed in service.
INTERNATIONAL STANDARD ISO 15720:2001(E)
Metallic coatings — Porosity tests — Porosity in gold or palladium
coatings on metal substrates by gel-bulk electrography
WARNING — This International Standard does not purport to address all of the safety concerns, if any,
associated with its use. It is the responsibility of the user of this International Standard to establish
appropriate safety and health practices and determine the applicability of regulatory limitations prior to
use. For specific hazard statements, see clause 6.
1 Scope
This test method covers equipment and techniques for determining porosity in noble metal coatings, particularly
electrodeposits of gold, palladium and palladium-nickel alloy (70 % to 90 % palladium) and clad metals used on
electrical contacts.
The gel-bulk procedure is not as sensitive to small pores and is more complex than porosity tests involving
gaseous corrodants (see ISO 14647 and ISO 15721). It also involves more chemicals, preparation and auxiliary
equipment.
This test is intended to be used for quantitative descriptions of porosi
...
