EN ISO 16135:2006/A1:2019

Industrial valves - Ball valves of thermoplastics materials - Amendment 1 (ISO 16135:2006/Amd 1:2019)

Industriearmaturen - Kugelhähne aus Thermoplasten - Änderung 1 (ISO 16135:2006/Amd 1:2019)

Diese Internationale Norm legt die Anforderungen an die Konstruktion, Funktionsmerkmale und die Herstellung von Kugelhähnen aus Thermoplasten zum Absperren, Regeln und Verzweigen bzw. Mischen fest sowie deren Anschluss an das Rohrleitungssystem, Gehäusewerkstoffe und Druck/Temperatur-Zuordnungen zwischen – 40 °C und + 120 °C, für eine Lebensdauer von 25 Jahren. Sie legt auch die entsprechenden Prüfungen fest.
Diese Internationale Norm gilt für hand- und kraftbetätigte Armaturen, die in industrielle Rohrleitungssysteme eingebaut werden, unabhängig vom Einsatzbereich und dem zu befördernden Medium.
ANMERKUNG 1      Industrielle Rohrleitungssysteme umfassen auch Rohrleitungen für Wasserversorgung für allgemeine Zwecke, Entwässerung und Entsorgung.
ANMERKUNG 2      Rohrleitungssysteme für Wasser für den menschlichen Gebrauch können besonderen Anforderungen unterliegen.
Diese Internationale Norm erstreckt sich auf die folgenden DN-Bereiche:
DN 8, DN 10, DN 15, DN 20, DN 25, DN 32, DN 40, DN 50, DN 65, DN 80, DN 100, DN 125 und DN 150
sowie auf die folgenden PN- und Class-Bereiche:
PN 6, PN 10, PN 16, PN 25, Class 150 und Class 300.

Robinetterie industrielle - Robinets à tournant sphérique en matériaux thermoplastiques - Amendement 1 (ISO 16135:2006/Amd 1:2019)

Industrijski ventili - Krogelni ventili iz plastomernih materialov - Dopolnilo A1 (ISO 16135:2006/Amd 1:2019)

General Information

• Status: Published
• Publication Date: 13-Aug-2019
• Withdrawal Date: 28-Feb-2020
• ICS: 23.060.20 - Ball and plug valves
• Technical Committee: CEN/TC 69 - Industrial valves
• Drafting Committee: CEN/TC 69 - Industrial valves
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 14-Aug-2019
• Completion Date: 14-Aug-2019
• Directive: 2014/68/EU - Directive 2014/68/EU of the European Parliament and of the Council of 15 May 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of pressure equipment
• Mandate: M/071 - Mandate to CEN for standardization in the field of Pressure equipment
• Ref Project: SIST EN ISO 16135:2006/A1:2019 - Industrial valves - Ball valves of thermoplastics materials - Amendment 1 (ISO 16135:2006/Amd 1:2019)

Relations

• Amends: EN ISO 16135:2006 - Industrial valves - Ball valves of thermoplastics materials (ISO 16135:2006)
• Effective Date: 14-Jun-2017

Overview

EN ISO 16135:2006/A1:2019 is Amendment 1 to ISO 16135:2006 and covers industrial ball valves made from thermoplastic materials. Adopted by CEN in 2019, the amendment updates normative references, definitions and test requirements to align the existing standard with newer ISO/EN documents and with EU regulatory requirements (notably Directive 2014/68/EU - Pressure Equipment Directive). It is intended as a harmonized European version (EN) of the ISO amendment and provides a voluntary route to demonstrate conformity with relevant PED essential requirements (see Annex ZA).

Key topics and technical requirements

• Materials: Clarifies accepted body/bonnet materials - ABS, PE, PP, PVC‑C, PVC‑U and PVDF - and points to the relevant material standards (ISO 15493, ISO 15494, ISO 10931).
• Design strength and PMA: Updates the definition of maximum allowable pressure (PMA) and requires design strength verification via body pressure tests and long‑term behaviour testing in accordance with ISO 9393‑2.
• Testing requirements:
  • Raw material and long‑term internal pressure tests to follow ISO 1167‑1.
  • Seat and packing/shell leaktightness verified on finished valves per ISO 9393‑2; mandatory seat leaktightness in all directions for multi‑way valves.
  • Flow resistance and pressure‑test procedures aligned with updated EN/ISO test standards.
• Dimensions and interfaces:
  • Face‑to‑face dimensions for flanged valves to be selected from EN 558; other end connections are manufacturer’s responsibility.
  • Actuator attachment and fastener standards updated (e.g., ISO 5211:2017; ISO 898‑1:2013).
• Operational requirements:
  • Manual operating forces referenced to EN 12570; functional integrity after applied forces is required.
• Marking, traceability and documentation: Annex ZA links normative clauses to PED essential requirements; marking and operating instructions are addressed.
• Normative reference updates: Many older EN/ISO references were replaced, moved to bibliography, or updated to newer editions.

Applications and who uses this standard

• Valve manufacturers designing or certifying thermoplastic ball valves.
• Design and piping engineers specifying valves for chemical processing, water treatment, corrosion‑sensitive systems and industrial fluid transport.
• Testing laboratories and certification bodies performing pressure, long‑term and leak tests.
• Procurement, compliance and QA teams ensuring products meet EN/ISO requirements and PED conformity for sale in the EU/EFTA market.

Related standards and keywords

Related standards referenced/updated by the amendment include ISO 1167‑1, ISO 9393‑2, EN 558, ISO 5211, and the Pressure Equipment Directive (2014/68/EU).
Keywords: industrial valves, ball valves, thermoplastics, EN ISO 16135:2006/A1:2019, ISO 16135 amendment, PVC‑U, PVDF, PE, PP, ABS, pressure testing, long‑term behaviour, PED compliance.

Standards Content (Sample)

SLOVENSKI STANDARD
01-oktober-2019
Industrijski ventili - Krogelni ventili iz plastomernih materialov - Dopolnilo A1 (ISO
16135:2006/Amd 1:2019)
Industrial valves - Ball valves of thermoplastics materials - Amendment 1 (ISO
16135:2006/Amd 1:2019)
Industriearmaturen - Kugelhähne aus Thermoplasten - Änderung 1 (ISO
16135:2006/Amd 1:2019)
Robinetterie industrielle - Robinets à tournant sphérique en matériaux thermoplastiques -
Amendement 1 (ISO 16135:2006/Amd 1:2019)
Ta slovenski standard je istoveten z: EN ISO 16135:2006/A1:2019
ICS:
23.060.20 Zapirni ventili (kroglasti in Ball and plug valves
pipe)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN ISO 16135:2006/A1
EUROPEAN STANDARD
NORME EUROPÉENNE
August 2019
EUROPÄISCHE NORM
ICS 23.060.20
English Version
Industrial valves - Ball valves of thermoplastics materials -
Amendment 1 (ISO 16135:2006/Amd 1:2019)
Robinetterie industrielle - Robinets à tournant Industriearmaturen - Kugelhähne aus Thermoplasten -
sphérique en matériaux thermoplastiques - Änderung 1 (ISO 16135:2006/Amd 1:2019)
Amendement 1 (ISO 16135:2006/Amd 1:2019)
This amendment A1 modifies the European Standard EN ISO 16135:2006; it was approved by CEN on 21 June 2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for inclusion of
this amendment into the relevant national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 16135:2006/A1:2019 E
worldwide for CEN national Members.

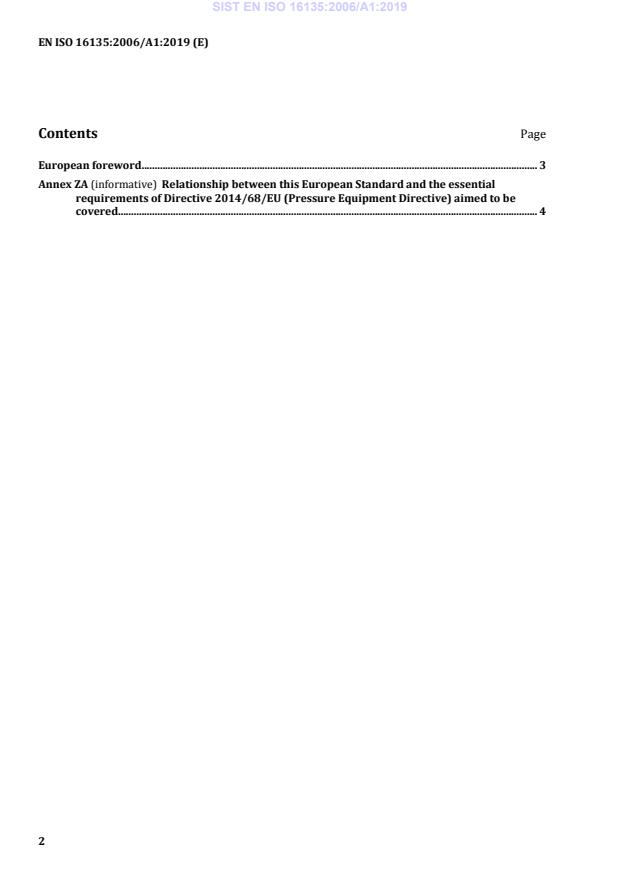

Contents Page
European foreword . 3
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of Directive 2014/68/EU (Pressure Equipment Directive) aimed to be
covered. 4

European foreword
This document (EN ISO 16135:2006/A1:2019) has been prepared by Technical Committee ISO/TC 138
"Plastics pipes, fittings and valves for the transport of fluids" in collaboration with Technical Committee
CEN/TC 69 “Industrial valves” the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by February 2020, and conflicting national standards
shall be withdrawn at the latest by February 2020.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For the relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this
document.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the
United Kingdom.
Endorsement notice
The text of ISO 16135:2006/Amd 1:2019 has been approved by CEN as EN ISO 16135:2006/A1:2019
without any modification.
Annex ZA
(informative)
Relationship between this European Standard and the essential
requirements of Directive 2014/68/EU (Pressure Equipment Directive)
aimed to be covered
This European Standard has been prepared under a Commission’s standardization request M/071 to
provide one voluntary means of conforming to essential requirements of Directive 2014/68/EU of the
European Parliament and of the Council of 15 May 2014 on the harmonisation of the laws of the
Member States relating to the making available on the market of pressure equipment.
Once this standard is cited in the Official Journal of the European Union under that Directive,
compliance with the normative clauses of this standard given in Table ZA.1 confers, within the limits of
the scope of this standard, a presumption of conformity with the corresponding essential requirements
of that Directive and associated EFTA regulations.
Table ZA.1 — Correspondence between this European Standard and Annex I of
Directive 2014/68/EU
Essential Requirements of Clause(s)/subclause(s) of Remarks/Notes
Directive 2014/68/EU this EN
2.2.1 4.3 Design loading factors
2.2.2 4.6.1; 5.2.1; 5.2.2; 5.2.3; 5.2.5 Design for adequate strength
2.7 4.8.1 Wear
3.1.5 4.7.1 Traceability
3.2.2 4.6.1; 4.6.3 Strength proof test
3.4 4.8.3 Operating instructions
4.1, 4.2 a) 4.2; 4.3 Materials for pressurised parts
WARNING 1 — Presumption of conformity stays valid only as long as a reference to this European
Standard is maintained in the list published in the Official Journal of the European Union. Users of this
standard should consult frequently the latest list published in the Official Journal of the European
Union.
WARNING 2 — Other Union legislation may be applicable to the product(s) falling within the scope of
this standard.
