EN 840-3:2020

Mobile waste and recycling containers - Part 3: Containers with 4 wheels with a capacity up to 1 300 l with dome lid(s), for trunnion and/or comb lifting devices - Dimensions and design

This European Standard specifies dimensions and design requirements of mobile waste and recycling containers with 4 wheels, with dome lid(s) and capacity up to 1 300 l to be used by trunnion and/or comb lifting device.

Fahrbare Abfall- und Wertstoffbehälter - Teil 3: Behälter mit 4 Rädern und einem Nennvolumen bis 1 300 l mit Schiebedeckel(n), für Schüttungen mit Zapfenaufnahme und/oder für Kammschüttungen - Maße und Formgebung

Dieses Dokument legt Maße und Anforderungen an die Gestaltung von fahrbaren Abfall- und Wertstoffbehältern mit 4 Rädern, mit Schiebedeckel(n) und einem Nennvolumen bis 1 300 l für Schüttungen für Zapfenaufnahme und/oder Kammschüttungen fest.
Diese Behälter sind nur für die vorstehend ausdrücklich benannten Schüttungen zugelassen.

Conteneurs roulants à déchets et de recyclage - Partie 3 : Conteneurs à 4 roues de capacité inférieure ou égale à 1 300 l à couvercle(s) bombé(s), pour lève-conteneurs par tourillon et/ou à peigne - Dimensions et conception

Le présent document spécifie les dimensions et les exigences de conception pour les conteneurs roulants à déchets et de recyclage à 4 roues, à couvercle(s) bombé(s) dont la capacité est inférieure ou égale à 1 300 l, pour lève-conteneurs à tourillon et/ou à peigne.
Ces conteneurs sont uniquement approuvés pour les lève-conteneurs explicitement mentionnés ci dessus.

Premični zabojniki za odpadke in za recikliranje - 3. del: Zabojniki na štirih kolesih s prostornino do 1300 l in izbočenim(-i) pokrovom(-i) za iztresalnike z rokama in/ali glavnikom - Mere in oblika

General Information

• Status: Published
• Publication Date: 07-Apr-2020
• Withdrawal Date: 30-Oct-2020
• ICS: 13.030.40 - Installations and equipment for waste disposal and treatment
• Technical Committee: CEN/TC 183 - Waste management
• Drafting Committee: CEN/TC 183/WG 1 - Waste containers
• Current Stage: 9060 - Closure of 2 Year Review Enquiry - Review Enquiry
• Start Date: 02-Dec-2025
• Completion Date: 02-Dec-2025
• Ref Project: SIST EN 840-3:2020 - Mobile waste and recycling containers - Part 3: Containers with 4 wheels with a capacity up to 1 300 l with dome lid(s), for trunnion and/or comb lifting devices - Dimensions and design

Relations

• Replaces: EN 840-3:2012 - Mobile waste and recycling containers - Part 3: Containers with 4 wheels with a capacity up to 1 300 l with dome lid(s), for trunnion and/or comb lifting devices - Dimensions and design
• Effective Date: 15-Apr-2020

Overview

EN 840-3:2020 - “Mobile waste and recycling containers - Part 3” specifies the dimensions and design requirements for mobile waste and recycling containers with 4 wheels and dome lid(s), with nominal capacities up to 1 300 L, intended specifically for use with trunnion and/or comb lifting devices. The standard defines functional and safety dimensions, construction and marking rules, and interfaces to ensure interchangeability and safe operation with compatible lifting equipment.

Key topics and technical requirements

• Scope and approval: Applies only to containers approved for trunnion and/or comb lifting devices; containers must fit and lock automatically into approved lifting devices.
• Volumes and classes:
  • Class I (small): up to 1 000 L
  • Class II (large): 1 000 L to 1 300 L
  • Identified nominal volumes: 770 L, 1 000 L, 1 100 L, 1 300 L (±5% tolerance per EN 840-5).
• Functional dimensions: Manufacturers must respect the critical functional dimensions listed in the standard (Table 1). Drawings are illustrative; specified functional dimensions are compulsory to ensure compatibility.
• Lid and handle design:
  • Dome lids must fully cover openings, have at least two fixing points and at least one means of opening by the lifting device.
  • Front handles dimensions and positions are specified to protect operators (handles over trunnion: 10 mm less than Table 1 value N°33).
• Wheels and castors:
  • Four swivel castors required; each must withstand 1/3 of total permissible mass and meet EN 840-5.
  • Direction locks must be fitted to at least two castors; two braked wheels recommended, with optional centralized locking operable by a standard triangular key.
• Structural strength and nominal mass:
  • Containers must support 0.4 kg/dm³ × nominal volume.
  • Containers > 1 100 L must be able to carry 440 kg.
• Finish and safety:
  • Smooth surfaces, drain plug recommended, ribs and frontal receiver geometry controlled.
  • Safety and health requirements per EN 840-6.
• Testing and marking:
  • Performance tests per EN 840-5.
  • Durable markings required: standard number, nominal volume, manufacturer, total permissible mass, manufacturing date. Plastic parts marked per EN ISO 11469.

Applications and users

EN 840-3:2020 is essential for:

• Container manufacturers (design and production specifications)
• Waste management companies and municipalities (procurement and fleet compatibility)
• Lifting-device manufacturers and vehicle OEMs (interface and receiver design)
• Test labs and certification bodies (conformity testing)
• Asset managers specifying safe, interoperable waste containers for public and commercial collection systems

Related standards

• EN 840-5 - Performance requirements and test methods
• EN 840-6 - Safety and health requirements
• EN 1501-5 - Lifting devices for refuse collection vehicles (interface recommendations)
• EN ISO 11469 - Plastics identification and marking

Keywords: EN 840-3:2020, mobile waste containers, 4-wheel containers, dome lid, trunnion lifting device, comb lifting device, container dimensions, nominal volume, container design.

Standards Content (Sample)

SLOVENSKI STANDARD
01-junij-2020
Nadomešča:
SIST EN 840-3:2014
Premični zabojniki za odpadke in za recikliranje - 3. del: Zabojniki na štirih kolesih
s prostornino do 1300 l in izbočenim(-i) pokrovom(-i) za iztresalnike z rokama in/ali
glavnikom - Mere in oblika
Mobile waste and recycling containers - Part 3: Containers with 4 wheels with a capacity
up to 1 300 l with dome lid(s), for trunnion and/or comb lifting devices - Dimensions and
design
Fahrbare Abfall- und Wertstoffbehälter - Teil 3: Behälter mit 4 Rädern und einem
Nennvolumen bis 1 300 l mit Schiebedeckel(n), für Schüttungen mit Zapfenaufnahme
und/oder für Kammschüttungen - Maße und Formgebung
Conteneurs roulants à déchets et de recyclage - Partie 3 : Conteneurs à 4 roues de
capacité inférieure ou égale à 1 300 l à couvercle(s) bombé(s), pour lève-conteneurs par
tourillon et/ou à peigne - Dimensions et conception
Ta slovenski standard je istoveten z: EN 840-3:2020
ICS:
13.030.40 Naprave in oprema za Installations and equipment
odstranjevanje in obdelavo for waste disposal and
odpadkov treatment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 840-3
EUROPEAN STANDARD
NORME EUROPÉENNE
April 2020
EUROPÄISCHE NORM
ICS 13.030.40 Supersedes EN 840-3:2012
English Version
Mobile waste and recycling containers - Part 3: Containers
with 4 wheels with a capacity up to 1 300 l with dome
lid(s), for trunnion and/or comb lifting devices -
Dimensions and design
Conteneurs roulants à déchets et de recyclage - Partie 3 Fahrbare Abfall- und Wertstoffbehälter - Teil 3:
: Conteneurs à 4 roues de capacité inférieure ou égale à Behälter mit 4 Rädern und einem Nennvolumen bis 1
1 300 l à couvercle(s) bombé(s), pour lève-conteneurs 300 l mit Schiebedeckel(n), für Schüttungen mit
par tourillon et/ou à peigne - Dimensions et Zapfenaufnahme und/oder für Kammschüttungen -
conception Maße und Formgebung
This European Standard was approved by CEN on 7 October 2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2020 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 840-3:2020 E
worldwide for CEN national Members.

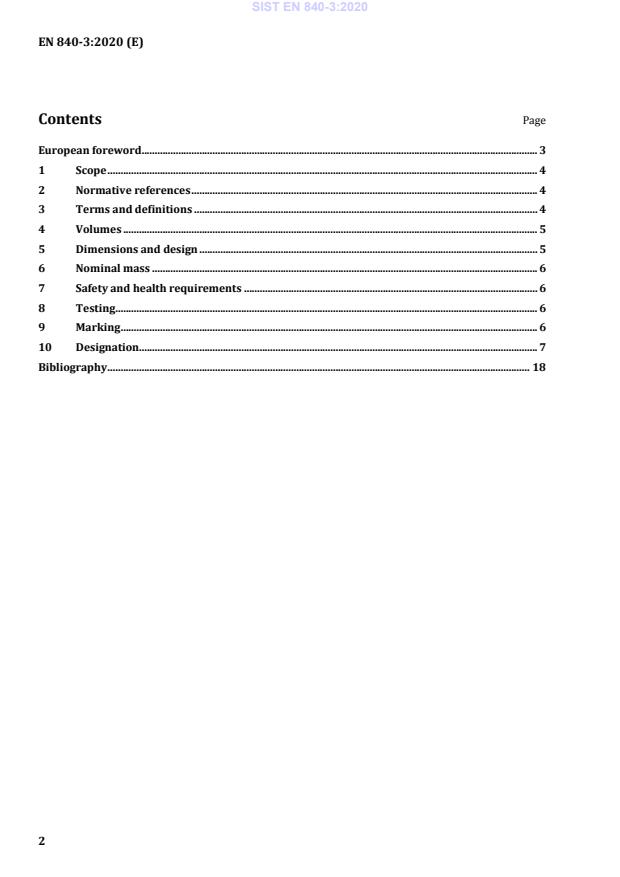

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Volumes . 5
5 Dimensions and design . 5
6 Nominal mass . 6
7 Safety and health requirements . 6
8 Testing . 6
9 Marking . 6
10 Designation. 7
Bibliography . 18
European foreword
This document (EN 840-3:2020) has been prepared by Technical Committee CEN/TC 183 “Waste
management”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by October 2020, and conflicting national standards shall
be withdrawn at the latest by October 2020.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 840-3:2012.
The main changes compared to the previous edition are listed below:
a) Figure 2 "System dimensions design B (type plastic)" and Figure 3 "System dimensions design C
(type metal)" have been updated;
b) Figure 9 "Handles above trunnion (type metal)" and Figure 10 "Functional dimension for frontal
receivers" have been added;
c) former Annex A "Recommendations for manufacturers of lifting devices" has been deleted;
d) document has been editorially revised and adapted to the new design rules.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the
United Kingdom.
1 Scope
This document specifies dimensions and design requirements of mobile waste and recycling containers
with 4 wheels, with dome lid(s) and capacity up to 1 300 l to be used by trunnion and/or comb lifting
device.
These containers are only approved for the before explicitly mentioned lifting devices.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 840-5, Mobile waste and recycling containers — Part 5: Performance requirements and test methods
EN 840-6, Mobile waste and recycling containers — Part 6: Safety and health requirements
EN 1501-5:— , Refuse collection vehicles — General requirements and safety requirements — Part 5:
Lifting devices for refuse collection vehicles
EN ISO 11469, Plastics - Generic identification and marking of plastics products (ISO 11469)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
NOTE Terms for components of mobile waste containers and lifting devices in three languages are given in
Annex A of EN 840-1:2020.
3.1
mobile waste container
appropriately designed container fitted with wheels intended to temporarily store waste
3.2
lifting device
structure which picks-up, tilts and empties containers
3.3
comb lifting device
lifting device in which the picking-up system consists of a row of teeth and a locking system to retain
the container during emptying
Under preparation. Stage at the time of publication: FprEN 1501-5.
3.4
trunnion lifting device
lifting device in which the picking-up system consists of a pair of arms with automatic locking
mechanism to fit the trunnion to retain the container during emptying
3.5
volume
total space inside the container when the lid is closed
3.6
nominal volume
capacity
volume stated by the manufacturer
Note 1 to entry: See Table 1 without tolerances.
Note 2 to entry: The English term “capacity” and the French term “capacité” are translated in the German
version by the term “Nennvolumen”.
3.7
nominal mass
mass, which is calculated as given in Clause 6
3.8
total permissible mass
mass of the container plus the nominal load
3.9
functional and safety dimension
essential dimensions which ensure the functionality and interchangeability of the container with the
compatible lifting device and which are necessary for the operator's safety and health
4 Volumes
This part of EN 840 identifies the two classes of containers:
— Class I - small size (nominal volume up to 1 000 l);
— Class II - large size (nominal volume between 1 000 l and 1 300 l).
Within the two above-mentioned classes of containers the following volumes are identified: 770 l,
1 000 l, 1 100 l and 1 300 l. Nominal volumes different from those referenced can be used by agreement
between user and manufacturer. The tolerance of the volumes shall be ± 5 % maximum measured
according to EN 840-5.
5 Dimensions and design
5.1 The design of the containers need not correspond to the drawings given in Figures 1 to 3. The
functional dimensions given in Table 1 shall be respected. Recommendations for manufacturers of
lifting devices are given in EN 1501-5:—.
5.2 The container shall be constructed so that when it is unloaded or loaded wit
...
