EN 840-4:2020

Mobile waste and recycling containers - Part 4: Containers with 4 wheels with a capacity up to 1 700 l with flat lid(s), for wide trunnion or BG- and/or wide comb lifting devices - Dimensions and design

This European Standard specifies dimensions and design requirements of mobile waste and recycling containers with 4 wheels, with flat lid(s) and capacity up to 1 700 l to be used by wide trunnion or BG-lifting device and/or wide comb lifting device.

Fahrbare Abfall- und Wertstoffbehälter - Teil 4: Behälter mit 4 Rädern und einem Nennvolumen bis 1 700 l mit Flachdeckel(n), für breite Schüttungen mit Zapfenaufnahme oder BG-Schüttungen und/oder für breite Kammschüttungen - Maße und Formgebung

Dieses Dokument legt Maße und Anforderungen an die Gestaltung von fahrbaren Abfall- und Wertstoffbehältern mit 4 Rädern, mit Flachdeckel(n) und einem Nennvolumen bis 1 700 l für breite Schüttungen für Zapfenaufnahme oder BG-Schüttungen und/oder breite Kammschüttungen fest.
Diese Behälter sind nur für die vorstehend ausdrücklich benannten Schüttungen zugelassen.

Conteneurs roulants à déchets et de recyclage - Partie 4 : Conteneurs à 4 roues de capacité inférieure ou égale à 1 700 l à couvercle(s) plat(s), pour lève-conteneurs par tourillon large ou basculeurs et/ou lève conteneurs à peigne large - Dimensions et conception

Le présent document spécifie les dimensions et les exigences de conception pour les conteneurs roulants à déchets et de recyclage à 4 roues, à couvercle(s) plat(s) dont la capacité est inférieure ou égale à 1 700 l, pour lève-conteneurs par tourillon large ou basculeurs et/ou lève-conteneurs à peigne large.
Ces conteneurs sont uniquement approuvés pour les lève-conteneurs explicitement mentionnés ci dessus.

Premični zabojniki za odpadke in za recikliranje - 4. del: Zabojniki na štirih kolesih s prostornino do 1700 l in ravnim(-i) pokrovom(-i) za široke iztresalnike z rokama ali BG in/ali glavnikom - Mere in oblika

General Information

• Status: Published
• Publication Date: 07-Apr-2020
• Withdrawal Date: 30-Oct-2020
• ICS: 13.030.40 - Installations and equipment for waste disposal and treatment
• Technical Committee: CEN/TC 183 - Waste management
• Drafting Committee: CEN/TC 183/WG 1 - Waste containers
• Current Stage: 9060 - Closure of 2 Year Review Enquiry - Review Enquiry
• Start Date: 02-Dec-2025
• Completion Date: 02-Dec-2025
• Ref Project: SIST EN 840-4:2020 - Mobile waste and recycling containers - Part 4: Containers with 4 wheels with a capacity up to 1 700 l with flat lid(s), for wide trunnion or BG- and/or wide comb lifting devices - Dimensions and design

Relations

• Replaces: EN 840-4:2012 - Mobile waste and recycling containers - Part 4: Containers with 4 wheels with a capacity up to 1 700 l with flat lid(s), for wide trunnion or BG- and/or wide comb lifting devices - Dimensions and design
• Effective Date: 28-Feb-2018

Overview

EN 840-4:2020 (CEN) is the European standard that specifies dimensions and design requirements for 4‑wheel mobile waste and recycling containers with flat lids and a nominal capacity up to 1 700 litres. It defines functional dimensions, construction rules and key safety/compatibility features so that containers are safely and interchangeably handled by wide trunnion, BG and/or wide comb lifting devices used in automated and semi‑automated refuse collection systems.

Key topics and technical requirements

• Scope and container classes: Two classes - Class I (≤ 1 050 l) and Class II (1 050–1 700 l). Typical nominal volumes listed: 750, 1 000, 1 300, 1 400, 1 500, 1 600, 1 700 l.
• Functional dimensions: Essential dimensions in Table 1 must be respected to ensure interchangeability with approved lifting devices; container shape may vary but functional dimensions are mandatory.
• Lifting device compatibility: Designed specifically for wide trunnion, BG and/or wide comb lifting devices; containers must lock automatically and fit approved compatible lifting equipment.
• Lid and receiver design: Flat lids must fully cover openings, open easily during emptying, have at least two fixing points and at least one opening means. Frontal and comb receivers must meet specified geometries.
• Castors and mobility: Four swivel castors are required; each castor must withstand one‑third of the total permissible mass and meet EN 840‑5 requirements. Direction locks and centralized braking are addressed, including a triangular key unlock option.
• Structural strength and nominal mass: Containers must carry a nominal load of 0.4 kg/dm³ × nominal volume; for volumes > 1 100 l the reference load is 440 kg.
• Surface, drainage and ergonomics: Smooth surfaces free of defects, recommended drain plug, handle geometry to avoid operator injury.
• Marking and designation: Durable marking must include EN 840‑4, nominal volume, manufacturer, total permissible mass (kg), and manufacturing year/month. Plastic parts marked per EN ISO 11469.
• Testing and safety: Performance and test methods are referenced to EN 840‑5; safety and health requirements to EN 840‑6.

Practical applications and users

Who uses EN 840‑4:2020:

• Container manufacturers designing 4‑wheel flat‑lid waste and recycling containers for European markets.
• Municipalities and waste management operators specifying compatible containers for fleet integration.
• Procurement teams ensuring purchased containers meet interoperability and safety requirements.
• Lifting device designers and refuse vehicle manufacturers checking receiver geometry and functional dimensions.
• Testing laboratories and conformity assessors verifying performance and marking.

EN 840‑4 supports safe, interoperable container fleets, simplifies procurement, and reduces workplace risk during automated emptying operations.

Related standards

• EN 840‑1 (terms/annexes)
• EN 840‑5 (performance requirements and test methods)
• EN 840‑6 (safety and health requirements)
• EN ISO 11469 (plastic marking)
• EN 1501 series (refuse collection vehicle / lifting device interface guidance)

Keywords: EN 840-4:2020, mobile waste containers, 4‑wheel containers, flat lid, trunnion lifting device, BG lifting device, comb lifting device, dimensions and design, CEN standard.

Standards Content (Sample)

SLOVENSKI STANDARD
01-junij-2020
Nadomešča:
SIST EN 840-4:2014
Premični zabojniki za odpadke in za recikliranje - 4. del: Zabojniki na štirih kolesih
s prostornino do 1700 l in ravnim(-i) pokrovom(-i) za široke iztresalnike z rokama
ali BG in/ali glavnikom - Mere in oblika
Mobile waste and recycling containers - Part 4: Containers with 4 wheels with a capacity
up to 1 700 l with flat lid(s), for wide trunnion or BG- and/or wide comb lifting devices -
Dimensions and design
Fahrbare Abfall- und Wertstoffbehälter - Teil 4: Behälter mit 4 Rädern und einem
Nennvolumen bis 1 700 l mit Flachdeckel(n), für breite Schüttungen mit Zapfenaufnahme
oder BG-Schüttungen und/oder für breite Kammschüttungen - Maße und Formgebung
Conteneurs roulants à déchets et de recyclage - Partie 4 : Conteneurs à 4 roues de
capacité inférieure ou égale à 1 700 l à couvercle(s) plat(s), pour lève-conteneurs par
tourillon large ou basculeurs et/ou lève-conteneurs à peigne large - Dimensions et
conception
Ta slovenski standard je istoveten z: EN 840-4:2020
ICS:
13.030.40 Naprave in oprema za Installations and equipment
odstranjevanje in obdelavo for waste disposal and
odpadkov treatment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 840-4
EUROPEAN STANDARD
NORME EUROPÉENNE
April 2020
EUROPÄISCHE NORM
ICS 13.030.40 Supersedes EN 840-4:2012
English Version
Mobile waste and recycling containers - Part 4: Containers
with 4 wheels with a capacity up to 1 700 l with flat lid(s),
for wide trunnion or BG- and/or wide comb lifting devices
- Dimensions and design
Conteneurs roulants à déchets et de recyclage - Partie 4 Fahrbare Abfall- und Wertstoffbehälter - Teil 4:
: Conteneurs à 4 roues de capacité inférieure ou égale à Behälter mit 4 Rädern und einem Nennvolumen bis 1
1 700 l à couvercle(s) plat(s), pour lève-conteneurs par 700 l mit Flachdeckel(n), für breite Schüttungen mit
tourillon large ou basculeurs et/ou lève conteneurs à Zapfenaufnahme oder BG-Schüttungen und/oder für
peigne large - Dimensions et conception breite Kammschüttungen - Maße und Formgebung
This European Standard was approved by CEN on 7 October 2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2020 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 840-4:2020 E
worldwide for CEN national Members.

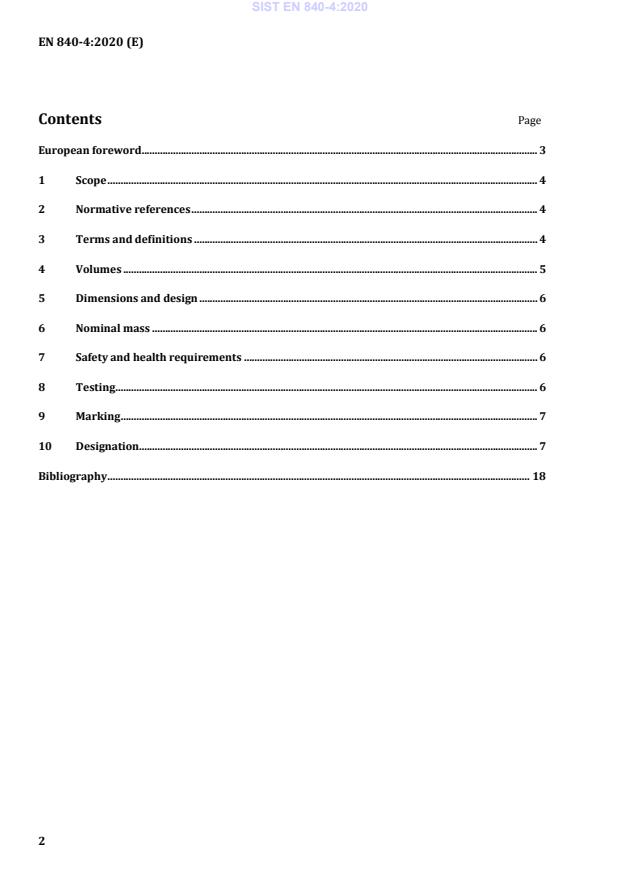

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Volumes . 5
5 Dimensions and design . 6
6 Nominal mass . 6
7 Safety and health requirements . 6
8 Testing . 6
9 Marking . 7
10 Designation. 7
Bibliography . 18
European foreword
This document (EN 840-4:2020) has been prepared by Technical Committee CEN/TC 183 “Waste
Management”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by October 2020, and conflicting national standards shall
be withdrawn at the latest by October 2020.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 840-4:2012.
The main changes compared to the previous edition are listed below:
a) Figure 1 "System dimensions" have been updated;
b) Figure 9 "Functional dimension for frontal receivers" have been added;
c) former Annex A "Recommendations for manufacturers of lifting devices" has been deleted;
d) the document has been editorially revised and adapted to the new design rules.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the
United Kingdom.
1 Scope
This document specifies dimensions and design requirements of mobile waste and recycling containers
with 4 wheels, with flat lid(s) and capacity up to 1 700 l to be used by wide trunnion or BG-lifting device
and/or wide comb lifting device.
These containers are only approved for the before explicitly mentioned lifting devices.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 840-5, Mobile waste and recycling containers — Part 5: Performance requirements and test methods
EN 840-6, Mobile waste and recycling containers — Part 6: Safety and health requirements
EN ISO 11469, Plastics - Generic identification and marking of plastics products (ISO 11469)
EN 1501-1:— , Refuse collection vehicles — General requirements and safety requirements — Part 1:
Rear loaded refuse collection vehicles
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
NOTE Terms for components of mobile waste and recycling containers and lifting devices in three languages
are given in Annex A of EN 840-1:2020.
3.1
mobile waste and recycling container
appropriately designed container fitted with wheels intended to temporarily store waste
3.2
lifting device
structure which picks-up, tilts and empties containers
3.3
comb lifting device
lifting device in which the picking-up system consists of a row of teeth and a locking system to retain
the container during emptying
Under preparation. Stage at the time of publication: FprEN 1501-1.
3.4
trunnion lifting device
lifting device in which the picking-up system consists of a pair of arms with automatic locking
mechanism to fit the trunnion to retain the container during emptying
3.5
BG lifting device
lifting device in which the picking-up system consists of a pair of arms with adaptors that fit the BG
receivers and locks them in order to retain the container during emptying
Note 1 to entry: See Figures 5 and 6.
3.6
volume
total space inside the container when the lid is closed
3.7
nominal volume
capacity
volume stated by the manufacturer
Note 1 to entry: See Table 1 without tolerances.
Note 2 to entry: The English term “capacity” and the French term “capacité” are translated in the German
version by the term “Nennvolumen”.
3.8
nominal mass
mass, which is calculated as given in Clause 6
3.9
total permissible mass
mass of the container plus the nominal load
3.10
functional and safety dimension
essential dimensions which ensure the functionality and interchangeability of the container with the
compatible lifting device and which are necessary for the operator's safety and health
4 Volumes
This part of EN 840 identifies the two classes of containers:
— Class I - small size (nominal volume up to 1 050 l);
— Class II - large size (nominal volume between 1 050 l and 1 700 l).
Within the two above-mentioned classes of containers the following volumes are identified: 750 l,
1 000 l, 1 300 l, 1 400 l, 1 500 l, 1 600 l and 1 700 l. Nominal volumes different from those referenced
can be used by agreement between user and manufacturer. The tolerance of the volumes shall be ± 5 %
maximum measured according to EN 840-5.
5 Dimensions and design
5.1 The design of the containers do not need to correspond to the drawings given in Figure 1. The
functional dimensions given in Table 1 shall be respected. Recommendations for manufacturers of
lifting devices are given in EN 1501-5.
5.2 The container shall be constructed so that when it is unloaded or loaded with a nominal load
(see Clause 6), it fits on an approved compatible lifting device. It shall be automatically locked safely
into the lifting device during the lifting operation. If the container is equipped with a comb receiver, it
shall correspond to Figure 2.
5.3 The lid(s) shall cover the opening of the container com
...
