Mobile waste and recycling containers - Part 1: Containers with 2 wheels with a capacity up to 400 l for comb lifting devices - Dimensions and design

This European Standard specifies dimensions and design requirements of mobile waste and recycling containers with 2 wheels, with capacity up to 400 l to be used by comb lifting devices.

Fahrbare Abfall- und Wertstoffbehälter - Teil 1: Behälter mit 2 Rädern und einem Nennvolumen bis 400 l für Kammschüttungen - Maße und Formgebung

Dieses Dokument legt Maße und Anforderungen an die Formgebung von fahrbaren Abfall  und Wertstoffbehältern mit 2 Rädern und einem Nennvolumen bis 400 l für Kammschüttungen fest.
Diese Behälter sind nur für die vorstehend ausdrücklich benannten Schüttungen zugelassen.

Conteneurs roulants à déchets et de recyclage - Partie 1 : Conteneurs à 2 roues de capacité inférieure ou égale à 400 l pour lève-conteneurs à peigne - Dimensions et conception

Le présent document spécifie les dimensions et les exigences de conception pour les conteneurs roulants à déchets et de recyclage à 2 roues dont la capacité est inférieure ou égale à 400 l, pour lève conteneurs à peigne.
Ces conteneurs sont uniquement approuvés pour les lève-conteneurs explicitement mentionnés ci dessus.

Premični zabojniki za odpadke in za recikliranje - 1. del: Zabojniki na dveh kolesih s prostornino do 400 l za iztresalnike z glavnikom - Mere in oblika

General Information

Status
Published
Publication Date
07-Apr-2020
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Due Date
08-Apr-2020
Completion Date
08-Apr-2020

RELATIONS

Buy Standard

Standard
EN 840-1:2020
English language
18 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN 840-1:2020
01-junij-2020
Nadomešča:
SIST EN 840-1:2013

Premični zabojniki za odpadke in za recikliranje - 1. del: Zabojniki na dveh kolesih

s prostornino do 400 l za iztresalnike z glavnikom - Mere in oblika

Mobile waste and recycling containers - Part 1: Containers with 2 wheels with a capacity

up to 400 l for comb lifting devices - Dimensions and design
Fahrbare Abfall- und Wertstoffbehälter - Teil 1: Behälter mit 2 Rädern und einem
Nennvolumen bis 400 l für Kammschüttungen - Maße und Formgebung

Conteneurs roulants à déchets et de recyclage - Partie 1 : Conteneurs à 2 roues de

capacité inférieure ou égale à 400 l pour lève-conteneurs à peigne - Dimensions et

conception
Ta slovenski standard je istoveten z: EN 840-1:2020
ICS:
13.030.40 Naprave in oprema za Installations and equipment
odstranjevanje in obdelavo for waste disposal and
odpadkov treatment
SIST EN 840-1:2020 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 840-1:2020
---------------------- Page: 2 ----------------------
SIST EN 840-1:2020
EN 840-1
EUROPEAN STANDARD
NORME EUROPÉENNE
April 2020
EUROPÄISCHE NORM
ICS 13.030.40 Supersedes EN 840-1:2012
English Version
Mobile waste and recycling containers - Part 1: Containers
with 2 wheels with a capacity up to 400 l for comb lifting
devices - Dimensions and design

Conteneurs roulants à déchets et de recyclage - Partie 1 Fahrbare Abfall- und Wertstoffbehälter - Teil 1:

: Conteneurs à 2 roues de capacité inférieure ou égale Behälter mit 2 Rädern und einem Nennvolumen bis

à 400 l pour lève-conteneurs à peigne - Dimensions et 400 l für Kammschüttungen - Maße und Formgebung

conception
This European Standard was approved by CEN on 7 October 2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this

European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references

concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN

member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by

translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management

Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2020 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 840-1:2020 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 840-1:2020
EN 840-1:2020 (E)

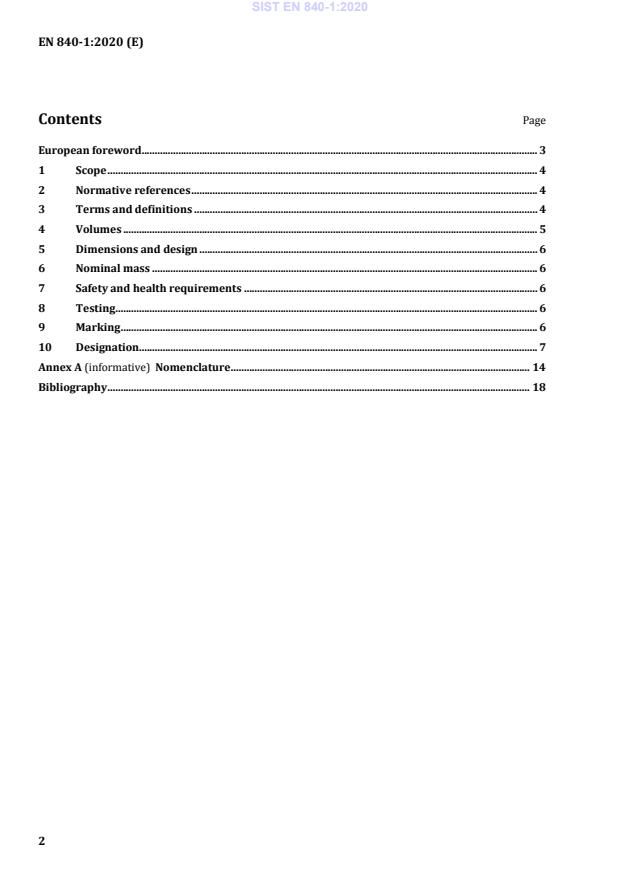

Contents Page

European foreword ....................................................................................................................................................... 3

1 Scope .................................................................................................................................................................... 4

2 Normative references .................................................................................................................................... 4

3 Terms and definitions ................................................................................................................................... 4

4 Volumes .............................................................................................................................................................. 5

5 Dimensions and design ................................................................................................................................. 6

6 Nominal mass ................................................................................................................................................... 6

7 Safety and health requirements ................................................................................................................ 6

8 Testing ................................................................................................................................................................. 6

9 Marking ............................................................................................................................................................... 6

10 Designation........................................................................................................................................................ 7

Annex A (informative) Nomenclature .................................................................................................................. 14

Bibliography ................................................................................................................................................................. 18

---------------------- Page: 4 ----------------------
SIST EN 840-1:2020
EN 840-1:2020 (E)
European foreword

This document (EN 840-1:2020) has been prepared by Technical Committee CEN/TC 183 “Waste

management”, the secretariat of which is held by DIN.

This European Standard shall be given the status of a national standard, either by publication of an

identical text or by endorsement, at the latest by October 2020, and conflicting national standards shall

be withdrawn at the latest by October 2020.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN shall not be held responsible for identifying any or all such patent rights.

This document supersedes EN 840-1:2012.
The main changes compared to the previous edition are listed below:

a) Table 2 "Examples of the most frequent assignments of classes and volumes" has been added:

b) Tables 3 and 4 have been revised and new recommendations were added;
c) Figure 3 "Functional dimension for frontal receivers" has been updated;

d) former Annex B "Recommendations for manufacturers of lifting devices" has been deleted;

e) document has been editorially revised and brought in line with the state of the art.

According to the CEN-CENELEC Internal Regulations, the national standards organisations of the

following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,

Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,

Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of

North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the

United Kingdom.
---------------------- Page: 5 ----------------------
SIST EN 840-1:2020
EN 840-1:2020 (E)
1 Scope

This document specifies dimensions and design requirements of mobile waste and recycling containers

with 2 wheels, with capacity up to 400 l to be used by comb lifting devices.

These containers are only approved for the before explicitly mentioned lifting devices.

2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

EN 840-5, Mobile waste and recycling containers — Part 5: Performance requirements and test methods

EN 840-6, Mobile waste and recycling containers — Part 6: Safety and health requirements

EN 1501-5:— , Refuse collection vehicles — General requirements and safety requirements — Part 5:

Lifting devices for refuse collection vehicles

EN ISO 11469, Plastics - Generic identification and marking of plastics products (ISO 11469)

3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp

NOTE Terms for components of mobile waste and recycling containers and lifting devices in three languages

are given in Annex A.
3.1
mobile waste and recycling container

appropriately designed container fitted with wheels intended to temporarily store waste

3.2
lifting device
structure which picks-up, tilts and empties containers
3.3
comb lifting device

lifting device in which the picking-up system consists of a row of teeth and a locking system to retain

the container during emptying
3.4
volume
total space inside the container when the lid is closed
Under preparation. Stage at the time of publication: FprEN 1501-5.
---------------------- Page: 6 ----------------------
SIST EN 840-1:2020
EN 840-1:2020 (E)
Note 1 to entry: See Table 1.
3.5
nominal volume
capacity
volume stated by the manufacturer
Note 1 to entry: See Table 1 without tolerances.

Note 2 to entry: The English term “capacity” and the French term “capacité” are translated in the German

version by the term “Nennvolumen”.
3.6
nominal load
load mass of 0,4 kg/dm x nominal volume
Note 1 to entry: See Clause 6.
3.7
total permissible mass
mass of the container plus the nominal load
3.8
functional and safety dimension

essential dimensions which ensure the functionality and interchangeability of the container with the

compatible lifting device and which are necessary for the operator's safety and health

4 Volumes
This standard identifies the two classes of containers:
— Class I - small size (nominal volume up to 200 l);
— Class II - large size (nominal volume between 200 l and 400 l).

Within the two above-mentioned classes of containers the volumes shown in Table 1 are identified.

Table 1 — Volumes
Volumes, in l
390± 20
+13 +18 +8 +6 +40 +25 +15 +15 +25 +40
60 80 120 140 180 190 210 240 260 340
−5 −5 −6 −12 −10 −10 −5 −5 −5 −25
For methods of measuring capacity, see EN 840-5.

The volumes shown in Table 1 correspond to mobile waste and recycling container's capacities at

present used in Europe. Since there are some overlapping capacities due to the tolerances, client and

manufacturer shall decide while ordering the capacity chosen.

Nominal volumes different from those referenced in Table 1 can be used by agreement between user

and manufacturer. The tolerance of the volumes shall be ± 10 % maximum measured according to

EN 840-5. Table 2 includes examples of the most frequent assignments of classes and volumes of the

containers.
---------------------- Page: 7 ----------------------
SIST EN 840-1:2020
EN 840-1:2020 (E)
Table 2 — Examples of the most frequent assignments of classes and volumes

Class I a Class I b Class I c Class I d Class II a Class II b Class II c Class II d

e.g. e.g. e.g. e.g. e.g. e.g. e.g. e.g.
60 l 120 l 140 l 180 l 210 l 240 l 340 l 390 l
80 l 110 l 190 l 190 l 260 l 370 l
90 l 180 l 360 l 400 l
5 Dimensions and design

5.1 The design of the containers need not correspond to the drawings given in Figure 1. The

functional dimensions given in Tables 3 and 4 shall be respected. For compatibility in lifting devices, the

container shall correspond to its dimensions within the selected class type (Table 3, Table 4).

5.2 The container shall be constructed so that when it is unloaded or loaded with a nominal load

(see Clause 6), it fits on an approved compatible lifting device. It shall be automatically locked safely

into the lifting device during the lifting operation. The frontal receiver shall correspond to one of the

options given in Fig
...
