EN 15819:2011

Polymer modified bituminous thick coatings for waterproofing - Reduction of the thickness of the layer when fully dried

This European Standard specifies a procedure for determining the reduction in the thickness of polymer modified bituminous thick coatings due to drying for waterproofing.

Kunststoffmodifizierte Bitumendickbeschichtungen zur Bauwerksabdichtung - Verringerung der Schichtdicke nach dem Austrocknen

Diese Europäische Norm legt ein Verfahren zur Bestimmung der durch die Trocknung verursachten Verringerung der Schichtdicke von kunststoffmodifizierten Bitumendickbeschichtungen zur Bauwerksabdichtung fest.

Revêtements bitumineux épais modifiés aux polymères pour imperméabilisation - Réduction de l'épaisseur de la couche lorsqu'elle est totalement sèche

La présente Norme européenne spécifie une méthode permettant de déterminer la réduction d’épaisseur liée au séchage des revêtements bitumineux épais modifiés aux polymères pour imperméabilisation.

Bitumenske debeloslojne prevleke za tesnjenje, modificirane s polimeri - Zmanjšanje debeline plasti po sušenju

Ta evropski standard opredeljuje postopek za določanje zmanjšanje debeline bitumenskih debeloslojnih prevlek za tesnjenje, modificiranih s polimeri, po sušenju, da se zagotovi hidroizolacija.

General Information

• Status: Published
• Publication Date: 22-Mar-2011
• Withdrawal Date: 29-Sep-2011
• ICS: 91.100.50 - Binders. Sealing materials
• Technical Committee: CEN/TC 361 - Project Committee - Thick synthetic modified bitumous coating masses - Definitions and requirements/Test methods
• Drafting Committee: CEN/TC 361 - Project Committee - Thick synthetic modified bitumous coating masses - Definitions and requirements/Test methods
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 13-Mar-2022
• Completion Date: 14-Apr-2025
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Directive: 89/106/EEC - Construction products
• Mandate: M/102 - Mandate to CEN/CENELEC concerning the execution of standardization work for harmonized standards on membranes
• Ref Project: SIST EN 15819:2011 - Polymer modified bituminous thick coatings - Reduction of the thickness of the layer when fully dried

Overview

EN 15819:2011 is a European Standard published by CEN that defines a laboratory test method to determine the reduction in thickness of polymer modified bituminous thick coatings used for waterproofing as they dry. The standard covers specimen preparation, required apparatus, controlled conditioning (temperature and humidity), measurement of wet and dry layer thickness, and reporting. EN 15819 is intended for manufacturers, testing laboratories and specifiers of polymer modified bituminous coatings for building waterproofing.

Key topics and technical requirements

• Scope and principle: Measurement of thickness loss due to drying - the reduction expressed as a percentage of the initial wet thickness.
• Apparatus: Stiff metal or glass plate (min. 25 × 25 cm), a 5 mm-high frame (15 × 20 cm inside), palette knife/trowel, mixing equipment, a penetrometer (or suitable instrument) for wet thickness, and vernier calipers or inductive instruments for dry thickness.
• Specimens: Prepared specimen size 200 × 150 × 5 mm, produced in the frame and struck off flush with the top.
• Preparation: Ready-to-use coatings mixed per manufacturer’s instructions; two-component products mixed with a low-speed mixer to avoid entrained air.
• Test conditions: Conditioning at (23 ± 2) °C and (50 ± 5) % relative humidity in accordance with ISO 554 for 28 days.
• Measurement procedure:
  • Wet thickness measured immediately after preparation at 15 points (five equally spaced points in each third), mean rounded to 0.1 mm.
  • After conditioning, dry thickness measured using 12 readings; discard highest and lowest and use mean of the remaining 10 to 0.1 mm.
  • Reduction (%) = (wet thickness − dry thickness) / wet thickness × 100.
• Reporting: Test report must identify the product, reference EN 15819, describe specimen preparation and test conditions, provide wet/dry thickness and % reduction, any deviations, and test dates.
• Precision: No precision data are provided in the standard.

Applications and users

• Manufacturers of polymer modified bituminous thick coatings - for product development and quality control.
• Independent testing laboratories - to produce repeatable, comparable thickness-reduction data.
• Specification writers, architects and contractors - to assess expected dimensional changes during curing for waterproofing systems.
• Certification and compliance bodies - as part of evaluation dossiers for product conformity.

Related standards

• EN 1426 - Bitumen and bituminous binders: determination of needle penetration (relevant for wet-layer measurement equipment).
• FprEN 15814:2011 - Definitions and requirements for polymer modified bituminous thick coatings (terminology and product requirements).
• ISO 554 - Standard atmospheres for conditioning and testing (climatic conditions).

Keywords: EN 15819, polymer modified bituminous thick coatings, waterproofing, thickness reduction, drying, test method, penetrometer, vernier calipers, CEN.

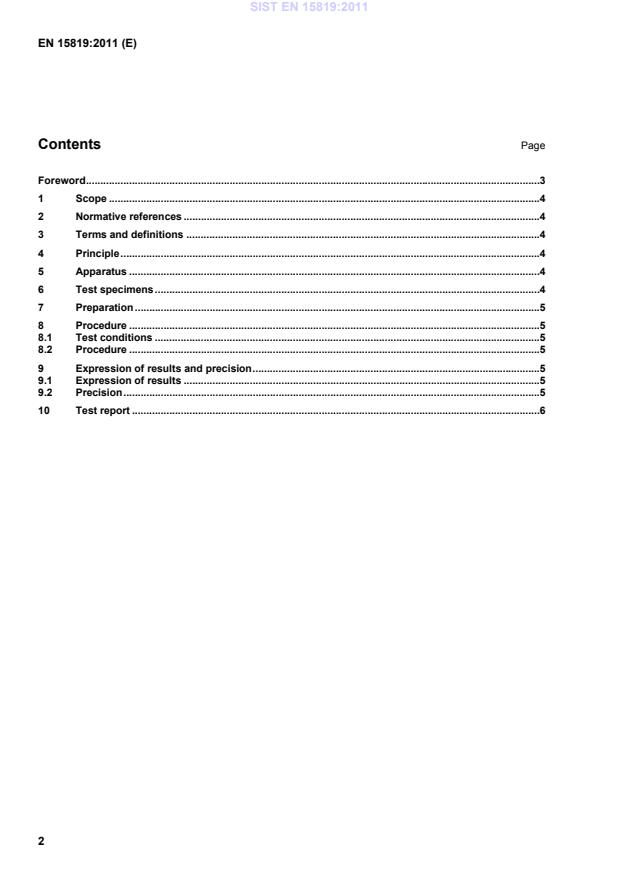

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Bitumenske debeloslojne prevleke za tesnjenje, modificirane s polimeri - Zmanjšanje debeline plasti po sušenjuKunststoffmodifizierte Bitumendickbeschichtungen - Verringerung der Schichtdicke nach dem AustrocknenPolymer modified bituminous thick coatings - Reduction of the thickness of the layer when fully dried91.100.50Veziva. Tesnilni materialiBinders. Sealing materialsICS:Ta slovenski standard je istoveten z:EN 15819:2011SIST EN 15819:2011en,fr,de01-junij-2011SIST EN 15819:2011SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 15819
March 2011 ICS 91.100.50 English Version
Polymer modified bituminous thick coatings for waterproofing - Reduction of the thickness of the layer when fully dried
Revêtements bitumineux épais modifiés aux polymères pour imperméabilisation - Réduction de l'épaisseur de la couche lorsqu'elle est totalement sèche
Kunststoffmodifizierte Bitumendickbeschichtungen zur Bauwerksabdichtung - Verringerung der Schichtdicke nach dem Austrocknen This European Standard was approved by CEN on 13 February 2011.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2011 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 15819:2011: ESIST EN 15819:2011
...
