EN 15812:2011

Polymer modified bituminous thick coatings for waterproofing - Determination of crack bridging ability

This European Standard specifies two methods (method A and method B) for determining the crack bridge properties of polymer modified bituminous thick coatings for waterproofing. The two test methods may be applied equally.

Kunststoffmodifizierte Bitumendickbeschichtungen zur Bauwerksabdichtung - Bestimmung des Rissüberbrückungsvermögens

Diese Europäische Norm legt zwei Verfahren (Verfahren A oder Verfahren B) zur Bestimmung des Rissüberbrückungsvermögens von kunststoffmodifizierten Bitumendickbeschichtungen zur Bauwerks-abdichtung fest. Diese beiden Prüfverfahren können gleichrangig nebeneinander angewendet werden.

Revêtements bitumineux épais modifiés aux polymères pour imperméabilisation - Détermination de l'aptitude à ponter les fissures

La présente Norme européenne spécifie deux méthodes (méthode A et méthode B) permettant de déterminer
les propriétés de pontage des fissures des revêtements bitumineux épais modifiés aux polymères pour
imperméabilisation. Les deux méthodes peuvent être appliquées indifféremment.

Bitumenske debeloslojne prevleke za tesnjenje, modificirane s polimeri - Določanje sposobnosti premoščanja razpok

Ta evropski standard določa dve metodi (metodo A ali metodo B) za določanje sposobnosti premoščanja razpok bitumenskih debeloslojnih prevlek za tesnjenje, modificiranih s polimeri. Preskusni metodi se lahko uporabljata enako. Ta evropski standard je bil pripravljen za uporabo pri podzemnih strukturah, lahko pa se uporablja tudi na drugih območjih, kjer je hidroizolacija pomembna, npr. na balkonih ali v vlažnih prostorih.

General Information

• Status: Published
• Publication Date: 22-Mar-2011
• Withdrawal Date: 29-Sep-2011
• ICS: 91.100.50 - Binders. Sealing materials
• Technical Committee: CEN/TC 361 - Project Committee - Thick synthetic modified bitumous coating masses - Definitions and requirements/Test methods
• Drafting Committee: CEN/TC 361 - Project Committee - Thick synthetic modified bitumous coating masses - Definitions and requirements/Test methods
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 13-Mar-2022
• Completion Date: 14-Apr-2025
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Directive: 89/106/EEC - Construction products
• Mandate: M/102 - Mandate to CEN/CENELEC concerning the execution of standardization work for harmonized standards on membranes
• Ref Project: SIST EN 15812:2011 - Polymer modified bituminous thick coatings - Determination of crack-bridging capacity

Overview

EN 15812:2011 is a European standard developed by CEN that specifies methods for determining the crack bridging ability of polymer modified bituminous thick coatings used for waterproofing. The standard defines two equivalent test methods-Method A (bending test) and Method B (tensile test)-which assess how effectively these polymer-modified bituminous coatings can bridge or seal cracks without damage when applied on concrete substrates. This evaluation is crucial for ensuring the long-term durability and water tightness of waterproofing coatings in construction and civil engineering applications.

Key Topics

• Scope and Purpose
  EN 15812:2011 focuses on the test methods for measuring crack bridging properties of polymer modified bituminous thick coatings. Crack bridging ability is the capacity of the coating to stretch across a crack under specified conditions without exhibiting damage or failure.

• Test Methods

  • Method A: Bending Test
    Involves applying the coating on a reinforced concrete slab (300mm × 200mm × 40mm), then inducing bending deformation with controlled crack width enlargement at a test temperature of 4°C ± 1°C. The crack width is typically extended to 2 mm and held for 24 hours, followed by visual inspection for cracks.
  • Method B: Tensile Test
    Utilizes a smaller concrete slab (150mm × 150mm × 40mm) and a tensile machine setup with tie rods to stretch the coated surface. The same crack width and temperature conditions are applied, with subsequent inspection for coating integrity.

• Sample Preparation and Conditioning
  Concrete substrates are fabricated and cured as per EN 1766:2000 requirements, with moisture and temperature conditioning before and after coating application. The coating thickness is controlled to a minimum of 3 mm dry layer, ensuring consistency for accurate test results.

• Test Conditions and Evaluation
  Testing is performed at low temperatures (around 4°C) to simulate challenging environmental conditions. The crack width is controlled precisely using measurement sensors to maintain consistency. Passing criteria require no visible cracks on at least two out of three specimens.

• Reporting
  Detailed test reports are required including references to EN 15812, product identification, test method used, coating thickness, temperature, test speed, and results.

Applications

EN 15812:2011 is essential for manufacturers, engineers, and quality control laboratories involved in:

• Waterproofing Systems
  Ensuring polymer modified bituminous thick coatings maintain crack bridging performance protects concrete structures against water ingress, preventing damage and prolonging structural life.

• Construction and Civil Engineering
  Applicable to waterproofing in tunnels, basements, bridges, and other infrastructure where crack movement is expected due to thermal changes or settlement.

• Product Development and Compliance Testing
  Verification of crack bridging properties is critical when designing new polymer-modified bituminous coatings for enhanced flexibility and durability.

• Quality Assurance
  Provides standardized testing to confirm manufacturer claims and compliance with European waterproofing material regulations.

Related Standards

• EN 1062-7:2004
  Specifies determination of crack bridging properties for paint and coating systems on masonry and concrete, often referenced within EN 15812 test setups.

• EN 1766:2000
  Outlines fabrication and curing procedures for concrete reference materials used in cracking and waterproofing tests.

• FprEN 15814:2011
  Defines terms, requirements, and definitions for polymer modified bituminous thick coatings applicable to waterproofing.

• ISO 554
  Specifies standard atmospheres for conditioning and testing to ensure repeatable environmental conditions during sample preparation and testing.

---

By adhering to EN 15812:2011, stakeholders ensure reliable assessment of crack bridging capabilities in polymer modified bituminous thick coatings, supporting building resilience and longevity through effective waterproofing solutions.

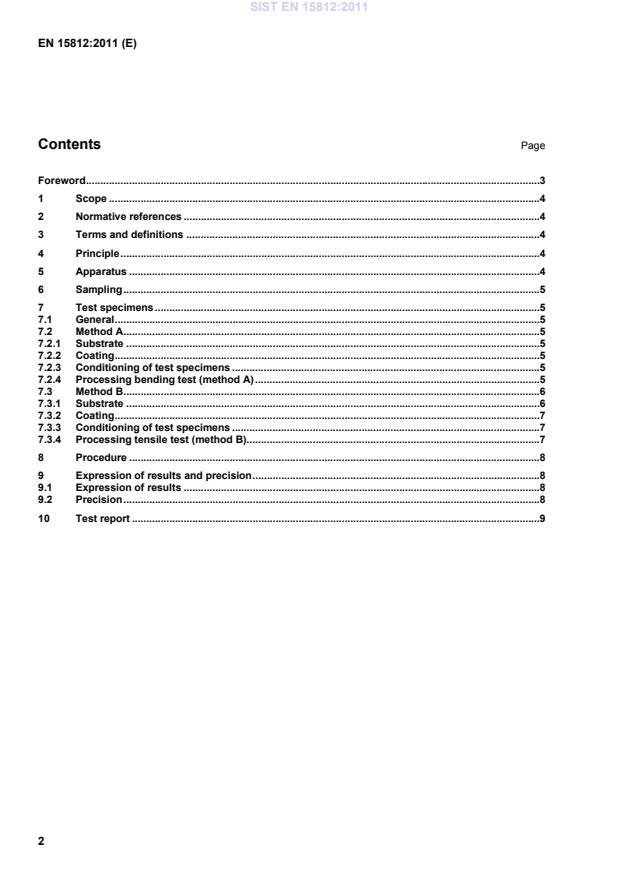

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Kunststoffmodifizierte Bitumendickbeschichtungen - Bestimmung der Fähigkeit zur Überbrückung von RissenPolymer modified bituminous thick coatings - Determination of crack-bridging capacity91.100.50Veziva. Tesnilni materialiBinders. Sealing materialsICS:Ta slovenski standard je istoveten z:EN 15812:2011SIST EN 15812:2011en,fr,de01-junij-2011SIST EN 15812:2011SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 15812
March 2011 ICS 91.100.50 English Version
Polymer modified bituminous thick coatings for waterproofing - Determination of crack bridging ability
Revêtements bitumineux épais modifiés aux polymères pour imperméabilisation - Détermination de l'aptitude à ponter les fissures
Kunststoffmodifizierte Bitumendickbeschichtungen zur Bauwerksabdichtung - Bestimmung des Rissüberbrückungsvermögens This European Standard was approved by CEN on 13 February 2011.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2011 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 15812:2011: ESIST EN 15812:2011
...
