EN 15813:2011

Polymer modified bituminous thick coatings for waterproofing - Determination of flexibility at low temperatures

This European Standard specifies a procedure for determining the flexibility of polymer modified bituminous thick coatings for waterproofing at low temperature.

Kunststoffmodifizierte Bitumendickbeschichtungen zur Bauwerksabdichtung - Bestimmung der Flexibilität bei niedrigen Temperaturen

Diese Europäische Norm legt ein Verfahren zur Bestimmung der Flexibilität von kunststoffmodifizierten Bitumendickbeschichtungen zur Bauwerksabdichtung bei niedrigen Temperaturen fest.

Revêtements bitumineux épais modifiés aux polymères pour imperméabilisation - Détermination de la souplesse à basse température

La présente Norme européenne spécifie une méthode permettant de déterminer la souplesse à basse température des revêtements bitumineux épais modifiés aux polymères pour imperméabilisation.

Bitumenske debeloslojne prevleke za tesnjenje, modificirane s polimeri - Določanje upogljivosti pri nizki temperaturi

Ta evropski standard določa postopek za določanje upogljivosti bitumenskih debeloslojnih prevlek za tesnjenje, modificiranih s polimeri, pri nizki temperaturi. Ta evropski standard je bil pripravljen za uporabo pri podzemnih strukturah, lahko pa se uporablja tudi na drugih območjih, kjer je hidroizolacija pomembna, npr. na balkonih ali v vlažnih prostorih.

General Information

• Status: Published
• Publication Date: 22-Mar-2011
• Withdrawal Date: 29-Sep-2011
• ICS: 91.100.50 - Binders. Sealing materials
• Technical Committee: CEN/TC 361 - Project Committee - Thick synthetic modified bitumous coating masses - Definitions and requirements/Test methods
• Drafting Committee: CEN/TC 361 - Project Committee - Thick synthetic modified bitumous coating masses - Definitions and requirements/Test methods
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 13-Mar-2022
• Completion Date: 14-Apr-2025
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Directive: 89/106/EEC - Construction products
• Mandate: M/102 - Mandate to CEN/CENELEC concerning the execution of standardization work for harmonized standards on membranes
• Ref Project: SIST EN 15813:2011 - Polymer modified bituminous thick coatings - Determination of flexibility at low temperatures

Overview

EN 15813:2011 specifies a laboratory procedure to determine the flexibility at low temperatures of polymer modified bituminous thick coatings (PMBC) used for waterproofing. The standard defines specimen preparation, conditioning, test apparatus and the bend test method to assess whether coatings crack when bent at low temperatures. EN 15813 supports quality control, product development and compliance verification for bituminous waterproofing materials.

Key topics and requirements

• Scope: Procedure for assessing flexibility of polymer modified bituminous thick coatings for waterproofing at low temperature.
• Test specimens: Five specimens, each 50 mm × 200 mm, prepared without reinforcement.
• Layer thickness: Wet layer is applied and levelled to achieve a dry layer of (3 ± 0.3) mm.
• Conditioning:
  • Initial conditioning of components and preparation in a standard climate of (23 ± 2) °C, 50 ± 5% RH for 24 h (ISO 554).
  • After application, specimens are stored 28 days at (23 ± 2) °C, 50 ± 5% RH; remove the foil substrate after 14 days.
• Apparatus:
  • Refrigerated box capable of regulating between -10 °C and +10 °C (minimum range); test temperature used is (0 ± 0.5) °C.
  • Mandrel (wood or steel) with 30 mm diameter per EN ISO 1519 (cylindrical bend test).
  • Foil substrate (e.g., polyethylene) and a frame or gauge for levelling the wet coating.
• Procedure:
  • Place each specimen with the mandrel in the refrigerated box for at least 1 h ± 5 min at 0 °C.
  • Bend each specimen around the mandrel inside the refrigerated box with constant speed over 3 s.
• Results:
  • Visual inspection to determine presence or absence of cracks after bending.
  • Precision data are currently not available.
• Test report must reference EN 15813 and include product identification, wet/dry layer thickness, test temperature, any deviations and test date.

Applications and users

• Practical uses:
  • Product quality control and batch verification of polymer modified bituminous waterproofing coatings.
  • Comparative performance testing during product development and R&D.
  • Compliance evidence for specifications in building envelopes, roof waterproofing and below-grade works.
• Typical users:
  • Manufacturers of PMBC and asphalt-based waterproofing systems.
  • Independent testing laboratories and certification bodies.
  • Architects, specifiers and contractors requiring low-temperature performance data.
  • Quality assurance teams in construction and infrastructure projects.

Related standards

• FprEN 15814:2011 - Definitions and requirements for polymer modified bituminous thick coatings.
• EN ISO 1519 - Paints and varnishes: Bend test (cylindrical mandrel).
• ISO 554 - Standard atmospheres for conditioning and testing.

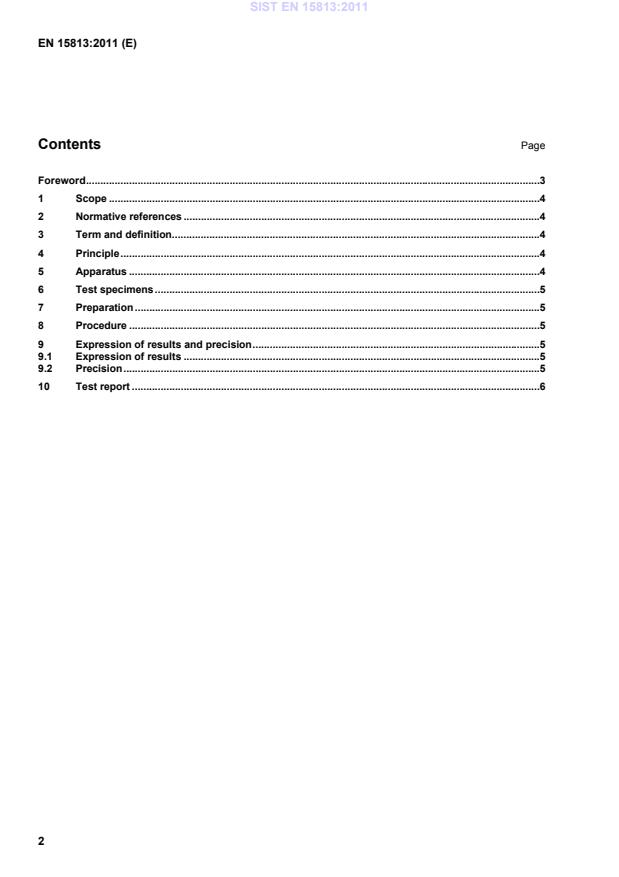

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Kunststoffmodifizierte Bitumendickbeschichtungen - Bestimmung der Flexibilität bei niedrigen TemperaturenPolymer modified bituminous thick coatings - Determination of flexibility at low temperatures91.100.50Veziva. Tesnilni materialiBinders. Sealing materialsICS:Ta slovenski standard je istoveten z:EN 15813:2011SIST EN 15813:2011en,fr,de01-junij-2011SIST EN 15813:2011SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 15813
March 2011 ICS 91.100.50 English Version
Polymer modified bituminous thick coatings for waterproofing - Determination of flexibility at low temperatures
Revêtements bitumineux épais modifiés aux polymères pour imperméabilisation - Détermination de la souplesse à basse température
Kunststoffmodifizierte Bitumendickbeschichtungen zur Bauwerksabdichtung - Bestimmung der Flexibilität bei niedrigen Temperaturen This European Standard was approved by CEN on 13 February 2011.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2011 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 15813:2011: ESIST EN 15813:2011
...
